D01451850A

MEMORY PLAYER / INTERFACE

Owner's Manual

V1.00

1 – Introduction

Thank you very much for purchasing a TASCAM MP-800U DAB MEMORY PLAYER / INTERFACE.

Before using this unit, read this Owner's Manual carefully so that you will be able to use it correctly and enjoy working with it for many years. After you have finished reading this manual, please keep it in a safe place for future reference.

You can also download this Owner’s Manual from the TASCAM website.

MP-800U DAB https://tascam.jp/int/product/mp-800u_dab/docs

Features

Playback of MP3, AAC and WAV files possible from SD cards and USB flash drives

Playback possible from smartphones, tablets and other Bluetooth® devices1

Built-in DAB/FM tuner

Computer audio can be output via USB audio

Analog outputs include pairs of XLR balanced and RCA unbalanced jacks

"Incremental play" function jumps to the beginning of the next track

"Auto cue" function searches for the beginning of sound in a track and pauses at that point

"Auto ready" function pauses at the beginning of the next track after a track plays back

"Fade-in" and "fade-out" playback functions

Pitch control playback function with +/−16% range

"Key original" function can be used to change the playback speed without changing the pitch

"Power-on-play" function can automatically start playback when the unit is turned on

External control possible using Ethernet (Telnet)2

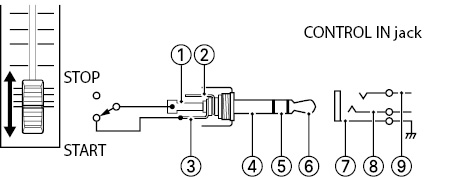

Fader start and event start supported

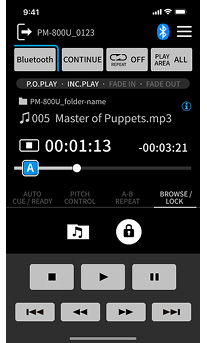

Remote control of this unit possible using an app1, 3

Unbalanced RCA connectors dedicated for tuner output

SD/USB direct track search function using number keys or a dedicated remote control

"Panel lock" function can disable controls on the unit to increase security during use

Headphone output jack enables audio monitoring

1U rackmount size

1 This requires an AK-BT2 Bluetooth® adapter (sold separately).

2 This requires an IF-E100 Ethernet control card (sold separately).

3 This Requires TASCAM MEDIA CONTROL CENTER, which is a free iOS/Android app.

Information is given about products in this manual only for the purpose of example and does not indicate any guarantees against infringements of third-party intellectual property rights and other rights related to them. TEAC Corporation will bear no responsibility for infringements on third-party intellectual property rights or their occurrence because of the use of these products.

Properties copyrighted by third parties cannot be used for any purpose other than personal enjoyment and the like without the permission of the right holders recognized by copyright law. Always use this equipment properly. TEAC Corporation will bear no responsibility for rights infringements committed by users of this product.

Trademarks and copyrights

TASCAM is a registered trademark of TEAC Corporation.

The SDXC logo is a trademark of SD-3C, LLC.

Supply of this product does not convey a license nor imply any right to distribute MPEG Layer-3 compliant content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via Internet, intranets and/or other networks), other content distribution systems (pay-audio or audio-on-demand applications and the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC Corporation is under license.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

Conventions used in this manual

We use the following conventions in this manual.

SD/SDHC/SDXC memory cards are called “SD cards”.

"USB flash drives" are sometimes called "USB drives".

The input source that is currently selected is called the “current source”.

The folder that is currently selected is called the "current folder".

Smartphones, tablets, computers and other devices connected to this unit using Bluetooth are called “Bluetooth devices”.

As necessary, additional information is provided under TIP, NOTE, ATTENTION and CAUTION headings.

TIP

These are tips about how to use the unit.

NOTE

These provide additional explanations and describe special cases.

ATTENTION

Failure to follow these instructions could result in damage to equipment or lost recording data, for example.

CAUTION

Failure to follow these instructions could result in injury.

Items included with this product

This product includes the following items.

Take care when opening the package to avoid damaging the items. Keep the box and packing materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Main unit × 1

Power cord × 1

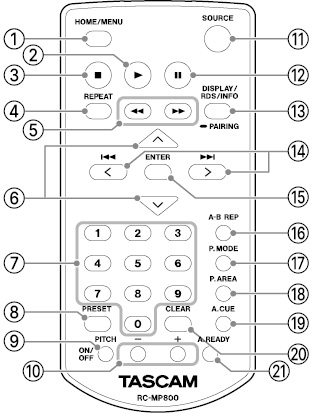

Wireless remote control (TASCAM RC-MP800) × 1

AAA batteries × 2

DAB/FM antenna × 1

Rackmounting kit

Attachment screws × 4

Washers × 4

TASCAM ID registration guide × 1

Safety guide including warranty × 1

Accessories sold separately

This product does not include the following items.

Please purchase any that you need for your uses.

SD cards and USB flash drives

USB cables (for communication or data transfer)

Bluetooth adapter (TASCAM AK-BT2)

Ethernet control card (TASCAM IF-E100)

Direct play remote (TASCAM RC-20)

SD cards and USB flash drives

This unit can use SD cards and USB flash drives for playback. Prepare one for use.

A list of SD cards and USB flash drives that have been confirmed for use with this unit can be found on the TASCAM website. Please refer to the product page for this model. You can also contact TASCAM customer support.

https://tascam.jp/int/product/mp-800u_dab/docs

Precautions for use

SD cards and USB flash drives are delicate media.

In order to avoid damaging SD cards and USB flash drives, please take the following precautions when handling them.

Do not leave them in extremely hot or cold places.

Do not leave them in extremely humid places.

Do not let them get wet.

Do not put things on top of them or twist them.

Do not hit them.

Do not remove or insert them during recording, playback, data transmission or other access.

Always put memory cards in cases when transporting them.

USB cables

A USB cable must be prepared to connect this unit to a computer (Windows/Mac) or smartphone. (We recommend a product that is USB-IF certified.)

This unit has a USB Type-C port. Prepare a USB cable suitable for the USB port of the computer or smartphone being used.

NOTE

USB cables designed only for charging cannot be used.

Audio output will not be possible from a computer that is connected to the USB FLASH DRIVE (USB Type-A) port.

Connecting to a computer with a USB Type-C port

A commercially-available Type-C to Type-C cable is necessary.

Connecting to a computer with a USB Type-A port

A commercially-available Type-A to Type-C cable is necessary.

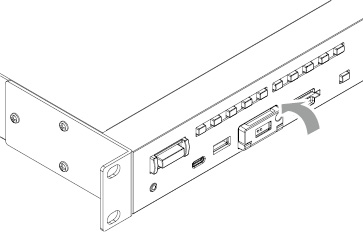

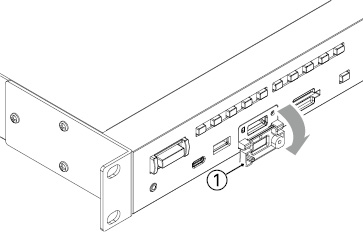

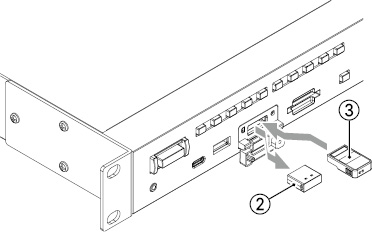

Using an AK-BT2 Bluetooth adapter

Installing an AK-BT2 in this unit makes audio playback possible from smartphones, tablets and other Bluetooth devices.

In addition, this also enables wireless remote control using the dedicated TASCAM MEDIA CONTROL CENTER application.

Using a TASCAM IF-E100 Ethernet control card

If an IF-E100 Is installed in this unit and connected to a network, Telnet commands can be used from a computer or other device on the network to control this unit remotely.

See the IF-E100 Operation Manual and the MP-800U DAB TELNET protocol specifications for details about use.

Using a TASCAM RC-20 direct play remote

If an RC-20 is connected, files on USB flash drives and SD cards can be played directly.

See the RC-20 Operation Manual and "Using the REMOTE connector" for details about use.

Precautions for placement and use

The operating temperature range of this unit is 0–40 °C.

Do not install this unit in the following types of locations. Doing so could make the sound quality worse or cause malfunction.

Locations with frequent vibrations

Near windows or other places exposed to direct sunlight

Near heaters or other extremely hot places

Extremely cold places

Very humid or poorly ventilated places

Very dusty places

Install the unit so that it is level.

To enable good heat dissipation, do not place anything on top of the unit.

Do not place the unit on top of a power amplifier or other device that generates heat.

In case of the failure of the Product caused by the tapes or other media (“Media”) you used, the repair for the failure shall not be covered by the warranty of the Product and must be done at your own expense. It is highly recommended that you shall avoid using the Media such as those not used for years or used after a long period of use or those with mold, blots, stickiness, folds, creases or twists.

TEAC shall never be responsible for any damages due to the Media including but not limited to the corruption or breakage of the Product or the Media, dragging the tapes into the Product, and/or loss of data in whole or in part that arises out of or related to the use of the Media. That is the same for any damages such as lost profit, indirect or consequential damages, and/or special damages. It is highly recommended that you shall take appropriate measures to prepare for the unexpected loss of data along with the Copyright Act of your country or region.

Notes about power supplies

Insert the included power cord all the way into the AC IN connector.

This unit can be used with AC 100–240V (50/60Hz) power supply voltage.

Hold the power cord by its plug when connecting or disconnecting it.

Beware of condensation

Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change.

To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it.

Cleaning the unit

Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration.

About TASCAM customer support service

TASCAM products are supported and warrantied only in their country/region of purchase.

To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site, search for the local company or representative for the region where you purchased the product and contact that organization.

https://teac-global.com/

When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required. Moreover, the warranty card and proof of purchase might also be necessary.

2 – Names and Functions of Parts

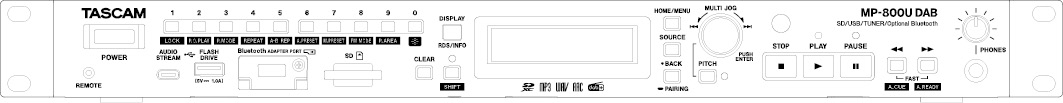

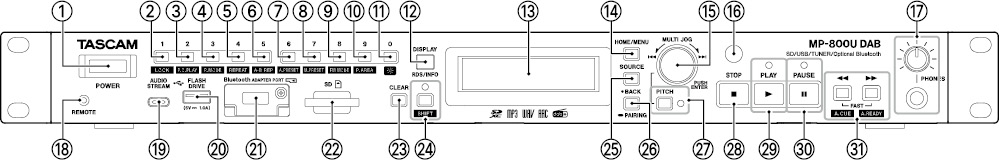

Front panel

POWER switch

This turns the unit on and off

ATTENTION

Do not turn the unit off when it is operating (including playing back).

Doing so could cause data loss and sudden loud noises from monitoring equipment, which could damage the equipment or harm hearing.

Before turning the unit on, lower the volumes of connected equipment to their minimum levels.

Failure to do so could result in a sudden loud noise that could harm hearing, for example.

1 [LOCK] button

Press this to input track number 1 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 1 when the current source is DAB or FM.

When the unit is in shift mode (SHIFT indicator lit), press this to turn on/off the panel lock function (which disables button use to prevent misoperation). (see "Panel lock functions")

NOTE

The number buttons on the unit (1 [LOCK] – 0 [ (brightness adjustment)]) can be used to specify numbers for track selection. Track numbers can have up to 3 digits. (see "Selecting tracks directly")

When in SHIFT mode (SHIFT indicator lit), pressing a number button will change the setting of the function shown in white lettering below the button.

2 [P.O.PLAY] button

Press this to input track number 2 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 2 when the current source is DAB or FM.

When in SHIFT mode (SHIFT indicator lit), press this to turn on/off the power-on-play function. (see "Using the power-on-play function")

3 [P.MODE] button

Press this to input track number 3 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 3 when the current source is DAB or FM.

When the current source is USB or SD, and shift mode is active (SHIFT indicator lit), press this to cycle through the playback modes (ordinary, single and random). (see "Playback modes")

4 [REPEAT] button

Press this to input track number 4 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 4 when the current source is DAB or FM.

When the current source is USB or SD, and shift mode is active (SHIFT indicator lit) press this to turn on/off the repeat playback function. (see "Ordinary repeat playback settings")

5 [A-B REP] button

Press this to input track number 5 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 5 when the current source is DAB or FM.

When the current source is USB or SD and shift mode is active (SHIFT indicator lit), press this to set the A-B repeat function starting (A) and ending (B) points. (see "A-B repeat playback settings")

6 [A. PRESET] button

Press this to input track number 6 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 6 when the current source is DAB or FM.

When the current source is FM and shift mode is active (SHIFT indicator lit), press this to automatically program the preset stations. (see "Setting radio station presets automatically")

7 [M.PRESET] button

Press this to input track number 7 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 7 when the current source is DAB or FM.

When the current source is DAB or FM and shift mode is active (SHIFT indicator lit), press this to manually program preset stations. (see "Setting radio station presets manually")

8 [FM MODE] button

Press this to input track number 8 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 8 when the current source is DAB or FM.

When the current source is FM and shift mode is active (SHIFT indicator lit), press this to switch between stereo and mono for FM broadcast reception. (see "Setting the FM mode")

9 [P.AREA] button

Press this to input track number 9 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 9 when the current source is DAB or FM.

When the current source is USB or SD and shift mode is active (SHIFT indicator lit), press this to set the play area. (see "Setting the playback area")

0 [ (brightness adjustment)] button

Press this to input track number 0 when the current source is USB or SD and the play area is set to "ALL". (see "Selecting tracks directly")

Press this to select preset number 0 when the current source is DAB or FM.

When the unit is in shift mode (SHIFT indicator lit), press this to adjust the display brightness. (see "Adjusting the display brightness")

DISPLAY/RDS/INFO button

Press during playback to show a variety of information. (see "Time and text information display")

Press when the current source is FM to switch the RDS mode. (see "RDS (Radio Data System)")

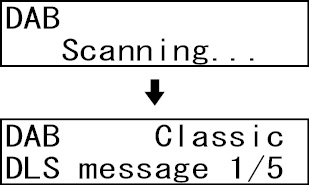

Press when the current source is DAB to switch the information mode. (see "Setting the DAB display")

Display

Displays a variety of information.

HOME/MENU button

When the Home Screen is open, press this to open the Menu Screen. (see "Menu structure") (see "Basic Menu Screen operations")

When the MENU Screen or a menu item settings screen is open, press this to return to the Home Screen.

MULTI JOG dial

This dial functions as a dial when turned and as a button when pressed.

Dial functions

When the current source is USB or SD and the play area is set to "ALL", turn the MULTI JOG dial to skip tracks. (see "Skipping to earlier and later tracks")

The operation after selection depends on the auto cue function setting. (see "Auto cue function")

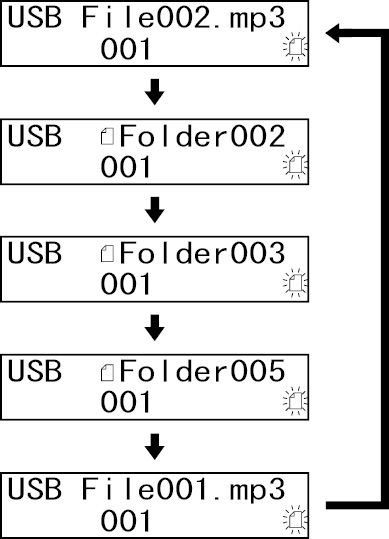

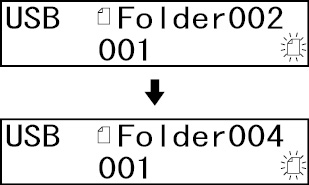

When the current source is USB or SD and the play area is folder ( icon shown), turn the MULTI JOG dial to move between tracks and folders. (see "Folder playback")

When the current source is DAB, turn the MULTI JOG dial to change the received station. (see "Listening to DAB Radio")

When the current source is DAB or FM, turn the MULTI JOG dial to change the received frequency. (see "Tuning in radio stations")

When the current source is DAB or FM and preset mode is enabled, turn the MULTI JOG dial to move to the previous or next preset number. (see "Setting radio station presets")

When the Menu Screen is open, turn to select items and change setting values. (see "Basic Menu Screen operations")

While pressing and holding the SHIFT button on the unit, turn the MULTI JOG dial to adjust the display brightness. (see "Adjusting the display brightness")

Button function

When the Menu Screen is open, press this to confirm selections and settings (ENTER button function).

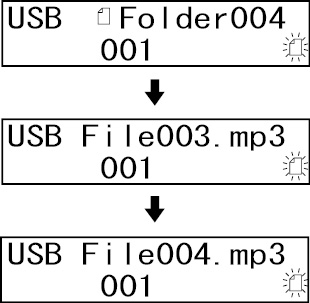

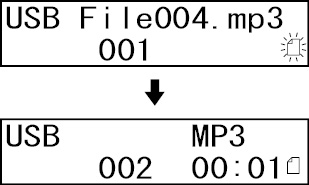

When the current source is USB or SD and the play area is folder ( icon shown), press and hold this to enable skip mode. (see "Activating skip mode")

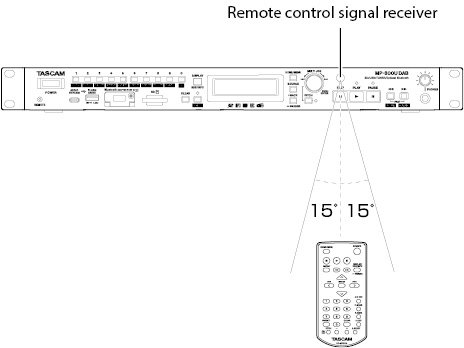

Remote control signal receiver

Signals from the remote control (TASCAM RC-MP800) are received here. When operating the remote control, point it toward this receiver.

PHONES jack/knob

Use this standard stereo jack to connect stereo headphones.

Use a commercially-available adapter to connect headphones with a mini plug.

Use the PHONES knob to adjust the headphone output level.

PHONES jack output can be lowered up to −18 dB in 1 dB intervals using the A.Out Att. setting screen. (see "Adjusting the output level")

ATTENTION

Before connecting headphones, minimize the volume with the PHONES knob. Failure to do so could result in a sudden loud noise that could harm hearing, for example.

REMOTE (2.5 mm TRS) jack

Connect a TASCAM RC-20 direct play remote control (sold separately) here. This remote control enables direct starting and stopping of playback and other functions.

USB AUDIO STREAM port

This is a Type-C USB port.

By using a commercially-available USB cable to connect this unit to a computer or another device, audio from that device can be output by this unit. (see "9 – USB audio streaming")

USB FLASH DRIVE port

This is a Type-A USB port.

Connect (and disconnect) USB flash drives here. (see "Connecting and disconnecting USB flash drives")

Bluetooth ADAPTER PORT (for connecting Bluetooth devices)

Connect a dedicated Bluetooth adapter (TASCAM AK-BT2, sold separately) here.

SD card slot

Insert SD cards in this slot. (see "Inserting and removing SD cards")

CLEAR button

When the current source is USB or SD, press this to clear values input with number buttons.

Press to close a warning message that has appeared on the Home Screen.

When the current source is DAB or FM, press and hold this to clear all preset stations. (see "Clearing preset assignments")

SHIFT button/indicator

Press this button to light the indicator and enable shift mode, which activates the shift functions of other buttons. (These functions are shown below the buttons with white letters on dark blue backgrounds.)

To deactivate the shift mode (SHIFT indicator unlit), press the SHIFT button again.

SOURCE button

This opens the Source Select Screen where the current source can be switched. (see "Selecting the playback source")

BACK [PAIRING] button

When the Menu Screen is open, press this to return to the Home Screen.

When a MENU setting screen is open, press this to go up one menu level.

When the current source is USB or SD and the play area is folder ( icon shown), press this to move up one folder level. (see "Playback area")

When the current source is BLUETOOTH, press and hold this to activate Bluetooth pairing mode. When a Bluetooth connection is active (“Connected” shown), press this to force disconnection. (see "Pairing")

PITCH button/indicator

Press this button to open the Pitch Control Screen where the pitch control function can be set.

The indicator lights when the pitch control function is turned on. (see "Pitch control function")

STOP button

Press to stop playback.

When the incremental playback function is on, press this button during playback to jump to the beginning of the next track and pause. (see "Incremental playback function")

When the current source is DAB or FM, press this to switch between frequency and preset modes. (see "Changing the received frequency")

PLAY button/indicator

Press when stopped or in playback standby to start playback.

When the incremental playback function setting is ON, press this button during playback to start playback of the next track. (see "Incremental playback function")

This indicator lights during playback.

PAUSE button/indicator

Press this when playing to pause playback.

When stopped, pressing this will pause playback at the moment when sound begins in track 1 if the auto cue function is on. If the auto cue function is off, playback will be paused at the beginning of track 1.

This indicator lights when playback is paused.

/ [FAST] [A.CUE] [A.READY] buttons

Press and hold these buttons to search backward/forward. (see "Searching backward and forward")

If the current source is USB or SD and the opposite search or button is pressed and held while searching forward or backward, this will start high-speed searching. (see "Searching backward and forward")

When the current source is FM, press these to automatically search received frequencies. (see "Changing the received frequency")

When in SHIFT mode (SHIFT indicator lit), press the button to turn on/off the auto cue function. (see "Auto cue function")

When in SHIFT mode (SHIFT indicator lit), press the button to turn on/off the auto ready function. (see "Auto ready function")

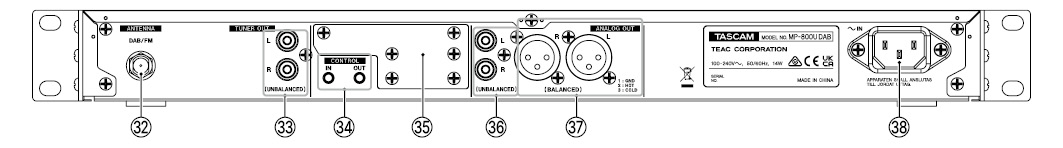

Rear panel

ANTENNA: DAB/FM connector

Connect the included DAB/FM antenna here.

Extend the antenna and attach it to a window frame, wall or other surface where it provides the best reception.

TUNER OUT jacks

These analog RCA pin output jacks always output the sound from the tuner.

The default nominal output level is –10 dBV (OFF tuner output level setting), but it can also be lowered in 1 dB increments to −28 dBV (–18 dB tuner output level setting). (see "Adjusting the output level")

CONTROL: IN/OUT jacks

These stereo mini jacks are for control input and output.

Connect switches and indicator LEDs, for example. (see "Using the CONTROL IN/OUT jacks")

Option slot

This slot is for installation of an Ethernet card (sold separately).

ANALOG OUT (UNBALANCED) L/R jacks

These are analog RCA pin output jacks.

The default nominal output level is –10 dBV (OFF analog output level setting), but it can also be lowered in 1 dB increments to −28 dBV (–18 dB analog output level setting). (see "Adjusting the output level")

ANALOG OUT (BALANCED) L/R jacks

These are balanced XLR (1: GND, 2: HOT, 3: COLD) analog output jacks.

The default nominal output level is +4 dBu (OFF analog output level setting), but it can also be lowered in 1 dB increments to −14 dBu (–18 dB analog output level setting). (see "Adjusting the output level")

AC IN connector

Connect the included power cord here.

Wireless remote control (TASCAM RC-MP800)

HOME/MENU button

This has the same function as the HOME/MENU button on the main unit.

button

This has the same function as the PLAY button on the main unit.

button

This has the same function as the STOP button on the main unit.

REPEAT button

Press this to turn the repeat playback function on/off. (see "Ordinary repeat playback settings")

/ buttons

Press and hold these buttons to search backward/forward. (see "Searching backward and forward")

When the current source is FM, press these to automatically search received frequencies for that frequency mode. (see "Changing the received frequency")

/ buttons

When the current source is USB or SD and the play area is folder ( icon shown), press the button to move up one folder level. (see "Playback area")

When the current source is DAB or FM press the or button to select a preset station.

When a Menu setting screen is open, press the button to go up one menu level.

The button has the same function as the remote control ENTER button.

Number (0–9) buttons

When the current source is USB or SD and the play area is set to "ALL", use the number buttons to select tracks by their track numbers. (see "Selecting tracks directly")

When the current source is DAB or FM, press and hold these to recall preset stations.

PRESET button

When the current source is DAB or FM, press this to manually program preset stations. (see "Setting radio station presets manually")

When the current source is FM, press and hold this to automatically program preset stations. (see "Setting radio station presets automatically")

PITCH ON/OFF button

This turns the pitch control function on/off. (see "Pitch control function")

PITCH +/− buttons

Use these to set the pitch control value. (see "Pitch control function")

SOURCE button

This has the same function as the SOURCE button on the main unit. (see "Selecting the playback source")

button

This has the same function as the PAUSE button on the main unit.

DISPLAY/RDS/INFO [PAIRING] button

Press during playback to show a variety of information. (see "Time and text information display")

When the current source is BLUETOOTH, press and hold this to activate Bluetooth pairing mode. Press when pairing to end pairing mode. (see "Pairing")

Please ignore RDS and INFO on the remote control unit. (RDS and INFO functions does not work on this unit.)

/ [/] buttons

When the current source is USB or SD and the play area is set to "ALL", use these to skip tracks. (see "Skipping to earlier and later tracks")

The operation after selection depends on the auto cue function setting. (see "Auto cue function")

When the current source is USB or SD and the play area is folder ( icon shown),use these to move between tracks and folders. (see "Playback area")

When the current source is FM, use these to change the received frequency. (see "Tuning in radio stations")

When the current source is DAB, use these to change the received service. (see "Listening to DAB Radio")

When the Menu Screen is open, use these to select items and change setting values. (see "Basic Menu Screen operations")

ENTER button

When a Menu Screen is open, press to confirm selections and settings.

A-B REP button

When the current source is USB or SD, press this to set the A-B repeat function starting (A) and ending (B) points. (see "A-B repeat playback settings")

P.MODE button

Press to cycle through the playback modes (ordinary, single and random). (see "Playback modes")

P.AREA button

When the current source is USB or SD, press this to set the play area. (see "Setting the playback area")

A.CUE button

This turns the auto cue function on and off. (see "Auto cue function")

CLEAR button

This has the same function as the CLEAR button on the main unit.

A.READY button

This turns the auto ready function on and off. (see "Auto ready function")

Home Screen

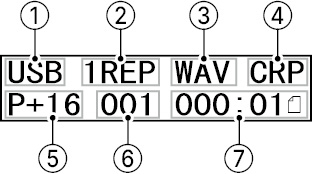

Home Screen when USB/SD selected

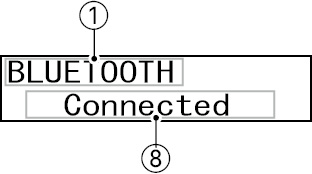

Home Screen when Bluetooth selected

Home screen when DAB selected

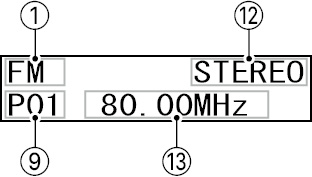

Home Screen when FM selected

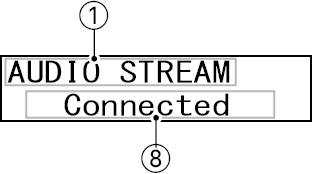

Home Screen when AUDIO STREAM selected

Current source

This shows the name of the currently selected input source. (see "Selecting the playback source")

Playback repeat status

This shows the playback mode and repeat mode. (see "Playback modes") (see "Repeat playback function")

Transport/playback file format

When the current source is USB/SD, this shows the playback file format.

Playback function setting state

The playback functions that are currently on are shown.

C: Shown when auto cue function is on

R: Shown when auto ready function is on

P: Shown when power-on-play function is on

PITCH (pitch control)

“P” is shown if the pitch control function is on and the setting is not 0.

“0” is shown if the pitch control function is on and the setting is 0.

The pitch setting value is shown if it is not 0. (see "Pitch control function")

Track number

This shows the number of the currently playing track.

Elapsed time from track beginning

This shows the elapsed time from the beginning of the current track (hours: minutes: seconds).

When stopped, “STOP” appears.

Connection status

When the current source is “BLUETOOTH”, this shows the connection status with other Bluetooth devices and other messages.

When the current source is “AUDIO STREAM”, this shows the connection status with the computer and messages.

Preset number

When the current source is DAB or FM in preset mode, this shows the preset number.

Station name

When the current source is DAB, this shows the name of the station being received.

DLS message

When the current source is DAB, this shows the DLS message.

FM mode

If the current source is “FM”, this shows whether the reception is in stereo or mono.

Indicator	Meaning
None	Stereo reception is not possible. The unit Is receiving in mono.
STEREO	The unit Is receiving in stereo.
MONO	The unit Is receiving in mono because the FM mode is set to MONO.

Frequency received

When the current source is FM, this shows the received frequency.

Menu structure

Press the main unit HOME/MENU button or remote control MENU button to open the Menu Screen.

The various menu items are as follows.

Menu item	Function	Refer
APS Setting	Automatic power saving function setting	See "Automatic power saving function setting"
A.Out Att.	Analog output attenuation function setting	See "Adjusting the output level"
Tuner Out Att.	Tuner output attenuation function setting	See "Adjusting the output level"
Resume Setting	Resume playback function setting	See "Resume playback function"
Inc. Play	Incremental playback function setting	See "Incremental playback function"
Auto Cue Level	Set the auto cue level	See "Auto cue function"
Fade-in	Fade in time setting	See "Fade-in and fade-out playback functions"
Fade-out	Fade out time setting	See "Fade-in and fade-out playback functions"
Key Original	Key original function setting	See "Key original function (changing playback speed without changing pitch)"
Tuner Out Sel.	Tuner broadcast sound output setting	See "Setting the tuner broadcast outputs"
Information	Show information about the unit	See "Checking the firmware version"
IR Remote Lock	Infrared remote control lock function setting	See "Panel lock functions"
BT Remote Lock	Bluetooth remote control lock function setting	See "Setting remote control reception"
Control I/O	Control function selection	See "Using the CONTROL IN/OUT jacks"
Network Set. (When an IF-E100 Ethernet control card (sold separately) is installed)	Network settings	See the IF-E100 Owner's Manual for details.
Factory Preset	Restore factory default settings	See "Restoring factory default settings"

NOTE

The settings for all menu items are retained even when the unit is turned off.

Basic Menu Screen operations

Operations are conducted on the Menu Screen as follows.

Selecting items (moving vertically on a page)

Turn the MULTI JOG dial on the main unit.

Use the / [/] buttons on the remote control.

Confirming selected items

Press the MULTI JOG dial on the main unit.

Press the remote control ENTER button.

Opening a submenu not shown on screen

Press the MULTI JOG dial on the main unit.

Press the remote control ENTER button.

Selecting items in submenus

Turn the MULTI JOG dial on the main unit.

Use the / [/] buttons on the remote control.

Going back one menu level

Press the main unit BACK [PAIRING] button.

Press the remote control button.

Returning directly to the Home Screen from a menu screen

Press the main unit HOME/MENU button.

Menu operation procedures

This example explains how to set the analog output attenuation function.

1.Press the main unit HOME/MENU button or remote control MENU button to open the Menu Screen.

APS Setting menu item shown

2.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to select the setting item.

A.Out Att. selected

3.Press the main unit MULTI JOG dial or remote control ENTER button to open the various setting screens.

A.Out Att. screen open

4.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to change the setting.

5.Press the main unit MULTI JOG dial or remote control ENTER button to confirm the setting and return to the Menu Screen.

6.Repeat steps 2 to 5 as necessary to set each item.

7.Press the main unit BACK [PAIRING] button or remote control button to return to the Home Screen.

3 – Preparation

Making connections

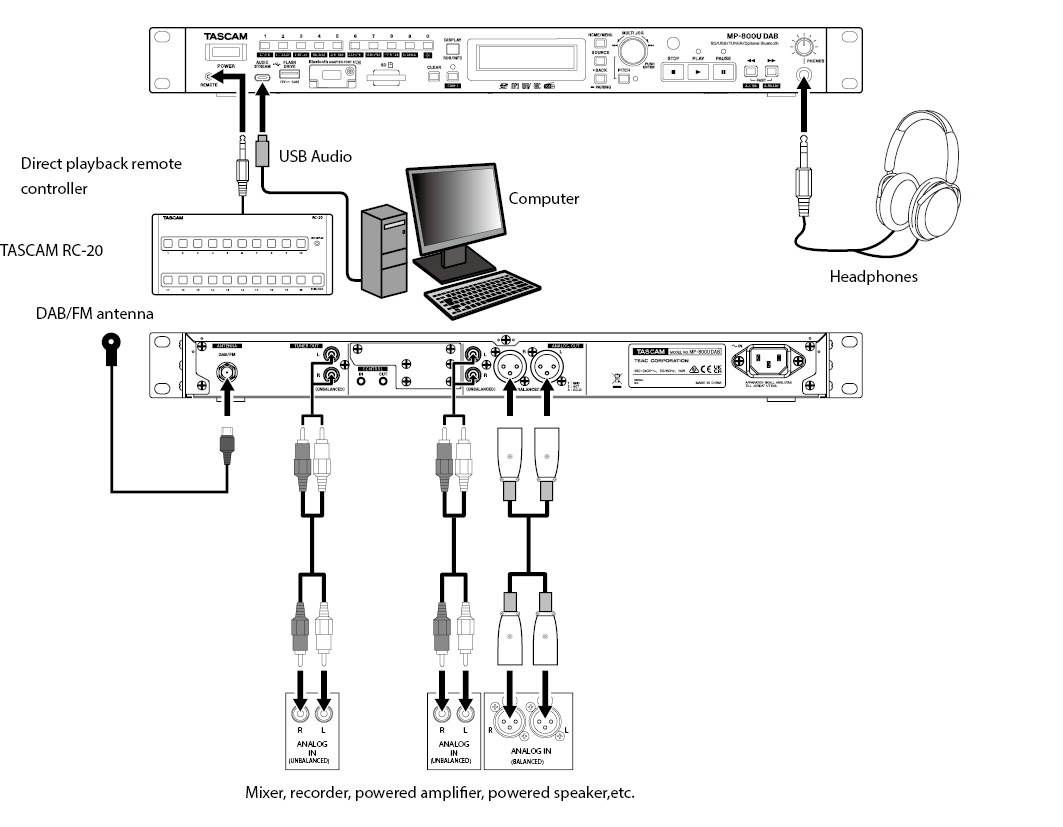

This is an example of MP-800U DAB connections.

Precautions before making connections

Carefully read the operation manuals of the devices to be connected and then connect them correctly.

Before making connections, turn this unit and all equipment to be connected off (standby).

Install all connected devices, including this unit, so that they are powered from the same line. When using a power strip or similar device, be sure to use one that has high current capacity (thick cable) in order to minimize fluctuations in power voltage.

Preparing the remote control

Installing batteries

1.Open the cover on the back.

2.Insert two AAA batteries, being certain to use the correct and orientations.

3.Close the cover.

When to replace batteries

Replace both batteries with new ones if the distance from the main unit that the remote can be used decreases or if the unit stops responding to the remote buttons.

Battery precautions

Misuse of batteries could cause them to leak or rupture, for example. Carefully read and follow the battery caution labels. (see "CAUTIONS ABOUT BATTERIES" on Safety guide)

Using the wireless remote control

See "Wireless remote control (TASCAM RC-MP800)" for the button functions.

When using the remote control, point it toward the receiver on the unit and use it within the range shown below.

Remote control operation range

From any angle within 15° of front: 5 m

ATTENTION

Remove the batteries if not using the remote control for a long time (a month or more).

It battery fluid should leak, wipe away any fluid inside the case thoroughly and install a new battery.

NOTE

Operation might not be possible if there are obstacles.

When using other devices that can be controlled by infrared rays, operation of this remote control could cause those devices to function improperly.

Installing a Bluetooth adapter (sold separately)

1.Turn off the unit.

2.Use a Phillips (+) screwdriver to remove the security screw and open the Bluetooth ADAPTER PORT () cover.

3.Remove the plug ().

4.Insert an AK-BT2 Bluetooth adapter () into the Bluetooth ADAPTER PORT. (Insert the AK-BT2 so that its connector is facing down.)

5.Close the Bluetooth ADAPTER PORT () cover.

Close cover until it clicks into place.

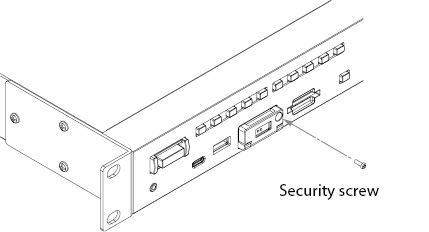

Using the security screw

You can use the security screw to lock the Bluetooth adapter port cover.

Use a Phillips (+) driver to install/remove the security screw.

Turning the unit on and off

Press the POWER switch on the front of the unit.

Startup screen

Home Screen

After the unit starts and the startup screen is shown, the Home Screen will open.

Turning the unit off

No special operations are necessary.

Press the POWER switch to turn the unit off.

ATTENTION

Do not turn the power off or disconnect the power cord when the unit is operating (including playing back). Doing so could cause, data to be lost, and sudden loud noises from monitoring equipment, which might damage the equipment, harm hearing or cause other trouble.

Adjusting the display brightness

When the unit is in shift mode (SHIFT indicator lit), press the 0 [ (brightness adjustment)] button to adjust the display and LED brightness.

The brightness will change in the following order each time this button is pressed.

Inserting and removing SD cards

Inserting SD cards

Insert an SD card into the SD card slot on the front of the unit to enable playback.

NOTE

SD cards can be inserted whether or not the unit is on or off.

Inserted SD cards with the correct orientation.

The label should be up and the connector should be inserted toward the back.

Removing SD cards

Turn the unit off or stop operation before removing an SD card.

ATTENTION

Do not remove an SD card when the unit is operating (including playing back). Doing so could cause data loss and sudden loud noises from monitoring equipment, which could damage the equipment or harm hearing.

1.Press the SD card in gently to make it to come forward.

2.Pull the SD card out by hand.

Connecting and disconnecting USB flash drives

Connecting USB flash drives

Connect a USB flash drive to the USB FLASH DRIVE port on the front of the unit to enable playback with this unit.

NOTE

You can connect a USB flash drive when the unit is on or off.

Disconnecting USB flash drives

Turn the unit off or stop operation before disconnecting a USB flash drive.

ATTENTION

Do not remove a USB flash drive when the unit is operating (including playing back). Doing so could, for example, cause data loss and sudden loud noises from monitoring equipment, which could damage the equipment or harm hearing.

Setting remote control reception

In order to prevent misoperation, the unit can be set to not accept remote control commands.

Use the IR Remote Lock and BT Remote Lock items on the Menu Screen to set whether or not the unit accepts remote control commands.

(They are set to Unlock by default.)

NOTE

If a remote control reception setting is "Lock", "IR Remote Locked" or “BT Remote Locked” will appear on the display when a remote control button is pressed.

The remote-control reception on/off setting is retained even when the unit is turned off.

Panel lock functions

When the unit is in shift mode (SHIFT indicator lit), press the 1 [LOCK] button to turn the front panel lock function on/off. This disables front panel button operations.

When the panel is locked, if a front panel button (excluding the SHIFT and 1 [LOCK] buttons) is used, "Panel Locked" will appear on the display.

NOTE

Even when the panel is locked, external control operations will still be received through the CONTROL I/O jacks on the back of the unit, from the remote control app and through the Ethernet.

External control using a remote control app requires a TASCAM AK-BT2 Bluetooth adapter (sold separately).

External control from the Ethernet requires an optional TASCAM IF-E100 card (sold separately).

Even when the panel is locked, operations can be received from the remote control. This behavior depends, however, on the IR Remote Lock item setting on the Menu Screen.

The panel lock function on/off setting is retained even when the unit is turned off.

Selecting the playback source

Use the SOURCE button on the unit or remote control to select the playback source.

1.Press the SOURCE button to open the SOURCE SELECT Screen.

2.Press the SOURCE button to select the medium to use.

Pressing the SOURCE button will cycle through the options in the following order.

Source Select Screen

Current source switching order

NOTE

Selection is also possible by turning the main unit MULTI JOG dial or using the remote / [/] buttons.

3.Press the main unit MULTI JOG dial or remote control ENTER button to confirm.

4.The name of the selected source (USB, SD, BLUETOOTH, DAB, FM or AUDIO STREAM) appears in the current media area on the Home Screen.

NOTE

If the SOURCE button is pressed when a file on a USB flash drive or SD card is playing or paused, “Now playing!” will appear on the display and the SOURCE SELECT Screen will not open. Stop playback before doing this.

When the current source is switched from BLUETOOTH or AUDIO STREAM to another input source, the previous source will not stop even if it was playing back or paused. (Listening to Bluetooth audio requires a TASCAM AK-BT2 Bluetooth adapter (sold separately).)

The playback mode setting is not cleared when the current source changes.

4 – SD/USB Playback

This chapter explains functions for playing back audio files stored on SD cards and USB flash drives.

This explanation assumes that an SD card or USB flash drive with audio files is already loaded in the unit, that the unit is on, and that the current source is set appropriately. (see "Selecting the playback source")

Files that can be played back

This unit can play back files in the following formats.

Files that can be played back	File formats
AAC	.m4a, .M4A
MP3	.mp3, .MP3
WAV	.wav, .WAV

NOTE

For information about sampling frequencies and bit rates that can be played back, see "Playback file formats" at the end of this manual. (see "Ratings")

This display of this unit can only show half-width (normal) alphabet letters and numbers (single-byte). If a file name uses Japanese, Chinese or other full-width (double-byte) characters, playback is possible but those characters will be replaced with "*" on the display.

MP3 files are recognized by the ".mp3" extension. Always add the ".mp3" extension to file names. This unit cannot play MP3 files without the “.mp3” extension. Furthermore, this unit cannot play files that have the ".mp3" extension if they are not in the MP3 data format.

WAV files are recognized by the ".wav" extension. Always add the ".wav" extension to file names. This unit cannot play WAV files without the “.wav” extension. Furthermore, this unit cannot play files that have the ".wav" extension if they are not in the WAV data format.

Media with more than 999 files or 50 folders might not play properly.

Depending on the media condition, playback might skip or not be possible.

Tracks and folders on SD cards and USB flash drives

This unit handles audio files on SD cards and USB flash drives as "tracks".

Some SD cards and USB flash drives store files in folders in the same way that ordinary computer files are handled. Some also store multiple folders within a single folder, creating a multi-level structure.

This unit assigns track numbers to audio files for management.

Track numbers are assigned in the following order.

1.Playable files in each folder are sorted in Unicode order. Folders, including empty folders and folders that do not contain playable files, are sorted in Unicode order.

2.If the root folder contains playable files, those files are assigned numbers first.

3.After all playable files in the root folder are assigned numbers, if there are lower-level folders with playable files in them, those files are assigned numbers

4.If there are more folders at an even lower level with playable files in them, those files are assigned numbers If there are no folders in the lower level, the unit searches for folders on the same level, and then assigns numbers to the files in those folders.

During ordinary playback of SD cards and USB flash drives, tracks are played in order.

Folders and files are sorted in UNICODE order.

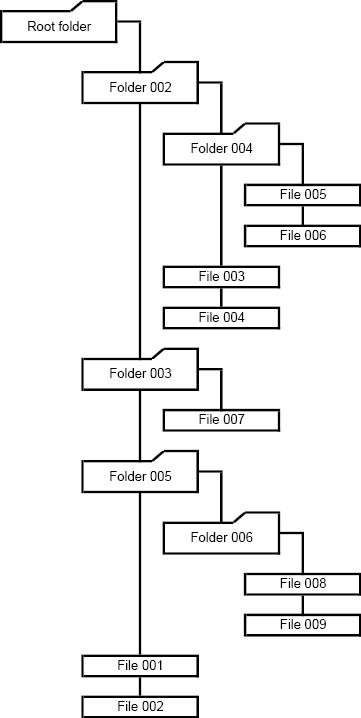

Track and folder structure example

Playback area

The range of tracks that can be selected for playback on the Home Screen is called the "playback area".

When using SD cards and USB flash drives, you can set folders as the play area.

Limiting the play area makes selection of playback tracks easier when you have numerous recorded files on an SD card or USB flash drive.

Setting the playback area

When the current source is USB or SD, press the 9 [P.AREA] button with the shift mode active (SHIFT indicator lit) or press the remote control P.AREA button to set the play area.

Play area	Folder icon	Meaning
All	Not shown	Play all the files on the medium.
Folder	Indicator	Play all the files in the folder that contains the currently selected file.

The icon appears at the right side of the Home Screen when the play area is folder.

Basic playback operations

This section explains basic playback operations, including starting, stopping and pausing.

This explanation assumes that you have already made necessary connections, turned the unit on, loaded a medium that contains audio files, selected the current source, and opened the Home Screen on the display.

Playing tracks

Press the main unit PLAY button or the remote control button to start playback.

Stopping playback

Press the main unit STOP button or remote control button.

Pausing playback

Press the main unit PAUSE button or remote control button.

Selecting tracks for playback

This is an explanation of how to select tracks if there are multiple tracks when the current source is USB or SD and the play area is "All".

The two ways to select tracks are moving (skipping) backward/forward by track number and specifying track numbers directly.

NOTE

When the current source is USB or SD and the play area is folder ( icon shown), the number buttons on the main unit and remote cannot be used to designate tracks.

Skipping to earlier and later tracks

Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to skip to the previous or next track.

During track playback, turn the main unit MULTI JOG dial counterclockwise or press the remote control [] button to return to the track beginning. When already at the beginning of a track, turn the MULTI JOG dial counterclockwise or press the remote control [] button) to skip to the beginning of the previous track.

When at the beginning or middle of a track, turn the main unit MULTI JOG dial clockwise or press the remote control [] button) to skip to the next track.

After selecting a track, press the PLAY button or remote control button to start playing it back. To pause at the beginning of the selected track, instead of pressing the main unit PLAY button or remote control button, press the main unit PAUSE button or remote control button.

The operation after selection depends on the auto cue function setting. (see "Auto cue function")

NOTE

Only tracks in the current playback area can be played back.

The track number, file name and other file information for the currently playing file appear on the display.

Turn the main unit MULTI JOG dial or use the remote control / [/] buttons as necessary to move between tracks.

Selecting tracks directly

The number buttons on the main unit and the remote control can be used to directly enter track numbers.

Track numbers can have up to 3 digits.

1.Use the number buttons on the main unit or the remote control to enter track numbers.

Enter the track number digits in order, starting with the largest.

Set with three digits.

Example 1: for track 105, input 105

Example 2: for track 4, input 004

2.Press the main unit PLAY button or remote control button.

The selected track will start to play.

Playback can also be started by pressing the main unit MULTI JOG dial or remote control ENTER button.

3.Press the main unit STOP button or remote control button to end track number input and return to the regular display.

NOTE

If you input the wrong number, you can press the CLEAR button to delete the input value.

The largest number that can be shown for the currently playing track is 999.

In random mode, the number buttons cannot be used to set tracks.

Numbers for tracks that do not exist cannot be input.

Folder playback

When the current source is USB or SD and the play area is folder ( icon shown), the selected folder (the current folder) can be set as the play area.

In the procedure explained below, you can select a track and set the folder that contains that track as the current folder.

1.Select USB or SD as the current source. (see "Selecting the playback source")

2.Set the play area to folder ( icon shown). (see "Setting the playback area")

3.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to select a track/folder.

The top line of the Home Screen shows the file or folder name, and the icon starts to blink.

NOTE

To cancel track/folder selection, press the CLEAR button on the main unit or remote control.

If a folder that does not contain any audio files is selected, “NO FILE” will be shown. At this time, if the main unit MULTI JOG dial is turned or a / [/] button is pressed, the name of the currently selected file will be shown and movement might become impossible. If this happens, press the CLEAR button on the main unit or remote control to cancel selection. Then, try again.

4.When the icon is blinking, press the main unit MULTI JOG dial or remote control ENTER button to start playback if a track is selected or to move down one level if a folder is selected.

TIP

To move down one level, select a folder and press the main unit MULTI JOG dial or remote control ENTER button.

To move up one level, press the main unit BACK [PAIRING] button or remote control button.

5.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to select a track/folder.

6.When the icon is blinking, press the main unit MULTI JOG dial or remote control ENTER button to select that track and start playback.

The folder that contains the selected track becomes the current folder.

NOTE

If repeat playback is activated during folder playback, the tracks in the current folder will be played repeatedly.

If random playback is activated during folder playback, the tracks in the current folder will be played randomly.

Activating skip mode

When the play area is folder ( icon shown), press and hold the main unit MULTI JOG dial or remote control ENTER button to activate skip mode. An "S" will appear on the Home Screen.

In this mode, turn the main unit MULTI JOG dial or use the remote control / [/] buttons to skip to earlier and later tracks that are on the same level. Tracks on the same level can also be designated directly. (see "Selecting tracks directly")

NOTE

When in skip mode, press and hold the main unit MULTI JOG dial or remote control ENTER button to make "S" disappear and return to ordinary folder mode.

Playback modes

This unit has three playback modes.

The current playback mode is shown on the Home Screen.

Continuous playback mode (default setting)

Tracks in the playback area will be played in track number order.

NOTE

When using an SD card or USB flash drive and the play area is folder ( icon shown), tracks in the currently playing folder will be played in numerical order.

Single playback mode

The selected track will be played and stop after playback.

Random playback mode

All tracks in the playback area will be played in random order regardless of track number.

NOTE

When using an SD card or USB flash drive and the play area is folder ( icon shown), tracks in the current folder will be played in random order. (see "Folder playback")

Setting the playback mode

When shift mode is active (SHIFT indicator lit), press the main unit 3 [P.MODE] button or the remote control P.MODE button to change the playback mode.

Each time you press this button, the playback mode will change.

Indicator	Playback mode
Not shown	Continuous playback mode
1	Single playback mode
RND	Random playback mode

Single playback mode active

Random playback mode active

NOTE

Unless otherwise specified, explanations in this manual assume that the playback mode is set to continuous playback mode.

The current playback mode appears on the Home Screen.

Searching backward and forward

You can search backward and forward within a track while listening to it.

1.Play or pause the desired track.

2.Press and hold the main unit / [FAST] buttons or the remote control / buttons to start searching backward/forward.

3.To stop searching, release the button you are pressing.

The state (playing or paused) before searching started will resume.

NOTE

If the end of a track is reached when searching forward, the unit skips to the next track and starts searching it from the beginning.

If the end of the last track is reached when searching forward, the unit stops.

If the beginning of a track is reached when searching backward, the unit skips to the track before it and starts searching it from the end.

If the beginning of the first track is reached when searching backward, playback pauses, but will resume when the button is released.

When searching backward/forward by pressing the / button, press and hold the other / button for the opposite direction to search at high speed. (This function only works with the main unit buttons.)

Repeat playback function

All tracks in the playback area can be played back repeatedly. Specified intervals within a track can also be played back (A-B repeat playback).

Ordinary repeat playback settings

When the repeat playback function is on, operation depends on the playback mode setting.

Playback mode setting	Function
Continuous playback mode	Repeat playback of the tracks in the set play area
Single playback mode	Repeat playback of the current track

To turn the repeat playback function on/off, activate the shift mode (SHIFT indicator lit) and press the main unit 4 [REPEAT] button or remote control REPEAT button.

"REP" appears on the Home Screen when the repeat function is on.

Continuous playback mode active

Single playback mode active

NOTE

The repeat playback setting is retained even when the unit is turned off.

The repeat playback function cannot be turned on when the random playback mode is active (RND shown on display).

A-B repeat playback settings

Specified intervals within a track can be played back (A-B repeat playback). Follow the procedures below to use A-B repeat playback.

1.Select USB or SD as the current source. (see "Selecting the playback source")

2.When playing back or when playback is paused at the point where you want the repeat playback interval to start (A), press the main unit 5 [A-B REP] button when the shift mode is activated (SHIFT indicator lit) or press the remote control A-B REP button.

"A-" appears on the Home Screen.

3.At the point where you want the repeat playback interval to stop (B), press the main unit 5 [A-B REP] button when the shift mode is activated (SHIFT indicator lit) or press the remote control A-B REP button.

"A-B" appears on the Home Screen.

This confirms the set interval (A-B) and starts A-B repeat playback.

NOTE

Press the main unit STOP button or remote control button to stop the unit and clear the set A-B repeat interval. Changing the track or the current source will also clear the repeat interval.

The A-B repeat playback interval cannot include more than one track.

The A-B repeat setting is not retained when the unit is turned off.

Auto cue function

If the auto cue function is on, when a track is selected, the unit will skip any silence at the beginning of the track and pause at the point where sound actually starts. As a result, sound will be output immediately after playback starts.

NOTE

When the auto cue function is on, operation will be as follows.

If a track is selected by directly entering its number with the unit or the remote, it will start playing from the point where sound starts.

Tracks will also start playing from the point where sound starts if a TASCAM RC-20 is used to directly play files.

If a track is selected during playback or when paused, playback will pause at the point where sound starts.

After selecting a track when stopped, pressing the main unit PLAY button or remote control button will start playing that track normally from its beginning.

Pressing the main unit MULTI JOG dial or remote control ENTER button will also start normal playback.

After selecting a track when stopped, pressing the main unit PAUSE button or remote control button will pause at the point where sound starts.

The threshold level (auto cue level) for audio signal detection used by the auto cue function can be set. The unit will treat signals above the auto cue level as sound and signals below the auto cue level as silence.

To turn the auto cue function on/off, activate the shift mode (SHIFT indicator lit) on the main unit and press the [FAST] [A.CUE] button or remote control A.CUE button.

"C" appears at the top right of the Home Screen when the auto cue function is on.

Setting the auto cue level

1.Select the Auto Cue Level item on the Menu Screen to open the Auto Cue Level Screen. (see "Menu operation procedures")

2.Set the auto cue level.

Options:

−24dB, −30dB, −36dB,−42dB, −48dB, −54dB (default), −60dB, −66dB, −72dB

The point in the selected track when the signal first exceeds the auto cue level will be identified as the cue point.

3.Confirm the setting and return to the Menu Screen.

NOTE

The auto cue level setting is retained when the unit is turned off.

Auto ready function

If the auto ready function is on, after playback of a track completes, playback will pause at the beginning of the next track.

NOTE

If the auto cue function is also on, playback will pause at the point where sound starts rather than the beginning of the track.

To turn the auto ready function on/off, activate the shift mode (SHIFT indicator lit) on the main unit and press the [FAST] [A.READY] button or remote control A.READY button.

"R" appears at the top right of the Home Screen when the auto ready function is on.

NOTE

The auto ready function on/off setting is retained when the unit is turned off.

Pitch control function

This function can change the pitch (sound frequency and playback speed) of playback.

Follow the procedures below to use pitch control.

1.Press the PITCH button.

This opens the Pitch Control Screen.

2.Turn the main unit MULTI JOG dial (or use the remote control PITCH + and − buttons) to set the pitch.

Setting range: −16% – +16% (1% increments)

3.Press the main unit PITCH button (or remote control PITCH ON/OFF button) to turn on/off the pitch control playback function.

4.Press the PITCH button to return to the Home Screen.

The PITCH indicator lights and "P" appears at the bottom left of the Home Screen when the pitch control function is on.

When the pitch setting value is 0, “0” will be shown instead of “P”.

NOTE

Using the remote control, the pitch control function can be turned on/off and its value set without opening the Pitch Control Screen.

Key original function (changing playback speed without changing pitch)

When the playback speed is changed using the pitch control function, normally the pitch changes along with the speed.

When the key original function is on, the pitch will not change when the playback speed is changed.

Use the menu to turn the key original function on/off.

1.Select the Key Original item on the Menu Screen to open the Key Original Screen. (see "Menu operation procedures")

2.Turn the key original function on/off.

Options: OFF, ON (default)

3.Confirm the setting and return to the Menu Screen.

NOTE

The key original function on/off setting is retained when the unit is turned off.

Fade-in and fade-out playback functions

When playing files on SD cards and USB flash drives, playback can fade in at the start and fade out before stopping or pausing.

The fade in and fade out times can be set in seconds separately.

Setting the fade in time

1.Select the Fade In item on the Menu Screen to open the Fade In Screen. (see "Menu operation procedures")

2.Set the fade in time.

Options: OFF (default), 0.5 – 10 seconds (in 0.5-second increments)

3.Confirm the setting and return to the Menu Screen.

NOTE

The fade in time is retained when the unit is turned off.

Setting the fade out time

1.Select the Fade Out item on the Menu Screen to open the Fade Out Screen. (see "Menu operation procedures")

2.Set the fade out time.

Options: OFF (default), 0.5 – 10 seconds (in 0.5-second increments)

3.Confirm the setting and return to the Menu Screen.

NOTE

The fade out time is retained when the unit is turned off.

Using the power-on-play function

By using a commercially-available timer, for example, to turn this unit on, you can make it start playing at a desired time.

1.Connect the unit to the timer so that it receives power from the timer power output in advance.

2.Select the current source for playback. (see "Selecting the playback source")

3.Press the main unit 2 [P.O.PLAY] button when shift mode is active (SHIFT indicator lit) to turn the power-on-play function on. (Default: off)

4.With this unit's POWER switch set to on, turn the power off from the timer, and set the timer to turn on at the desired time.

The power will turn on at the desired time, and the unit will automatically start playback.

NOTE

The P icon appears on the Home Screen when the power-on-play function is on.

The power-on-play function on/off setting is retained even when the unit is turned off.

Resume playback function

When the resume playback function is on, playback can restart from the point where it was last stopped (resume point).

The following actions will clear the resume point.

The medium is ejected

The playback area is changed

The unit is turned off when the playback area is set to folder ( icon shown)

The playback mode is set to random

Use the menu to turn the resume playback function on/off.

1.Select the Resume Setting item on the Menu Screen to open the Resume Setting Screen. (see "Menu operation procedures")

2.Turn the resume playback function on or off.

Options: OFF, ON (default)

3.Confirm the setting and return to the Menu Screen.

NOTE

If there is no resume point (no time has been set as the resume point), the beginning of the playback track will become the resume point.

The resume playback function on/off setting is retained even when the unit is turned off.

Incremental playback function

When the incremental playback function is on, press the main unit PLAY button or remote control button during playback to start playback from the beginning of the next track. Press the main unit STOP button or remote control button during playback to pause at the beginning of the next track.

1.Select the Inc. Play item on the Menu Screen to open the Inc. Play Screen. (see "Menu operation procedures")

2.Turn the incremental playback function on or off.

Options: OFF (default), ON

3.Confirm the setting and return to the Menu Screen.

NOTE

When the incremental playback function is on and playback is paused, press the main unit PLAY button or remote control button to start playback from where it is paused.

When playback is paused, press the main unit STOP button or remote control button to stop playback. When the last track is playing back, press the main unit PLAY button or remote control button to start playback from the beginning of the first track in the play area. Press the main unit STOP button or remote control button to pause at the first track in the play area.

The incremental play function on/off setting is retained even when the unit is turned off.

Time and text information display

When the current source is USB or SD, press the main unit DISPLAY button or remote control DISPLAY/RDS/INFO [PAIRING] button to select the time or text information shown on the Home Screen.

Press the main unit DISPLAY button or remote control DISPLAY/RDS/INFO [PAIRING] button to cycle through the types of information shown.

The types of information shown change according to the type and status of the media set as the current source as well as the unit operation status.

When playing back, paused or stopped, you can cycle through what is displayed: track elapsed time file name of current track title of current track name of current track artist name of current track album folder name.

Indicator	Meaning
Not shown	Track elapsed time
“–” to left of time	Track remaining time
FILE	File name of current track
TITLE	Title of current track
ARTIST	Name of current track artist
ALBUM	Name of current track album
FOLDER	Folder name

NOTE

MP3 ID3 tag data can be used for the text information shown on the display. WAV and AAC tag data cannot be shown.

If this is information is not stored with the file, nothing will appear after TITLE: and ARTIST:.

If characters that cannot be displayed are included in the data, they will be replaced with "*".

The content displayed is set to “Not shown” when the unit is turned off.

On SD cards and USB flash drives written by Mac computers, the numbers of tracks in folders and the track numbers might not match. This is an existing problem in Mac system files, but it does not affect playback by this unit.

“999:59” will continue to be shown if the elapsed track time exceeds this time.

5 – Bluetooth device playback

Connecting an AK-BT2 Bluetooth adapter (sold separately) to the Bluetooth device port on this unit enables playback of audio from smartphones, tablets, computers and other Bluetooth devices.

If the Bluetooth device supports AVRCP, the PLAY button and other controls on this unit can be used to control playback on the Bluetooth device.

Install the AK-BT2 Bluetooth adapter beforehand, referring to "Installing a Bluetooth adapter (sold separately)".

Pairing

Follow the procedures below to enable communication with a Bluetooth device.

NOTE

Pairing also requires operation of the Bluetooth device.

Refer to the operation manual of the Bluetooth device for procedures.

1.Select BLUETOOTH as the current source. (see "Selecting the playback source")

At this time, confirm that “No Connection” is shown.

If “No Device” is shown, an AK-BT2 Bluetooth adapter is not installed or has not been recognized properly. Correctly insert an AK-BT2 into the Bluetooth ADAPTER PORT.

If “Need AK-BT2” is shown, an AK-BT1 Bluetooth adapter, which is not compatible with audio output, is installed. Correctly insert an AK-BT2 Bluetooth adapter into the Bluetooth ADAPTER PORT.

2.Press and hold the main unit BACK [PAIRING] button or remote control DISPLAY/RDS/INFO [PAIRING] button.

A "PAIRING" message will blink on the display.

3.Enable Bluetooth transmission on the other Bluetooth device.

4.Select this unit (MP800U_----1) on the other Bluetooth device.

When pairing succeeds, this unit and that device will be connected and "Connected" will appear on the Home Screen.

NOTE

Simultaneous connection with another device is not possible. Use one-to-one connection.

This unit will be shown with the name “MP800U_----” on the other Bluetooth device. “----” is a 4-digit hexadecimal number that is different for each unit.

This makes it possible to identify units.

In addition, the name of this unit can be changed using the functions of iOS, iPadOS and Android devices.2 However, this changed name will only be used on that iOS, iPadOS or Android device. Be aware that this will not change the name shown on other Bluetooth devices.

Some older Bluetooth devices require the input of a passkey. Enter "0000" in such cases.

Pairing will automatically end if connection is not confirmed within two minutes.

When this unit is turned on, it will automatically try to connect with the Bluetooth device to which it was previously connected. At this time, pairing will automatically end after five minutes if connection is not possible because that Bluetooth device is not turned on or its Bluetooth function is turned off.

1 “----” is a 4-digit hexadecimal number

2 Check the operation procedures for the name changing functions of each device.

Usable controls

Controls on the main unit and included wireless remote control (TASCAM RC-MP800) can be used to control the connected Bluetooth device if it supports AVRCP.

Main unit	Remote control	Function
PLAY button	button	Playback
PAUSE button	button	Pause
STOP button	button	Stop (or pause with some playback apps)
Turn MULTI JOG dial	/ [/] button	Selects tracks
/ [FAST] buttons	/ buttons	Searching backward and forward

NOTE

Operation might not occur properly depending on the connected Bluetooth device.

Playback from Bluetooth devices

After pairing with the other Bluetooth device in advance, follow the procedures below for playback from it.

1.Select BLUETOOTH as the current source. (see "Selecting the playback source")

2.Connect to "MP800U_----" (this unit) on the other Bluetooth device.

"Connected" appears on the Home Screen when connection completes.

Controls on the main unit and included wireless remote control (TASCAM RC-MP800) can be used to control the connected Bluetooth device, and this unit can output the playback sound from the Bluetooth device.

Unpairing

The Bluetooth device that is currently connected can be unpaired from the unit.

1.Select BLUETOOTH as the current source. (see "Selecting the playback source")

2.Press and hold the main unit BACK [PAIRING] button or remote control DISPLAY/RDS/INFO [PAIRING] button.

A "Disconnect?" message will appear on the display.

3.Press the main unit MULTI JOG dial or remote control ENTER button to unpair the device.

Press the main unit or remote control CLEAR button to cancel pairing.

4.After unpairing, the pairing operation will start.

6 – Remote control functions

By connecting an AK-BT2 Bluetooth adapter (sold separately) to the Bluetooth device connector of this unit, the TASCAM MEDIA CONTROL CENTER app can be used on an iOS/iPadOS/Android device to control this unit.

Connection operations are not guaranteed with all devices that support Bluetooth. TEAC CORPORATION will bear no responsibility should any data loss occur when using Bluetooth functions.

NOTE

Install the AK-BT2 Bluetooth adapter beforehand, referring to "Installing a Bluetooth adapter (sold separately)".

The unobstructed transmission distance of the AK-BT2 Bluetooth adapter is about 10 m.

(The transmission distance is only an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.)

Installing the dedicated control app

1.Connect the device to the Internet.

2.Search for “TASCAM MEDIA CONTROL CENTER” on Google Play for an Android device or on the App Store for an iOS device. Then, download and install it.

Please be aware that you are responsible for any transmission costs related to Internet connection.

Connecting with the dedicated control app

1.Enable Bluetooth connection on the smartphone or tablet.

2.Use the smartphone or tablet to launch TASCAM MEDIA CONTROL CENTER.

		Bluetooth device screen

If the unit is not turned on, turn it on.

NOTE

When using an Android device, set Location to “On”, and set “Location permission” for TASCAM MEDIA CONTROL CENTER to “Allow” or “Allow only while in use”.

See the TASCAM MEDIA CONTROL CENTER operation manual for details about using the control app.

Password setting

Set the password (default: None).

Input up to 11 characters, using only numbers.

1.Select BT Password on the Menu screen to open the BT Password screen.

2.Use the number buttons on the main unit or the remote control to input the password.

The blinking character shows the cursor (editing point) where a number can be input.

Turn the MULTI JOG dial or press the / [/] remote control buttons to move the cursor.

3.Press the main unit MULTI JOG dial or remote control ENTER button to confirm the setting and return to the Menu screen.

NOTE

The Password setting is retained even when the unit is turned off.

Press the CLEAR button to delete characters. All the numbers to the right of the cursor (editing point) will be deleted.

Press the BACK [PAIRING] button to return to the Menu screen without changing the setting.

7 – Using DAB tuner

8 – Listening to FM radio

This unit can be used to listen to FM radio.

The following instructions assume that the current source has been set to "FM". (see "Selecting the playback source")

Tuning in radio stations

Changing the received frequency

Changing the frequency

Press the main unit STOP or remote control button to switch between frequency selection mode (preset numbers not shown) and preset mode (preset numbers shown).

When in preset mode, "PXX" appears on the Home Screen.

Raising the received frequency

When in frequency selection mode, turn the main unit MULTI JOG dial clockwise or use the remote control [] button to raise the received frequency by one step.

When in frequency selection mode, press the main unit [FAST] button or remote control button to automatically search for received frequencies in the higher direction.

Lowering the received frequency

When in frequency selection mode, turn the main unit MULTI JOG dial clockwise or use the remote control [] button to lowers the received frequency by one step.

When in frequency selection mode, press the main unit [FAST] button or remote control button to automatically search for received frequencies in the lower direction.

Setting the FM mode

Activate shift mode (SHIFT indicator lit) and press the main unit 8 [FM MODE] button, or press the remote control FM MODE button to switch between stereo and mono reception.

STEREO (stereo, default)

The unit will receive stereo FM broadcasts in stereo.

If reception is poor, switch to MONO (mono) reception.

MONO (mono)

The unit will receive FM broadcasts in mono. When the reception of an FM stereo broadcast is poor, select this mode. The sound becomes mono, but noise is also reduced, making it sound better.

NOTE

Mono reception mode will automatically be disabled when the received frequency is changed.

When stereo reception is not possible, reception will occur in mono. In this case, however, neither STEREO nor MONO will be shown.

Setting radio station presets

This unit can save up to 20 stations as presets.

NOTE

Unless the preset memory is cleared, preset radio stations will be retained even when the unit is turned off. (see "Clearing preset assignments")

Setting radio station presets automatically

1.Select the current source for the presets (FM). (see "Selecting the playback source")

2.Press the main unit 6 [A.PRESET] button when shift mode is active (SHIFT indicator lit) or press and hold the remote control PRESET button.

The following message will appear on the Home Screen.

3.Press the main unit MULTI JOG dial or remote control ENTER button to start automatically setting presets.

The unit will automatically search for radio stations and set them in order, starting with preset 01 (P01). The unit will stop automatically adding presets when 20 have been added or the reception frequency range has been searched completely.

Setting radio station presets manually

1.Select the current source for the presets (FM). (see "Selecting the playback source")

2.Tune in the station that you want to add as a preset. (see "Changing the received frequency")

3.Press the main unit 7 [M.PRESET] button when shift mode is active (SHIFT indicator lit) or press the remote control PRESET button.

"P01" will blink at the top of the Home Screen.

NOTE

The blinking "P01" will disappear after some time passes.

When an * is shown, that preset number already has a set station.

4.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to select the preset number to assign.

5.Press the main unit MULTI JOG dial or remote control ENTER button to confirm the preset.

Selecting preset stations

When in preset mode, turn the main unit MULTI JOG dial or use the remote control and buttons to select a preset station.

You can also use the main unit or remote control number buttons to directly enter a preset number, and press the ENTER button to select that station.

Clearing preset assignments

1.Select the current source for the preset to be cleared (FM). (see "Selecting the playback source")

2.Press and hold the main unit or remote control CLEAR button.

The following message will appear on the Home Screen.

Before clearing FM station presets

3.Press the main unit MULTI JOG dial or remote control ENTER button.

After all preset assignments for the current source have been cleared, the Home Screen reopens.

NOTE

Press the main unit or remote control CLEAR button to cancel the operation and return to the Home Screen.

Setting the tuner broadcast outputs

You can set whether tuner broadcast signals are output from the TUNER OUT jacks only or from all the main unit jacks (TUNER OUT, ANALOG OUT and PHONES jacks).

1.Select the Tuner Out Sel. item on the Menu screen to open the Tuner Out Sel. screen. (see "Menu operation procedures")

2.Set the outputs for sounds from the tuner.

Options	Meaning
TUNER OUT	Tuner broadcasts sounds are output only from the TUNER OUT jacks.
ALL (default)	Tuner broadcast signals are output from all the main unit jacks (TUNER OUT, ANALOG OUT and PHONES jacks).

3.Confirm the setting and return to the Menu Screen.

NOTE

The tuner audio output setting is retained even when the unit is turned off.

RDS (Radio Data System)

The Radio Data System (RDS) is a broadcasting service that allows stations to send additional information along with the regular radio program signal.

RDS works on the FM frequency band in Europe only.

1.Tune in to an FM RDS station. (see "Tuning in radio stations")

2.Press the main unit DISPLAY/RDS/INFO button or remote control DISPLAY/RDS/INFO [PAIRING] button to cycle through the following RDS modes.

Program service (PS)

When you select Program service, PS will appear to the right of FM and then the program service name or station's name will be displayed. If there is no program service data, the frequency will be displayed.

RDS Program type (PTY)

When you select RDS Program type, PTY will appear to the right of FM and then the program type will be displayed.

RDS Radio text (RT)

When you select RDS Radio text, RT will appear to the right of FM and then information from the station consisting of up to 64 characters will be displayed.

PTY search

You can search for stations by program type. This function is available only through the RDS services of FM frequency stations in Europe.

1.Press the main unit 5 [A-B REP] button when shift mode is active (SHIFT indicator lit) or press the remote control A-B REP button.

PTY SEARCH appears on the display.

2.Turn the main unit MULTI JOG dial or use the remote control / [/] buttons to select the desired program.

You can select from 31 program types (PTY).

3.Press the main unit MULTI JOG dial or remote control ENTER button to confirm the selection.

The unit starts searching.

When the program type that you have selected is found, searching stops and the program type will be displayed.

If a matching program type is not found during PTY Search, it will stop at the frequency set before searching started.

To stop searching, press the main unit 5 [A-B REP] button when shift mode is active (SHIFT indicator lit) or press the remote control A-B REP button.

RDS Program type

NEWS:

Brief announcements, events, public opinion, reports and real situations.

AFFAIRS:

Suggestions, including practical announcements other than news, documents, discussion and analysis.

INFO:

Useful and reference information, such as weather forecasts, consumer guides and medical advice.

SPORT:

Sports-related programs.

EDUCATE:

Educational and cultural information.

DRAMA:

All kinds of radio concerts and serial dramas.

CULTURE:

All aspects of national or local culture, including religious events, philosophy, social science, language and theatre.

SCIENCE:

Programs on natural science and technology.

VARIED:

Popular programs such as quizzes, entertainment news, interviews, comedy and satire.

POP M:

Programs of commercial and popular songs, including music sales volumes, etc.

ROCK M:

Modern music generally composed and played by young musicians.

EASY M:

Popular music usually lasting for less than 5 minutes.

LIGHT M:

Classical music, instrumental music, chorus, and light music favored by general audiences.

CLASSICS:

Orchestral music including great operas and symphonies,

chamber music and so on.

OTHER M:

Other music styles, including rhythm & blues and reggae.

WEATHER:

Weather reports and forecasts.

FINANCE:

Financial reports, commerce and trading.

CHILDREN:

Children’s programs.

SOCIAL:

Social affairs.

RELIGION:

Religious programs.

PHONE IN:

Programs in which the public expresses its views by phone.

TRAVEL:

Travel reports.

LEISURE:

Programs concerning recreational activities.

JAZZ:

Jazz music.

COUNTRY:

Country music.

NATION M:

National music.

OLDIES:

Music from the so-called golden age of popular music.

FOLK M:

Folk music.

DOCUMENT:

Documentaries.

TEST:

Broadcast when testing emergency broadcast equipment or receivers. Not intended for searching or dynamic switching for consumer receivers.

ALARM!:

A program with notifications about emergencies and natural disasters.

9 – USB audio streaming

USB audio can be output from this unit by connecting it to a computer using a USB cable.

ATTENTION

The unit should be connected directly to the computer, not through a USB hub.

NOTE

Audio played by this unit cannot be sent to the computer.

Connecting a computer

Select a USB cable to connect this unit to the computer that suits the computer and OS being used. Connect this unit to a USB 2.0 or USB 3.0 port on the computer.

A USB cable must be prepared to connect this unit to a computer (Windows/Mac) or smartphone. (see "USB cables")

We recommend turning this unit off before connecting or disconnecting USB cables.

Outputting audio played back on a computer from this device

1.Turn the computer on.

Confirm that the operating system has started up normally.

2.Set the POWER switch to ON.

3.Select AUDIO STREAM as the current source. (see "Selecting the playback source")

4.Start playback of an audio file on the computer.

To use headphones with this unit, after connecting them, turn the PHONES knob counterclockwise to minimize the volume before putting them on. Then, gradually raise the volume.

This unit cannot be controlled from the computer, nor can it control the computer.

When playing an audio file over a USB connection, do not do the following. Doing these operations could cause the computer to malfunction. Always quit music playback software before doing these operations.

Disconnect the USB cable

Put this unit into standby or turn it off

Change the input of this unit

If you connect this unit to the computer or set its current input source to “AUDIO STREAM” after launching music playback software, music files might not play back properly. If this happens, restart the music playback software or restart the computer.

10 – Other functions

11 – Troubleshooting

If you are having trouble with the operation of this unit, please try the following before seeking repair.

If these measures do not solve the problem, please contact the store where you purchased this unit or TASCAM customer support service.

The unit will not turn on

Confirm that the power plug and other connectors are inserted completely.

Media are not recognized

Confirm that the SD card or USB flash drive is inserted securely.

Stop playback or recording once.

The unit does not function

Confirm that the lock function is not on.

The remote control (TASCAM RC-MP800) does not function

Is the remote control reception setting set to "Lock"?

Confirm that a battery is installed and has not died.

Playback is not possible

If a WAV file will not play, confirm that it uses a sampling frequency (44.1/48 kHz) and a bit depth (16/24-bit) that are supported by this unit.

If you are trying to play an MP3 file, confirm that it uses a sampling frequency (44.1/48 kHz) and a bit rate (32–320 kbps or VBR) that are supported by this unit.

All the tracks on an SD card or USB flash drive cannot be played back

Confirm that it is not in folder playback mode.

No sound is output

Check connections with the monitoring system again. Check the volume of the amplifier as well.

There is noise

Confirm that the connection cables do not have contact issues.

Nothing appears on the display or it is dim

Confirm that the display brightness setting is not set to dim. (see "Adjusting the display brightness")

Sound breaks up or is noisy

Are there any wireless LAN devices, other Bluetooth devices, microwave ovens or similar equipment nearby?

Keep such devices as far away as possible during use.

Try reducing the distance between this unit and the other Bluetooth device. Try changing the positions of this unit and the other Bluetooth device.

The operation of apps other than for music playback on the smartphone could cause the sound to break up. In this case, stop operation of apps other than the one used for music playback.

The processing load on the computer could cause sound to break up and noise to occur. Reduce the load on the computer.

Cannot connect or communication is interrupted

Confirm that the other Bluetooth device power is on and that its Bluetooth function is on.

Confirm that the other Bluetooth device is not too far away.

Are there walls or other obstacles, for example, between this unit and the other Bluetooth device?

The body of this unit itself could interrupt transmission if the other Bluetooth device is behind it.

Try changing the positions of this unit and the other Bluetooth device.

Try turning this unit's power off and on again.

Remove the "MP800U_----" pairing record from the other Bluetooth device, and try pairing the unit with that Bluetooth device again.

Cannot pair with another device

Confirm that the other Bluetooth device supports A2DP and AVRCP.

Confirm that the other Bluetooth device is in a state that allows transmission. For details, check the operation manual of that Bluetooth device.

Turn the power off for both this unit and the other Bluetooth device once, turn them both on again and try pairing them.

Turn off Bluetooth devices other than the one that you are trying to pair with.

Remove the "MP800U_----" pairing record from the other Bluetooth device, and try pairing the unit with that Bluetooth device again.

Cannot receive radio or reception is poor

Select a broadcast station.

If reception is poor, try repositioning the antenna.

If a TV is near the unit, turn the TV off.

Reception conditions are poor in reinforced concrete buildings, basements and similar locations. Place this unit and its antenna near a window facing outside the building, for example.

Stereo FM broadcasts become mono

Confirm that the FM mode is not set to mono reception.

The unit is connected, but the computer does not recognize it

This unit cannot be used with USB 1.1. Use a port that supports at least USB 2.0 or USB 3.0.

Do not use a USB hub with this unit. Always connect the unit directly to a USB port on the computer.

If the above methods do not resolve the problem, connect the unit to a different USB port on the computer.

No sound is output from this unit when playing back from the computer

Check the status of the unit's connection with the computer.

Moreover, if the following settings are made, sound will be output through this unit, but no sound will be output by the computer’s speakers or headphone jack.

When using Windows

1.Open the Sound settings screen using the procedures for the OS being used.

2.On the “Playback” page, right-click “MP-800U DAB”, and click “Set as Default Device” in the pop-up menu that appears.

At this time, the green check mark () will move next to the selected device.

3.When done setting, click the “OK” button.

4.Start an audio application and play an audio file.

If the setting was changed while the audio application was running, it will not recognize that the device has been changed. In this case, restart the audio application.

If you still cannot hear sound after making the settings and completing the procedures above, restart the computer.

When using macOS

1.Quit all applications and open “System Preferences…” from the Apple menu.

2.Open “Sound”.

3.On the Output tab, select “MP-800U DAB”.

After completing the above setting, restart the computer and check the sound of playback. Depending on the application that you are using, you might need to make additional device settings.

Please see the manuals for the applications that you are using for detailed setting procedures.

Operations sometimes becomes unstable

When using Windows, the power management settings could cause operation to become unstable.

In this case, try the following.

1.Open the Control Panel using the procedures for the OS being used.

2.Click “Hardware and Sound”.

3.Click “Power Options”.

4.Select “High Performance” from the “Power Options”.

NOTE

If an item is not shown, select the “Show Additional Plans“ downward triangular button. Alternatively, click “Create a power plan”.

12 – Specifications

Ratings

Supported media

SD cards (512 MB – 2 GB)

SDHC cards (4 GB – 32 GB)

SDXC cards (64 GB – 512 GB)

USB flash drives (512 MB – 512 GB)

Media must be formatted as FAT16, FAT32 or exFAT.

Playback file formats

WAV: 44.1/48 kHz, 16/24 bit (LPCM)

MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kbps, VBR

AAC: 44.1/48 kHz, 32–320 kbps, VBR (MPEG4 AAC-LC (audio stream), DRM not supported)

Maximum file size: 4 GB

Maximum number of files: 999 (including folders)

Maximum number of folder levels: 16 (The full path, including the file name, must not exceed 260 characters.)

Number of channels

2 channels (stereo)

1 channel (mono)

Inputs and outputs

Analog audio output ratings

ANALOG OUTPUT (BALANCED) jacks

Connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Rated output level: +4 dBu (1.23 Vrms, when analog output level setting OFF)

Maximum output level (switchable): +20 dBu (7.75 Vrms, when analog output level setting OFF)

Output impedance: 100 Ω

ANALOG OUTPUT (UNBALANCED) jacks

Connectors: RCA pin jacks

Rated output level: −10 dBV (0.316 Vrms, when analog output level setting OFF)

Maximum output level (switchable): +6 dBV (2.0 Vrms, when analog output level setting OFF)

Output impedance: 210 Ω

TUNER OUTPUTS (UNBALANCED) jacks

Connectors: RCA pin jacks

Rated output level: −10 dBV (0.316 Vrms, when −16 dBFS DAC output and tuner output level setting OFF)

Maximum output level (switchable): +6 dBV (2.0 Vrms, when 0 dBFS DAC output and tuner output level setting OFF)

Output impedance: 210 Ω

PHONES jack

Connector: 6.3 mm (1/4") standard stereo jack

Maximum output level: 20 mW + 20 mW or higher (THD+N 0.1% or less, into 32 Ω load)

Note: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms

Control input/output

REMOTE jack

Connector: 2.5 mm TRS jack (Tip: Signal 1, Ring: Signal 2, Sleeve: GND)

CONTROL IN/OUT jacks

IN connector: 3.5 mm TRS jack

Active low external command reception (30 ms or longer ground)

OUT connector: 3.5 mm TRS jack

Open collector (15 V maximum voltage, 35 mA maximum current, 250 mW maximum output)

USB FLASH DRIVE port

Connector: 4-pin USB Type-A

Protocol: USB 2.0 HIGH SPEED (480 Mbps)

Device class: Mass storage

USB AUDIO STREAM port

Connector: USB Type-C

Protocol: USB 2.0 HIGH SPEED (480 Mbps)

Device class: USB audio 2.0 (USB class compliant)

Bluetooth device connector

For Bluetooth adapter (AK-BT2) only

Audio performance

Frequency response

20 Hz – 20 kHz: +0.5 dB / −1.0 dB (during SD/USB playback to analog output, JEITA)

Distortion

0.005% or less (during SD/USB playback to analog output, JEITA)

S/N ratio

95 dB or higher (during SD/USB playback to analog output, JEITA)

Dynamic range

95 dB or higher (during SD/USB playback to analog output, JEITA)

Channel separation

95 dB or higher (during SD/USB playback to analog output, 1 kHz sine wave, JEITA)

TUNER

Frequency range

DAB: Band III, 174 MHz – 240 MHz

FM: 87.5 – 108.0 MHz

Antenna connector

Connector: F-type jack

Operating system and other requirements

Check the TASCAM website for the latest information about supported operating systems.

https://tascam.jp/int/product/mp-800u_dab/spec#osmedia

NOTE

Operation with each OS was confirmed with standard system setups that met the following conditions.

Operation is not guaranteed, however, with all systems that meet the following conditions.

Windows

Supported operating systems

Windows 11

Windows 10 64-bit

Computer hardware requirements

Windows computer with a USB 2.0 or USB 3.0 port

CPU/processor speed

2 GHz or faster dual core processor (x86)

Memory

2 GB or more

Mac

Supported operating systems

macOS Sequoia (15 and higher)

macOS Sonoma (14 and higher)

macOS Ventura (13 and higher)

Computer hardware requirements

Mac with USB 2.0 or higher

CPU/processor speed

2 GHz or faster dual core processor

Memory

2 GB or more

Other

Power

AC 100–240 V, 50/60 Hz

Power consumption

14 W

Dimensions

482.8 × 46.5 × 297.1 mm (W x H x D, including protrusions)

Weight

2.7 kg

Operating temperature range

0 – 40°C

Dimensional drawings

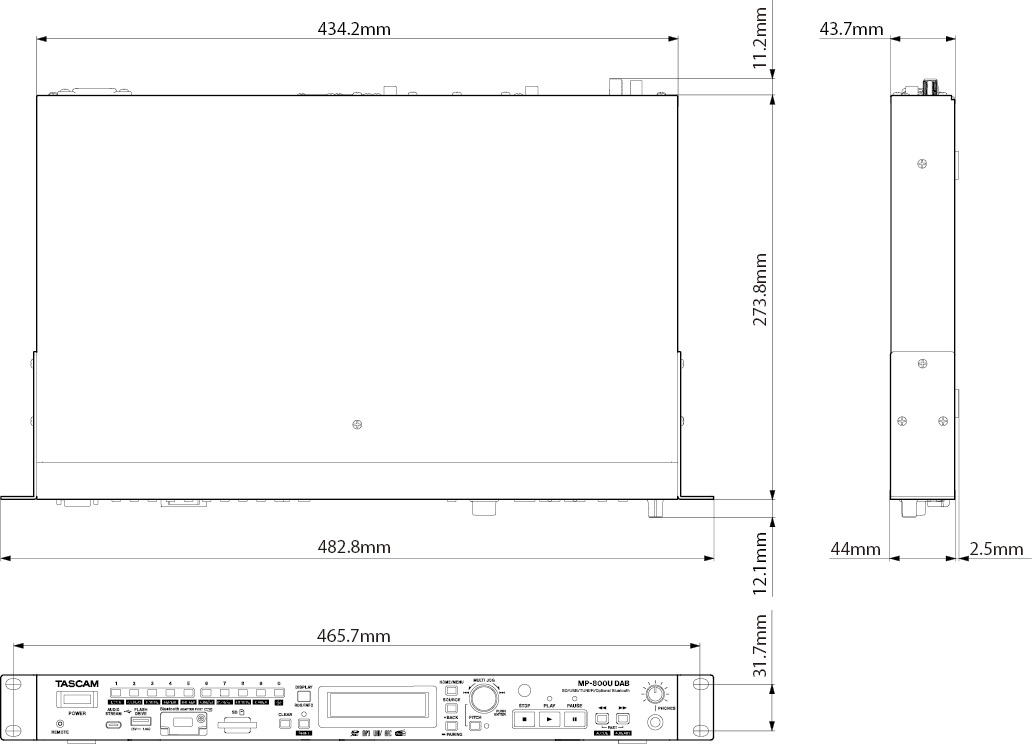

Illustrations in this manual might differ in part from the actual product.

Specifications and external appearance might be changed without notification to improve the product.
