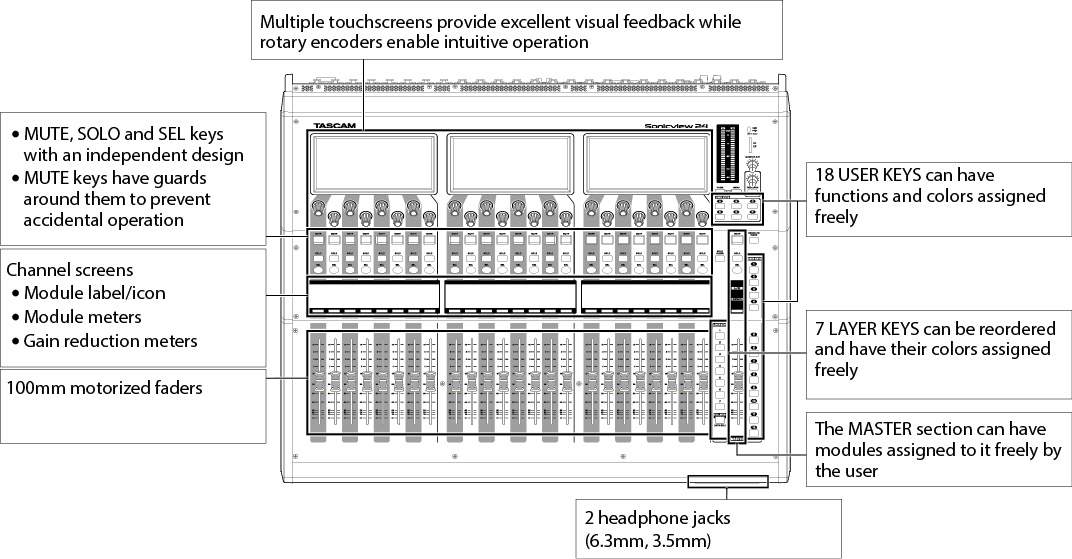

Top panel

This section explains the displays and controls on the top panel.

NOTE

The various buttons that have indicators remain dimly lit even when off, making them easier to see and use even in dark situations.

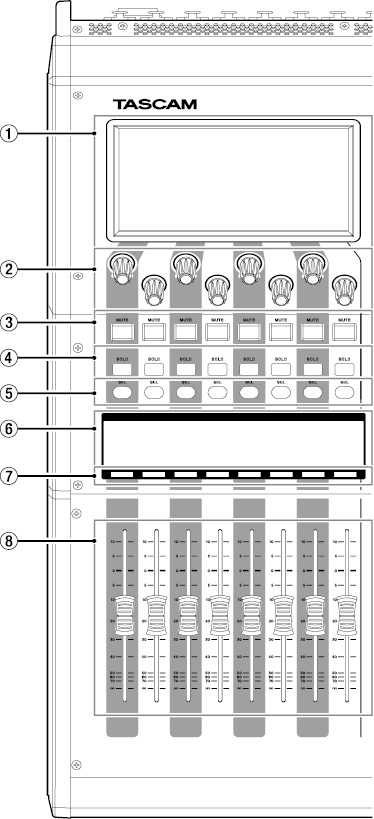

Channel section

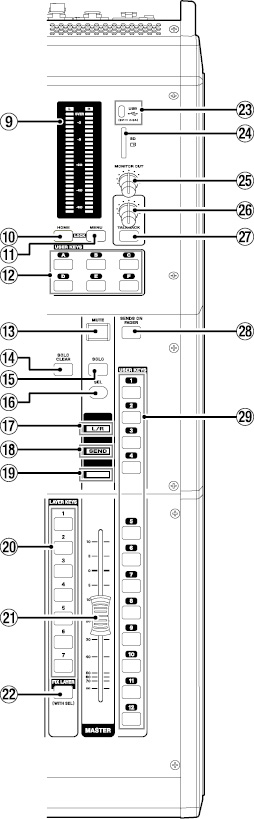

Master section

Touchscreen

Resistive-type (pressure-sensitive) 800×480 LCD color touchscreen.

Shows a variety of information.

Tap and swipe the screens being shown to operate them.

Only one point on one screen can be operated at a time.

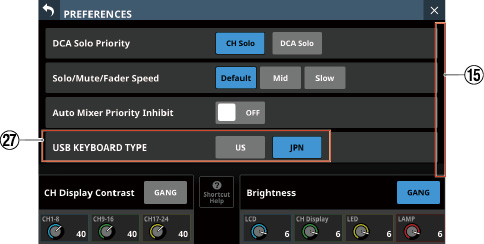

Set the brightness on the PREFERENCES Screen. (See “PREFERENCES screen”.)

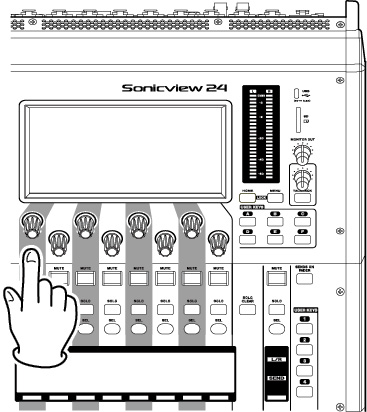

LCD knobs and indicators

When LCD knobs can be used to control items shown on the touchscreen, their indicators light.

Turn those LCD knobs to adjust various parameters shown on the touchscreen.

NOTE

Parameter adjustment with LCD knobs

Turning an LCD knob without pressing it will change the parameter value by one step with each click. This enables precise parameter adjustment.

When adjusting a parameter with high resolution, turning an LCD knob while pressing it will change the parameter value by multiple steps with each click. This enables efficient parameter adjustment.

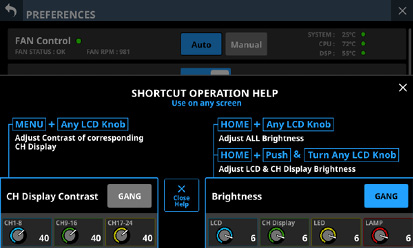

By turning any LCD knob while pressing the HOME key, the brightness of the touchscreens, channel screens, various indicators and the lamp connected to the LAMP connector on the rear panel can all be adjusted at the same time.

By pressing and turning any LCD knob while pressing the HOME key, the brightness of the touchscreens and channel screens can be adjusted at the same time.

By turning an LCD knob while pressing the MENU key, the contrast of the channel screen that corresponds to that knob can be adjusted. (See “16 - List of shortcut operations”.)

MUTE keys and indicators

These mute/unmute modules assigned to the selected layer.

When a MUTE key is on (lit), the signal of the corresponding module is muted.

Depending on the DCA or Mute Group, the key will blink when muted.

When the SENDS ON FADER key is on (Sends On Fader mode is on), these turn sends on/off to the selected bus from the modules assigned to the selected layer (send off when MUTE key lit, send on when MUTE key unlit). For modules that do not have a send on/off function for the subject bus, however, these mute/unmute the corresponding module. (For example, this applies when the subject bus is FX 1 and the module is FX RTN 1 or the subject bus is MIX 1 and the module is MIX 1.)

SOLO keys and indicators

These turn soloing on/off for modules assigned to the selected layer.

When these keys are on (lit), the signals of the corresponding modules will be sent to the SOLO L/R bus.

The keys will blink if soloing is on because of DCA.

NOTE

Press this key while pressing the MENU key to open the SOLO/OSCILLATOR page, which is where various solo settings can be made, of the TALKBACK / MONITOR / SOLO / OSC SETUP screen. (See “Making solo and built-in oscillator settings” and “16 - List of shortcut operations”.)

SEL keys and indicators

Press these keys to open the MODULE Screens for modules assigned to the selected layer. The corresponding keys light. If the MODULE Screen shown for a module has been changed on the touchscreen, the corresponding SEL key will light.

When a lit SEL key is pressed, the MODULE screen for that module will be shown on the touchscreen that corresponds to that SEL key if it is not already shown. If the MODULE screen for that module is shown on the touchscreen that corresponds to that SEL key, it will close and the SEL key will become unlit.

NOTE

Pressing one of these keys while pressing the HOME key will set the fader level for the corresponding module to 0 dB. (When Sends On Fader mode is on, the SEND level will be set instead.) (See “16 - List of shortcut operations”.)

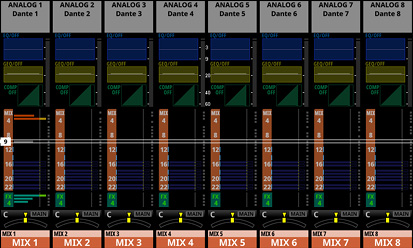

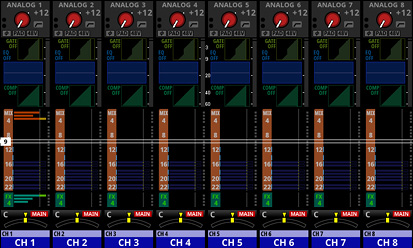

Channel screen

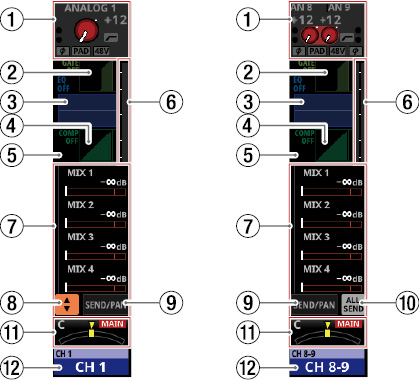

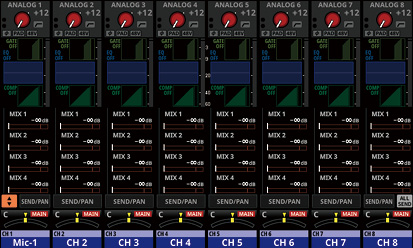

These show the following information for modules assigned to the selected layer.

Sub MODULE LABEL

This shows the module label according to the display mode set for the Sub MODULE LABEL on the DISPLAY MODE page. (See “DISPLAY MODE page”.)

By default, the FIXED MODULE LABEL will be shown.

Main MODULE LABEL

This shows the module label according to the display mode set for the Main MODULE LABEL on the DISPLAY MODE page. (See “DISPLAY MODE page”.)

By default, the USER MODULE LABEL will be shown.

NOTE

The following three display modes are available for the Main MODULE LABEL and Sub MODULE LABEL.

Display mode	Explanation
USER MODULE LABEL	Module names set by user
FIXED MODULE LABEL	Predetermined names for each module (for example, “CH 1” and “MIX 1”)
PORT LABEL	Names of input and output ports

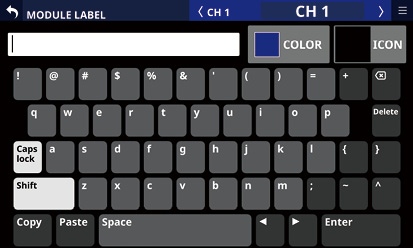

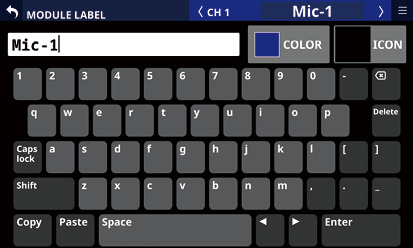

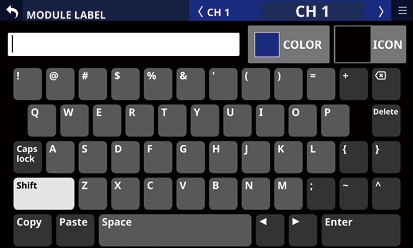

The USER MODULE LABEL can be set on the MODULE LABEL Screen. (See “Setting and editing user module labels”.)

GATE/EXPANDER/DE-ESSER gain reduction meter

COMP/DUCKER gain reduction meter

Module icon

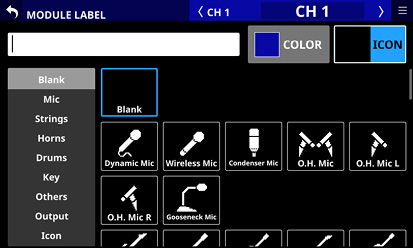

See “MODULE LABEL screen” for details about setting module icons.

Fader level value

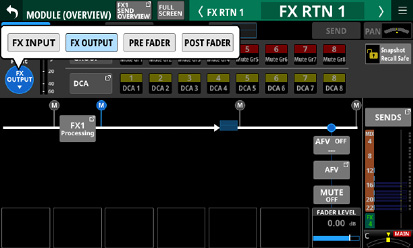

Module meter (shows signal level of set metering point)

If the module is stereo, a stereo module meter will be shown.

Each module meter has an overload indicator at its top. They will light when the signal level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

The area below −60 dBFS at the bottom of the module meters will light when above −70 dBFS.

When the SENDS ON FADER key is on (Sends On Fader mode is on), the black and white display is inverted and “SEND to [bus name]” will be shown on a black band at the bottom of the screen.

When the FIX LAYER key () has been used to lock 8 channels to the layer, “FIXED LAYER” will be shown on a white band at the top of the screen.

When the Sends On Fader mode is on and 8 channels have been locked to the layer, the black and white display will be inverted and “SEND to [bus name]” and FIXED LAYER” will be shown on a black band at the bottom of the screen.

Use the PREFERENCES Screen to set the brightness and contrast of the channel screens. (See “PREFERENCES screen”.)

Channel color bars

These show the colors set for the modules assigned to the selected layer. (See “Changing set module colors”.)

Channel faders

When the SENDS ON FADER key is off (Sends On Fader mode is off), these adjust the fader levels for the modules assigned to the selected layer.

When the SENDS ON FADER key is on (Sends On Fader mode is on), these adjust the send levels to the selected bus for the modules assigned to the selected layer.

Output meters

These are output meters for the MAIN L/R bus.

The OVER indicators light red when they reach or exceed −0.00026 dBFS (16-bit full-scale value).

The bottommost indicator lights when above −70 dBFS.

HOME key

When the Menu Screen or a settings screen is open, press to return to the Home Screen on all touchscreens.

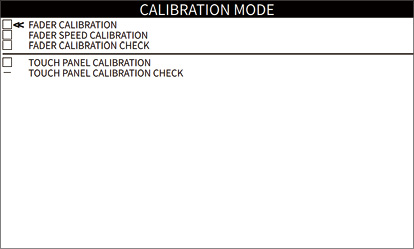

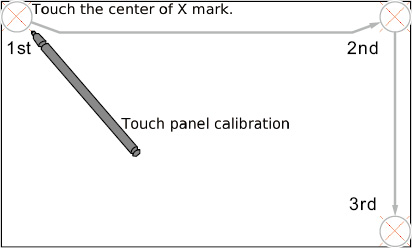

Press and hold this key and the MENU key together for 5 seconds to open the LOCK SETUP screen. (See “LOCK SETUP screen”.)

NOTE

Various shortcut operations are possible using this key in combination with others. See “16 - List of shortcut operations” for details.

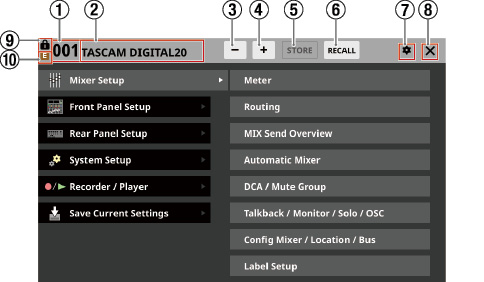

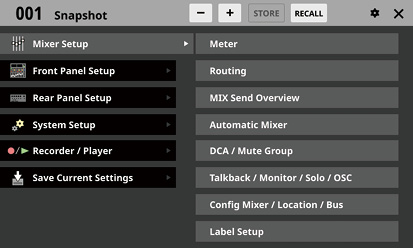

MENU key

Press this key to open the Menu Screen on the right touchscreen.

Press and hold this key and the HOME key together for 5 seconds to open the LOCK SETUP screen. (See “LOCK SETUP screen”.)

NOTE

Various shortcut operations are possible using this key in combination with others. See “16 - List of shortcut operations” for details.

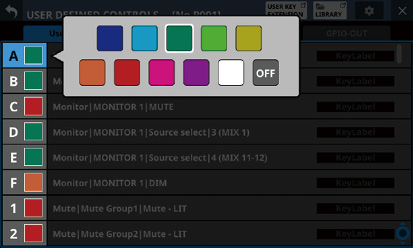

USER KEYS A–F and indicators

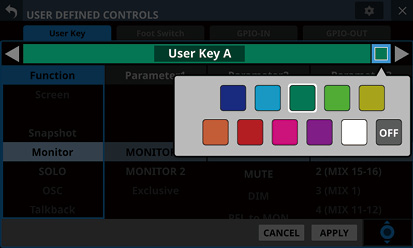

Users can assign functions and colors to these keys as they like. When functions that have different statuses are assigned to these keys, they will light, blink and become unlit accordingly. (See “USER DEFINED CONTROLS screen”.)

NOTE

Press one of these keys while pressing the MENU key to open the screen that corresponds to its assigned function. (See “16 - List of shortcut operations”.)

MUTE key and indicator (MASTER)

This mute/unmutes.

When the SENDS ON FADER is off (Sends On Fader mode is off), this mutes the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen (MAIN L/R by default).

When the SENDS ON FADER key is on (Sends On Fader mode is on), this mutes the selected bus master module.

When a MUTE key is on (lit), the signal of the corresponding module is muted.

Depending on the DCA or Mute Group, the key will blink when muted.

SOLO CLEAR key and indicator

The SOLO CLEAR indicator lights when any module is being soloed.

Press this when the SOLO CLEAR indicator is lit to end soloing of all channels.

NOTE

Press this key while pressing the MENU key to open the SOLO/OSCILLATOR page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen. (See “Making solo and built-in oscillator settings” and “16 - List of shortcut operations”.)

SOLO key and indicator (MASTER)

This turns soloing on and off.

When the SENDS ON FADER is off (Sends On Fader mode is off), this solos the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen (MAIN L/R by default).

When the SENDS ON FADER key is on (Sends On Fader mode is on), this solos the selected bus master module.

When this key is on (lit), the signal of the corresponding module is sent to the SOLO L/R bus.

The key will blink if soloing is on because of DCA.

NOTE

SEL key and indicator (MASTER)

When the SENDS ON FADER is off (Sends On Fader mode is off), this functions as the SEL key for the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen (MAIN L/R by default).

When the SENDS ON FADER key is on (Sends On Fader mode is on), this functions as the SEL key for the selected bus master module.

Press this key, lighting it, to open the MODULE screen for the assigned module on the right touchscreen. If the MODULE Screen shown for a module has been changed on the touchscreen, the corresponding SEL key will light.

When a lit SEL key is pressed, the MODULE screen for the that module will be shown on the touchscreen that corresponds to that SEL key if it is not already shown. If the MODULE screen for that module is shown on the touchscreen that corresponds to that SEL key, it will close and the SEL key will become unlit.

NOTE

Pressing this key while pressing the HOME key will set the fader/send level for the corresponding module to 0 dB. (See “16 - List of shortcut operations”.)

L/R indicator

When the SENDS ON FADER key is off (Sends On Fader mode is off) and MAIN L/R is the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen, the MUTE, SOLO and SEL keys, the color bar and the MASTER fader in the top panel master section will control/display the MAIN L/R Master module, and the indicator will light.

This indicator will be unlit when the SENDS ON FADER key is on (Sends On Fader mode is on), as well as when the SENDS ON FADER key is off and MAIN L/R is not the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen.

SEND indicator

This indicator will be unlit when the SENDS ON FADER key is off (Sends On Fader mode is off).

When the SENDS ON FADER key is on (Sends On Fader mode is on), the MUTE, SOLO and SEL keys, the color bar and the MASTER fader in the top panel master section will control/display the SENDS ON FADER operation bus (MIX 1–22/FX 1–4) and the indicator will light.

Color bar (MASTER)

When the SENDS ON FADER is off (Sends On Fader mode is off), this lights with this color set for the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen (MAIN L/R by default). (See “Changing set module colors”.)

When the SENDS ON FADER key is on (Sends On Fader mode is on), this lights with the color set for the selected bus master module. (See “Changing set module colors”.)

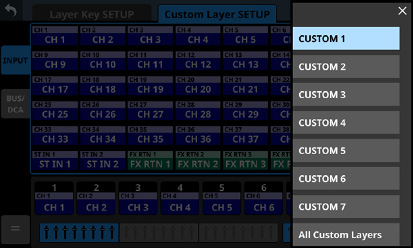

LAYER KEYS 1–7 and indicators

Press these keys to switch layers. The last pressed key will light, showing the current selection. Switching layers will change the states of module faders, MUTE/SOLO/SEL keys, channel screens, color bars and touchscreens to correspond to the current layer.

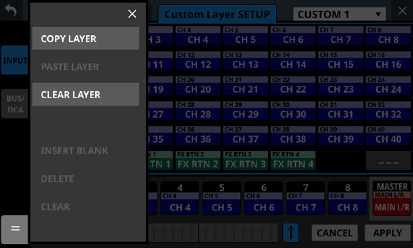

The layer assignments of keys and their colors can be set freely by opening Menu Screen > Front Panel Setup menu > Layer/Master Fader Setup. (See “Layer Key SETUP page”.)

NOTE

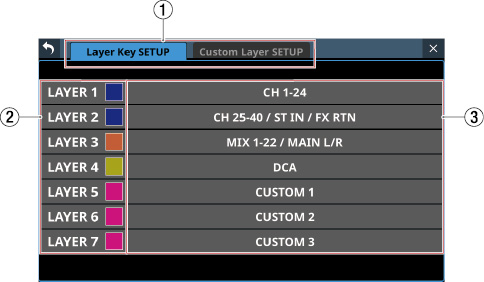

The Layer Key SETUP screen for the selected LAYER key can be opened by pressing that key while pressing the MENU key. (See “Layer Key SETUP page” and “16 - List of shortcut operations”.)

MASTER fader

When the SENDS ON FADER key is off (Sends On Fader mode is off), this adjusts the fader level of the module assigned to the MASTER slot on the Custom Layer SETUP page of the Layer Key SETUP Screen (MAIN L/R by default).

When the SENDS ON FADER key is on (Sends On Fader mode is on), this adjusts the fader level of the selected bus master module.

FIX LAYER key and indicator

While pressing this key, press a SEL key for a block to fix the corresponding block of 8 channels to the current layer. This key and the LAYER KEYS that corresponds to the fixed layer will blink. “FIXED LAYER” will be shown on a white band at the top of the corresponding channel screen.

While pressing this key, press a SEL key for a block with a fixed layer to cancel fixing the corresponding block of 8 channels to a layer. This key and the LAYER KEYS that corresponds to the layer that is no longer fixed will stop blinking. “FIXED LAYER” will stop being shown at the top of the corresponding channel screen.

Either the left or right block of 8 channels can be fixed at a time.

USB port (5V0.5A)

This is a USB Type-C port. (This supports USB 2.0.)

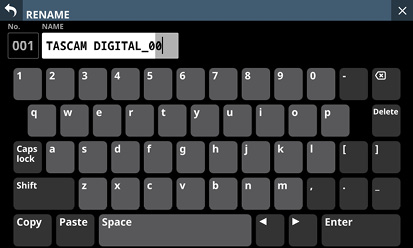

Connect a USB keyboard here, and use it to enter names, for example. By default, the unit is set to use a Japanese keyboard. Since English and Japanese keyboards use different layouts, change the setting on the PREFERENCES screen if using an English keyboard. (See “PREFERENCES screen”.)

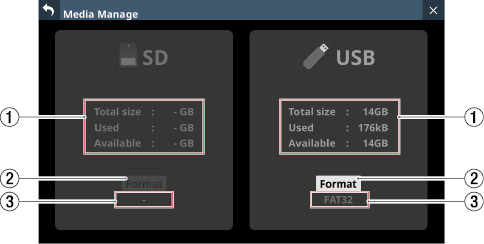

Load a USB flash drive to play files on it, as well as to load data into and back up data from this unit.

Mice and other pointing devices are not supported.

SD card slot

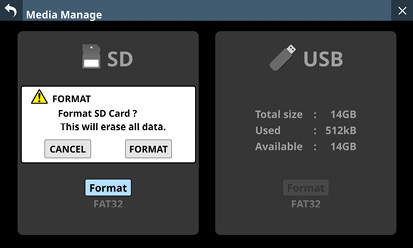

SD cards can be inserted into this slot. (See “Connecting and disconnecting SD cards and USB flash drives”.)

Load an SD card to play files on it and record to it, as well as to load data into and back up data from this unit.

MONITOR OUT volume

Use this to adjust the output level of the MAIN OUTPUT L/R jacks.

TALKBACK volume

Use this to adjust the TALKBACK input level.

TALKBACK key and indicator

This key turns talkback on and off. Press this key briefly to switch it on/off. Press this key continuously to turn the function on only while being pressed.

Press this key while pressing the MENU key to open the TALKBACK page, which is where various talkback settings can be made, of the TALKBACK / MONITOR / SOLO / OSC SETUP screen. (See “Making talkback settings” and “16 - List of shortcut operations”.)

SENDS ON FADER key and indicator

This turns the Sends On Fader mode on/off.

When the SENDS ON FADER key is on (Sends On Fader mode is on), this key lights and the unit operates as follows.

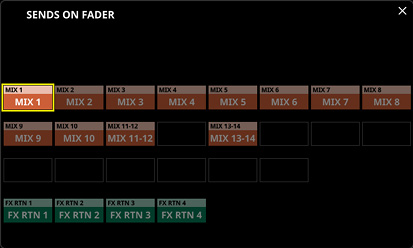

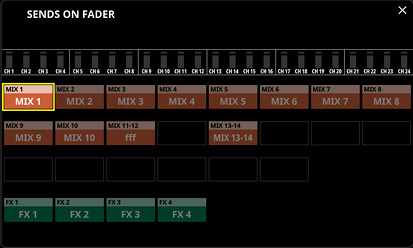

The SENDS ON FADER screen opens on the rightmost touchscreen. (See “SENDS ON FADER function”.)

This changes the Channel Screens to Sends On Fader mode display.

The channel faders move to the SEND level positions of the selected buses.

The MASTER fader moves to the FADER level position of the selected bus.

Press this key when the SENDS ON FADER screen is shown to end Sends On Fader mode. This will close the SENDS ON FADER screen and return the channel faders, MASTER fader and channel screens to their normal display states. (See “SENDS ON FADER function”.)

USER KEYS 1–12 and indicators

Press one of these keys while pressing the MENU key to open the screen that corresponds to its assigned function. (See “16 - List of shortcut operations”.)

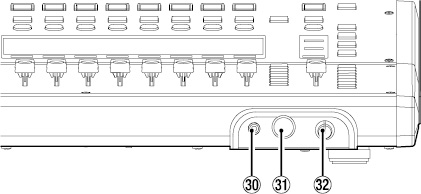

Front panel

Headphone jack (stereo mini)

Use this 3.5mm (1/8") stereo mini jack to connect stereo headphones.

Headphone jack (stereo phone)

Use this 6.3mm (1/4") stereo phone jack to connect stereo headphones.

Headphone volume

Use this to adjust the headphone output level.

caution CAUTION

Before connecting headphones, minimize the volume with the headphone knob. Failure to do so might cause sudden loud noises, which could harm your hearing or result in other trouble.

Rear panel

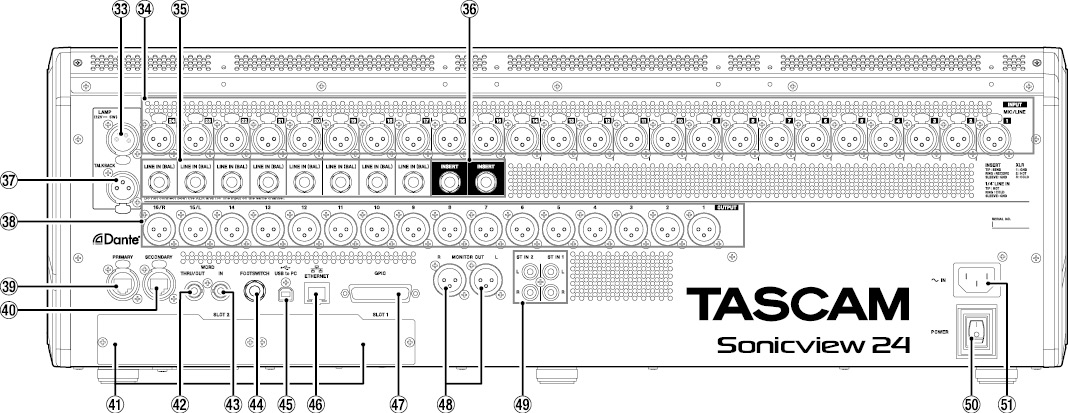

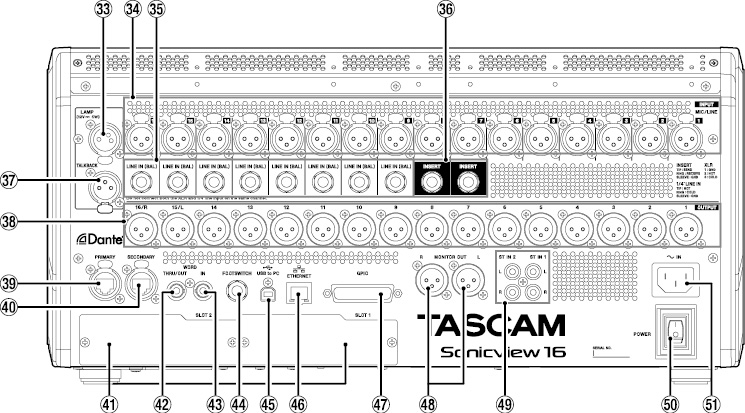

Sonicview 16

Sonicview 24

LAMP jack

Use this to connect a gooseneck lamp to the illuminate the top of the unit.

Lamps with 4-pin XLR connectors can be used.

Adjust the lamp brightness on the PREFERENCES Screen. (See “PREFERENCES screen”.)

XLR 4-pin female (pin 4: +12V, pin 3: GND)

MIC/LINE input jacks

These are balanced XLR jacks for mic/line input.

XLR (1: GND, 2: HOT, 3: COLD)

LINE IN (BAL) jacks (TRS phone)

These are 6.3mm (1/4") TRS phone jacks for line input.

TRS (Tip: HOT, Ring: COLD, Sleeve: GND)

NOTE

This unit has some channels with two types of input jacks (XLR and TRS). Do not input signals through both the XLR and TRS jacks of the same channel at the same time. If signals are input at the same time, they will not be input properly.

Only MIC/LINE input jacks () provide phantom power.

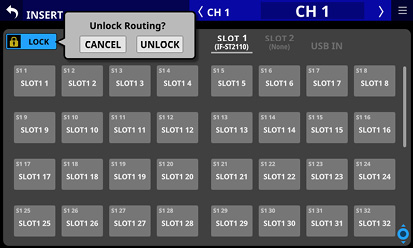

INSERT jacks (TRS phone)

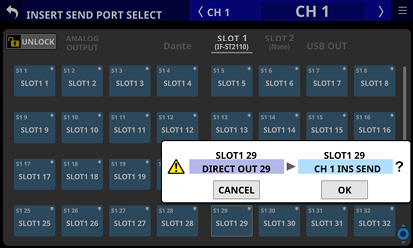

Use these 6.3mm (1/4") TRS phone jacks to connect external devices (including effects).

TRS (Tip: SEND, Ring: RETURN, Sleeve: GND)

TALKBACK input jack

Connect a talkback mic here.

Use the TALKBACK volume knob () to adjust the talkback input level, and use the TALKBACK key () to turn it on/off.

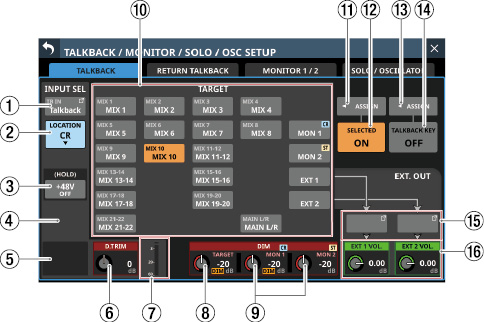

Make talkback settings on the TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen. (See “Making talkback settings”.)

Analog output jacks

These analog outputs are XLR jacks.

XLR (1: GND, 2: HOT, 3: COLD)

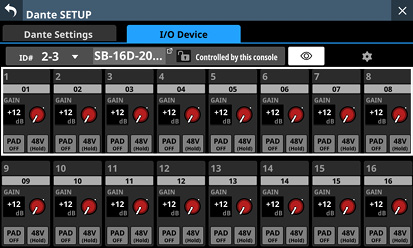

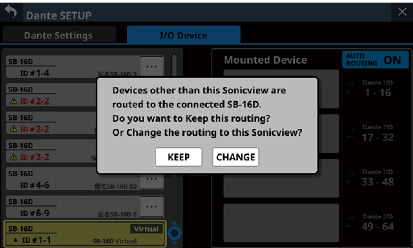

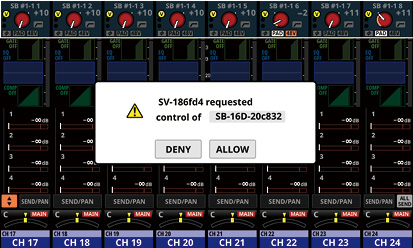

Dante PRIMARY connector

This is the main etherCON Cat5e-compatible Dante transmission connector.

Use this to connect to a Dante network all the time. For LAN cables used for connection, use STP cables that are category 5e or higher. (See “Connecting to a Dante network”.)

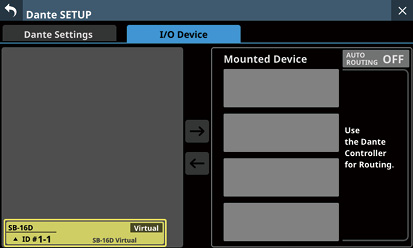

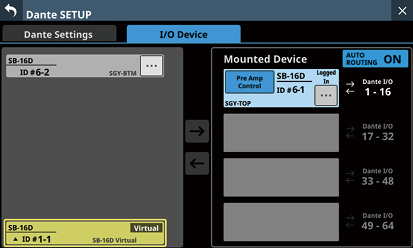

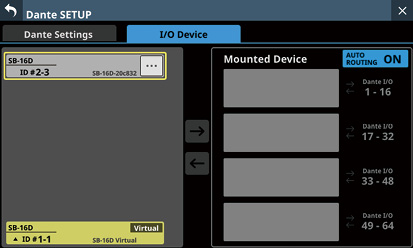

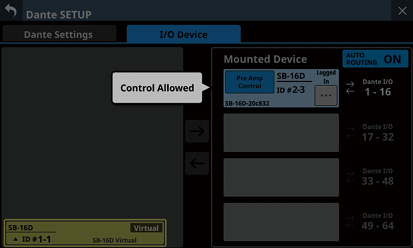

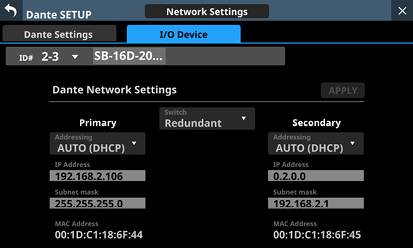

Make settings for the built-in Dante module on the Dante SETUP Screen. (See “Dante SETUP screen”.)

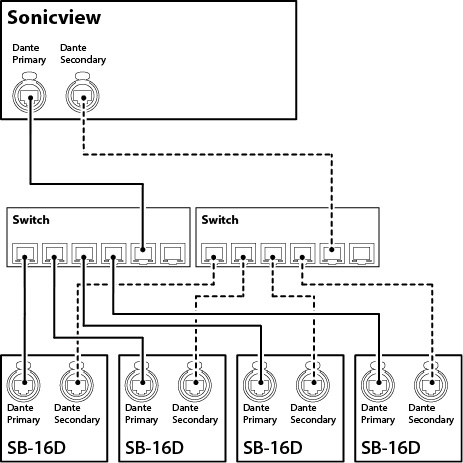

Dante SECONDARY connector

This is the secondary etherCON Cat5e-compatible Dante transmission connector. The use changes depending on the mode.

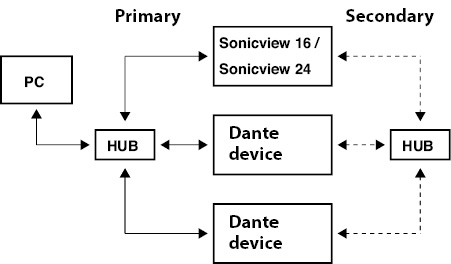

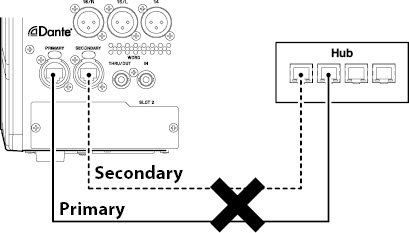

When in redundant mode, this connects to the secondary Dante network.

When in switched (daisy-chain) mode, use this to connect another Dante device in the chain. For LAN cables used for connection, use STP cables that are category 5e or higher. (See “Connecting to a Dante network”.)

Make settings for the built-in Dante module on the Dante SETUP Screen. (See “Dante SETUP screen”.)

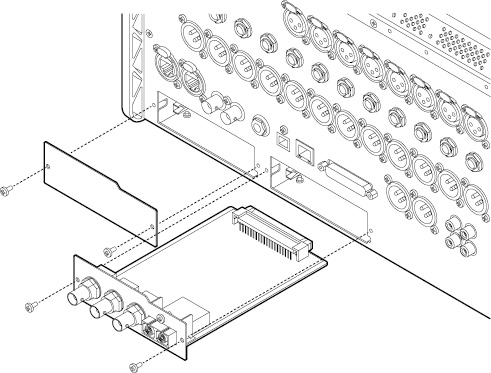

Expansion card slots (SLOT 1/SLOT 2)

These slots can be used to install expansion cards (sold separately).

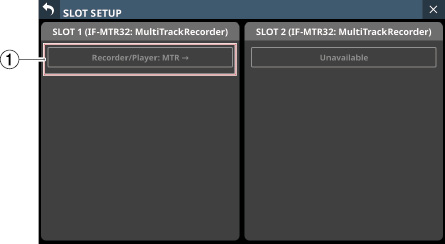

Make SLOT settings on the SLOT SETUP Screen. (See “SLOT SETUP screen”.)

WORD THRU/OUT connector

This BNC connector is for word clock output.

Use it for thru and normal output of word clock signals.

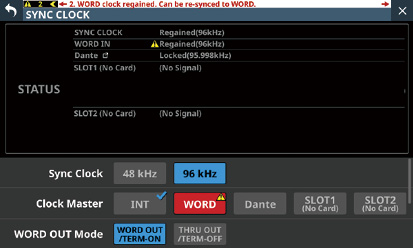

Switch word thru/output on the SYNC CLOCK Screen. (See “SYNC CLOCK screen”.)

WORD IN connector

This BNC connector is for word clock input.

Use it for word clock signal input.

Connect a word clock signal to this connector when synchronizing the word clock of this unit and other equipment.

FOOTSWITCH jack

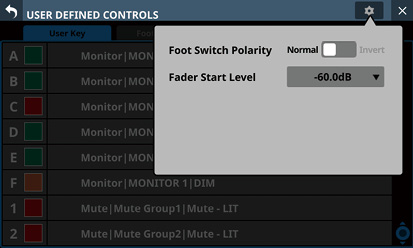

This 6.3mm (1/4") TS phone jack is for connecting a footswitch.

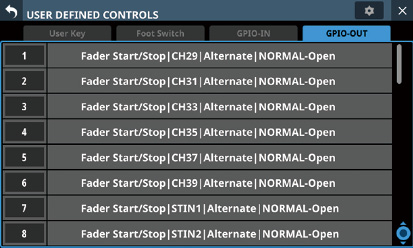

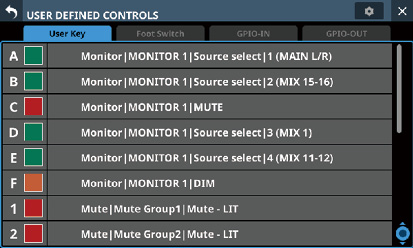

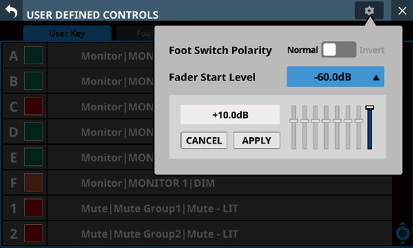

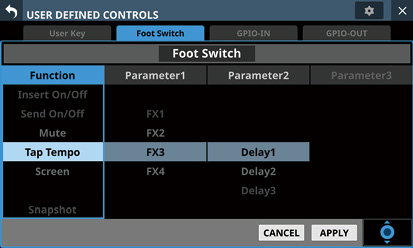

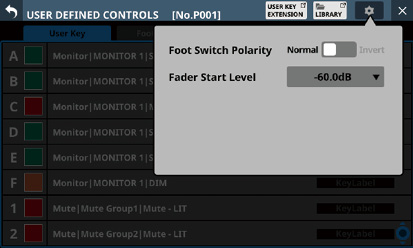

Set functions assigned to the footswitch on the USER DEFINED CONTROL Screen Foot Switch page. (See “Foot Switch page”.)

TS (Tip: HOT, Sleeve: GND)

USB to PC port

This is a USB Type-B port.

Use a USB cable (Type-A to Type-B) to connect the unit to a computer.

ATTENTION

The unit should be connected directly to the computer, not through a USB hub. Moreover, proper transmission with a computer could fail if the cable is too long.

ETHERNET port

This is an Ethernet port.

Use this to connect to a network, primarily for the purpose of remote control of this unit using the dedicated TASCAM Sonicview Control application.

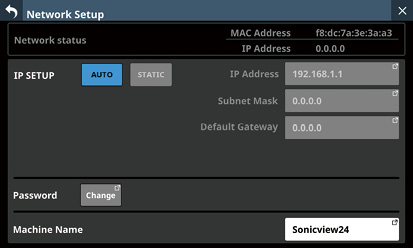

Make network settings on the Network Setup Screen. (See “Network Setup screen”.)

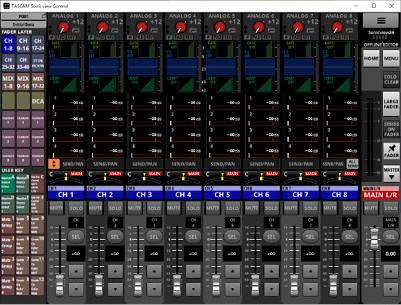

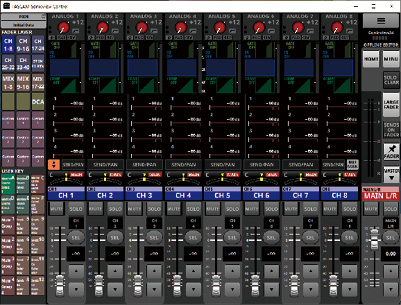

For details about the TASCAM Sonicview Control application, see its manual. TASCAM Sonicview Control and its application manual can be downloaded from the TASCAM website.

Sonicview 16

https://tascam.jp/int/product/sonicview_16/support

Sonicview 24

https://tascam.jp/int/product/sonicview_24/support

GPIO connector

This is a 25-pin D-sub Parallel control input/output connector.

It can send and receive control commands with 8 inputs and 8 outputs. See “GPIO connector overview” for details about pin assignments.

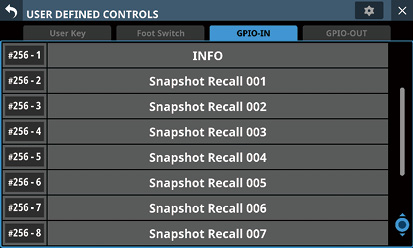

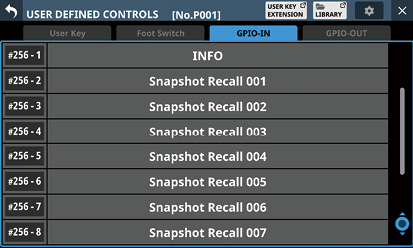

Set functions assigned to the GPIO input connector on the USER DEFINED CONTROL Screen GPIO-IN page. (See “GPIO-IN page”.)

Set functions assigned to the GPIO output connector on the USER DEFINED CONTROL Screen GPIO-OUT page. (See “GPIO-OUT page”.)

MONITOR OUT L/R jacks

These analog outputs are XLR jacks.

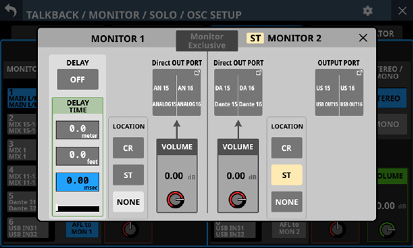

Make monitor output settings on the MONITOR 1/2 pages of the TALKBACK / MONITOR / SOLO / OSC SETUP screen. (See “Making monitor output settings”.)

XLR (1: GND, 2: HOT, 3: COLD)

ST IN 1/ST IN 2 jacks

These RCA pin jacks are analog line outputs.

Use RCA cables to connect CD players and similar devices to these jacks.

POWER switch

This turns the power on/off.

caution CAUTION

Before turning the power on or off, minimize the volumes of connected equipment. Failure to do so might cause sudden loud noises, which could harm your hearing or result in other trouble.

NOTE

Do not interrupt the power when the unit is operating (including recording, playing back, or writing data to an SD card or USB flash drive). Doing so could cause proper recording to fail and recorded data to be lost.

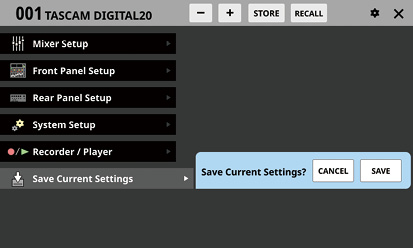

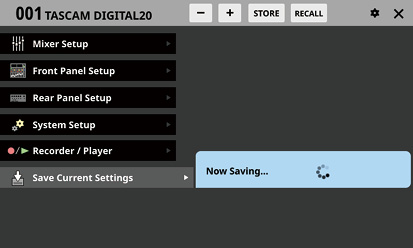

We recommend executing the Save Current Settings command on the Menu Screen before turning the unit off. (See “Saving the current settings”.)

AC IN connector

Plug the included power cord in here.

GPIO connector overview

The GPIO connector on the back of the unit is a parallel control connector that allows this unit to control and be controlled by other devices.

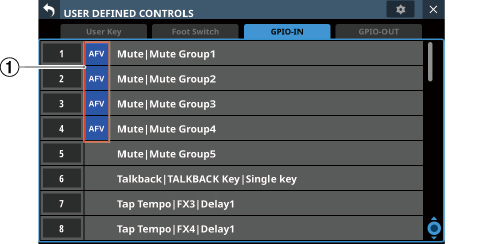

GPIO connector function settings can be changed on the USER DEFINED CONTROLS Screen GPIO-IN and GPIO-OUT pages. (See “USER DEFINED CONTROLS screen”.)

The pin assignments are as follows.

Pin No.	Function	IN/OUT
1	GND	-
2	GPIO IN 2	IN
3	GPIO IN 4	IN
4	GPIO IN 6	IN
5	GPIO IN 8	IN
6	NC	-
7	NC	-
8	NC	-
9	GPIO OUT 2	OUT
10	GPIO OUT 4	OUT
11	GPIO OUT 6	OUT
12	GPIO OUT 8	OUT
13	NC	-
14	GPIO IN 1	IN
15	GPIO IN 3	IN
16	GPIO IN 5	IN
17	GPIO IN 7	IN
18	NC	-
19	NC	-
20	GND	-
21	GPIO OUT 1	OUT
22	GPIO OUT 3	OUT
23	GPIO OUT 5	OUT
24	GPIO OUT 7	OUT
25	+5V	-

IN: For command input

Internal circuit with +5V pull-up

Operates with low signal input of 50 msec or longer

OUT: For command and tally output

Internal circuit is open collector (10Ω output impedance)

20V dielectric strength, 35mA maximum current

+5V: 50mA maximum supplied current

Basic unit operations

Touchscreen operations

Tap/swipe items on the touchscreens to operate them.

Special touchscreen operations

Press and hold	Press and hold the +48V button to turn phantom power (+48V) on and off.
Tap / press and hold	Tapping the DIM button on the MONITOR 1/2 page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen, or tapping the TALKBACK, TARGET or SELECTED button on the TALKBACK page will turn that function on/off. Pressing and holding one will turn that function on temporarily until released.

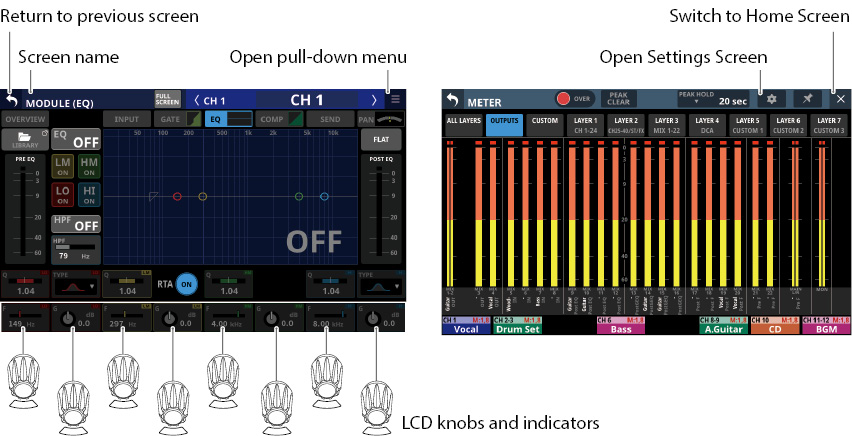

LCD knob operations

The LCD knobs can be used to control the parameters shown and selected above them on the touchscreen.

When LCD knobs can be used, the corresponding indicators light.

LCD knob	Explanation
Turn without pressing	This allows precise adjustment of one step per click.
Turn while pressing	This allows quick parameter adjustment from one extreme to the other.

Top panel key operations

Press keys on the top panel to use them.

The following keys have special operation procedures.

Key

Use

TALKBACK key

Press this key briefly to turn talkback on/off.

Press this key continuously to turn the function on only while being pressed.

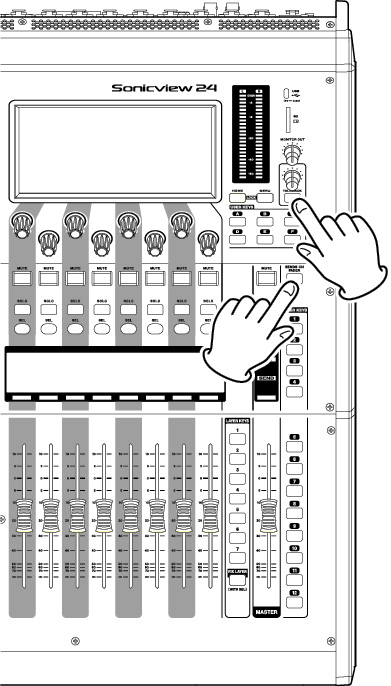

HOME key + MENU key

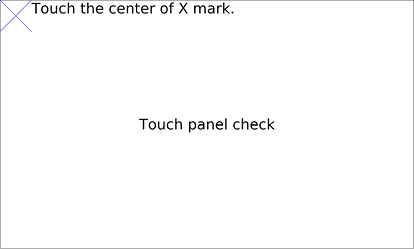

Press and hold the HOME and MENU keys together for 5 seconds to open the LOCK SETUP Screen.

NOTE

The parameters of this unit have unified image colors, making identification of parameter types easy by color.

GAIN/Level: Red

GATE: Yellow-green

EQ: Blue

COMP: Green

FX: Yellow-green

AUX mode bus: Orange

GROUP mode bus: Purple

PAN: Yellow

FADER: Light blue

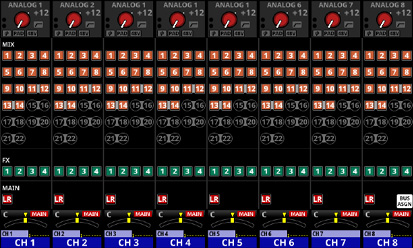

Home Screen

This unit has multiple Home Screens for its layers. The names of modules assigned to layers, various parameters, meters and other items are shown in lists.

Press LAYER KEYS 1–7 to change what is shown on the Home Screen.

NOTE

When the Menu Screen or a settings screen is open, press the HOME key to return to the Home Screen.

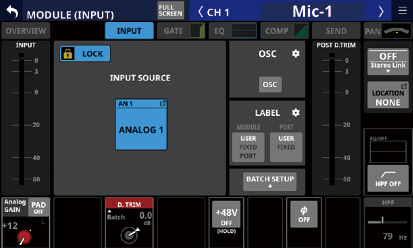

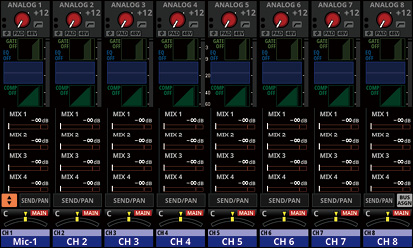

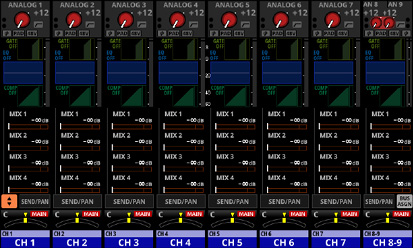

CH 1–40 Module Home Screen

CH 1–40 Module Home Screen details

INPUT area

This shows the input settings of the selected input source. (A stereo module is shown on the right.)

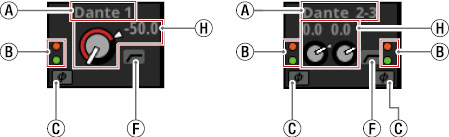

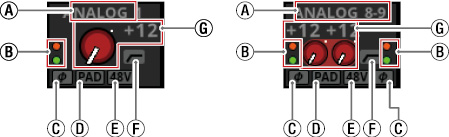

Input area when the input source is “ANALOG” or “SB-16D connected by built-in Dante” and the PORT LABEL display mode is “FIXED”, or the PORT LABEL display mode is “USER” and the USER PORT LABEL is undefined

Input area when the input source is not “ANALOG” or “SB-16D connected by built-in Dante” and the PORT LABEL display mode is “FIXED”, or the PORT LABEL display mode is “USER” and the USER PORT LABEL is undefined

This shows the input source name.

If the PORT LABEL display mode is “USER”, the USER PORT LABEL (the port name set by the user) will be shown. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown. (See “DISPLAY MODE page”.)

If the PORT LABEL display mode is “FIXED”, the FIXED PORT LABEL will be shown for each port (for example, “ANALOG 1” or “Dante 1”). (See “DISPLAY MODE page”.)

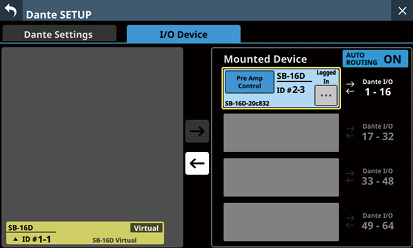

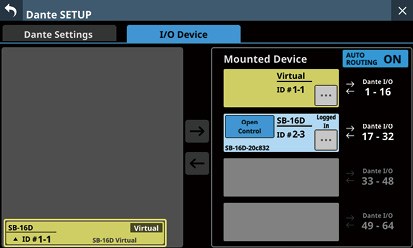

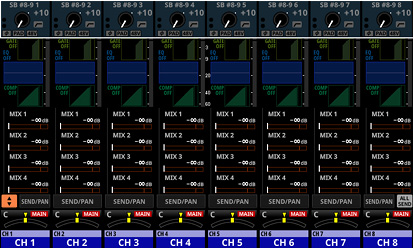

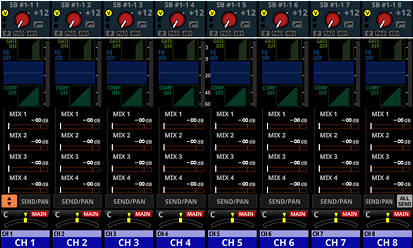

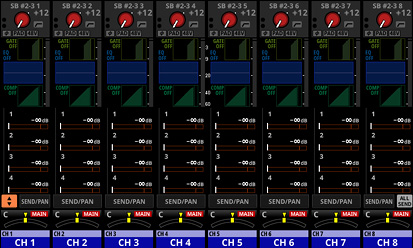

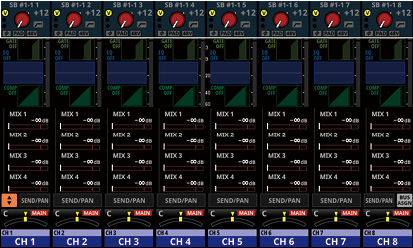

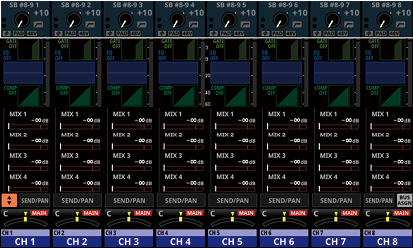

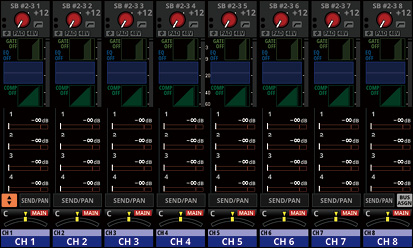

If a Dante port that has a mounted SB-16D assigned is selected, “SB#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, will appear to the bottom left of the port name.

If the module is stereo and input sources that are not left-right adjacent are selected, the FIXED PORT LABEL for the input sources will appear split left and right and abbreviated as follows.

Input source name	Input source name abbreviation
ANALOG	AN
Dante	DA
SLOT 1	S1
USB	US
ST IN 1	ST1
PLAYER	PL

When a module is stereo, if a Dante port that has a mounted SB-16D assigned is selected, “#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, the # background will be yellow.

These indicators appear to light as shown below depending on the input level. When a module is stereo, two sets of module indicators will be shown separately left and right.

Red: −3 dBFS, Green: −40 dBFS

This shows the input signal phase setting status. When a module is stereo, two module phase settings will be shown separately left and right.

	Normal
	Reversed

This shows the −20 dB pad setting status when the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”. When on, the icon will appear highlighted.

When the input sources for both the left and right channels of a stereo module are “ANALOG” or “SB-16D connected by built-in Dante”, if settings are different for the left and right channels, the colors on the left and right sides of the buttons will be different.

This shows the phantom power (+48V) setting status when the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”. When on, the icon will appear highlighted.

This shows the HPF setting status. When on, the icon will appear highlighted.

When the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”, this will show an analog gain knob and the input level of the unit or SB-16D MIC/LINE input jacks. When a module is stereo, two knobs and input level values will be shown for the module.

A black knob that cannot be operated will be shown if the input source is an SB-16D for which control privileges are not held.

A D.TRIM knob and the digital trim value will be shown when the input source of the selected module is not “ANALOG” or “SB-16D connected by built-in Dante”. When a module is stereo, two knobs and digital trim values will be shown for the module.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the parameters shown.

When the selection frame is shown, tap this area to open the MODULE (INPUT) Screen for the selected module. (See “MODULE (INPUT) Screen”.)

GATE/EXPANDER/DE-ESSER area

This shows the response graphs and gain reduction meters of dynamics effects.

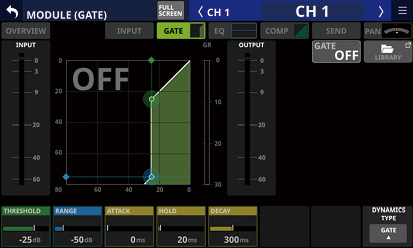

Tap this area to open the MODULE (GATE/EXPANDER/DE-ESSER) Screen for the selected module. (See “MODULE (GATE/EXPANDER/DE-ESSER) screens”.)

HPF/EQ area

This shows graphs of the HPF and EQ frequency responses.

Tap this area to open the MODULE (EQ) Screen for the selected module. (See “MODULE (EQ) Screen”.)

COMP/DUCKER area

This shows the response graphs and gain reduction meters of dynamics effects.

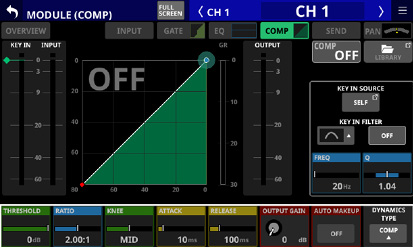

Tap this area to open the MODULE (COMP/DUCKER) Screen for the selected module. (See “MODULE (COMP/DUCKER) Screen”.)

INSERT indicator

The indicator is shown when the INSERT button is on for the CH 1–40 module.

Level meter

This shows the level of the signal at the set metering point. (See “METERING POINT page” and “MODULE (OVERVIEW) Screen”.)

NOTE

If the selected module is stereo, a stereo level meter will be shown.

Each level meter has an overload indicator at its top. They will appear to light red when the signal level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

When a level overload occurs, the entire bar meter will light red.

The area below −60 dBFS at the bottom of the level meters will light when above −70 dBFS.

SEND area

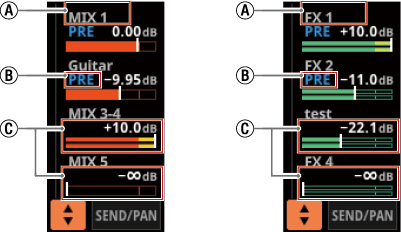

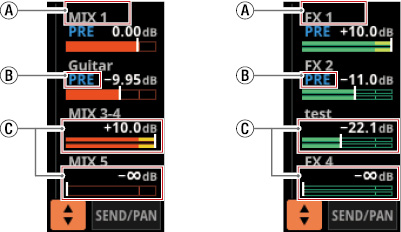

This shows the states of SEND settings to MIX 1–22 and FX 1–4 buses 4 at a time. This also shows the parameters of the Audio Follow Video function.

This shows the MODULE LABEL set for the Main MODULE LABEL of the MIX 1–22 or FX RTN 1–4 module. (See “DISPLAY MODE page”.)

If the Main MODULE LABEL display mode is “USER” but the USER MODULE LABEL for that module is undefined, the FIXED MODULE LABEL will be shown (for example, “MIX 1” or “FX 1”).

This shows the PRE/POST setting used for MIX 1–22 and FX 1–4 buses.

No indicator	Set to POST
PRE	Set to PRE

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

If a MIX or FX bus is stereo-linked, send levels will be shown with two bars.

Purple rounded buttons are shown when GROUP mode MIX 1–22 buses are ON. These appear but cannot be turned on/off on the Home Screen.

Tap a SEND level to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND level shown.

When the selection frame is shown, tap this area to open the MODULE (SEND/PAN) Screen for the selected module. (See “MODULE (SEND/PAN) Screen”.)

Tap the SEND level while pressing the HOME key to set the SEND level for that bus to 0 dB. (See “16 - List of shortcut operations”.)

button

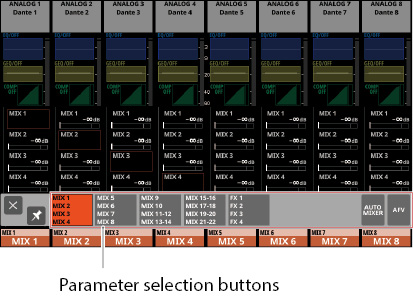

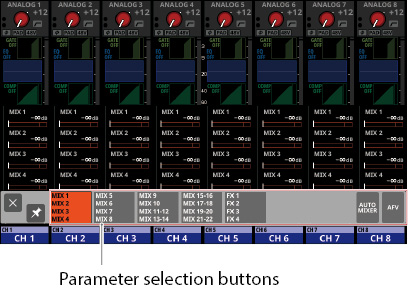

Tap this button to show the selection window for the parameters shown in the SEND area.

Tap a parameter selection button to open the selected parameter group in the SEND area.

Tap the button at the top left of the selection window to close it.

When the button is off (), tapping a parameter selection button will automatically close this window.

When the button is on (), tapping a parameter selection button will not close this window.

Tapping the AFV button will show 4 key parameters of the Audio Follow Video function in the SEND area.

ON/OFF button for the Audio Follow Video function of the selected module

Tap this button to turn on/off the Audio Follow Video function of the selected module. When ON, buttons will be highlighted.

This shows the name of the AFV TRIGGER SOURCE selected on the AFV TRIGGER SOURCE SELECT Screen.

WAIT

This adjusts the amount of time until fading starts after receiving an AFV ON event.

RISE

This adjusts the amount of fade time until the ON LEVEL is reached after fading starts when an AFV ON event is received.

FALL

This adjusts the amount of fade time until the OFF LEVEL is reached after fading starts when an AFV OFF event is received.

Tapping – will make a selection frame appear. When a selection frame is shown, corresponding LCD knobs can be used to adjust the parameters shown.

When a selection frame is shown, tap this area to open the MODULE (Audio Follow Video) Screen for the selected module. (See “MODULE (Audio Follow Video) Screen”.)

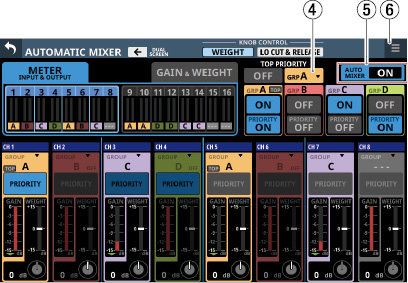

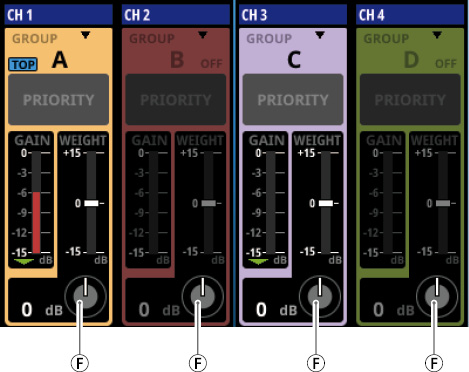

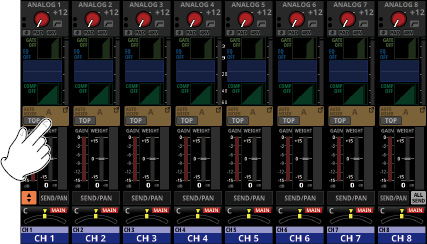

Tap the AUTO MIXER button to show the parameters and meters for the AUTO MIXER function in the SEND areas of the CH 1–16 modules. In this case, the send areas will be empty for modules other than the CH 1–16 modules.

AUTO MIXER GROUP button

This shows the name of the AUTO MIXER group (A/B/C/D) to which the corresponding channel module belongs. “---” will be shown if a group that is not subject to the AUTO MIXER is selected.

If the selected group is TOP PRIORITY, a “TOP” icon will be shown in the bottom left of the button. When the TOP PRIORITY setting is ON, this “TOP” icon will appear highlighted.

When the group AUTO MIXER function is OFF, this will appear dimmed.

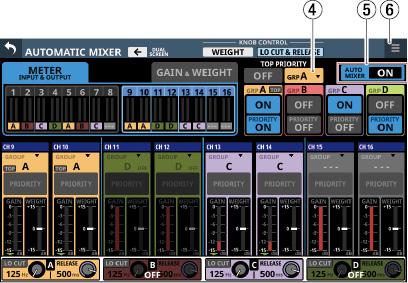

Tap this button to open the AUTOMATIC MIXER Screen. (See “AUTO MIXER Function”.)

AUTO MIXER GAIN level meter

This shows the gain level as it is automatically adjusted by the AUTO MIXER.

AUTO MIXER GATE indicator

This indicator shows whether or not the gate is closed for the subject channel in the AUTO MIXER.

This lights when the GATE is closed and the input level to the AUTO MIXER is −90 dB or less. When the input level to the AUTO MIXER is −84 dB or higher and the GATE is open, it will be unlit.

AUTO MIXER WEIGHT setting indicator

This shows the current WEIGHT value for the AUTO MIXER.

Tap this area to show the selection frame. When the selection frame is shown, the corresponding LCD knob (lit light blue) can be used to adjust the WEIGHT value shown.

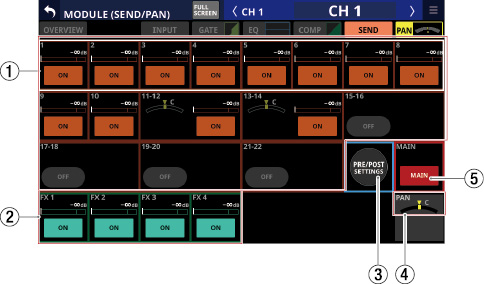

SEND/PAN button

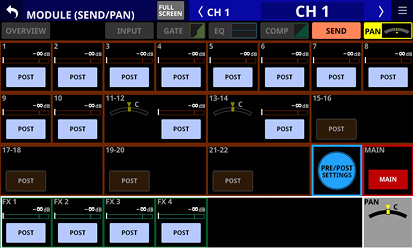

Tap this button to open the MODULE (SEND/PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

ALL SEND button ()

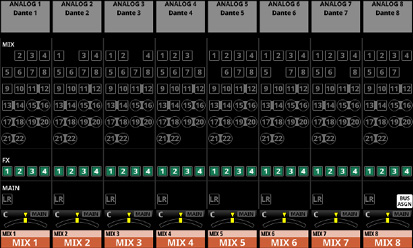

Tap this button to change the SEND area display to ALL SEND bus display.

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND levels shown.

The selection frame can also be swiped up and down to select MIX 1–22 and FX 1–4 buses.

These show the assignment state and send level to MIX 1–22 buses in GROUP mode. These appear but cannot be adjusted.

OFF	Shown in dark purple
ON	Shown in bright purple

These appear light blue when the PRE/POST setting used for MIX 1–22 and FX 1–4 buses is “PRE”.

Tap the ALL SEND bus area to switch to showing 4 buses in the tapped area.

PAN area

This shows the pan/balance setting of the signals sent to the MAIN L/R bus as well as the MAIN L/R bus assignment status.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the pan/balance of the sent signals.

Tap this area while pressing the HOME key to set the tapped pan/balance setting to center (C). (See “16 - List of shortcut operations”.)

When the selection frame is shown, tap this area to open the MODULE (SEND/ PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

MODULE LABEL area

The module label at the left of the top line is shown according to the display mode set for the Sub MODULE LABEL on the DISPLAY MODE page.

By default, the FIXED MODULE LABEL will be shown. (See “DISPLAY MODE page”.)

At the top right, the Mute Group assignment status is shown in the top line and the DCA assignment status is shown in the bottom line. Red numbers show the assigned Mute Group numbers. Yellow numbers show the assigned DCA numbers.

See “Mute Group Assign page” and “MODULE (OVERVIEW) Screen” for changing Mute Group assignments.

See “DCA Assign page” and “MODULE (OVERVIEW) Screen” for changing DCA assignments.

The bottom line shows the module label according to the display mode set for the Main MODULE LABEL on the DISPLAY MODE page. By default, the USER MODULE LABEL will be shown. (See “DISPLAY MODE page”.)

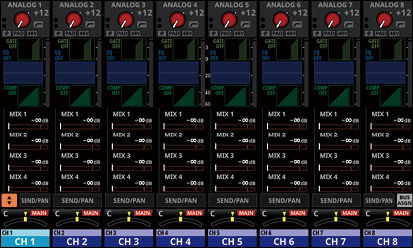

The MODULE LABEL area background color is the color set for the assigned module. See “Changing set module colors” to change set module colors.

Tap this area to open the MODULE (OVERVIEW) Screen. (See “MODULE (OVERVIEW) Screen”.)

NOTE

The following three display modes are available for the Main MODULE LABEL and Sub MODULE LABEL.

Display mode	Explanation
USER MODULE LABEL	Module name set by user
FIXED MODULE LABEL	Predetermined names for each module (for example, “CH 1” and “MIX 1”)
PORT LABEL	Names of input and output ports

The USER MODULE LABEL can be set on the MODULE LABEL Screen. (See “Setting and editing user module labels”.)

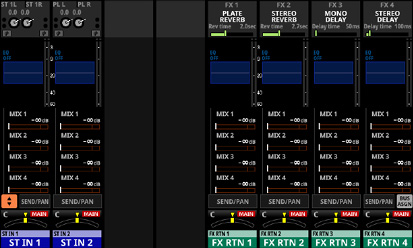

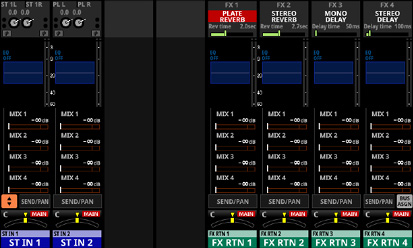

ST IN 1–2/FX RTN 1–4 Module Home Screen

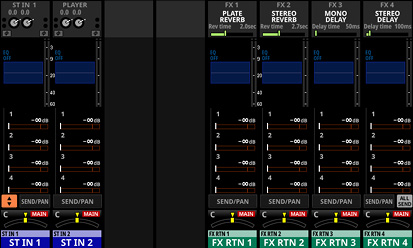

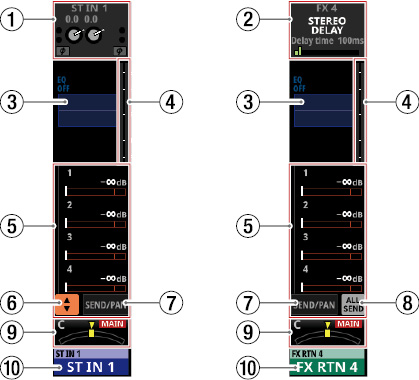

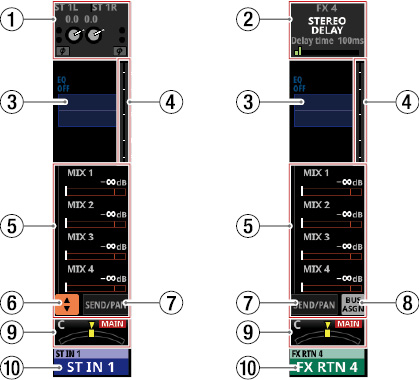

ST IN 1–2/FX RTN 1–4 Module Home Screen details

INPUT area

This shows the input settings of the selected input source.

Input area display when the input source is not “ANALOG” or “SB-16D connected by built-in Dante”

Input area display when the input source is “ANALOG” or “SB-16D connected by built-in Dante”

This shows the input source name.

If the PORT LABEL display mode is “FIXED”, the FIXED PORT LABEL will be shown for each port (for example, “ANALOG 1” or “Dante 1”). (See “DISPLAY MODE page”.)

If a Dante port that has a mounted SB-16D assigned is selected, “SB#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, will appear to the bottom left of the port name.

If the module is stereo and input sources that are not left-right adjacent are selected, the FIXED PORT LABEL for the input sources will appear split left and right and abbreviated as follows.

Input source name	Input source name abbreviation
ANALOG	AN
Dante	DA
SLOT 1	S1
USB	US
ST IN 1	ST1
PLAYER	PL

When a module is stereo, if a Dante port that has a mounted SB-16D assigned is selected, “#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, the # background will be yellow.

These indicators appear to light as shown below depending on the input level.

Red: −3 dBFS, Green: −40 dBFS

This shows the input signal phase setting status.

	Normal
	Reversed

A D.TRIM knob and the digital trim value will be shown when the input source of the selected module is not “ANALOG” or “SB-16D connected by built-in Dante”.

This shows the −20 dB pad setting status when the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”. When on, the icon will appear highlighted.

If the input sources for both the left and right channels of a stereo module are “ANALOG” or “SB-16D connected by built-in Dante”, this shows the left channel setting.

This shows the phantom power (+48V) setting status when the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”. When on, the icon will appear highlighted.

If the input sources for both the left and right channels of a stereo module are “ANALOG” or “SB-16D connected by built-in Dante”, this shows the left channel setting.

When the input source of the selected module is “ANALOG” or “SB-16D connected by built-in Dante”, this will show 2 analog gain knobs and the input level values of the unit or SB-16D MIC/LINE input jacks.

A black knob that cannot be operated will be shown if the input source is an SB-16D for which control privileges are not held.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the parameters shown.

When the selection frame is shown, tap this area to open the MODULE (INPUT) Screen for the selected module. (See “MODULE (INPUT) Screen”.)

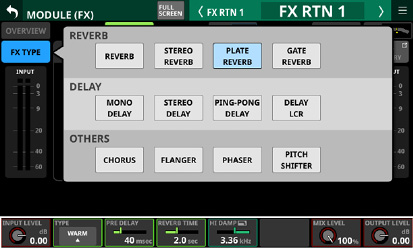

FX area

This shows effects names and main effect parameters.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust effect parameters shown.

When the selection frame is shown, tap this area to open the MODULE (FX) Screen for the selected module. (See “MODULE (FX) Screen”.)

EQ area

This shows a graph of the EQ frequency response.

Tap this area to open the MODULE (EQ) Screen for the selected module. (See “MODULE (EQ) Screen”.)

Level meters

This shows the level of the signal at the set metering point. (See “METERING POINT page”, “ST IN 1–2 MODULE (OVERVIEW) Screens” and “FX RTN 1–4 MODULE (OVERVIEW) Screens”.)

NOTE

The ST IN 1–2/FX RTN 1–4 modules are stereo, so stereo level meters are shown.

Each level meter has an overload indicator at its top. They will appear to light red when the signal level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

When a level overload occurs, the entire bar meter will light red.

The area below −60 dBFS at the bottom of the level meters will light when above −70 dBFS.

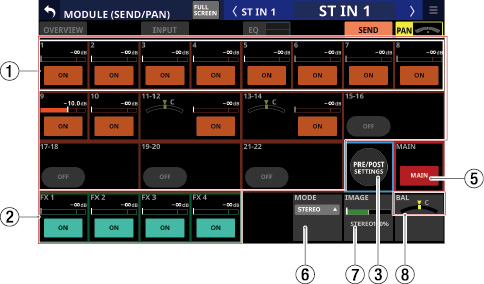

SEND area

This shows the states of SEND settings to MIX 1–22 and FX 1–4 buses 4 at a time. This also shows the parameters of the Audio Follow Video function.

This shows the MODULE LABEL set for the Main MODULE LABEL of the MIX 1–22 or FX RTN 1–4 module. (See “DISPLAY MODE page”.)

If the Main MODULE LABEL display mode is “USER” but the USER MODULE LABEL for that module is undefined, the FIXED MODULE LABEL will be shown (for example, “MIX 1” or “FX 1”).

This shows the PRE/POST setting used for MIX 1–22 and FX 1–4 buses.

No indicator	Set to POST
PRE	Set to PRE

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

If a MIX or FX bus is stereo-linked, send levels will be shown with two bars.

Purple rounded buttons are shown when GROUP mode MIX 1–22 buses are ON. These appear but cannot be turned on/off on the Home Screen.

, and are not shown in the FX 1–4 area of the FX RTN module.

Tap a SEND level to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND level shown.

Tap the SEND level while pressing the HOME key to set the SEND level for that bus to 0 dB. (See “16 - List of shortcut operations”.)

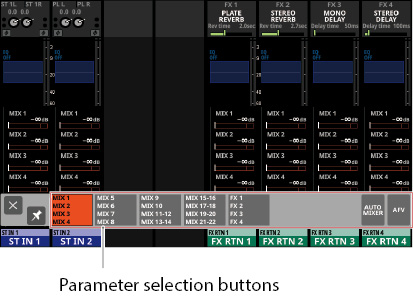

button

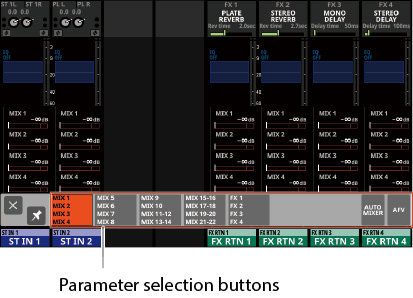

Tap this button to show the selection window for the parameters shown in the SEND area.

Tap a parameter selection button to open the selected parameter group in the SEND area.

Tap the button at the top left of the selection window to close it.

When the button is off (), tapping a parameter selection button will automatically close this window.

When the button is on (), tapping a parameter selection button will not close this window.

Tapping the AFV button will show 4 key parameters of the Audio Follow Video function in the SEND area.

ON/OFF button for the Audio Follow Video function of the selected module

Tap this button to turn on/off the Audio Follow Video function of the selected module. When ON, buttons will be highlighted.

This shows the name of the AFV TRIGGER SOURCE selected on the AFV TRIGGER SOURCE SELECT Screen.

WAIT

This adjusts the amount of time until fading starts after receiving an AFV ON event.

RISE

This adjusts the amount of fade time until the ON LEVEL is reached after fading starts when an AFV ON event is received.

FALL

This adjusts the amount of fade time until the OFF LEVEL is reached after fading starts when an AFV OFF event is received.

Tapping – will make a selection frame appear. When a selection frame is shown, corresponding LCD knobs can be used to adjust the parameters shown.

When a selection frame is shown, tap this area to open the MODULE (Audio Follow Video) Screen for the selected module. (See “MODULE (Audio Follow Video) Screen”.)

SEND/PAN button

Tap this button to open the MODULE (SEND/PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

ALL SEND button ()

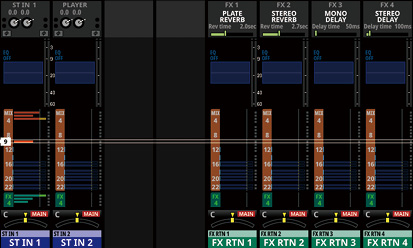

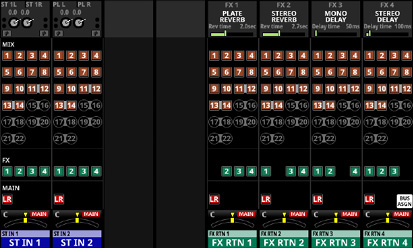

Tap this button to change to the ALL SEND bus display.

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND levels shown.

The selection frame can also be swiped up and down to select MIX 1–22 and FX 1–4 buses.

These show the assignment state and send level to MIX 1–22 buses in GROUP mode. These appear but cannot be adjusted.

OFF	Shown in dark purple
ON	Shown in bright purple

These appear light blue when the PRE/POST setting used for MIX 1–22 and FX 1–4 buses is “PRE”.

Tap the ALL SEND bus area to switch to showing 4 buses in the tapped area.

PAN area

This shows the pan/balance setting of the signals sent to the MAIN L/R bus as well as the MAIN L/R bus assignment status.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the pan/balance of the sent signals.

Tap this area while pressing the HOME key to set the tapped pan/balance setting to center (C). (See “16 - List of shortcut operations”.)

When the selection frame is shown, tap this area to open the MODULE (SEND/ PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

MODULE LABEL area

The module label at the left of the top line is shown according to the display mode set for the Sub MODULE LABEL on the DISPLAY MODE page. By default, the FIXED MODULE LABEL will be shown. (See “DISPLAY MODE page”.)

See “Mute Group Assign page” and “MODULE (OVERVIEW) Screen” for changing Mute Group assignments.

See “DCA Assign page” and “MODULE (OVERVIEW) Screen” for changing DCA assignments.

The MODULE LABEL area background color is the color set for the assigned module. See “Changing set module colors” to change set module colors.

Tap this area to open the MODULE (OVERVIEW) Screen. (See “ST IN 1–2 MODULE (OVERVIEW) Screens”.)

NOTE

The following three display modes are available for the Main MODULE LABEL and Sub MODULE LABEL.

Display mode	Explanation
USER MODULE LABEL	Module name set by user
FIXED MODULE LABEL	Predetermined names for each module (for example, “CH1” and “MIX1”)
PORT LABEL	Names of input and output ports

The USER MODULE LABEL can be set on the MODULE LABEL Screen. (See “Setting and editing user module labels”.)

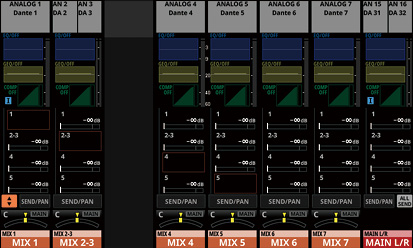

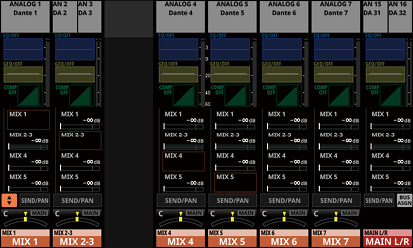

MIX 1–22 and MAIN L/R Master Module Home Screen

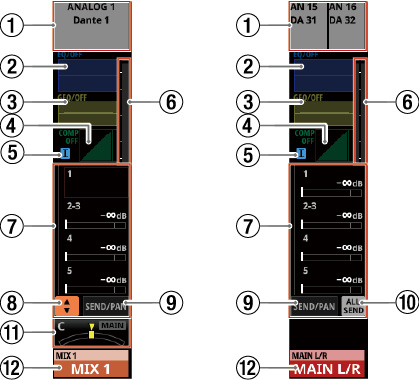

MIX 1–22 and MAIN L/R Master Module Home Screen details

OUTPUT area

If the PORT LABEL display mode is “FIXED”, the FIXED PORT LABEL will be shown for each port (for example, “ANALOG 1” or “Dante 1”). (See “DISPLAY MODE page”.)

This shows the output port assignment status.

If a Dante port that has a mounted SB-16D assigned is selected, “SB#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, will appear to the left of the port name.

If the module is stereo, the FIXED PORT LABEL for the output ports will appear split left and right and abbreviated as follows.

Output port name	Output port name abbreviatio
ANALOG	AN
Dante	DA
SLOT 1	S1
USB	US

When a module is stereo, if a Dante port that has a mounted SB-16D assigned is selected, “#[ID] [port number]” will be shown.

If it is a virtually-mounted SB-16D, the # background will be yellow.

Tap this area to open the MODULE (OUTPUT) Screen for the selected module. (See “MODULE (OUTPUT) Screen”.)

EQ area

This shows a graph of the EQ frequency response.

Tap this area to open the MODULE (EQ) Screen for the selected module. (See “MODULE (EQ) Screen”.)

GEQ area

This shows a graph of the GEQ frequency response.

Tap this area to open the MODULE (GEQ) Screen for the selected module. (See “MODULE (GEQ) Screen”.)

COMP/DUCKER area

This shows the response graphs and gain reduction meters of dynamics effects.

Tap this area to open the MODULE (COMP/DUCKER) Screen for the selected module. (See “MODULE (COMP/DUCKER) Screen”.)

INSERT indicator

The indicator is shown when the INSERT button is on for the MIX 1–22 module or MAIN L/R master module.

Level meters

This shows the level of the signal at the set metering point. (See “METERING POINT page” and “MIX 1–22 and MAIN L/R Master MODULE (OVERVIEW) Screens”.)

NOTE

If the selected module is stereo, a stereo level meter will be shown.

Each level meter has an overload indicator at its top. They will appear to light red when the signal level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

When a level overload occurs, the entire bar meter will light red.

The area below −60 dBFS at the bottom of the level meters will light when above −70 dBFS.

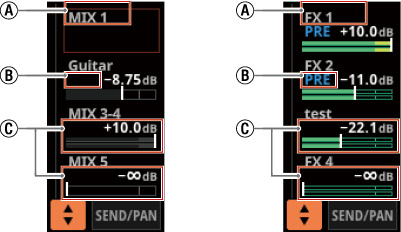

SEND area

This shows the states of SEND settings to MIX 1–22 and FX 1–4 buses 4 at a time. This also shows the parameters of the Audio Follow Video function.

This shows the MODULE LABEL set for the Main MODULE LABEL of the MIX 1–22 or FX RTN 1–4 module. (See “DISPLAY MODE page”.)

If the Main MODULE LABEL display mode is “USER” but the USER MODULE LABEL for that module is undefined, the FIXED MODULE LABEL will be shown (for example, “MIX 1” or “FX 1”).

This shows the PRE/POST setting used for MIX 1–22 and FX 1–4 buses.

No indicator	Set to POST
PRE	Set to PRE

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

If a MIX or FX bus is stereo-linked, send levels will be shown with two bars.

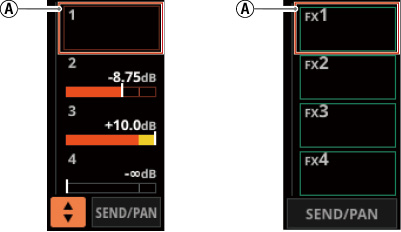

Purple rounded buttons are shown when GROUP mode MIX 1–22 buses are ON. These appear but cannot be turned on/off on the Home Screen.

, and are not shown in the bus areas of the corresponding modules themselves. , and are also not shown in the FX 1–4 area of the MAIN L/R Master module.

Tap a SEND level to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND level shown.

Tap the SEND level while pressing the HOME key to set the SEND level for that bus to 0 dB. (See “16 - List of shortcut operations”.)

button

Tap this button to show the selection window for the parameters shown in the SEND area.

Tap a parameter selection button to open the selected parameter group in the SEND area.

Tap the button at the top left of the selection window to close it.

When the button is off (), tapping a parameter selection button will automatically close this window.

When the button is on (), tapping a parameter selection button will not close this window.

Tapping the AFV button will show 4 key parameters of the Audio Follow Video function in the SEND area.

ON/OFF button for the Audio Follow Video function of the selected module

Tap this button to turn on/off the Audio Follow Video function of the selected module. When ON, buttons will be highlighted.

This shows the name of the AFV TRIGGER SOURCE selected on the AFV TRIGGER SOURCE SELECT Screen.

WAIT

This adjusts the amount of time until fading starts after receiving an AFV ON event.

RISE

This adjusts the amount of fade time until the ON LEVEL is reached after fading starts when an AFV ON event is received.

FALL

This adjusts the amount of fade time until the OFF LEVEL is reached after fading starts when an AFV OFF event is received.

Tapping – will make a selection frame appear. When a selection frame is shown, corresponding LCD knobs can be used to adjust the parameters shown.

When a selection frame is shown, tap this area to open the MODULE (Audio Follow Video) Screen for the selected module. (See “MODULE (Audio Follow Video) Screen”.)

SEND/PAN button

Tap this button to open the MODULE (SEND/PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

ALL SEND button ()

Tap this button to change to the ALL SEND bus display.

These show the assignment state and send level to MIX 1–22 and FX 1–4 buses in AUX mode.

MIX 1–22 bus	Shown in orange
FX 1–4 bus	Shown in green

This will be gray when not assigned.

When the selection frame is shown, corresponding LCD knobs can be used to adjust the SEND levels shown.

The selection frame can also be swiped up and down to select MIX 1–22 and FX 1–4 buses.

These show the assignment state and send level to MIX 1–22 buses in GROUP mode. These appear but cannot be adjusted.

OFF	Shown in dark purple
ON	Shown in bright purple

These appear light blue when the PRE/POST setting used for MIX 1–22 and FX 1–4 buses is “PRE”.

Tap the ALL SEND bus area to switch to showing 4 buses in the tapped area.

PAN area (MIX 1–22 modules only)

This shows the pan/balance setting of the signals sent to the MAIN L/R bus as well as the MAIN L/R bus assignment status.

Tap this area to show the selection frame. When the selection frame is shown, corresponding LCD knobs can be used to adjust the position/balance of the sent signals.

Tap this area while pressing the HOME key to set the tapped pan/balance setting to center (C). (See “16 - List of shortcut operations”.)

When the selection frame is shown, tap this area to open the MODULE (SEND/ PAN) Screen. (See “MODULE (SEND/PAN) Screen”.)

MODULE LABEL area

The module label at the left of the top line is shown according to the display mode set for the Sub MODULE LABEL on the DISPLAY MODE page.

By default, the FIXED MODULE LABEL will be shown. (See “DISPLAY MODE page”.)

See “Mute Group Assign page” and “MODULE (OVERVIEW) Screen” for changing Mute Group assignments.

See “DCA Assign page” and “MODULE (OVERVIEW) Screen” for changing DCA assignments.

The MODULE LABEL area background color is the color set for the assigned module. See “Changing set module colors” to change set module colors.

Tap this area to open the MODULE (OVERVIEW) Screen. (See “MIX 1–22 and MAIN L/R Master MODULE (OVERVIEW) Screens”.)

NOTE

The following three display modes are available for the Main MODULE LABEL and Sub MODULE LABEL.

Display mode	Explanation
USER MODULE LABEL	Module name set by user
FIXED MODULE LABEL	Predetermined names for each module (for example, “CH 1” and “MIX 1”)
PORT LABEL	Names of input and output ports

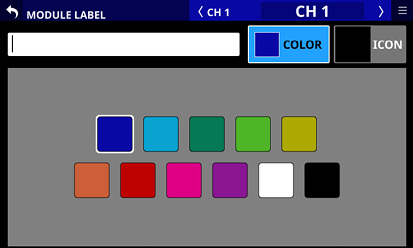

The USER MODULE LABEL can be set on the MODULE LABEL Screen. (See “Setting and editing user module labels”.)

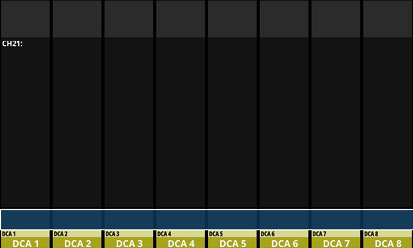

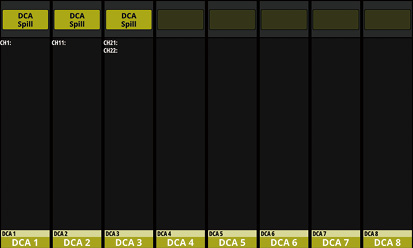

DCA Module Home Screen

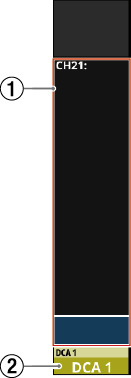

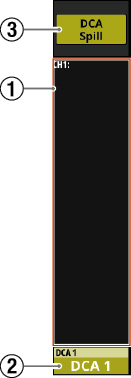

DCA Module Home Screen details

DCA assignment display area

This shows the FIXED MODULE LABEL and USER MODULE LABEL of modules that have been assigned to that DCA.

Tap this area to open the DCA/Mute Group SETUP Screen DCA Assign page. (See “DCA Assign page”.)

MODULE LABEL area

See “Mute Group Assign page” for changing Mute Group assignments.

See “DCA Assign page” for changing DCA assignments.

The MODULE LABEL area background color is the color set for the assigned module. See “Changing set module colors” to change set module colors.

Tap this area to open the MODULE LABEL Screen where the USER MODULE LABEL and set module color can be changed. (See “MODULE LABEL screen”.)

NOTE

The following three display modes are available for the Main MODULE LABEL and Sub MODULE LABEL.

Display mode	Explanation
USER MODULE LABEL	Module name set by user
FIXED MODULE LABEL	Predetermined names for each module (for example, “CH 1” and “MIX 1”)
PORT LABEL	Names of input and output ports

The USER MODULE LABEL can be set on the MODULE LABEL Screen. (See “Setting and editing user module labels”.)

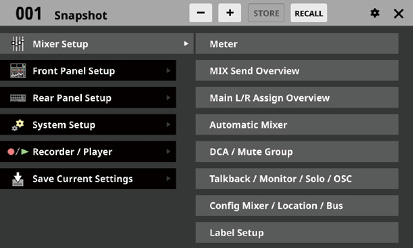

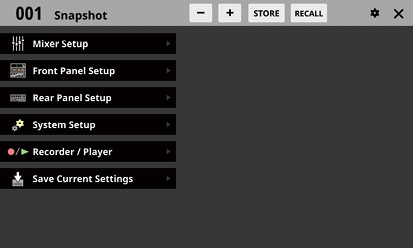

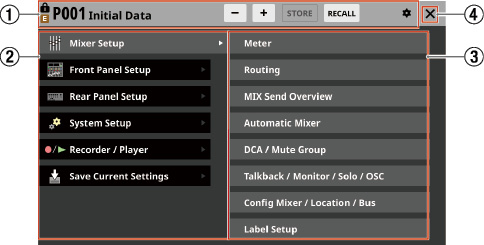

Menu Screen

Open various settings screens and use snapshot functions from this screen.

Press the MENU key to open this on the right touchscreen.

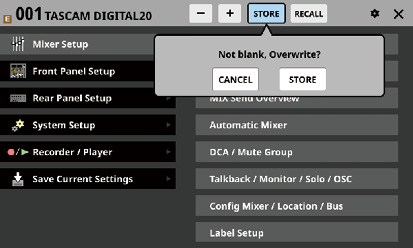

Snapshot function area

This shows items related to the snapshot function.

See “Snapshot functions” for details about the snapshot function.

Menu item area

This shows menu items.

Tap a menu item to show its submenu items.

Submenu item area

This shows submenu items. If the submenu has 9 or more items, swipe the submenu area up and down to scroll it.

Tap a submenu item to open a settings screen.

button

Tap this button to close the Menu Screen.

NOTE

On the Menu Screen, an icon sometimes appears with System Setup menu items and Version Information submenu items.

In this case, an update is necessary for a device, application or this unit.

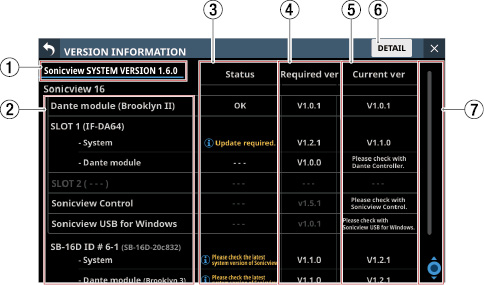

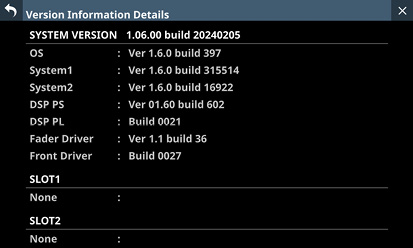

Check the Version Information Screen. (See “Version Information Screen”.)

Menu Screen operations

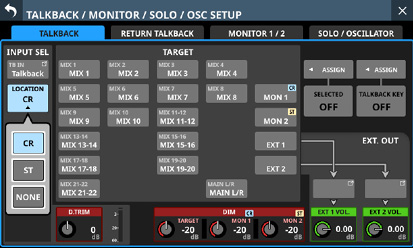

In this example, will open the TALKBACK Setup Screen.

1.Press the MENU button to switch to the Menu Screen.

NOTE

When the Menu Screen is opened the first time after startup, submenu items will not be shown.

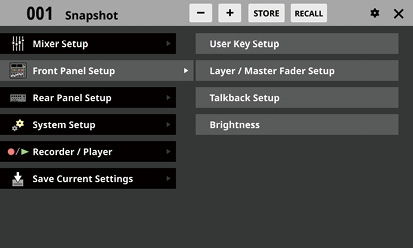

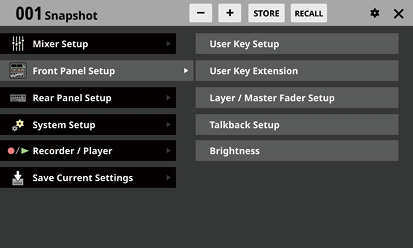

2.Tap “Front Panel Setup” in the menu item area to show its submenu items.

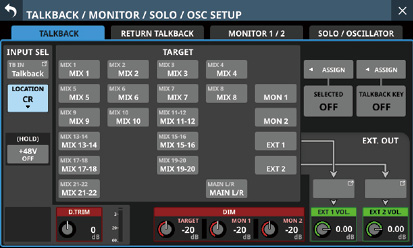

3.Tap “Talkback Setup” to open the TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen.

SYNC CLOCK screen

On this screen, the status of each audio clock is shown and audio synchronization settings and word clock output jack output mode settings can be made.

Tap Menu Screen > System Setup > Sync Clock to open this screen.

STATUS display area

This shows the status of each audio clock.

Item	Explanation
SYNC CLOCK	This shows the synchronization status of this unit with the master clock (Locked/Unlocked/Regained) and the operation frequency (96kHz/48kHz/No Signal).
WORD IN	This shows the synchronization status of this unit with the WORD signal input through the WORD IN jack (Locked/Unlocked/Regained) and the operation frequency (actual measured value/No Signal).
Dante	This shows the synchronization status of this unit with the connected Dante system (Locked/Unlocked/Regained) and the operation frequency (actual measured value/No Signal). Tap the icon to open the Dante Settings page of the Dante Setup Screen.
SLOT1	These show the names of the expansion cards in SLOT 1 and 2 and the synchronization statuses of this unit with them (Locked/Unlocked/Regained) and the operation frequency (actual measured value/No Signal).
SLOT2

NOTE

The operation frequency will not be shown for SLOT 1 or SLOT 2 if it has an IF-MTR32 (multitrack recording) card installed.

Sync Clock buttons

These set the synchronization clock frequency of the digital input and output signals.

The selected button will be highlighted light blue.

Options: 48 kHz, 96 kHz (default)

NOTE

This unit will always operate internally at 96 kHz even when synchronized to a master clock that is 48 kHz.

Synchronization is possible even if the built-in Dante “Sampling rate” and the main unit “Sync Clock” settings are different.

Synchronization is not possible if the IF-DA64 (Dante) card “Sampling rate” is 44.1 or 88.2 kHz.

If the IF-DA64 (Dante) card “Sampling rate” is 48 or 96 kHz, synchronization is possible even if the main unit “Sync Clock” setting is different. (Set the IF-DA64 (Dante card) “Sampling rate” with Dante Controller.)

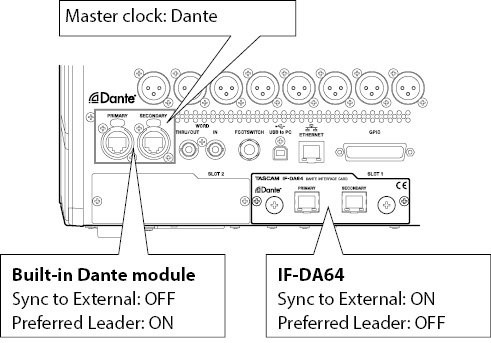

When the Clock Master is Dante, if the “Sampling rate” setting and Dante sampling rate are different, the following values will be shown for the operation frequency of the SYNC CLOCK.

When the internal Dante “Sampling rate” is “96 kHz” and Sync Clock is “48 kHz”, half the internal Dante measured value

When the internal Dante “Sampling rate” is “48 kHz” and Sync Clock is “96 kHz”, twice the internal Dante measured value

Clock Master buttons

These set the master clock used by this unit for audio synchronization. (default: INT)

A mark appears on the master clock being used.

If the selected master clock is locked, the select button will be highlighted light blue.

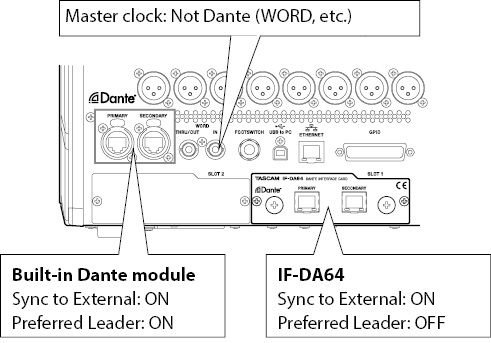

If Sync Clock is “48 kHz” when the internal Dante “Sampling rate” is “96 kHz”, “1/2” will be shown at the top right of the Dante button.

If Sync Clock is “96 kHz” when the internal Dante “Sampling rate” is “48 kHz”, “x2” will be shown at the top right of the Dante button.

If the “Sampling rate” of an IF-DA64 (Dante) card installed in SLOT 1 or SLOT 2 is “96kHz” and Sync Clock is “48kHz”, “1/2” will be shown at the top right of the corresponding SLOT button.

If the “Sampling rate” of an IF-DA64 (Dante) card installed in SLOT 1 or SLOT 2 is “48kHz” and Sync Clock is “96kHz”, “×2” will be shown at the top right of the corresponding SLOT button.

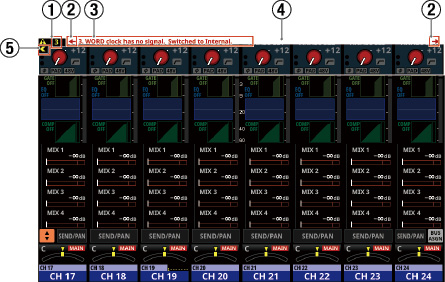

If the selected external clock is unlocked, the unit will operate using the internal clock. In this case the will be shown on the INT button as the clock in use, while is shown on the selected button for the unlocked source. The selected button for the unlocked source will be highlighted red.

If synchronization becomes possible with an external clock after synchronization with it failed (Regain state), the will be shown on the INT button as the clock in use, while is shown on the selected button for the clock in a regain state. Tap the red-highlighted button with the mark to open a confirmation message for switching back to the selected master clock.

Tap the OK button to switch to synchronization with the selected external clock.

WORD OUT Mode buttons

These set the output mode of the WORD THRU/OUT connector on the back of the unit.

The selected button will be highlighted light blue.

Option	Meaning
WORD OUT/TERM-ON (default)	This sets the signal output from the WORD THRU/OUT connector to WORD OUT and turns WORD IN connector termination resistance (75Ω) on.
THRU OUT/TERM-OFF	This sets the signal output from the WORD THRU/OUT connector to THRU output of the signal from the WORD IN connector and turns WORD IN connector termination resistance (75Ω) off.

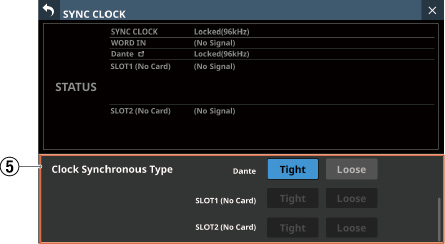

Clock Synchronous Type buttons

These can be shown by swiping up from the bottom of the SYNC CLOCK Screen.

These are settings for evaluating the synchronization status (locked/unlocked) of this unit and Dante signals.

Button	Meaning
Tight (default)	Synchronization status is evaluated strictly.
Loose	Synchronization status is evaluated loosely.

Setting the sampling frequency

1.Tap Menu Screen > System Setup > Sync Clock to open the SYNC CLOCK Screen.

2.Tap the button for the desired sampling frequency to set it.

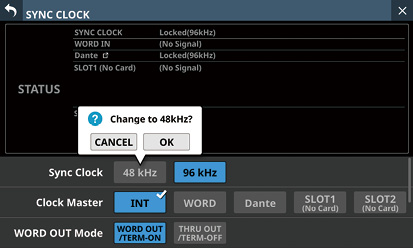

A confirmation message will appear.

3.Tap the OK button to switch the sampling frequency.

ATTENTION

Switching the sampling frequency will mute the sound for a few seconds. Be aware of this timing when switching.

Setting the master clock

The unit's master clock can be set.

ATTENTION

When connecting multiple digital audio devices, set up the system so that it uses only one master clock.

1.Tap Menu Screen > System Setup > Sync Clock to open the SYNC CLOCK Screen.

2.Tap the button for the desired master clock to set it.

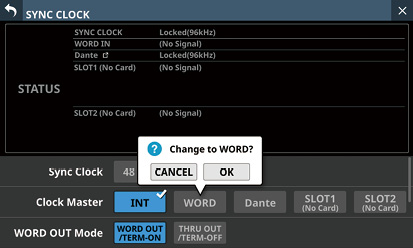

A confirmation message will appear.

Button	Use
INT	The unit's internal clock is used.
WORD IN	Synchronize with the word clock signal input through the WORD IN connector.
Dante	Synchronize with the clock of a connected Dante system.
SLOT1	Synchronize with the digital signal clock received through SLOT 1.
SLOT2	Synchronize with the digital signal clock received through SLOT 2.

NOTE

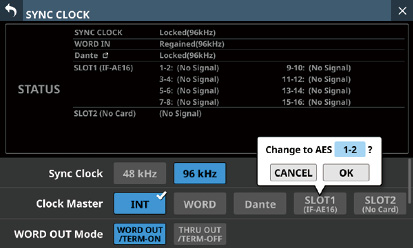

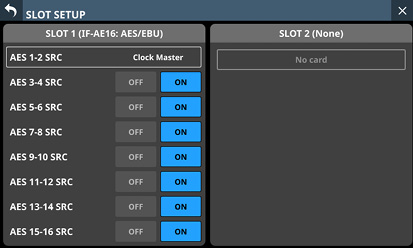

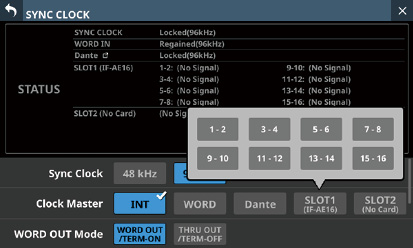

If the SLOT1/SLOT2 button for the slot that has an IF-AE16 installed is tapped, a window will open that allows 8 pairs of input signals to be selected for the master clock. Tap the button for the input signal to set for the master clock.

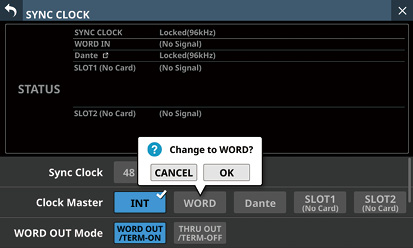

A confirmation message will appear.

3.Tap the OK button to switch the master clock.

NOTE

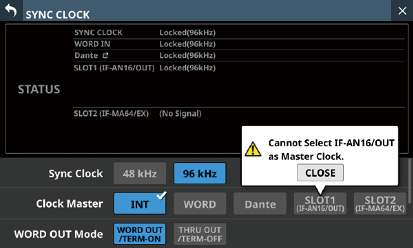

If the SLOT 1 or SLOT 2 button is tapped when an IF-AN16/OUT or IF-MTR32 is installed in that slot, or if no expansion card has been installed in that slot, the following message will appear and the master clock will not be selected.

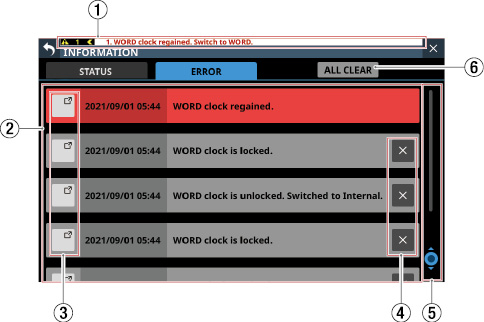

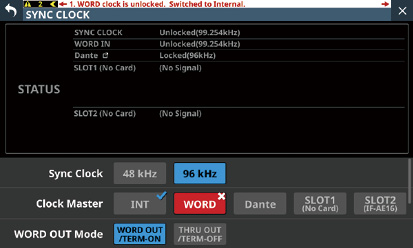

When synchronization with the external master clock becomes possible again, a message like the one below will appear at the top of all touchscreens.

WORD clock regained. Can be re-synced to WORD.

Tap this message to open the SYNC CLOCK Screen on the right touchscreen.

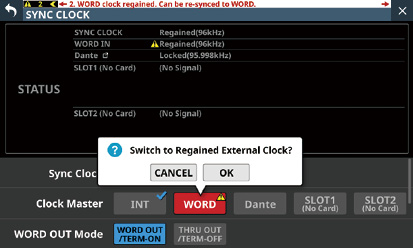

Tap the red-highlighted button with the mark to open a confirmation message for switching back to the selected master clock.

Tap the OK button to switch to synchronization with the selected external clock.

ATTENTION

When switching the master clock, noise might occur in the audio input and output.

Be aware of this when choosing when to change the master clock.

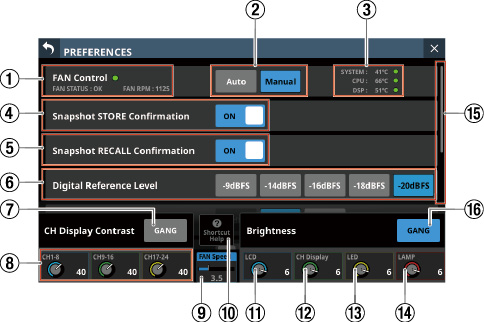

PREFERENCES screen

Make settings and view information as follows on this screen.

Cooling fan operation mode and speed settings

Cooling fan operation status display

Temperature value and status display for various locations

Snapshot STORE/RECALL confirmation setting

Digital Reference Level setting

Analog Reference Level setting

ON AIR Tally Inhibit setting

Mute Group LED Flash setting

Solo/Mute/Fader Speed setting

USB Keyboard type setting

Brightness settings for the various displays

Contrast settings for the channel screens

Tap any of the following menu screens to open this screen.

“Brightness“ in the Front Panel Setup menu

LAMP Dimmer Setup in the Rear Panel Setup menu

Preferences in the System Setup menu

FAN Status

This shows the cooling fan operation status and rotation speed.

Indicator	FAN STATUS	Meaning
Green	OK	Normal
Red	FAILURE	Malfunctioning

FAN Control buttons

Use these to set the internal cooling fan operation mode.

The selected button will be highlighted.

Button	Meaning
Auto (default)	Cooling fan operation will be controlled automatically.
Manual	FAN Speed () will be shown and the user can set cooling fan operation.

Temperature Status

These show the temperature values of the SYSTEM (internal temperature), CPU and DSP.

Indicator	Meaning
Green	Temperature is within normal range
with orange WARNING	Temperature is not in normal range

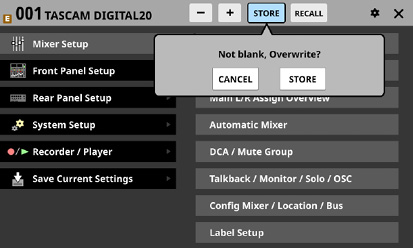

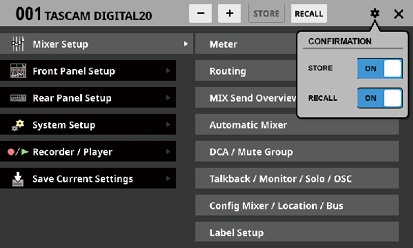

Snapshot STORE Confirmation switch

Set whether or not to show a confirmation message when storing snapshots.

When on, the sliding switch will appear highlighted.

NOTE

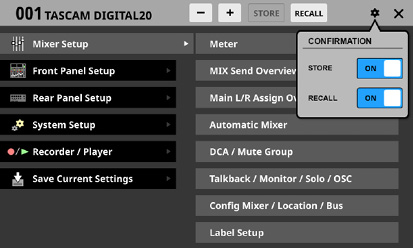

This can also be set by tapping the icon in the Snapshot function item area at the top of the Menu Screen and opening the CONFIRMATION settings window. (See “Snapshot functions”.)

Snapshot RECALL Confirmation switch

Set whether or not to show a confirmation message when recalling snapshots.

When on, the sliding switch will appear highlighted.

NOTE

This can also be set by tapping the icon in the Snapshot function item area at the top of the Menu Screen and opening the CONFIRMATION settings window. (See “Snapshot functions”.)

Digital Reference Level buttons

Use these to set the digital reference level.

The selected button will be highlighted.

Options:−9dBFS, −14dBFS, −16dBFS, −18dBFS, −20dBFS (default)

CH Display Contrast GANG button

This turns the Channel Screen contrast adjustment knob GANG function on or off (default).

When the GANG function is on, the button will appear highlighted.

When the GANG function is on, operating any LCD knob 1–3 will cause the contrast settings of all to follow, maintaining set differences.

CH Display Contrast knobs

Use these to adjust the contrasts of the channel screens.

Range: 0 – 60 (default: 40)

Turn an LCD knob to adjust 1 step at a time.

Press and turn an LCD knob to adjust 4 steps at a time.

LCD knob 1	Channels 1–8
LCD knob 2	Channels 9–16
LCD knob 3	Channels 17–24 (Sonicview 24 only)

NOTE

By turning an LCD knob while pressing the MENU key on the top of the unit, the contrast of the channel screen that corresponds to that knob can be adjusted. (See “16 - List of shortcut operations”.)

FAN Speed

When the operation mode of the cooling fan is “Manual”, its rotation speed can be adjusted.

Range: 1.0 – 10.0 (36 levels, default: 3.5)

Turn LCD knob 4 (lit blue) to adjust it.

Shortcut Help button

Tap this button to open a window that explains shortcut operations for adjusting the contrast of channel screens and brightness of the various displays.

Tap at the top right of the SHORTCUT OPERATION HELP window or the Close Help button to close it.

LCD brightness knob

Turn LCD knob 5 (lit blue) to adjust the touchscreen brightness.

Range: 0 – 7 (default 6)

CH Display brightness knob

Turn LCD knob 6 (lit green) to adjust the channel screen brightness.

Range: 0 – 7 (default 6)

LED brightness knob

Turn LCD knob 7 (lit yellow) to adjust the indicator brightness.

Range: 0 – 7 (default 6)

LAMP brightness knob

Turn LCD knob 8 (lit red) to adjust the brightness of the lamp connected to the LAMP connector on the rear panel.

Range: 0 – 7 (default 6)

Scrollbar display

This scroll bar shows the position of the setting items currently shown on the screen relative to all items on the PREFERENCES Screen.

NOTE

To view setting items not shown on the screen, swipe the setting items area up and down to scroll the screen.

Brightness GANG button

This turns the brightness knods GANG function on (default) and off.

When the GANG function is on, the button will appear highlighted.

When the GANG function is on, operating any LCD knob 5–8 will cause the brightness settings of all to follow, maintaining set differences.

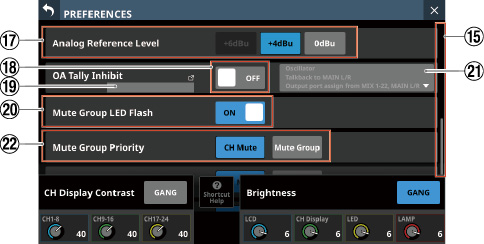

Analog Reference Level buttons

Use these to set the analog reference level.

The selected button will be highlighted.

Options: +6dBu, +4dBu (default), 0dBu

NOTE

Depending on the Digital Reference Level button setting, selection of some Analog Reference Level buttons will not be possible.

Buttons that cannot be selected will appear dark gray.

		Analog Reference Level
		+6dBu	+4dBu	0dBu
Digital Reference Level	−9dBFS
	−14dBFS
	−16dBFS
	−18dBFS
	−20dBFS

: Selectable

: Not selectable

OA Tally Inhibit switch

This switches on/off the ON AIR Tally Inhibit function that limits operations during ON AIR Tally input. (See “Operation restriction during ON AIR Tally input”.) (Default: OFF)

OA Tally Input port

This shows the name of the GPIO-IN port that has the ON AIR Tally Input function assigned.

Tap this area to switch to the GPIO-IN page of the USER DEFINED CONTROLS Screen. (See “GPIO-OUT page”.)

Mute Group LED Flash switch

This sets whether the MUTE buttons and the top panel MUTE keys flash for modules that have been muted by a Mute Group or DCA.

When ON, the sliding switch will appear highlighted.

Option	Meaning
ON (default)	MUTE buttons and top panel MUTE keys will flash
OFF	MUTE buttons and top panel MUTE keys will not flash

ON AIR Tally Inhibit subjects

This shows the status of subjects of the ON AIR Tally Inhibit function.

Items that are selected as subjects of the ON AIR Tally Inhibit function will appear highlighted.

Items that are not selected as subjects of the ON AIR Tally Inhibit function will appear gray.

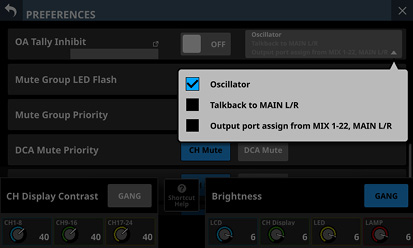

Tap this area to open a window where the selection status of the items subject to the ON AIR Tally Inhibit function can be set.

By tapping checkboxes to add check marks (), items can be selected as subject to operation restriction during ON AIR Tally input (See “Operation restriction during ON AIR Tally input”.).

Mute Group Priority buttons

This switches the muting behavior of modules that are assigned to mute groups when the assigned groups are unmuted but the modules themselves are muted.

Option	Meaning
CH Mute (default)	Corresponding modules continue to be muted
Mute Group	Corresponding modules are unmuted when their mute groups are unmuted

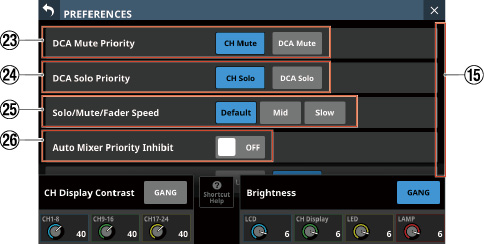

DCA Mute Priority buttons

This switches the muting behavior of modules that are assigned to DCAs when the assigned DCAs are unmuted but the modules themselves are muted.

Option	Meaning
CH Mute (default)	Corresponding modules continue to be muted
DCA Mute	Corresponding modules are unmuted when their DCAs are unmuted

DCA Solo Priority buttons

If SOLO MODE is set to MIX, this switches the solo behavior of modules that are assigned to DCAs when solo is turned off on those DCAs but the modules themselves are soloed.

Option	Meaning
CH Solo (default)	Corresponding modules continue to be soloed
DCA Solo	Corresponding modules are unsoloed when DCA solo is turned off

Solo/Mute/Fader Speed buttons

These adjust the fade in/out speed when operating faders and turning soloing and muting on/off.

Option	Explanation
Default (default)	This is the fastest fade in/out setting.
Mid	The speed of this fade in/out setting is between Default and Slow.
Slow	This is the slowest fade in/out setting.

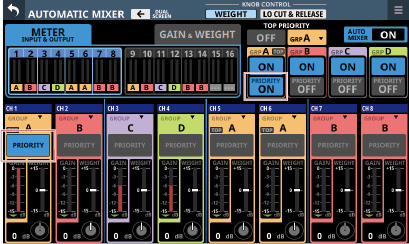

Auto Mixer Priority Inhibit switch

This turns on/off the Auto Mixer Priority Inhibit function, which restricts the following PRIORITY settings of the AUTO MIXER. (Default: ON)

TOP PRIORITY setting (See “ TOP PRIORITY ON/OFF button”.)

Group PRIORITY setting (See “ Group PRIORITY setting ON/OFF buttons”.)

Channel PRIORITY setting (See “ Channel PRIORITY setting ON/OFF button”.)

Switching this ON, turns OFF all the above PRIORITY settings of the AUTO MIXER, disabling their operation.

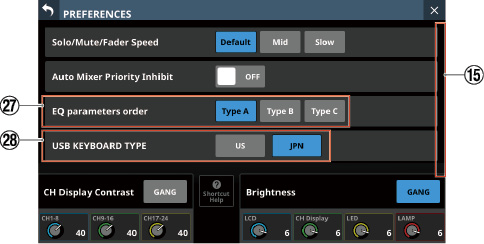

USB KEYBOARD TYPE buttons

Set the type of USB keyboard connected to the USB port on the top of the unit.

The selected button will be highlighted.

Button	Meaning
US	US English keyboard
JPN (default)	Japanese keyboard

Operation restriction during ON AIR Tally input

When “Oscillator” is subject to the ON AIR Tally Inhibit function

The OA Tally Inhibit switch is ON

The “Oscillator” checkbox is checked for items subject to the ON AIR Tally Inhibit function

If ON AIR Tally is input when all the above conditions are met, the built-in oscillator will turn off automatically (See “ OSCILLATOR button”.). Moreover, the built-in oscillator cannot be turned on during ON AIR Tally input.

When “Talkback to MAIN L/R” is subject to the ON AIR Tally Inhibit function

The OA Tally Inhibit switch is ON

The “Talkback to MAIN L/R” checkbox is checked for items subject to the ON AIR Tally Inhibit function

If ON AIR Tally is input when all the above conditions are met, the MAIN L/R button for the TALKBACK output to MAIN L/R will turn off automatically (See “ TARGET buttons”.). Moreover, TALKBACK output to MAIN L/R cannot be turned on during ON AIR Tally input.

When “Output port assign from MIX 1–22, MAIN L/R” is subject to the ON AIR Tally Inhibit function

The OA Tally Inhibit switch is ON

The “Output port assign from MIX 1–22, MAIN L/R” checkbox is checked for items subject to the ON AIR Tally Inhibit function

When all the above conditions are met, output port assignments for MIX 1–22 and MAIN L/R cannot be changed while ON AIR Tally is input.

NOTE

When the following two conditions apply, All System Data Cannot be loaded.

ON AIR Tally is input to GPIO-IN

The OA Tally Inhibit switch is ON

If Snapshot Recall is executed when ON AIR Tally is input to GPIO-IN, settings subject to ON AIR Tally Inhibit will become as follows.

1) Oscillator

ON AIR Tally is input to GPIO-IN

The OA Tally Inhibit switch is ON

The “Oscillator” checkbox is checked for items subject to the ON AIR Tally Inhibit function

If all the above conditions are met, the on/off state of the built-in oscillator signal will not be recalled when Snapshot Recall is executed.

If any of the above conditions are not met, the on/off state of the built-in oscillator signal will be recalled when Snapshot Recall is executed.

2) Talkback to MAIN L/R

This setting is not subject to snapshots.

For this reason, it will become as follows.

ON AIR Tally is input to GPIO-IN

The OA Tally Inhibit switch is ON

The “Talkback to MAIN L/R” checkbox is checked for items subject to the ON AIR Tally Inhibit function

If all the above conditions are met, the Talkback to MAIN L/R setting will be turned off when Snapshot Recall is executed.

If any of the above conditions are not met, the Talkback to MAIN L/R setting will not be changed when Snapshot Recall is executed.

3) Output port assign from MIX 1–22, MAIN L/R

ON AIR Tally is input to GPIO-IN

The OA Tally Inhibit switch is ON

The “Output port assign from MIX 1–22, MAIN L/R” checkbox is checked for items subject to the ON AIR Tally Inhibit function

If Snapshot Recall is executed when all the above conditions are met, routing settings from MIX 1–22 and MAIN L/R modules to output ports will be retained (not recalled).

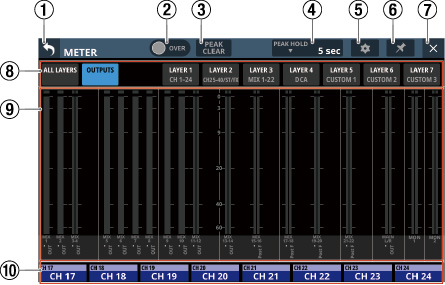

METER screen

View various meters and make settings for them on this screen.

Tap Menu Screen > Mixer Setup > Meter to open this screen.

NOTE

Using the User Defined Control function, this screen can also be opened with a USER KEYS, footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

button

Tap this button to return to the Menu Screen.

NOTE

If the button () on this screen appears highlighted (), tapping this button will not return to the Menu Screen.

OVER Indicator

This will appear highlighted red if the signal level at a metering point of any module has overloaded. This will continue to appear highlighted for the PEAK HOLD time () set on this screen.

Tap this area to clear the highlighting of this indicator and the overload indicators of all level meters.

NOTE

They will appear to light red when the level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

PEAK CLEAR button

Tap this button to clear the peak hold indicators for the following level meters.

Peak indicators that are held below overload levels

Overload indicators for all level meters

NOTE

The OVER indicator () on this screen will not be cleared.

PEAK HOLD time display

This shows the level meter peak hold time.

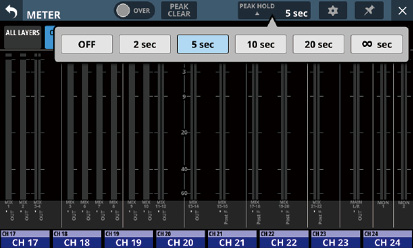

Tap this area to open a window where the level meter peak hold time can be set.

Options: OFF(no hold), 2 sec, 5 sec (default), 10 sec, 20 sec, ∞ sec (hold until cleared)

button

Tap this button to open the METER SETUP Screen. (See “METER SETUP screen”.)

button

Tap this button, highlighting it, to disable the METER Screen () and () buttons as shown below and prevent the METER Screen from being closed.

In this state, the METER Screen will stay open even if the HOME key on the top of the unit is pressed.

The screen can still be switched, however, by conducting the following operation.

Tap the () button to open the METER SETUP Screen.

Press the MENU key on the top panel to switch to the Menu Screen.

Press the HOME and MENU keys together to open the LOCK SETUP Screen.

Press the SEL key on the top panel to switch to the MODULE Screen.

Tap the Home Screen MODULE LABEL area () at the bottom of this screen to open the MODULE (OVERVIEW) Screen.

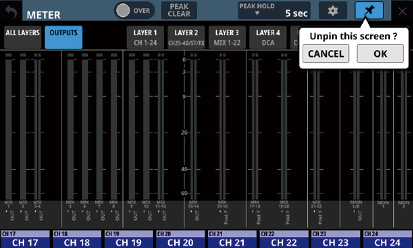

Tap the button when it is highlighted () to open a confirmation message.

Tap the OK button to end highlighting of the button, enabling closing of the METER Screen.

button

Tap this button to return to the Home Screen.

NOTE

If the button () on this screen appears highlighted (), tapping this button will not return to the Home Screen.

Page selection buttons

The button for the currently selected page is highlighted and corresponding level meters are shown in the meter area ().

Tap one of these buttons to switch to showing the corresponding level meters.

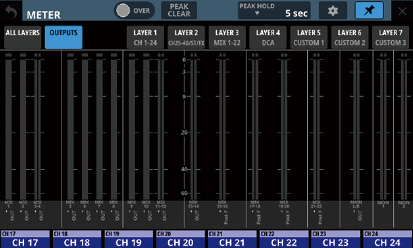

Meter Area

The level meters are shown for the page with the highlighted selection button.

Page name	Contents
ALL LAYERS	This shows level meters for the modules assigned to all of the 7 layers on one line per layer. The MODULE LABEL set as the Main MODULE LABEL will be shown at the bottom of each level meter. (See “DISPLAY MODE page”.)
OUTPUTS	This shows level meters for MIX 1–22 and MAIN L/R Master modules and the MONITOR OUT. The FIXED MODULE LABEL, the MODULE LABEL set as the Main MODULE LABEL (See “DISPLAY MODE page”.) and the Metering Point will be shown at the bottom of each level meter.
LAYER1	This shows level meters for the modules assigned to the corresponding layer. The FIXED MODULE LABEL, the MODULE LABEL set as the Main MODULE LABEL (See “DISPLAY MODE page”.) and the Metering Point name will be shown at the bottom of each level meter.
LAYER2
LAYER3
LAYER4
LAYER5
LAYER6
LAYER7

Two meters will be shown for stereo modules.

Each level meter has an overload indicator at its top. They will appear to light red when the signal level reaches or exceeds −0.00026 dBFS (16-bit full-scale value).

When a level overload occurs, the entire bar meter will light red.

The area below −60 dBFS at the bottom of the level meters will light when above −70 dBFS.

Home screen MODULE LABEL area

This shows the same information as the MODULE LABEL area on the Home Screen for modules assigned to the right touchscreen on the current layer (module labels according to the display mode set for the Sub MODULE LABEL and Main MODULE LABEL (See “DISPLAY MODE page”.), Mute Group assignment or DCA assignment).

Tap this area to open the MODULE (OVERVIEW) Screen. (See “MODULE (OVERVIEW) Screen”.)

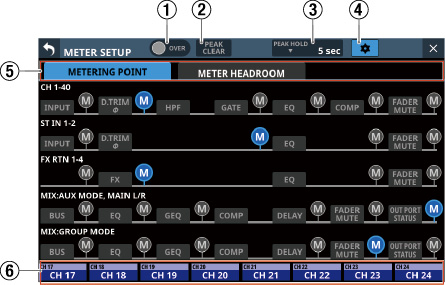

METER SETUP screen

Make the following settings on this screen.

METERING POINT page

Set the metering points for each module type.

METER HEADROOM page

Set the point where level meter colors change on each screen.

Tap on the METER Screen to open this screen.

OVER Indicator

This has the same function as the OVER indicator on the METER Screen. (See “METER screen”.)

PEAK CLEAR button

This has the same function as the PEAK CLEAR button on the METER Screen. (See “METER screen”.)

PEAK HOLD time display

This has the same function as the PEAK HOLD time display on the METER Screen. (See “METER screen”.)

button

Tap this button to return to the METER Screen. (See “METER screen”.)

Page selection buttons

Tap these buttons to switch the page shown.

Home screen MODULE LABEL area

This shows the MODULE LABEL area of the right touchscreen Home Screen. (See “METER screen”.)

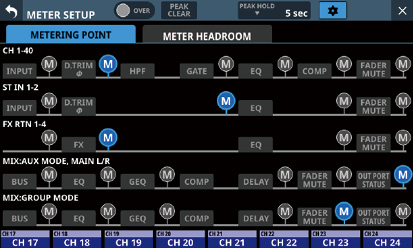

METERING POINT page

Set the metering points for each module type on this page.

Tap icons to set metering points.

When a metering point is selected, that icon will appear highlighted ().

Module type	default
CH 1–40 module	PRE HPF
ST IN 1–2 module	PRE EQ
FX RTN 1–4 module	FX OUTPUT
MIX 1–22 and MAIN L/R Master modules when the BUS mode is AUX	OUTPUT*
MIX 1–22 modules when the BUS mode is GROUP	POST FADER

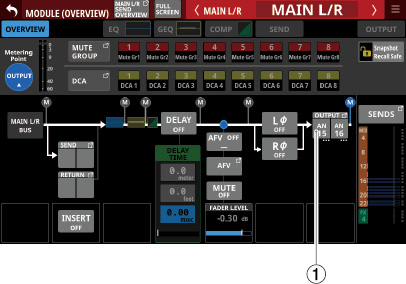

*Metering Point “OUTPUT” setting explanation

For the following module types, this is the Metering Point setting when the icon to the right of “OUT PORT STATUS” is lit ( ).

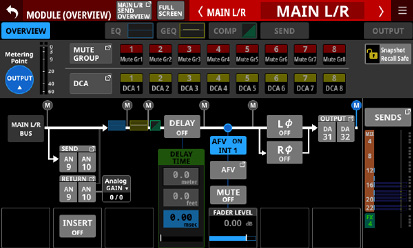

MIX: AUX MODE, MAIN L/R

MIX: GROUP MODE

NOTE

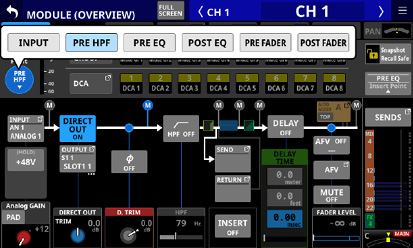

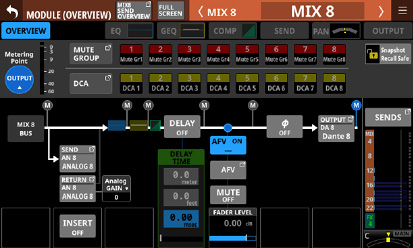

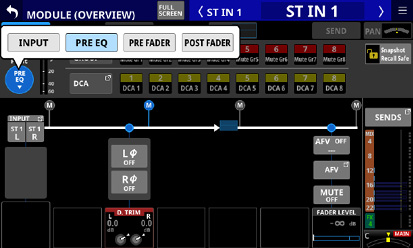

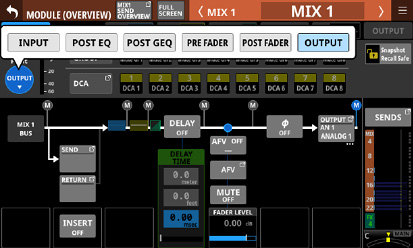

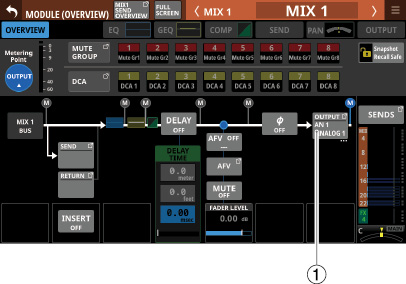

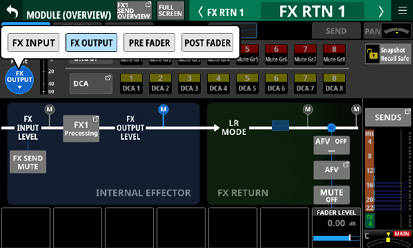

These can also be set on the MODULE (OVERVIEW) screens for each module using Metering Point buttons. (See “MODULE (OVERVIEW) Screen”.)

When the Metering Point is OUTPUT*, and the corresponding bus has not been assigned to an output port (not being output from the unit), meters will not be shown.

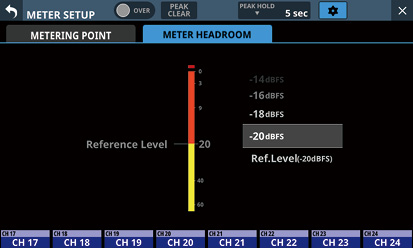

METER HEADROOM page

On this page, set the point where level meter colors change on each screen.

Options: −9dBFS, −14dBFS, −16dBFS, −18dBFS, −20dBFS, Ref.Level (default)

Swipe the options up and down to select the point where colors change.

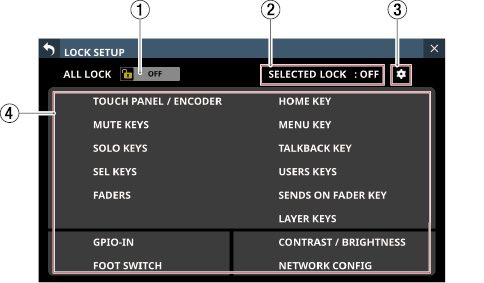

LOCK SETUP screen

On this screen, set the lock function to prevent this unit from being controlled from its front panel or an external device.

Preventing only selected operations is also possible.

Press and hold the HOME and MENU keys on the top panel together for 5 seconds to open the screen on the right touchscreen.

ALL LOCK button

Tap this button to switch it ON and OFF. (Default: OFF)

When ON, this button will be highlighted and all operations subject to locking will be prohibited.

SELECTED LOCK status

This shows the ON/OFF status of SELECTED LOCK which prevents the operation of selected items. (Default: OFF)

icon

Tap this icon to open the SELECTED LOCK settings window.

List of items subject to locking

This shows whether each item subject to locking is locked or not.

Unlocked items are shown with white letters.

Locked items, which are prohibited from operation, are shown with a lock mark and black letters.

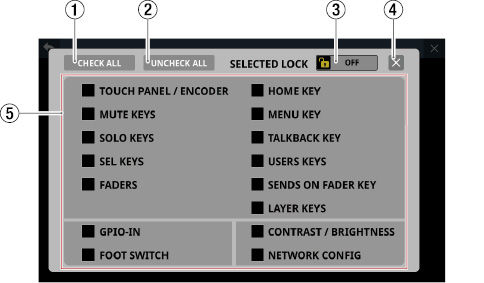

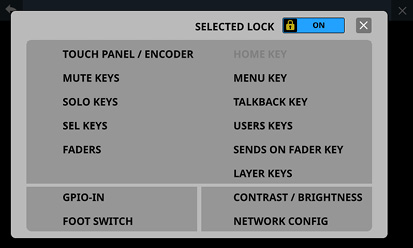

SELECTED LOCK setting window

CHECK ALL button

This puts checks () into the checkboxes of all items subject to locking.

UNCHECK ALL button

This removes checks () from the checkboxes of all items subject to locking.

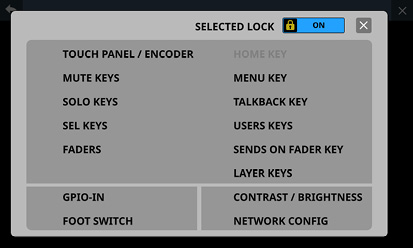

SELECTED LOCK button

When a check () is in at least one of the checkboxes for items subject to locking, tap this button to switch it ON/OFF.

When ON, this button will be highlighted and the selected operations subject to locking will be prohibited.

When this is ON, the CHECK ALL () and UNCHECK ALL () buttons as well as the checkboxes for items subject to locking will be hidden and cannot be operated.

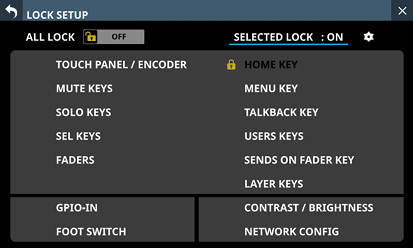

Appearance when HOME KEY item set as subject to locking

button

Tap this button to close the SELECTED LOCK settings window.

Selection list for subjects of individual locking

Use this to switch the lock function on/off.

Tap the checkboxes of items you want to select as subject to locking to put checks () in them.

NOTE

Lockable controls and operations

LCD touchscreen and LCD knob operations

MUTE key operations

SOLO key operations

SEL key operations

Fader operations

HOME key operations

MENU key operations

TALKBACK key operations

USER KEY operations

SENDS ON FADER key operations

LAYER KEY operations

GPIO-IN operations

FOOT SWITCH operations

Various parameter setting change operations for Contrast and Brightness

Setting changes on the Network Setup Screen (See “Network Setup screen”.)

The following controls and operations will not be locked.

Headphone volume

MONITOR OUT volume

TALKBACK volume

POWER switch

Pressing HOME and MENU keys simultaneously

Touchscreen operations on the LOCK SETUP Screen

MIXER CONFIG screen

Make the following settings on this screen.

CH 1–40 CONFIG page

CH 1–40 stereo link settings

DIRECT OUT POINT settings

DELAY POINT settings

INSERT POINT unified settings

LOCATION CONFIG page

LOCATION settings for CH 1–40, ST IN 1–2, FX RTN 1–4 and MIX 1–22

LOCATION settings for MONITOR 1/2

BUS CONFIG page

BUS MODE settings

MIX 1–22 stereo link settings

PAN LINK settings

Tap Menu Screen > Mixer Setup > Config Mixer / Location / Bus to open this screen.

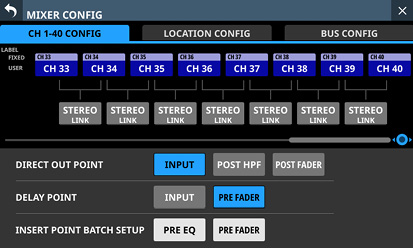

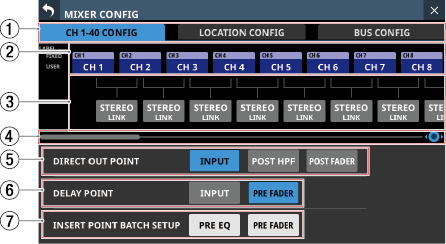

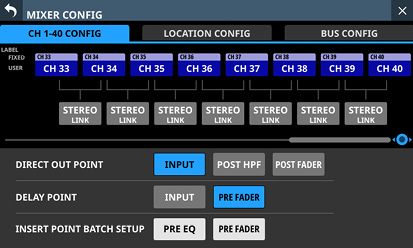

CH 1–40 CONFIG page

Page selection buttons

Tap these buttons to switch the page shown.

CH 1–40 MODULE LABEL button area

This shows the CH 1–40 module labels according to the set Sub MODULE LABEL and Main MODULE LABEL display modes. (See “DISPLAY MODE page”.)

Tap these buttons to open the MODULE LABEL Screen where the USER MODULE LABEL and set module color can be changed. (See “MODULE LABEL screen”.)

STEREO LINK button area

These show the stereo link settings states of the CH 1–40 modules.

Tap these buttons to turn the stereo link setting on and off (default) for the CH 1–40 modules.

When the stereo link is on, the button will appear highlighted.

Scroll knob and scrollbar

Drag the scrollbar left and right to show CH 1–40 modules that are not shown on the screen. The screen can also be scrolled by turning LCD knob 8.

NOTE

The screen can also be scrolled by swiping left and right between the CH 1–40 module MODULE LABEL area () and the STEREO LINK button area ().

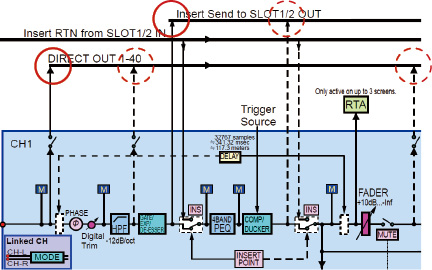

DIRECT OUT POINT buttons

Tap these buttons to change all direct out points for the CH 1–40 modules at the same time.

Options: INPUT (default), POST HPF, POST FADER

DELAY POINT buttons

Tap these buttons to change the delay function insert position for the CH 1–40 modules at the same time.

INSERT POINT BATCH SETUP buttons

These change all the insert points at once for the CH 1–40 modules, which can be set individually on the MODULE (OVERVIEW) Screen.

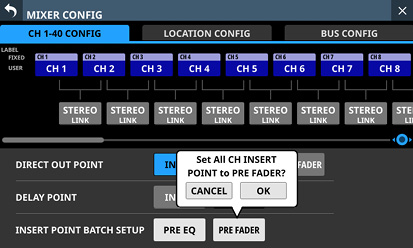

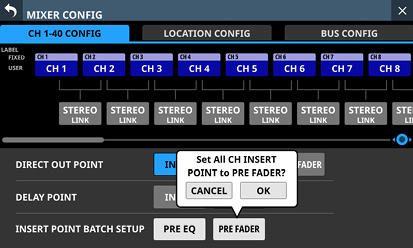

Tapping a button will open a setting change confirmation message.

Tap the OK button to change the insert points for all CH 1–40 modules at the same time.

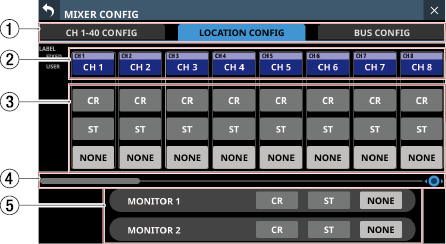

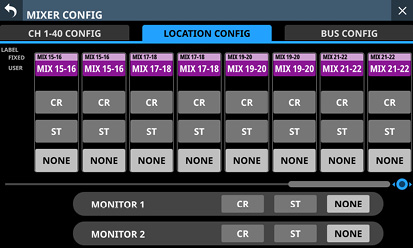

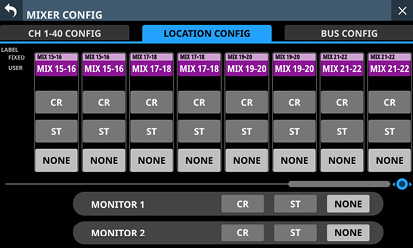

LOCATION CONFIG page

Page selection buttons

Tap these buttons to switch the page shown.

MODULE LABEL area for CH 1–40 / ST IN 1–2 / FX RTN / MIX modules

This shows the module labels according to the set Sub MODULE LABEL and Main MODULE LABEL display modes for the CH 1–40, ST IN 1–2, FX RTN and MIX modules. (See “DISPLAY MODE page”.)

Tap these buttons to open the MODULE LABEL Screen where the USER MODULE LABEL and set module color can be changed. (See “MODULE LABEL screen”.)

Module Location setting area

Tap these buttons to change the Location settings of the CH 1–40, ST IN 1–2, FX RTN and MIX modules.

Button	Function
CR	Set Location to Control Room (CR).
ST	Set Location to Studio (ST).
NONE (default)	Leave Location unset.

Scroll knob and scrollbar

Drag the scrollbar left and right to show CH 1–40, ST IN 1–2, FX RTN and MIX modules that are not shown on the screen. The screen can also be scrolled by turning LCD knob 8.

NOTE

The screen can also be scrolled by swiping left and right between the CH 1–40, ST IN 1–2, FX RTN and MIX module LABEL area () and the module Location setting area ().

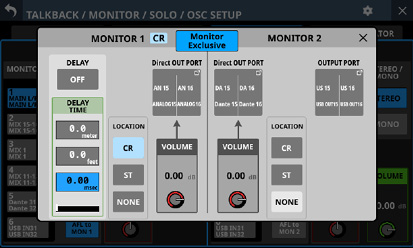

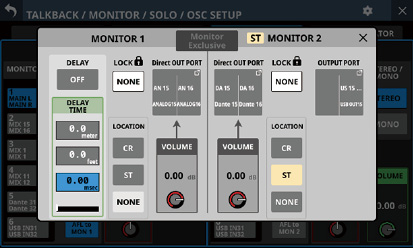

Monitor Location setting area

Tap these buttons to change the Location settings of MONITOR 1 and MONITOR 2.

Button	Function
CR	Set Location to Control Room (CR).
ST	Set Location to Studio (ST).
NONE (default)	Leave Location unset.

NOTE

If the Location of any monitors are set to “ST”, the Monitor Exclusive button (See “ Monitor Exclusive button”.) cannot be switched on and the MONITOR 1/2 exclusive selection function cannot be used.

To use the MONITOR 1/2 exclusive function, switch the monitor Location setting to “CR” or “NONE”.

Automatic muting of monitor signals using the Location function

With the Location function, the muting of monitoring signals is as follows, which is useful for solo DJs.

Just before an input signal, or bus that it passes through, set to the same Location (excluding NONE) as MONITOR 1 or MONITOR 2 begins to be output from the MAIN L/R bus when no such signal had been output before, the corresponding monitoring signal will be automatically muted.

Just after all input signals, and buses that they pass through, set to the same Location (excluding NONE) as MONITOR 1 or MONITOR 2 stop being output from the MAIN L/R bus, the corresponding monitoring signal will be automatically unmuted.

If on route from the input signal to the MAIN L/R bus, it passes through a bus set to a different Location, muting of the monitoring signal will not be controlled.

Examples:

CH 1 module (Location: CR) RIGHTWARDS ARROW MIX 1 module (Location: CR) MAIN L/R bus: Monitoring signal will be muted/unmuted

CH 1 module (Location: CR) RIGHTWARDS ARROW MIX 1 module (Location: ST) MAIN L/R bus: Monitoring signal will not be muted/unmuted

CH 1 module (Location: CR) RIGHTWARDS ARROW MIX 1 module (Location: NONE) MAIN L/R bus: Monitoring signal will not be muted/unmuted

If the conditions are fulfilled as a result of the following parameter operations, muting of monitoring signals will be controlled.

Changing the FADER LEVEL to/from −∞ dB (including level operation using a DCA layer)

Switching MUTE on/off (including DCA/Mute Group muting operations)

Turning on/off SEND or MAIN L/R assignments

Changing the SEND LEVEL to/from −∞ dB

SEND PRE/POST switching

MODULE Library recall

Snapshot Recall

Changing Location settings

Changing bus mode settings (AUX/GROUP)

Changing CH MUTE / PRE-SEND LINK settings

Changing DCA assignments

Changing Mute Group assignments

All System Data Load

The following routes are supported when searching for routes from inputs to the MAIN L/R bus.

Supported routes

Route without buses

Input module RIGHTWARDS ARROW MAIN

Routes that pass through 1 bus

Input module RIGHTWARDS ARROW MIX MAIN

Input module RIGHTWARDS ARROW FX MAIN

Routes that pass through 2 buses

Input module RIGHTWARDS ARROW MIX MIX MAIN

Input module RIGHTWARDS ARROW MIX FX MAIN

Input module RIGHTWARDS ARROW FX MIX MAIN

Route that passes through 3 buses

Input module RIGHTWARDS ARROW MIX FX MIX MAIN

The following routes are not supported.

If a route is unsupported, the judgment is that it does not reach the MAIN L/R bus and so is not output from the MAIN L/R bus. For this reason, operating a module parameter of an unsupported route will function toward unmuting the monitoring signal.

Unsupported routes

The following routes that pass through 3 buses

Input module RIGHTWARDS ARROW MX MX MX MAIN

Input module RIGHTWARDS ARROW MX MX FX MAIN

Input module RIGHTWARDS ARROW FX MX MX MAIN

Input module RIGHTWARDS ARROW FX MX FX MAIN

Routes that pass through 4 or more buses

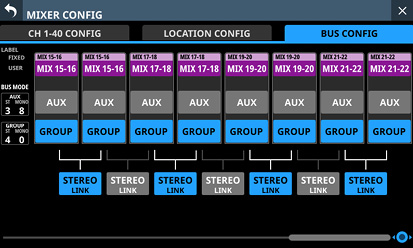

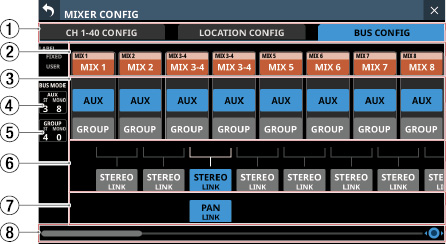

BUS CONFIG page

Page selection buttons

Tap these buttons to switch the page shown.

MIX 1–22 MODULE LABEL area

This shows the MIX 1–22 module labels according to the set Sub MODULE LABEL and Main MODULE LABEL display modes. (See “DISPLAY MODE page”.)

Tap these buttons to open the MODULE LABEL Screen where the USER MODULE LABEL and set module color can be changed. (See “MODULE LABEL screen”.)

BUS MODE area

Tap these buttons to change the bus modes of MIX 1–22 modules.

Button

Function

AUX

Set the MIX bus that corresponds to the button to function as an AUX bus.

SEND level, on/off and PRE/POST settings can be made from each module to AUX mode buses. (PRE/POST is only for input modules.)

GROUP

Set the MIX bus that corresponds to the button to function as a GROUP bus.

Only on/off can be set for modules to GROUP mode buses. They are always sent POST FADER.

NOTE

When BUS is changed from GROUP to AUX, the setting color of corresponding MIX 1–22 modules will change to orange.

When BUS is changed from AUX to GROUP, the setting color of corresponding MIX 1–22 modules will change to purple.

AUX bus counts

This shows the number of modules set to AUX in the BUS MODE area.

“ST” shows the number of AUX mode module pairs that have the stereo link setting on.

“MONO” shows the number of AUX mode modules that have the stereo link setting off.

GROUP bus counts

This shows the number of modules set to GROUP in the BUS MODE area.

“ST” shows the number of GROUP mode module pairs that have the stereo link setting on.

“MONO” shows the number of GROUP mode modules that have the stereo link setting off.

STEREO LINK button area

These show the stereo link settings states of the MIX 1–22 modules.

Tap these buttons to turn the stereo link setting on/off for the MIX 1–22 modules.

When the stereo link is on, the button will appear highlighted.

PAN LINK button area

These buttons appear when MIX 1–22 module stereo link settings are on and the BUS mode is AUX.

When the PAN LINK setting is on, the AUX bus pan/balance (SEND PAN) setting is linked to the MAIN L/R bus pan/balance setting.

Scroll knob and scrollbar

Drag the scrollbar left and right to show MIX 1–22 modules that are not shown on the screen. The screen can also be scrolled by turning LCD knob 8.

NOTE

The screen can also be scrolled by swiping left and right between the MIX 1–22 module LABEL area () and the PAN LINK button area ().

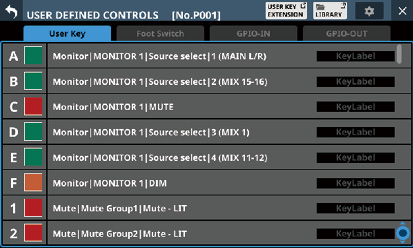

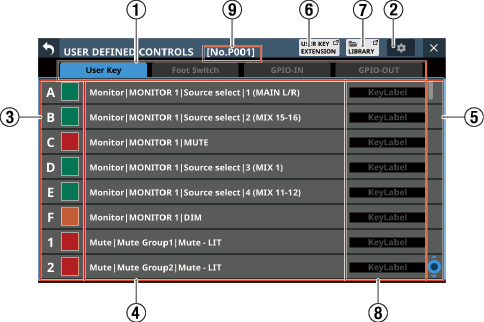

USER DEFINED CONTROLS screen

The following settings can be made on this screen.

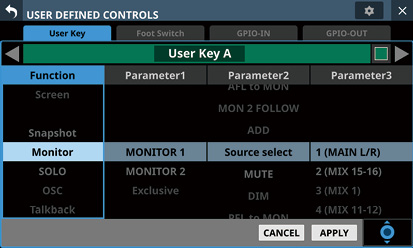

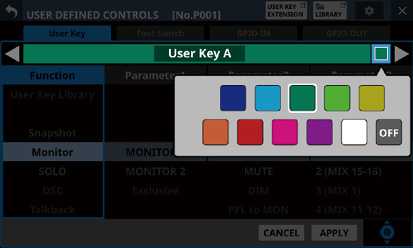

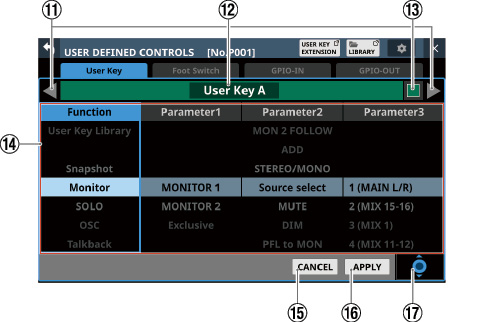

User Key page

Functions can be assigned to USER KEYS A–F and USER KEYS 1–12.

Tap Menu Screen > Front Panel Setup > User Key Setup to open this page.

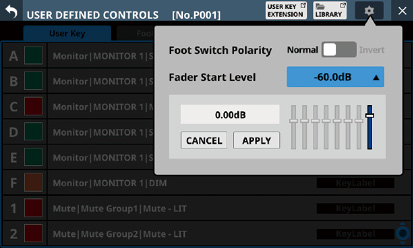

Foot Switch page

Functions can be assigned to the footswitch.

Tap Menu Screen > Rear Panel Setup > FOOT SW Setup to open this page.

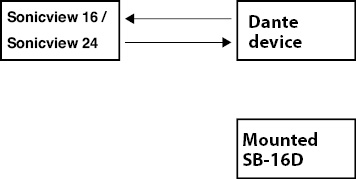

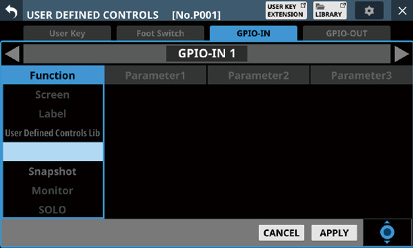

GPIO-IN page

Functions can be assigned to the GPIO input connector of this unit or of an SB-16D connected through the built-in Dante.

Tap Menu Screen > Rear Panel Setup > GPIO Input Setup to open this page.

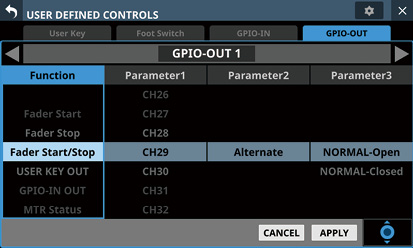

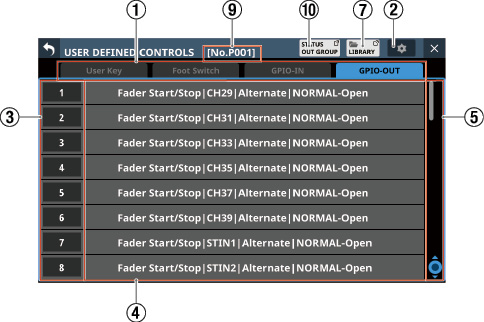

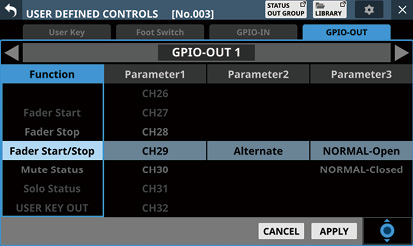

GPIO-OUT page

Functions can be assigned to the GPIO output pins of an SB-16D connected to this unit or through the built-in Dante.

Tap Menu Screen > Rear Panel Setup > GPIO Output Setup to open this page.

The settings for keys and connectors are made in operation setting tables on each page.

Tap one of the four page selection buttons to open that page. (See “USER DEFINED CONTROLS screen structure”.)

The functions that can be assigned on these pages are as follows.

User Key, Foot Switch and GPIO-IN pages

Function	Parameter1	Parameter2	Parameter3	Function explanation
Snapshot	Select	Next		Increase by one the number of the Snapshot available for STORE/RECALL shown at the top of the Menu Screen. (See “Snapshot functions”.)
		Prev		Decrease by one the number of the Snapshot available for STORE/RECALL shown at the top of the Menu Screen. (See “Snapshot functions”.)
		No.	001–128/P001	This makes the specified Snapshot number shown at the top of the Menu Screen the target for STORE/RECALL. (See “Snapshot functions”.)
	Recall	Selected		Recall the Snapshot available for RECALL shown at the top of the Menu Screen. (See “Snapshot functions”.)
		Next		Switch the number of the Snapshot available for RECALL shown at the top of the Menu Screen to the number of the next Snapshot that is not an existing preset, and then recall it. (See “Snapshot functions”.)
		Prev		Switch the number of the Snapshot available for RECALL shown at the top of the Menu Screen to the number of the next lower Snapshot that is not an existing preset, and then recall it. (See “Snapshot functions”.)
		No.	001–128/P001	Recall a snapshot by number. (See “Snapshot functions”.)
		+Target Key		Press this simultaneously with a key that has Function set to Snapshot and Parameter 1 set to Target to recall that set snapshot number. (See “Snapshot functions”.)
Snapshot	Store	Selected		Store the Snapshot available for STORE shown at the top of the Menu Screen. (See “Snapshot functions”.)
		No.	001–128	Store a snapshot by number. (See “Snapshot functions”.)
		+Target Key		Press this simultaneously with a key that has Function set to Snapshot and Parameter 1 set to Target to store in that set snapshot number. (See “Snapshot functions”.) However, even when Function is set to Snapshot and Parameter 1 is set to Target, this will not work if the key assigned to Parameter 2 as “Next” or “Prev” is pressed at the same time.
	Target	Selected		Press simultaneously with a key assigned to a +Target Key function to STORE to or RECALL from the Snapshot number shown at the top of the Menu Screen.
		Next		Press this key simultaneously with a key set to Function: Snapshot, Parameter 1: RECALL and Parameter 2: +Target Key to recall the next Snapshot that is not an existing preset after the one shown at the top of the Menu Screen.
		Prev		Press this key simultaneously with a key set to Function: Snapshot, Parameter 1: RECALL and Parameter 2: +Target Key to recall the next Snapshot that is not an existing preset before the one shown at the top of the Menu Screen.
		No.	001–128/P001	Press simultaneously with a key assigned to a +Target Key function to STORE to or RECALL from the specified Snapshot number.
	Undo/Redo	Undo Color (USER KEY only)	Redo Color (USER KEY only)	Undo/redo Snapshot RECALL operations. (See “Snapshot functions”.) When undoing is possible, the USER KEYS that this function is assigned to will light in the color set by Parameter 2: Undo Color. When redoing is possible, the USER KEYS that this function is assigned to will light in the color set by Parameter 3: Redo Color. (Parameters 2 and 3 can only be set to USER KEYS.)
Monitor	MONITOR 1 MONITOR 2	Source select	1–6	When pressed individually, this selects a single monitoring source with the number specified by Parameter 3 for the monitor specified by Parameter 1. (See “ MONITOR SELECT buttons (MONITOR 1)” and “ MONITOR SELECT buttons (MONITOR 2)”.) When multiple buttons that have this function assigned are pressed simultaneously, the ADD function will be turned on, so multiple monitoring sources pressed at the same time can be selected together. This allows multiple selected monitoring sources to be mixed and monitored together. USER KEYS will light when in selected status.
Monitor	MONITOR 1 MONITOR 2	MUTE		Turn muting on/off for the monitoring signal specified by Parameter 1. (See “ MUTE button (MONITOR 1)” and “ MUTE button (MONITOR 2)”.) USER KEYS will light when this is on.
		DIM		Turn dimming on/off for the monitoring signal specified by Parameter 1. (See “ DIM button (MONITOR 1)” and “ DIM button (MONITOR 2)”.) USER KEYS will light when this is on.
		PFL to MON		Turn on/off PFL to MON for the monitor specified by Parameter 1. (See “ PFL to MON 1/AFL to MON 1 buttons” and “ PFL to MON 2/AFL to MON 2 buttons”.) USER KEYS will light when this is on.
		AFL to MON		Turn on/off AFL to MON for the monitor specified by Parameter 1. (See “ PFL to MON 1/AFL to MON 1 buttons” and “ PFL to MON 2/AFL to MON 2 buttons”.) USER KEYS will light when this is on.
		MON 2 FOLLOW MON 1 FOLLOW		Turn on/off FOLLOW for the monitor specified by Parameter 1. (See “ MON 2 FOLLOW button” and “ MON 1 FOLLOW button”.) USER KEYS will light when this is on.
		ADD		Turn on/off the ADD function for the monitor specified by Parameter 1. (See “ ADD button (MONITOR 1)” and “ ADD button (MONITOR 2)”.) USER KEYS will light when this is on.
		STEREO/MONO	MONO COLOR (USER KEY only)	Switch between STEREO and MONO for the monitor specified by Parameter 1. When set to STEREO, it will light with the color set for the USER KEY. When set to MONO, it will light with the color set by Parameter 3: MONO COLOR.
	Exclusive	MON 1/MON 2	MON 2 COLOR (USER KEY only)	Alternate the monitor exclusive selection between MONITOR 1 and MONITOR 2. When MONITOR 1 is selected, USER KEYS light with the set color. When MONITOR 2 is selected, USER KEYS light with the color set for Parameter 3. When the Monitor Exclusive function is off, USER KEYS are unlit and disabled.
		MONITOR 1 MONITOR 2		Press this key to exclusively select the monitors set with Parameter 2. When monitors set with Parameter 2 are selected, USER KEYS light with the set color. When the Monitor Exclusive function is off, USER KEYS are unlit and disabled.
SOLO	PFL/AFL	AFL COLOR (USER KEY only)		This switches the SOLO TYPE between PFL and AFL. When SOLO TYPE is PFL, it will light with the color set for the USER KEY. When SOLO TYPE is AFL, it will light with the color set for Parameter 2: AFL Color.
OSC	ON/OFF			Turn on/off the internal oscillator signal. USER KEYS will light when this setting is on.
Talkback	TALKBACK Key to MIX1 – to MIX22 to MAIN L/R to Selected BUS to MON 1 to MON 2 to EXT 1 to EXT 2	Single Key +SLATE Key		When Parameter 1 is set to “TALKBACK Key”, it has the same function as the TALKBACK key on the front panel. This turns on/off talkback output to the output assigned to the TALKBACK KEY button on the TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP Screen. USER KEYS will light when this is on. When Parameter 1 is “to…”, this switches on/off talkback output to the corresponding output destination. USER KEYS will light when this is on. When “Single Key” is selected for Parameter 2, this key operates alone. When it is a USER key, press this key briefly to turn it on, and press it again to turn it off. Press this key continuously to turn the function on only while being pressed, turning it off when it is released. If “+SLATE Key” is selected for Parameter 2, when a USER key / FOOTSWITCH / GPIO-IN set to Function: Talkback / Parameter 1: SLATE Key is pressed first, talkback output to the Parameter 1 output destination will be on only while this key is being pressed.
	SLATE Key
MODULE LABEL	to Selected to MON 1 to MON 2 to EXT OUT to SOLO	Single Key + SLATE Key		When Parameter 1 is “to…”, this switches on/off return talkback output to the corresponding output destination. USER KEYS will light when this is on. When “Single Key” is selected for Parameter 2, this key operates alone. When it is a USER key, press this key briefly to turn it on, and press it again to turn it off. Press this key continuously to turn the function on only while being pressed, turning it off when it is released. If “+SLATE Key” is selected for Parameter 2, when a USER key / FOOTSWITCH / GPIO-IN that is set to Function: Return Talkback / Parameter 1: SLATE Key is pressed first, return talkback output to the Parameter 1 output destination will be on only while this key is being pressed.
	SLATE Key
AUTO MIXER	TOP PRIORITY			This turns on/off the TOP PRIORITY setting of the AUTO MIXER. USER KEYS will light when this is on.
	PRIORITY A-D			This turns on/off the group PRIORITY setting of the AUTO MIXER. USER KEYS will light when this is on.

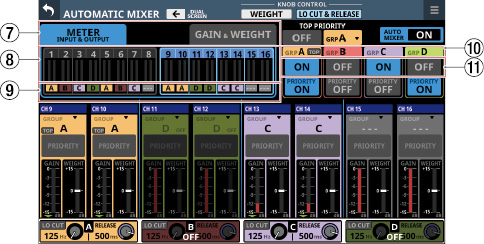

	LO CUT A-D ON/OFF			This turns on/off the LO CUT button for the AUTO MIXER (A/B/C/D) group. USER KEYS will light when this is on.
AFV	ON/OFF			This turns all the Audio Follow Video functionality on/off. (See “MODULE (Audio Follow Video) Screen”.) USER KEYS will light when this is on.
	MODULE ON/OFF	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R		This turns the Audio Follow Video functionality on/off for individual modules. USER KEYS will light when this is on.
	Trigger Source Emulate (USER KEY only)	GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 FOOT SW	Latch Unlatch	AFV trigger input by the trigger source (GPIO-IN port or FOOT SW) set by Parameter 2 is emulated by USER KEY operation. If Parameter 3 is set to “Unlatch”, it will operate as follows. Press this key to emulate the closed state of the Trigger Source selected by Parameter 2. Release this key to emulate the open state of the Trigger Source selected by Parameter 2. If Parameter 3 is set to “Latch”, it will operate as follows. Press this key when AFV operation is not active to emulate the closed state of the Trigger Source selected by Parameter 2. Press this key when AFV operation is active to emulate the open state of the Trigger Source selected by Parameter 2. USER KEYS will light while they are emulating the closed state of the Trigger Source selected by Parameter 2.
LED Indication (USER KEY only)	GPIO-IN	GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8	Closed-LIT Open-LIT	Depending on the GPIO-IN/OUT signal specified by Parameter 1 and 2, corresponding USER KEYS light. When Parameter 3 is “Closed-LIT”, if the selected GPIO-IN/OUT signal becomes shorted (Closed), corresponding USER KEYS light. When Parameter 3 is “Open-LIT”, if the selected GPIO-IN/OUT signal becomes open (Open), corresponding USER KEYS light. This can only be set on the User Key page. #---: ID of connected SB-16D
	GPIO-OUT	GPIO-OUT 1–8 #--- GPIO-OUT 1–8 #--- GPIO-OUT 1–8 #--- GPIO-OUT 1–8 #--- GPIO-OUT 1–8	Closed-LIT Open-LIT
	ON AIR Tally			When the GPIO-IN port specified for OA Tally Input becomes shorted (Closed), corresponding USER KEYS light.
LED Indication (USER KEY only)	MON DIM Status	TB DIM (MON 1)		When DIM becomes enabled by a TALKBACK operation for MONITOR 1, corresponding USER KEYS light.
		TB DIM (MON 2)		When DIM becomes enabled by a TALKBACK operation for MONITOR 2, corresponding USER KEYS light.
		TB DIM/DIM (MON 1)		When MONITOR 1 DIM is enabled by TALKBACK operation or DIM button, corresponding USER KEYS light. (See “ DIM button (MONITOR 1)”.)
		TB DIM/DIM (MON 2)		When MONITOR 2 DIM is enabled by TALKBACK operation or DIM button, corresponding USER KEYS light. (See “ DIM button (MONITOR 2)”.)
		TB DIM (MON 1/MON 2)		When DIM becomes enabled by a TALKBACK operation for MONITOR 1 or MONITOR 2, corresponding USER KEYS light.
		ALL		When MONITOR 1 or MONITOR 2 DIM is enabled by TALKBACK operation or DIM button, corresponding USER KEYS light. (See “ DIM button (MONITOR 1)” and “ DIM button (MONITOR 2)”)
OA Tally Input (GPIO-IN only)				This function can only be assigned to one GPIO-IN port. If the GPIO-IN port that this function is assigned to becomes shorted (Closed), ON AIR Tally Inhibit operation will be implemented in accordance with settings for ON AIR Tally Inhibit subjects. (See “ ON AIR Tally Inhibit subjects”.)
Sends On Fader	MIX1–22/FX1–4			Turn the Sends On Fader mode for the selected bus on/off. (See “SENDS ON FADER screen”.)

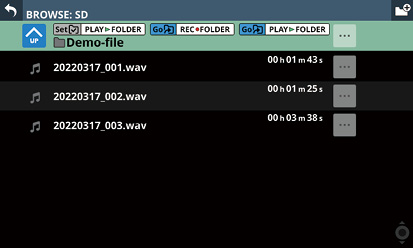

Recorder/Player	Recorder	REC		This has the following functions, which are the same as the (recording) button for the recorder on the left side of the RECORDER/PLAYER Screen. When the recorder is stopped, this starts recording. Press this when recording is paused to resume recording. USER KEYS will light when the recorder is recording or paused.
		PAUSE		This has the following functions, which are the same as the (pause) button for the recorder on the left side of the RECORDER/PLAYER Screen. Press this when the recorder is recording to pause recording. USER KEYS will light when the recorder is paused.
		STOP		This has the following functions, which are the same as the (stop) button for the recorder on the left side of the RECORDER/PLAYER Screen. Press this when the recorder is recording to stop recording. USER KEYS will light when the recorder is stopped.
Recorder/Player	Player	PLAY/PAUSE	PAUSE COLOR (USER KEY only)	This starts/pauses playback of the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is playing to pause playback. Press this when the player is stopped or paused to start playback. When the player is playing, keys will light with USER KEY setting colors. When the player is paused, USER KEYS will light with the colors set by Parameter 3.
		PLAY		This has the same functions as the (play) button of the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is stopped or paused to start playback. USER KEYS will light when the player is playing.
		PAUSE		This has the following functions, which are the same as the (pause) button for the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is playing to pause playback. USER KEYS will light when the player is paused.
		STOP		This has the following functions, which are the same as the (stop) button for the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is playing to stop playback. USER KEYS will light when the player is stopped.
		FAST FORWARD		This has the same functions as the button of the player on the right side of the RECORDER/PLAYER Screen. When the player is stopped, playing back or paused, press this key to start searching forward. Press and hold this key to search while it is being pressed. Press this key when the player is searching forward to return to the state before searching forward. USER KEYS will light when the player is searching forward.
		REWIND		This has the same functions as the button of the player on the right side of the RECORDER/PLAYER Screen. When the player is stopped, playing back or paused, press this key to start searching backward. Press and hold this key to search while it is being pressed. Press this key when the player is searching backward to return to the state before searching backward. USER KEYS will light when the player is searching backward.
Recorder/Player	Player	FILE SKIP NEXT		This has the same functions as the button of the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is stopped, playing or paused to skip to the next file.
		FILE SKIP PREV		This has the same functions as the button of the player on the right side of the RECORDER/PLAYER Screen. Press this when the player is stopped to skip to the previous file. Press this when the player is playing or paused to return to the beginning of the file. Press when a file is stopped at its beginning to skip to the previous file.
		DIRECT PLAY	1–100 (file number)	Pressing the key will start playback from the beginning of the file, which is specified by number with Parameter 3, in the player on the right side of the RECORDER/PLAYER Screen. USER KEYS will light when the player is playing the file with the specified number.
MTR	REC			This has the following functions, which are the same as the button on the MULTI TRACK RECORDER Screen. Press this when stopped and at least one REC READY is on to put the unit into recording standby. If the MTR operation mode is LIVE RECORDING MODE, pressing this when recording will not interrupt recording, but it will end the current take and start a new take (take splitting). When the MTR operation mode is LIVE RECORDING MODE or VIRTUAL SOUND CHECK MODE, press this when in recording standby to start a new take and remain in recording standby. When the MTR operation mode is OVERDUB MODE and at least one REC READY is on, press this when playing to punch in and start recording. USER KEYS will light when recording and when recording is paused. USER KEYS will be unlit when stopped or playing back.
	PLAY			This has the following functions, which are the same as the button on the MULTI TRACK RECORDER Screen. Press this when stopped or paused to start playback. Press this when recording is paused to resume recording. The indicator lights when recording or playing. USER KEYS will be unlit when stopped.
MTR	STOP			This has the following functions, which are the same as the button on the MULTI TRACK RECORDER Screen. Press when recording/playing to stop recording/playing. USER KEYS will light when stopped.
	PAUSE			This has the following functions, which are the same as the button on the MULTI TRACK RECORDER Screen. Press this when stopped or playing to pause playback. When the MTR operation mode is LIVE RECORDING MODE or VIRTUAL SOUND CHECK MODE, press this when recording to pause recording. This cannot be used during recording when the MTR operation mode is OVERDUB MODE. USER KEYS will light when recording or playback is paused.
	FAST FORWARD			This has the following functions, which are the same as the (F.FWD) button on the MULTI TRACK RECORDER Screen. When stopped, playing back or playback is paused, press this key to start searching forward. Press and hold this key to search while it is being pressed. Press this key when searching forward to return to the state before searching forward. USER KEYS will light when searching forward.
	REWIND			This has the following functions, which are the same as the (REW) button on the MULTI TRACK RECORDER Screen. When stopped, playing back or playback is paused, press this key to start searching backward. Press and hold this key to search while it is being pressed. Press this key when searching backward to return to the state before searching backward. USER KEYS will light when searching backward.
	TAKE SKIP NEXT			This has the following functions, which are the same as tapping the (SKIP NEXT) and (TO END) buttons on the MULTI TRACK RECORDER Screen. When the MTR operation mode is LIVE RECORDING MODE or VIRTUAL SOUND CHECK MODE: Tap this when stopped, playing or paused to skip to the next take. USER KEYS will light when skipping. When the MTR operation mode is OVERDUB MODE: Tap this when stopped, playing or paused to skip to the end of the take. USER KEYS will light when skipping.
MTR	TAKE SKIP PREV			This has the following functions, which are the same as tapping the (TO TOP/SKIP PREV.) and (TO TOP) buttons on the MULTI TRACK RECORDER Screen. When the MTR operation mode is LIVE RECORDING MODE or VIRTUAL SOUND CHECK MODE: Press this when playing or paused to return to the beginning of the current take. Press this when a take is stopped at its beginning to skip to the beginning of the previous take. USER KEYS will light when skipping. When the MTR operation mode is OVERDUB MODE: Tap this when stopped, playing or paused to return to the beginning of the take. USER KEYS will light when skipping.
	MARK SKIP NEXT			This has the following functions, which are the same as tapping the MARK SKIP button on the MULTI TRACK RECORDER Screen. Press this key to move to the position of the nearest mark that is after the current playback position.
	MARK SKIP PREV			This has the following functions, which are the same as tapping the MARK SKIP button on the MULTI TRACK RECORDER Screen. Press this key to move to the position of the nearest mark that is before the current playback position.
	Undo/Redo	Undo Color (USER KEY only)	Redo Color (USER KEY only)	This has the following functions, which are the same as tapping the UNDO/REDO button on the MULTI TRACK RECORDER Screen. Press when the key is the Parameter 2 UNDO color (blue by default) to undo. Press when the key is the Parameter 3 REDO color (orange by default) to redo. When this key is unlit, UNDO and REDO are not possible.
	Punch IN/OUT			Use this to punch in/out in the MULTI TRACK RECORDER. When the MTR operation mode is OVERDUB MODE and at least one REC READY is on, press this when playing to punch in and start recording. Press during recording to punch to punch out and continue playback.
	SET MARK			This has the following functions, which are the same as tapping the SET MARK button on the MULTI TRACK RECORDER Screen. Pressing this key sets a mark at the current recording/playback time. USER KEYS will light while being pressed.
	SOUND CHECK	SOUND CHECK		This has the same function as tapping the SOUND CHECK button on the MULTI TRACK RECORDER Screen. USER KEYS will light when SOUND CHECK mode is ON.

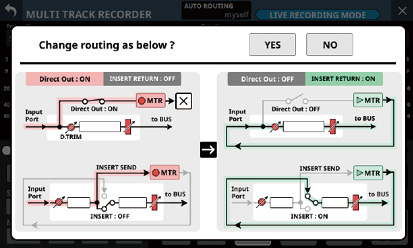

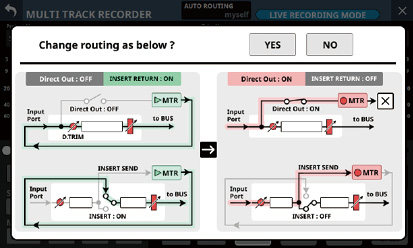

		YES		Pressing this button when an MTR SOUND CHECK confirmation message is shown has the same function as tapping the YES button in that message.
MTR	IN-OUT	SET IN		This has the same function as tapping the SET IN button on the MULTI TRACK RECORDER Screen. USER KEYS will light when an IN point is set.
		SET OUT		This has the same function as tapping the SET OUT button on the MULTI TRACK RECORDER Screen. USER KEYS will light when an OUT point is set.
		I-O CLEAR		This has the same function as tapping the CLEAR button on the MULTI TRACK RECORDER Screen. USER KEYS will light while being pressed.
	REPEAT			This has the same function as tapping the repeat mode setting button on the MULTI TRACK RECORDER Screen. USER KEYS will light when repeat mode is not OFF.
	REHEARSAL			This has the same function as tapping the REHEARSAL button on the MULTI TRACK RECORDER Screen. USER KEYS will light when REHEARSAL mode is ON. This function works only when MTR operation mode is OVERDUB MODE.
Insert On/Off	CH1–40 MIX1–22 MAIN L/R			This turns on/off the INSERT of the module specified with Parameter 1. USER KEYS will light when the corresponding setting is on.
Send On/Off	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R	MIX1–22 FX1–4 MAIN L/R		This turns ON/OFF the SEND from the module specified with Parameter 1 to the bus specified with Parameter 2. USER KEYS will light when the corresponding setting is on.
Mute	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R DCA1–8 Mute Group1–8	Mute - LIT Unmute - LIT (USER KEY only)		This switches the MUTE/UNMUTE status of the specified module. If Parameter 2 is “Mute-LIT”, USER KEYS will light when muted. If Parameter 2 is “Unmute-LIT”, USER KEYS will light when unmuted.
		Closed - Mute Closed - Unmute (FOOT Switch/GPIO-IN)		This switches the MUTE/UNMUTE status of the specified module. If Parameter 2 is “Closed-Mute”, when the FOOTSWITCH/GPIO-IN becomes shorted (Closed), it will become muted. If Parameter 2 is “Closed-Unmute”, when the FOOTSWITCH/GPIO-IN becomes shorted (Closed), it will become unmuted.
Tap Tempo	FX1–4	Delay1–3		Use to tap the tempo to input the DELAY TIME when the selected effect type is DELAY. (See “MODULE (FX) Screen”.) When the effect type is any delay other than “DELAY LCR”, set Parameter 2 to “Delay 1”. When the effect type is “DELAY LCR”, set Parameter 2 as follows.
				Desired parameter	Parameter 2 setting
				DELAY TIME L	Delay1
				DELAY TIME C	Delay2
				DELAY TIME R	Delay3
Screen	Information	ERROR COLOR (USER KEY only)		This opens the INFORMATION Screen on the right touchscreen. In this case, the last open page of the INFORMATION Screen will be shown again if the unit is functioning properly. The ERROR page will open if an error or alert is occurring with the unit. When any page of the INFORMATION Screen is open, pressing corresponding USER KEYS will close the screen. Regardless of whether the INFORMATION Screen is open, corresponding USER KEYS will be lit/unlit as follows. Keys will light with the colors set for USER KEYS if the unit is functioning properly If an error or alert is occurring with the unit, they will blink with the color set by Parameter 2
	Snapshot			This opens the SNAPSHOT Screen on the right touchscreen and lights corresponding USER KEYS. When this screen is open, pressing corresponding USER KEYS will close it.
	METER	ALL LAYERS OUTPUTS LAYER 1–7 LAST TAB		Show the page of the METER Screen specified by Parameter 2 on the rightmost touchscreen and light the corresponding USER KEYS. When this screen is open, pressing a corresponding USER KEYS will close it.
	Monitor/TB/OSC	TALKBACK		Show the TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP Screen on the rightmost touchscreen and light corresponding USER KEYS. When this screen is open, pressing corresponding USER KEYS will close it.
		MONITOR 1/2		Show the MONITOR 1/2 page of the TALKBACK / MONITOR / SOLO / OSC SETUP Screen on the rightmost touchscreen and light corresponding USER KEYS. When this screen is open, pressing corresponding USER KEYS will close it.
		SOLO/OSCILLATOR		Show the SOLO/OSCILLATOR page of the TALKBACK / MONITOR / SOLO / OSC SETUP Screen on the rightmost touchscreen and light corresponding USER KEYS. When this screen is open, pressing a corresponding USER KEYS will close it.

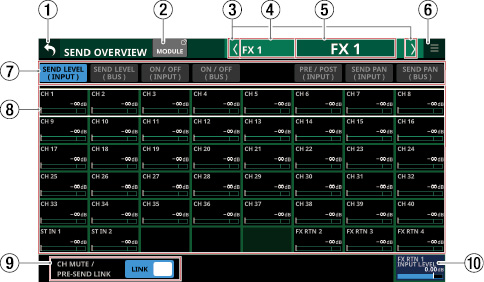

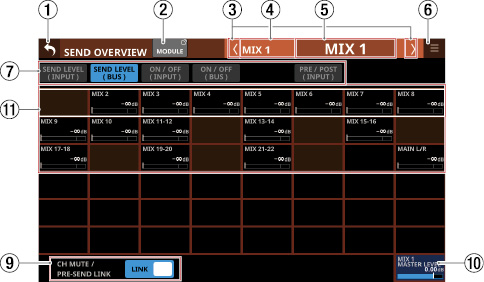

	SEND OVERVIEW	MIX1–22 FX1–4 MAIN L/R	LCD L LCD C (Sonicview 24 only) LCD R	This will show the Send Overview Screen for the bus specified by Parameter 2 on the touchscreen specified by Parameter 3, and corresponding USER KEYS will light. When this screen is open, pressing corresponding USER KEYS will close it.

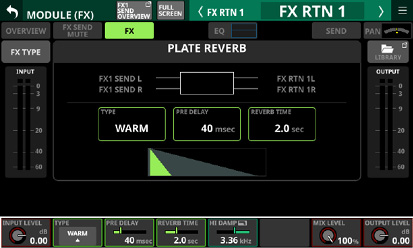

	MODULE(FX)	FX RTN 1–4	LCD L LCD C (Sonicview 24 only) LCD R	This will show the MODULE (FX) for the FX specified by Parameter 2 on the touchscreen specified by Parameter 3, and corresponding USER KEYS will light. When this screen is open, pressing corresponding USER KEYS will close it.
Screen	HOME	SEND 1st BLOCK SEND 2nd BLOCK SEND 3rd BLOCK SEND 4th BLOCK SEND 5th BLOCK SEND 6th BLOCK SEND 7th BLOCK ALL SEND AUTO MIXER AFV		This will show the Home Screen with, as specified by Parameter 2, the 4 Send buses of a block, all the Send buses, the AUTO MIXER settings or the Audio Follow Video function parameter settings on the touchscreen, and corresponding USER KEYS will light.

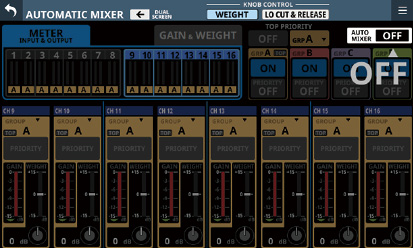

	AUTO MIXER			This opens the AUTOMATIC MIXER Screen on the right touchscreen and lights corresponding USER KEYS. When this screen is open, pressing corresponding USER KEYS will close it.
	RECORDER/PLAYER			Show the RECORDER PLAYER Screen on the right touchscreen and light the corresponding USER KEYS. When this screen is open, pressing a corresponding USER KEYS will close it.

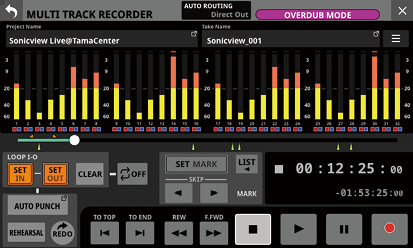

	Multi Track Recorder			Show the MULTI TRACK RECORDER Screen on the right touchscreen and light the corresponding USER KEYS. When this screen is open, pressing a corresponding USER KEYS will close it.
Label	Module Main Label Module Sub Label	User		This sets the display mode of the MODULE LABEL specified by Parameter 1 to “USER”. Corresponding USER KEYS will light when the MODULE LABEL display mode is “USER”.
		Fixed		This sets the display mode of the MODULE LABEL specified by Parameter 1 to “FIXED”. Corresponding USER KEYS will light when the MODULE LABEL display mode is “FIXED”.
		Port Label		This sets the display mode of the MODULE LABEL specified by Parameter 1 to “PORT LABEL”. Corresponding USER KEYS will light when the MODULE LABEL display mode is “PORT LABEL”.
		Rotation		Pressing this key will cycle through the display mode of the MODULE LABEL specified by Parameter 1 in order: USER, FIXED, PORT LABEL.
	Port Label	User		This sets the PORT LABEL display mode to “USER”. Corresponding USER KEYS will light when the PORT LABEL display mode is “USER”.
		Fixed		This sets the PORT LABEL display mode to “FIXED”. Corresponding USER KEYS will light when the PORT LABEL display mode is “PORT LABEL”.
		Toggle		Pressing this key will alternate the PORT LABEL display mode between “USER” and “FIXED”.

NOTE

Foot Switch/GPIO-IN:

When one of the functions below is assigned, the selected function will become active while a low level signal is input. Moreover, if the same function is assigned to multiple GPIO-IN and/or footswitches, the function will be activated when any one of those signals is Low level. The function will be deactivated only when all the signals from the assigned GPIO-IN and/or footswitches are High level (OR operation).

If any of the following functions are assigned, when the unit starts up or when All System Data is loaded, the corresponding function will become active/inactive according to the GPIO-IN connector / Foot Switch status.

Monitor Mute

Monitor DIM

Monitor PFL to MON

Monitor AFL to MON

Monitor FOLLOW

Monitor Stereo/Mono (Mono at Low level)

SOLO (AFL at Low level)

OSC

Talkback

Return Talkback

AUTO MIXER

AFV

OA Tally Input

Insert On/Off

Send On/Off

Mute

When one of the functions below is assigned, the selected function will operate if a low level signal of 50 ms or longer is input.

Snapshot

Monitor Source Select

Monitor Exclusive MONITOR 1

Monitor Exclusive MONITOR 2

Sends On Fader

Recorder/Player

MTR

Tap Tempo

Screen

Label

When one of the functions below is assigned, the selected function will be toggled on/off if a low level signal of 50 ms or longer is input.

Monitor ADD

Monitor Exclusive MON 1/MON 2

Excluding the current snapshot, snapshots stored using a USER key, FOOTSWITCH or GPIO-IN are named “USER KEY” followed by a three-digit slot number (for example, “USER KEY 018”).

When the Function is set to Snapshot and Parameter 2 is set to No, if Parameter 3 matches the current Snapshot number, the corresponding USER KEY will light.

When a USER key with an MTR function set is operated, the MULTI TRACK RECORDER Screen will open on the right touchscreen. When MTR operation mode is active, however, the MULTI TRACK RECORDER Screen will not open if it does not have a button with the corresponding function.

GPIO-OUT page

Function	Parameter1	Parameter2	Parameter3	Function explanation
Fader Start	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R	Pulse 30msec Pulse 50msec Pulse 100msec Pulse 150msec Pulse 200msec Pulse 250msec Pulse 300msec	NORMAL-Open NORMAL-Closed	A pulse signal will be output with the width set by Parameter 2 when the status of the specified module becomes as follows. When Parameter 3 is “NORMAL-Open”, a pulse signal shaped like will be output. When Parameter 3 is “NORMAL-Closed”, a pulse signal shaped like will be output. When MUTE is off and the FADER level changes from below to above the fader start level setting value When the FADER level is above the fader start level setting value, and MUTE changes from on to off
Fader Stop	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R	Pulse 30msec Pulse 50msec Pulse 100msec Pulse 150msec Pulse 200msec Pulse 250msec Pulse 300msec	NORMAL-Open NORMAL-Closed	A pulse signal will be output with the width set by Parameter 2 when the status of the specified module becomes as follows. When Parameter 3 is “NORMAL-Open”, a pulse signal shaped like will be output. When Parameter 3 is “NORMAL-Closed”, a pulse signal shaped like will be output. When MUTE is off, and the FADER level changes from above to below the fader start level setting value When the FADER level is above the fader start level setting value and MUTE changes from off to on
Fader Start/Stop	CH1–40 STIN1–2 FXRTN1–4 MIX1–22 MAIN L/R	Alternate	NORMAL-Open NORMAL-Closed	The signal level output will change depending on the MUTE and FADER level states of the specified module. When MUTE is off for the specified module and the FADER level is above the fader start level setting value, if Parameter 3 is NORMAL-Open, low level signal output will be latched. When Parameter 3 is “NORMAL-Closed”, high level signal output will be latched.
				Parameter3	When MUTE is on for the specified module or the FADER level is not above the fader start level setting value	When MUTE is off for the specified module and the FADER level is above the fader start level setting value
				NORMAL-Open	High level (Open) is output	Low level (Closed) is output
				NORMAL-Closed	Low level (Closed) is output	High level (Open) is output
USER KEY OUT	USER KEY A–F USER KEY 1–12	Pulse 30msec Pulse 50msec Pulse 100msec Pulse 150msec Pulse 200msec Pulse 250msec Pulse 300msec Alt. Latch Alt. Unlatch	NORMAL-Open NORMAL-Closed	If a USER KEY designated by Parameter 1 is pressed, the GPIO-OUT connector output status will be changed. When Parameter 2 is “Pulse xxx msec”, if a USER KEY designated by Parameter 1 is pressed, a pulse signal will be output from the corresponding GPIO-OUT connector with the length specified by Parameter 2. When Parameter 3 is “NORMAL-Open”, a pulse signal shaped like will be output. When Parameter 3 is “NORMAL-Closed”, a pulse signal shaped like will be output. When Parameter 2 is “Alt.Latch”, if a USER KEY designated by Parameter 1 is pressed, the output from the corresponding GPIO-OUT will alternate between low and high level. When Parameter 3 is “NORMAL-Open”, high level (Open) will be output in the initial state. When Parameter 3 is “NORMAL-Closed”, low level (Closed) will be output in the initial state. When Parameter 2 is “Alt.Unlatch”, the signal level of the output from the corresponding GPIO-OUT will change only while the USER KEY designated by Parameter 1 is pressed. When Parameter 3 is “NORMAL-Open”, high level (Open) will be output when the USER KEY is not pressed and low level will be output when it is pressed. When Parameter 3 is “NORMAL-Closed”, low level (Closed) will be output when the USER KEY is not pressed and high level will be output when it is pressed.
GPIO-IN OUT	GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8 #--- GPIO-IN 1–8	NORMAL INVERT		The input state (high/low level) of the GPIO-IN specified by Parameter 1 is output to GPIO-OUT. If Parameter 2 is “NORMAL”, the input state is output unchanged. If Parameter 2 is “INVERT”, the input state is inverted and output. #---: ID of connected SB-16D
MTR Status	REC PLAY STOP PAUSE FAST FORWARD REWIND TAKE SKIP NEXT TAKE SKIP PREV			These output the MTR status from the GPIO-OUT port. While selected, they output LOW level.
AUTO MIXER Tally	TOP PRIORITY	NORMAL- Open NORMAL- Closed		This outputs AUTO MIXER TOP PRIORITY on/off states from the GPIO-OUT port. When TOP PRIORITY is ON and Parameter 2 is “NORMAL-Open”, low level signal (Closed) output will be latched. When Parameter 3 is “NORMAL-Closed”, high level signal (Open) output will be latched.
	PRIORITY A-D			This outputs AUTO MIXER (A/B/C/D) group PRIORITY on/off states from the GPIO-OUT port. When AUTO MIXER (A/B/C/D) group PRIORITY is ON and Parameter 2 is “NORMAL-Open”, low level signal (Closed) output will be latched. When Parameter 3 is “NORMAL-Closed”, high level signal (Open) output will be latched.
	LO CUT A-D ON/OFF			This outputs AUTO MIXER (A/B/C/D) group LO CUT button on/off states from the GPIO-OUT port. When AUTO MIXER (A/B/C/D) group LO CUT is ON and Parameter 2 is “NORMAL-Open”, low level signal (Closed) output will be latched. When Parameter 3 is “NORMAL-Closed”, high level signal (Open) output will be latched.
Monitor Status	MONITOR 1 MONITOR 2	1–6		This outputs the monitoring source selection status for the monitor specified by Parameter 1 from the GPIO-OUT. When the monitoring source with the number specified by Parameter 2 is selected, low level (Closed) will be output.
		Mute		This outputs whether the monitor specified by Parameter 1 is muted or unmuted from the GPIO-OUT. When muted, low level (Closed) will be output.
		Add		This outputs the ADD function on/off status for the monitor specified by Parameter 1 from the GPIO-OUT. When the ADD function is on, low level (Closed) will be output.

USER DEFINED CONTROLS screen structure

Page selection buttons

Tap these buttons to switch the page shown.

button

Tap this button to open a window where the footswitch polarity and fader start level can be set. (See “Setting the footswitch polarity” and “Fader Start Level setting”.)

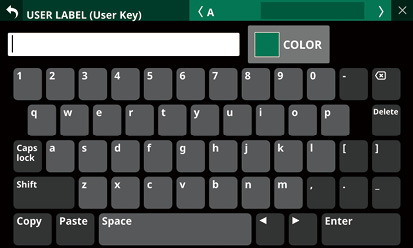

Control names and buttons (User Key page only)

The colors that USER KEYS light when their functions are activated can be set.

Tap these buttons to open a color palette window.

Tap a color in the color palette to close the window and change the control name display color.

Set function names

The show the names of functions that have been assigned to the controls.

Tap this area to open the control setting table for the controls.

Scroll knob and scrollbar

These appear when all selectable options cannot be shown on the display at the same time.

Drag the bar to scroll the visible options. The options can also be scrolled by swiping up and down on the control name () and set function name () area as well as by turning LCD knob 8.

Control setting on USER DEFINED CONTROLS Screen

/ buttons

Tap these buttons to switch the control that is being edited.

Control name area

This shows the name of the currently selected control.

button (User Key page only)

The colors that USER KEYS light when their functions are activated can be set.

Tap these buttons to open a color palette window.

Tap a color in the color palette to close the window and change the control name display color.

Function list

Functions that can be set for the controls and their parameters are shown in a 4-column list.

Tap a column and select the setting to be changed. The selected column will be highlighted.

To change a setting, swipe the list up and down in the highlighted column. The setting can also be changed by turning LCD knob 8 (lit light blue).

CANCEL button

Tap this button to cancel setting changes and return to the top USER DEFINED CONTROLS Screen.

APPLY button

Tap this button to apply setting changes and return to the top USER DEFINED CONTROLS Screen.

Scroll knob icon

This icon shows that LCD knob 8 (lit light blue) can be used to scroll.

User Key page

On this page, functions can be assigned to USER KEYS A–F and USER KEYS 1–12.

Tap Menu Screen > Front Panel Setup > User Key Setup to open this page.

User Key page when setting controls

The factory default settings are as follows.

Key	Lit color	Assigned function
USER KEYS A	Green	Monitor \| MONITOR 1 \| Source select \| 1 (MAIN L/R)
USER KEYS B	Green	Monitor \| MONITOR 1 \| Source select \| 2 (MIX 15-16)
USER KEYS C	Red	Monitor \| MONITOR 1 \| MUTE
USER KEYS D	Green	Monitor \| MONITOR 1 \| Source select \| 3 (MIX 1)
USER KEYS E	Green	Monitor \| MONITOR 1 \| Source select \| 4 (MIX 11-12)
USER KEYS F	Orange	Monitor \| MONITOR 1 \| DIM
USER KEYS 1	Red	Mute \| Mute Group1 \| Mute - LIT
USER KEYS 2	Red	Mute \| Mute Group2 \| Mute - LIT
USER KEYS 3	Red	Mute \| Mute Group3 \| Mute - LIT
USER KEYS 4	Red	Mute \| Mute Group4 \| Mute - LIT
USER KEYS 5	Orange	Sends On Fader \| MIX1
USER KEYS 6	Orange	Sends On Fader \| MIX2
USER KEYS 7	Orange	Sends On Fader \| MIX3
USER KEYS 8	Orange	Sends On Fader \| MIX4
USER KEYS 9	Orange	Sends On Fader \| MIX5
USER KEYS 10	Orange	Sends On Fader \| MIX6
USER KEYS 11	Orange	Sends On Fader \| MIX7
USER KEYS 12	Orange	Sends On Fader \| MIX8

Foot Switch page

Functions can be assigned to the footswitch on this page.

Tap Menu Screen > Rear Panel Setup > FOOT SW Setup to open this page.

Foot Switch page when setting controls

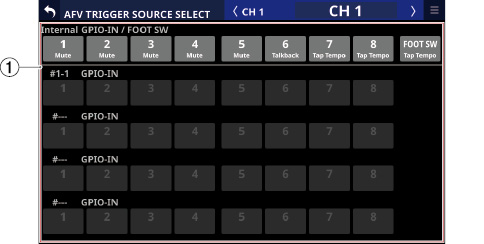

AFV indicator

If Foot Switch is selected as a trigger source for the Audio Follow Video function “AFV” will be shown here in blue.

Checking whether multiple functions have been assigned to the Foot Switch is possible.

The factory default setting is “Tap Tempo | FX3 | Delay1”.

Setting the footswitch polarity

This unit was designed to be used with momentary footswitches that must be pushed to function (shorted when pushed). Since the polarity can be reversed, however, push-to-break (shorted with not pushed) footswitches can also be used.

The setting of this unit can be changed according to the polarity of the footswitch being used.

1.Tap the button on the USER DEFINED CONTROLS Screen to open a settings window.

2.Tap the Foot Switch Polarity slider in the window to set the footswitch polarity.

Options: Normal (default), Invert

GPIO-IN page

On this page, functions can be assigned to the GPIO input connector of this unit or of a mounted SB-16D connected through the built-in Dante.

See “Using GPIO extension functions” for details about using the GPIO connector of a mounted SB-16D.

Tap Menu Screen > Rear Panel Setup > GPIO Input Setup to open this page.

GPIO-IN page when setting controls

AFV indicators

If an item is selected as a trigger source for the Audio Follow Video function “AFV” will be shown here in blue.

Checking whether multiple functions have been assigned to an item is possible.

Functions are not assigned in the factory default settings.

NOTE

The GPIO input connector of a mounted SB-16D does not have functions assigned when shipped from the factory.

GPIO-OUT page

On this page, functions can be assigned to the GPIO output connector of this unit or of a mounted SB-16D connected through the built-in Dante.

See “Using GPIO extension functions” for details about using the GPIO connector of a mounted SB-16D.

Tap Menu Screen > Rear Panel Setup > GPIO Output Setup to open this page.

GPIO-OUT page when setting controls

The factory default settings are as follows.

Port number	Assigned function
1	Fader Start/Stop \| CH29 \| Alternate \| NORMAL-Open
2	Fader Start/Stop \| CH31 \| Alternate \| NORMAL-Open
3	Fader Start/Stop \| CH33 \| Alternate \| NORMAL-Open
4	Fader Start/Stop \| CH35 \| Alternate \| NORMAL-Open
5	Fader Start/Stop \| CH37 \| Alternate \| NORMAL-Open
6	Fader Start/Stop \| CH39 \| Alternate \| NORMAL-Open
7	Fader Start/Stop \| STIN1 \| Alternate \| NORMAL-Open
8	Fader Start/Stop \| STIN2 \| Alternate \| NORMAL-Open

NOTE

The GPIO output connector of a mounted SB-16D does not have functions assigned when shipped from the factory.

Fader Start Level setting

This sets the trigger level of the fader start/stop function (default: −60 dB).

1.Tap the button on the USER DEFINED CONTROLS Screen to open a settings window.

2.Tap the setting level value of the Fader Start Level item in the window to change its appearance as shown below. The Channel Screens also switch to showing fader start setting.

3.Adjust the channel faders on the right top panel to the desired start/stop trigger levels.

The adjusted values are shown in the window.

4.Tap the APPLY button to set the fader start level to the position of the corresponding fader, closing the window and returning to normal display.

Tap the CANCEL button to close the window and return to normal display.

Layer Key SETUP page

Assign channel sets and custom layers to the 7 LAYER KEYS on this screen.

Tap Menu Screen > Front Panel Setup > Layer / Master Fader Setup to open this page.

Sonicview 24 Layer Key SETUP Screen

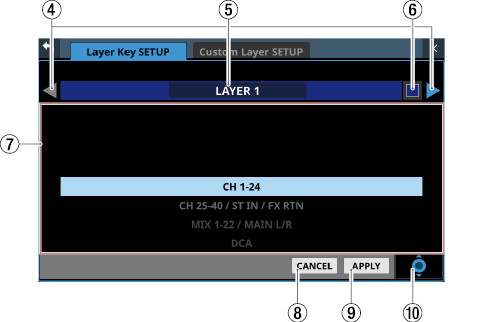

Layer Key SETUP layer key setting screen

Page selection buttons

Tap these buttons to switch the page shown.

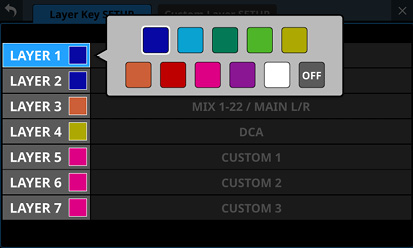

Layer Key names

The colors that LAYER KEYS 1–7 light when they are selected can be set.

Tap this area to open a color palette window.

Tap a color in the color palette to change the layer key name button color and close the palette window.

Layer Key settings

This shows channel sets and custom layers assigned to LAYER KEYS 1–7.

Tap this area to open a settings screen for the layer keys.

/ buttons

Tap these buttons to switch the LAYER KEYS (1–7) that is being edited.

Layer Key name

This shows the name of the currently selected LAYER KEYS (1–7).

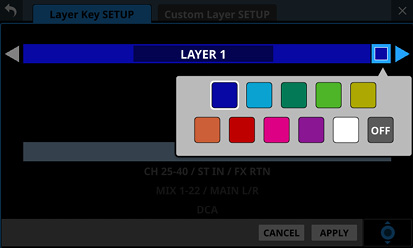

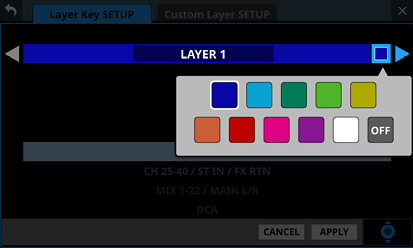

button

The colors that LAYER KEYS 1–7 light when they are selected can be set.

Tap this button to open a color palette window.

Tap a color in the color palette to change the layer key name display color and close the palette window.

Settings list

This shows channel sets and custom layers that can be set for LAYER KEYS 1–7.

To change a setting, swipe the list up and down. The setting can also be changed by turning LCD knob 8 (lit blue).

Settings that can be selected are as follows.

Model	Option
Sonicview 16	CH 1-16
	CH 17-32
	CH 33-40 / ST IN / FX RTN
	MIX 1-16
	MIX 17-22 / MAIN L/R
	DCA
	CUSTOM 1
	CUSTOM 2
	CUSTOM 3
	CUSTOM 4
	CUSTOM 5
	CUSTOM 6
	CUSTOM 7
Sonicview 24	CH 1-24
	CH 25-40 / ST IN / FX RTN
	MIX 1-22 / MAIN L/R
	DCA
	CUSTOM 1
	CUSTOM 2
	CUSTOM 3
	CUSTOM 4
	CUSTOM 5
	CUSTOM 6
	CUSTOM 7

CANCEL button

Tap this button to cancel setting changes and close to the layer settings screen.

APPLY button

Tap this button to confirm setting changes and close to the layer settings screen.

Scroll knob icon

This icon shows that LCD knob 8 (lit light blue) can be used to scroll.

Default settings for LAYER KEYS 1–7

The factory default settings are as follows.

Sonicview 16

Key	Lit color	Assigned function
LAYER 1	Blue	CH 1-16
LAYER 2	Blue	CH 17-32
LAYER 3	Blue	CH 33-40 / ST IN / FX RTN
LAYER 4	Orange	MIX 1-16
LAYER 5	Orange	MIX 17-22 / MAIN L/R
LAYER 6	Yellow	DCA
LAYER 7	Pink	CUSTOM 1

Sonicview 24

Key	Lit color	Assigned function
LAYER 1	Blue	CH 1-24
LAYER 2	Blue	CH 25-40 / ST IN / FX RTN
LAYER 3	Orange	MIX 1-22 / MAIN L/R
LAYER 4	Yellow	DCA
LAYER 5	Pink	CUSTOM 1
LAYER 6	Pink	CUSTOM 2
LAYER 7	Pink	CUSTOM 3

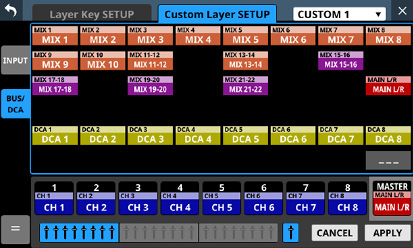

Custom Layer SETUP page

The modules assigned to custom layers and the modules assigned to the master fader can be set in the settings list on this screen.

Tap Menu Screen > Front Panel Setup > Layer / Master Fader Setup to open the Layer Key SETUP page. Then, tap the Custom Layer SETUP button to open this page.

Page selection buttons

Tap these buttons to switch the page shown.

Custom Layer selection

This shows the name of the custom layer that is being edited.

Tap this area to open a window where the custom layer can be selected.

Tap the name of the custom layer to be edited to close this window and show the module labels for the display mode set by the Sub MODULE LABEL or Main MODULE LABEL (See “DISPLAY MODE page”.) for the modules assigned to the selected custom layer in the custom layer slot buttons ().

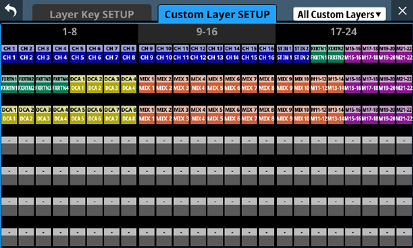

Tap “All Custom Layers” in the window to close the window and open the All Custom Layers display.

This shows the module labels for the display mode set by the Sub MODULE LABEL or Main MODULE LABEL (See “DISPLAY MODE page”.) for the modules assigned to all 7 custom layers on one line per layer.

Tap a button shown to switch to display of its custom layer.

Module group switching buttons

Tap these buttons to change which group of modules assigned to the layer is shown.

Module buttons

These are the buttons for the modules in the group assigned to the layer.

Use the module group switching buttons to select the shown group.

Custom layer slot buttons

In sets of 8 channels, these show the module labels for the display mode set by the Sub MODULE LABEL or Main MODULE LABEL (See “DISPLAY MODE page”.) of the modules assigned to the custom layer that is being edited. Modules that are not assigned will appear blank ().

Use the block selection buttons () to switch the 8 channels that are shown.

button

Tap this button to open the custom layer editing menu.

Items that can be used will be shown highlighted.

Menu item	Function
COPY LAYER	This copies the setting state of the selected custom layer to a buffer.
PASTE LAYER	This pastes the custom layer setting state copied to the buffer to the selected custom layer.
CLEAR LAYER	This clears all the settings of the selected custom layer. A confirmation message will appear before clearing is executed.
INSERT BLANK	This inserts a blank at the position of the selected slot button (framed in yellow). When this is done, the contents assigned to the selected slot button and the slot buttons to its right will be shifted right.
DELETE	This deletes the assignment of the selected slot button (framed in yellow) and shifts left by one slot the settings to its right. Doing this causes the rightmost slot button to become blank.
CLEAR	This removes the assignment of the selected slot button (framed in yellow). This does not move any slot buttons.

Block selection buttons

The block selection button for the 8 channels that are shown is highlighted.

Tap one of these buttons to switch the shown 8-channel block, which shows custom layer and slot buttons ().

CANCEL button

Tap this button to cancel setting changes.

APPLY button

Tap this button to confirm setting changes.

button

Tap this button to make the assignment of the selected slot (framed in yellow) blank.

MASTER slot button

This shows the module label for the display mode set by the Sub MODULE LABEL or Main MODULE LABEL of the module assigned to the MASTER fader (MAIN L/R by default), which does not depend on layer selection. (See “DISPLAY MODE page”.)

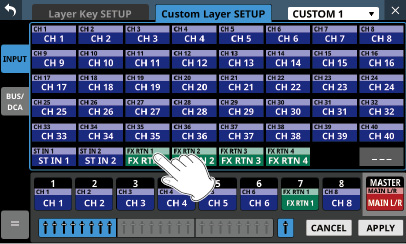

Custom layer assignment operation procedures

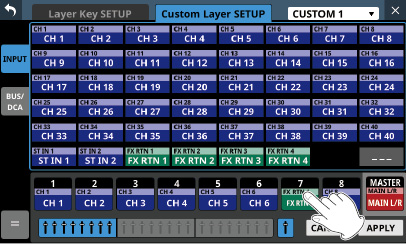

Selecting the custom layer slot button followed by the module button

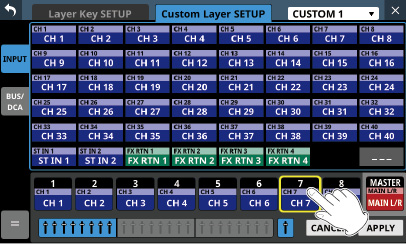

1.Tap the custom layer slot button to select it for assignment change.

Selecting will make a yellow frame appear.

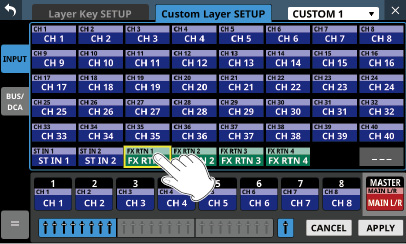

2.Tap the button for the module to be assigned to the selected slot.

This will assign the tapped module to the custom layer slot selected in step 1.

3.Tap the APPLY button to confirm setting changes.

Tap the CANCEL button to cancel setting changes.

Selecting the module button followed by the custom layer slot button

1.Tap the button for the module to be assigned.

Selecting will make a yellow frame appear.

2.Tap the button for the custom layer slot to assign the selected module to it.

This will assign the module selected in step 1 to the tapped custom layer slot.

3.Tap the APPLY button to confirm setting changes.

Tap the CANCEL button to cancel setting changes.

NOTE

In either procedure, multiple buttons can be selected in step 1 and assigned consecutively at one time.

Making talkback settings

Make talkback settings on the TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen.

Tap Menu Screen > Mixer Setup > Talkback / Monitor / Solo / OSC to open this screen.

Page appearance when the input source for the TALKBACK signal is “TALKBACK IN”

NOTE

This screen can also be opened by pressing the TALKBACK key while pressing the MENU key. (See “16 - List of shortcut operations”.)

Using the User Defined Control function, this screen can also be opened with a USER KEYS, footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

Each level meter has an overload indicator at its top.

INPUT SEL button

This shows the name of the input source for the TALKBACK signal.

The upper line shows an abbreviation of the FIXED PORT LABEL.

The lower line shows the USER PORT LABEL.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

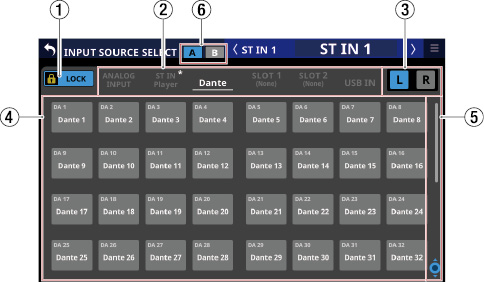

Tap this button to open the TALKBACK INPUT SELECT Screen where the input port for the TALKBACK signal can be selected.

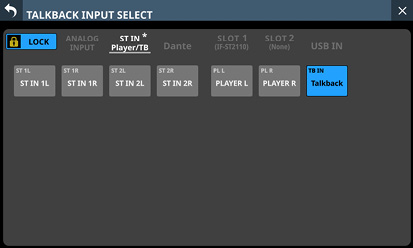

This screen shows the same content as the INPUT SOURCE SELECT Screen and is operated in the same way, except for being able to select “TALKBACK IN” on the ST IN and Player/TB page.

See “INPUT SOURCE SELECT screen” for details.

LOCATION setting button

This shows the Location setting of the TALKBACK mic.

Tap this area to open the Location setting menu.

Button	Meaning
CR (default)	This sets the Location of the TALKBACK mic to Control Room (CR).
ST	This sets the Location of the TALKBACK mic to Studio (ST).
NONE	This leaves the Location of the TALKBACK mic unset.

+48V button

Use this button to supply phantom power to the input source of the TALKBACK signal.

Press and hold the +48V button to turn phantom power (+48V) on/off. (Default: OFF)

When this is on, the button will appear highlighted.

This only appears when the input shown by the INPUT SEL button is “ANALOG”, “SB-16D connected by built-in Dante” or “TALKBACK IN”.

A black button that cannot be operated will be shown if the input source for the TALKBACK signal is an SB-16D for which control privileges are not held.

PAD button

The PAD button is shown when the input source of the TALKBACK signal is “ANALOG” or “SB-16D connected by built-in Dante”.

Tap this button to turn the −20 dB pad on/off. (Default: off)

When this button is on, it will appear highlighted.

A black button that cannot be operated will be shown if the input source for the TALKBACK signal is an SB-16D for which control privileges are not held.

Analog GAIN knob

When the input source of the TALKBACK signal is “ANALOG” or “SB-16D connected by built-in Dante”, an analog gain knob will be shown for this unit or the SB-16D. This knob can be used to adjust the input level of the MIC/LINE input jack.

Turn LCD knob 1 (lit red) to adjust it.

A black knob that cannot be operated will be shown if the input source for the TALKBACK signal is an SB-16D for which control privileges are not held.

NOTE

Use the TALKBACK volume knob on the top panel to adjust the TALKBACK IN analog input level. (See “ TALKBACK volume”.)

D.TRIM knob

Use this to adjust the TALKBACK signal digital trim value.

Range: −20 dB – +20 dB (default: 0 dB)

Turn LCD knob 2 (lit red) to adjust it.

TALKBACK level meter

This shows the TALKBACK signal input level.

DIM TARGET knob

When TALKBACK is on, this adjusts the attenuation of the TARGET signal that is being interrupted by the TALKBACK signal.

Range: −40 dB – 0 dB (default: −20 dB)

Turn LCD knob 4 (lit red) to adjust it.

When any TARGET button is on and dimming is applied to the TARGET signal in the amount set by the DIM TARGET knob, “DIM” will appear in orange in this area.

NOTE

This setting is shared with the RETURN TALKBACK page (“ DIM TARGET knob”).

DIM MON 1 and MON 2 knobs

When TALKBACK is on, use these to adjust the attenuation of MONITOR 1 and MONITOR 2.

Range: −40 dB – 0 dB (default: −20 dB)

Use LCD knobs 5–6 (lit red) to adjust these.

When TALKBACK is on and dimming is applied to MON 1 in the amount set by the DIM MON 1 knob, “DIM” will appear in orange in the DIM MON 1 area.

When TALKBACK is on and dimming is applied to MON 2 in the amount set by the DIM MON 2 knob, “DIM” will appear in orange in the DIM MON 2 area.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will appear to the top right of the DIM MON 1/2 knob area.

NOTE

This setting is shared with the RETURN TALKBACK page (“ DIM MON 1 and MON 2 knobs”).

TARGET buttons

Tap bus module buttons to set the buses that will be interrupted with the TALKBACK signal. (These are off by default.)

Buttons for selected talkback destinations will be highlighted.

Tapping the MON 1/MON 2 button will output the TALKBACK signal to MONITOR 1/MONITOR 2.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will be shown on the MON 1/2 button.

Tapping the EXT 1 button will output the TALKBACK signal to the output port assigned to the EXT 1 OUT button.

Tapping the EXT 2 button will output the TALKBACK signal to the output port assigned to the EXT 2 OUT button.

NOTE

The bus module buttons show module labels according to the display modes set for the Sub MODULE LABEL in the upper line and the Main MODULE LABEL in the lower line. (See “DISPLAY MODE page”.)

Stereo buses have a single button for each pair.

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

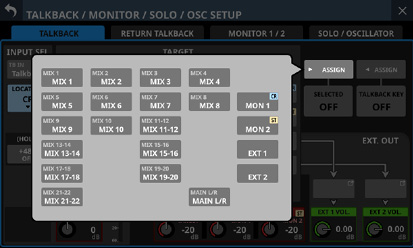

SELECTED ASSIGN button

Tap this button to open a window where you can select the output destinations for which you want to enable TALKBACK output when the SELECTED button is pressed.

Tap an option to select that output for the TALKBACK signal. (These are off by default.)

Buttons for selected outputs will be highlighted.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will be shown on the MON 1/2 button.

Tap this button when the selection window is open to confirm the setting and close the window.

NOTE

Stereo buses have a single button for each pair.

SELECTED button

Tap this button to turn on/off the TALKBACK function for output destinations selected on the window shown using the SELECTED ASSIGN button.

When this button is on, set buttons will appear highlighted.

NOTE

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

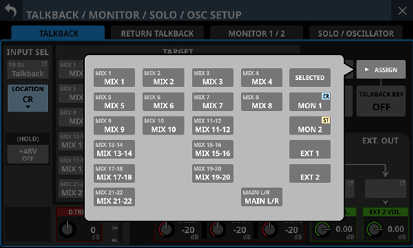

TALKBACK KEY ASSIGN button

Tap this button to open a window where you can select the output destinations for which you want to enable TALKBACK output when the TALKBACK key on the top panel or the TALKBACK KEY button is pressed.

Tap an option to select that output destination. (These are off by default.)

Buttons for selected outputs will be highlighted.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will be shown on the MON 1/2 button.

Tap this button when the selection window is open to confirm the setting and close the window.

TALKBACK KEY button

Tap this button to turn on/off the TALKBACK function for output destinations selected on the window shown using the TALKBACK KEY ASSIGN button (off by default).

When this is ON, the button will appear highlighted.

NOTE

This has the same function as the TALKBACK key on the top panel.

Tap this button to switch it ON and OFF. Press and hold this button to turn the function on only while being pressed.

Using the User Defined Control function, TALKBACK ON/OFF switching is also possible with a USER KEYS, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

EXT 1 OUT / EXT 2 OUT buttons

These show the names of the output ports assigned to the EXT 1 OUT and EXT 2 OUT buttons.

The upper line shows an abbreviation of the FIXED PORT LABEL.

The lower line shows the USER PORT LABEL.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

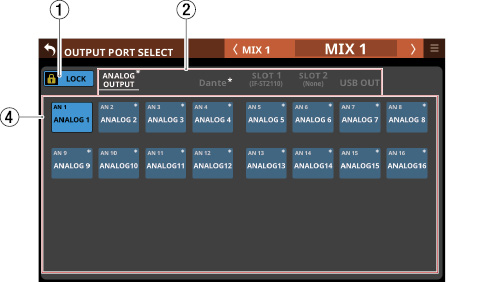

Tap these buttons to open the TALKBACK EXT1 DIRECT OUT PORT SELECT and TALKBACK EXT2 DIRECT OUT PORT SELECT screens where output ports for the TALKBACK signal can be selected.

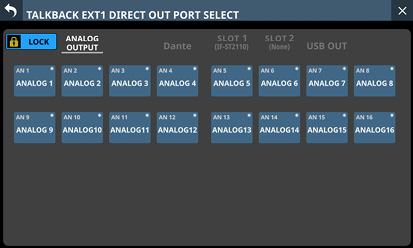

TALKBACK EXT1 DIRECT OUT PORT SELECT Screen

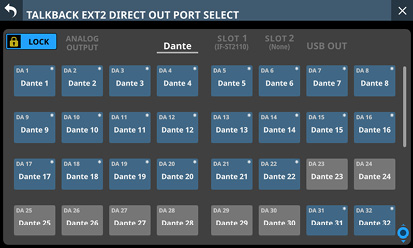

TALKBACK EXT2 DIRECT OUT PORT SELECT Screen

These screens show the same content as the OUTPUT PORT SELECT Screen and are operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

EXT 1 VOL. / EXT 2 VOL. knobs

These adjust the output levels of the TALKBACK signals sent to the output ports assigned to the EXT 1 and EXT 2 buttons.

Range: −∞ dB – +10 dB (default: 0 dB)

Turn LCD knobs 7 and 8 (lit green) to adjust them.

RETURN TALKBACK settings

Make return talkback settings on the RETURN TALKBACK page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen.

Tap Menu Screen > Mixer Setup > Talkback / Monitor / Solo / OSC to open this screen.

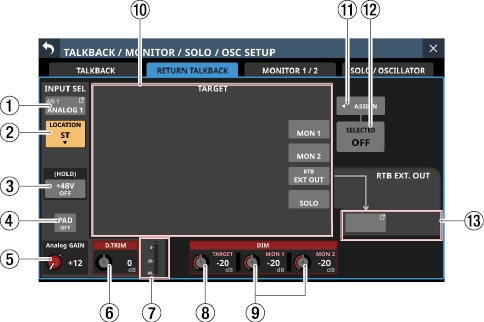

Page appearance when the input source for the TALKBACK signal is “ANALOG 1”

INPUT SEL button

This shows the name of the input source for the RETURN TALKBACK signal.

The upper line shows an abbreviation of the FIXED PORT LABEL.

The lower line shows the USER PORT LABEL.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

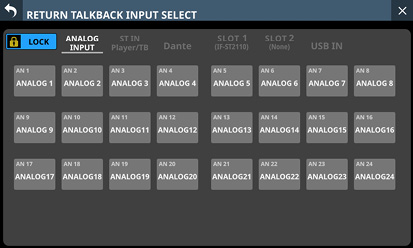

Tap this button to open the RETURN TALKBACK INPUT SELECT Screen where the input port for the RETURN TALKBACK signal can be selected.

This screen shows the same content as the INPUT SOURCE SELECT Screen and is operated in the same way, except for being able to select “TALKBACK IN” on the ST IN and Player/TB page.

See “INPUT SOURCE SELECT screen” for details.

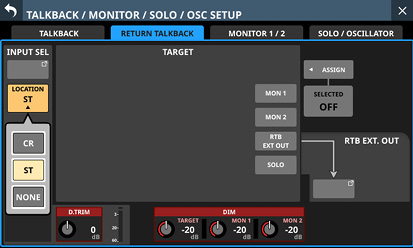

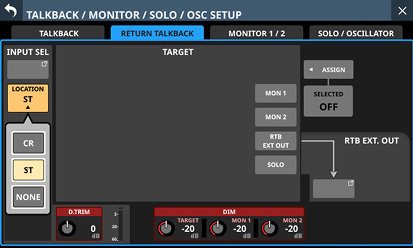

LOCATION setting button

This shows the location setting of the RETURN TALKBACK mic.

Tap this area to open the location setting menu.

Button	Meaning
CR	This sets the location of the RETURN TALKBACK mic to Control Room (CR).
ST (default)	This sets the location of the RETURN TALKBACK mic to Studio (ST).
NONE	This leaves the location of the RETURN TALKBACK mic unset.

+48V button

Use this button to supply phantom power to the input source of the RETURN TALKBACK signal.

Press and hold the +48V button to turn phantom power (+48V) on/off. (Default: OFF)

When this is on, the button will appear highlighted.

This only appears when the input shown by the INPUT SEL button is “ANALOG”, “SB-16D connected by built-in Dante” or “TALKBACK IN”.

A black button that cannot be operated will be shown if the input source for the RETURN TALKBACK signal is an SB-16D for which control privileges are not held.

PAD button

The PAD button is shown when the input source of the RETURN TALKBACK signal is “ANALOG” or “SB-16D connected by built-in Dante”.

Tap this button to turn the −20dB pad on/off. (Default: off)

When this button is on, it will appear highlighted.

A black button that cannot be operated will be shown if the input source for the RETURN TALKBACK signal is an SB-16D for which control privileges are not held.

Analog GAIN knob

When the input source of the RETURN TALKBACK signal is “ANALOG” or “SB-16D connected by built-in Dante”, an Analog GAIN knob will be shown for this unit or the SB-16D. This knob can be used to adjust the input level of the MIC/LINE input jack.

Turn LCD knob 1 (lit red) to adjust it.

A black knob that cannot be operated will be shown if the input source for the RETURN TALKBACK signal is an SB-16D for which control privileges are not held.

NOTE

Use the TALKBACK volume knob on the top panel to adjust the TALKBACK IN analog input level. (See “ TALKBACK volume”.)

D.TRIM knob

Use this to adjust the RETURN TALKBACK signal digital trim value.

Range: −20 dB – +20 dB (default: 0 dB)

Turn LCD knob 2 (lit red) to adjust it.

TALKBACK level meter

This shows the RETURN TALKBACK signal input level.

DIM TARGET knob

When TALKBACK is on, this adjusts the attenuation of the TARGET signal that is being interrupted by the TALKBACK signal.

Range: −40 dB – 0 dB (default: −20 dB)

Turn LCD knob 5 (lit red) to adjust it.

When any TARGET button is on and dimming is applied to the TARGET signal in the amount set by the DIM TARGET knob, an orange DIM button will appear in this area.

NOTE

This setting is shared with the TALKBACK page (“ DIM TARGET knob”).

DIM MON 1 and MON 2 knobs

When TALKBACK is on, use these to adjust the attenuation of MONITOR 1 and MONITOR 2.

Range: −40 dB – 0 dB (default: −20 dB)

Turn LCD knobs 5 and 6 (lit red) to adjust them.

When TALKBACK is on and dimming is applied to MON 1 in the amount set by the DIM MON 1 knob, an orange DIM button will appear in the DIM MON 1 area.

When TALKBACK is on and dimming is applied to MON 2 in the amount set by the DIM MON 2 knob, an orange DIM button will appear in the DIM MON 2 area.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will appear to the top right of the DIM MON 1/2 knob area.

NOTE

This setting is shared with the TALKBACK page (“ DIM MON 1 and MON 2 knobs”).

TARGET buttons

Tap these buttons to select them for interruption by RETURN TALKBACK signals. (Default: off)

Buttons for selected talkback destinations will be highlighted.

Tapping the MON 1/MON 2 button will output the RETURN TALKBACK signal to MONITOR 1/MONITOR 2.

If the LOCATION setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will be shown on the MON 1/2 buttons.

Tapping the EXT OUT button will output the RETURN TALKBACK signal to the output port assigned to the RTB EXT OUT button.

Tapping the SOLO button will output the RETURN TALKBACK signal to SOLO bus.

NOTE

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

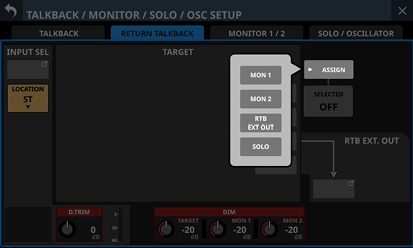

SELECTED ASSIGN button

Tap this button to open a window where you can select the output destinations for which you want to enable RETURN TALKBACK output when the SELECTED button is pressed.

Tap an option to select that output for the RETURN TALKBACK signal. (Default: off)

Buttons for selected outputs will be highlighted.

If the Location setting for MONITOR 1 or MONITOR 2 is “CR” or “ST”, “CR” or “ST” will be shown on the MON 1/2 button.

Tap this button when the selection window is open to confirm the setting and close the window.

SELECTED button

Tap this button to turn on/off RETURN TALKBACK for output destinations selected on the window shown using the SELECTED ASSIGN button.

When this button is on, set buttons will appear highlighted.

NOTE

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

RTB EXT. OUT button

This shows the names of the output ports that the RETURN TALKBACK signal is assigned to.

The upper line shows an abbreviation of the FIXED PORT LABEL.

The lower line shows the USER PORT LABEL.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Tap this button to open the Return TALKBACK EXT DIRECT OUT PORT SELECT Screen where output ports for the RETURN TALKBACK signal can be selected.

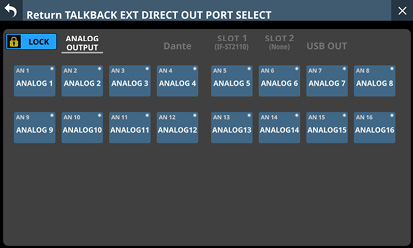

This screen shows the same content as the OUTPUT PORT SELECT Screen and is operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

Making monitor output settings

Make monitor output settings on the MONITOR 1/2 pages of the TALKBACK / MONITOR / SOLO / OSC SETUP screen.

Tap Menu Screen > Mixer Setup > Talkback / Monitor / Solo / OSC to open this screen.

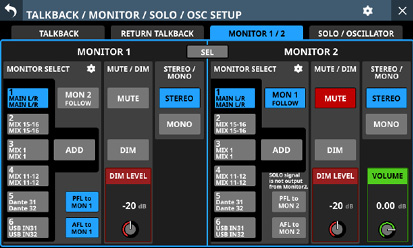

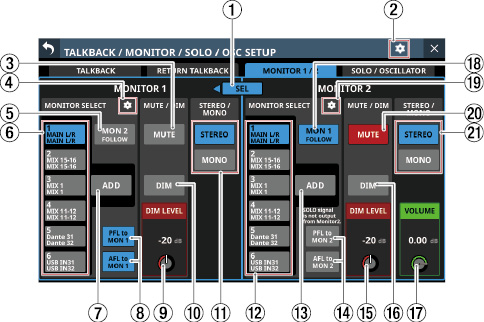

SEL button

This button can be used to switch between MONITOR 1 and MONITOR 2, which could be large and small monitors.

When the Monitor Exclusive button on the Additional Settings page (Additional settings window) is on, this button will be highlighted and can be used, and BLACK LEFT-POINTING TRIANGLE or BLACK RIGHT-POINTING TRIANGLE will appear.

In this state, tap this button to select output exclusively from MONITOR 1 or MONITOR 2. BLACK LEFT-POINTING TRIANGLE and BLACK RIGHT-POINTING TRIANGLE will appear alternately to the left and right of the button.

	MONITOR 1 MUTE button	MONITOR 2 MUTE button
When is shown	Off	On
When is shown	On	Off

When the Monitor Exclusive button is off, this button will appear gray and cannot be used, and BLACK LEFT-POINTING TRIANGLE or BLACK RIGHT-POINTING TRIANGLE will not be shown.

icon

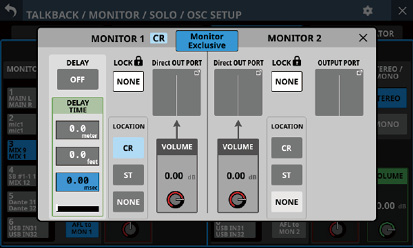

Tap this icon to open the Additional settings window. (See “Additional settings window”.)

MUTE button (MONITOR 1)

Tap this button to turn monitoring signal muting on and off (default).

When this is on, the button will appear highlighted.

NOTE

Output from the headphone jacks will not be muted.

When MONITOR 1 is muted because of the Monitor Exclusive or Location function, muting cannot be disabled by tapping this button.

Using the User Defined Control function, monitor muting can also be operated with a USER KEYS, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

The following USER KEY is set for MONITOR 1 on the User Key page by default.

USER KEYS C (Monitor | MONITOR 1 | MUTE)

icon (MONITOR 1)

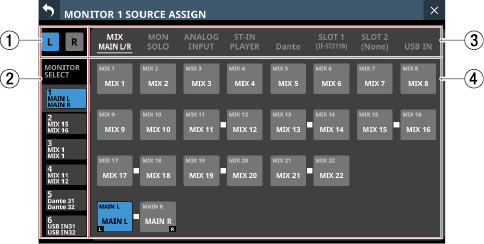

Tap this icon to open the MONITOR 1 SOURCE ASSIGN Screen. (See “MONITOR SOURCE ASSIGN screen”.)

MON 2 FOLLOW button

Tap this button to turn on/off the function that has MONITOR 1 monitor the signal of MONITOR 2. (This is off by default.)

When this is on, the button will appear highlighted.

MONITOR SELECT buttons (MONITOR 1)

These show the names of the monitoring sources selected on the MONITOR SOURCE ASSIGN Screen. (See “MONITOR SOURCE ASSIGN screen”.)

These buttons show the names of the monitoring sources with the L channels in the upper lines and the R channels in the lower lines.

If the selected monitoring source is a bus module, the USER MODULE LABEL will be shown. (See “DISPLAY MODE page”.)

If the USER MODULE LABEL is undefined, the FIXED MODULE LABEL will be shown.

If a selected monitoring source is an Input jack, the PORT LABEL selected with the PORT LABEL display mode setting will be shown. (See “DISPLAY MODE page”.)

If a Dante port that has a mounted SB-16D assigned is selected as a monitoring source, “SB #[ID] [port number]” will be shown at the top of the button. If it is a virtually-mounted SB-16D, will appear to the right of the monitoring source name.

Tap these buttons to select monitoring sources output from the following connectors.

Front panel headphone jacks

Rear panel MONITOR OUT L/R jacks

MONITOR 1 Direct OUT PORT (See “ Direct OUT PORT button (MONITOR 1)”.)

Tapping these buttons when the MONITOR 1 ADD button is off will select only one monitor source. The selected button will be highlighted light blue.

Multiple monitor sources can be selected by tapping these buttons when the MONITOR 1 ADD button is on. This allows multiple selected monitoring sources to be mixed and monitored together. The selected button will be highlighted yellowish green.

If the MONITOR SELECT button for a Dante port that has a virtually mounted SB-16D assigned is selected, the selected button will be highlighted yellow.

NOTE

If a bus is selected as the monitoring source, sound output from the unit will be monitored. Monitoring will also be silent if the Metering Point setting is “OUTPUT” for the selected bus but no assignment has been made to an output port (no external output from the unit). To monitor a bus AFL, use the SOLO function.

Using the User Defined Control function, MONITOR SELECT 1–6 can also be operated with USER KEYS, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

The following USER KEYS are set for MONITOR SELECT 1–4 on the User Key page by default.

USER KEYS A (Monitor | MONITOR 1 | Source select | 1 (MAIN L/R))

USER KEYS B (Monitor | MONITOR 1 | Source select | 2 (MIX 15-16))

USER KEYS D (Monitor | MONITOR 1 | Source select | 3 (MIX 1))

USER KEYS E (Monitor | MONITOR 1 | Source select | 4 (MIX 11-12))

ADD button (MONITOR 1)

Tap this button to turn on/off the ADD function, which enables selecting multiple monitoring sources at the same time, for MONITOR 1 (off by default).

When this is on, the button will appear highlighted.

PFL to MON 1/AFL to MON 1 buttons

Tap these buttons to set whether or not to switch the MONITOR 1 monitoring signal to the SOLO signal (on by default).

When this is on, the button will appear highlighted.

Button	Function
	If SOLO is turned on when SOLO TYPE is “PFL”, the MONITOR 1 monitoring signal will switch to the SOLO signal.
	If SOLO is turned on when SOLO TYPE is “AFL”, the MONITOR 1 monitoring signal will switch to the SOLO signal.

NOTE

If both buttons are turned off, the SOLO signal will stop being output from MONITOR 1 even if the SOLO key is pressed. For this reason, “SOLO signal is not output from Monitor 1” will be shown as a warning in the area above the PFL to MON 1 button.

DIM LEVEL knob (MONITOR 1)

This adjusts the attenuation of the monitoring signal when the MONITOR 1 DIM function is on.

Range: −40 dB – 0 dB (default: −20 dB)

Turn LCD knob 3 (lit red) to adjust it.

DIM button (MONITOR 1)

Tap this button to turn the monitoring dimming function on and off (default).

When the MONITOR 1 DIM function is on, the monitoring signal output level will be lowered according to the DIM LEVEL () setting.

When this is on, the button will appear highlighted.

NOTE

This button affects the output signals of MONITOR OUT L/R and headphone jacks.

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

Using the User Defined Control function, the MONITOR 1 DIM function can also be operated with a USER KEY, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

The following USER KEY is set for the MONITOR 1 DIM function on the User Key page by default.

USER KEYS F (Monitor | MONITOR 1 | DIM)

STEREO/MONO buttons (MONITOR 1)

Tap these buttons to switch between MONO and STEREO (default) for monitoring signals.

The selected button will be highlighted.

MONITOR SELECT buttons (MONITOR 2)

These show the names of the monitoring sources selected on the MONITOR 2 SOURCE ASSIGN Screen. (See “MONITOR SOURCE ASSIGN screen”.)

Tap these buttons to select monitoring sources output from the following connectors.

MONITOR 2 Direct OUT PORT (See “ Direct OUT PORT button (MONITOR 2)”.)

MONITOR 2 OUTPUT PORT (See “ OUTPUT PORT button (MONITOR 2)”.)

Tapping these buttons when the MONITOR 2 ADD button is off will select only one monitor source. The selected button will be highlighted light blue.

Multiple monitor sources can be selected by tapping these buttons when the MONITOR 2 ADD button is on. This allows multiple selected monitoring sources to be mixed and monitored together. The selected button will be highlighted yellowish green.

These have the same function as the MONITOR SELECT () button for MONITOR 1.

ADD button (MONITOR 2)

Tap this button to turn on/off the ADD function, which enables selecting multiple monitoring sources at the same time, for MONITOR 2 (off by default).

When this is on, the button will appear highlighted.

PFL to MON 2/AFL to MON 2 buttons

Tap these buttons to set whether or not to switch the MONITOR 2 monitoring signal to the SOLO signal (off by default).

When this is on, the button will appear highlighted.

Button	Function
	If SOLO is turned on when SOLO TYPE is “PFL”, the MONITOR 2 monitoring signal will switch to the SOLO signal.
	If SOLO is turned on when SOLO TYPE is “AFL”, the MONITOR 2 monitoring signal will switch to the SOLO signal.

NOTE

If both buttons are turned off, the SOLO signal will stop being output from MONITOR 2 even if the SOLO key is pressed. For this reason, “SOLO signal is not output from Monitor 2” will be shown as a warning in the area above the PFL to MON 2 button.

DIM LEVEL knob (MONITOR 2)

This adjusts the attenuation of the monitoring signal when the MONITOR 2 DIM function is on.

Range: −40 dB – 0 dB (default: −20 dB)

Turn LCD knob 7 (lit red) to adjust it.

DIM button (MONITOR 2)

Tap this button to turn the monitoring dimming function on and off (default).

When the MONITOR 2 DIM function is on, the monitoring signal output level will be lowered according to the DIM LEVEL () setting.

When this is on, the button will appear highlighted.

NOTE

Tap this button to turn it on and off. Press and hold this button to turn the function on only while being pressed.

Using the User Defined Control function, the MONITOR 2 DIM function can also be operated with a USER KEY, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

VOLUME knob (MONITOR 2)

Use this to adjust the MONITOR 2 output level.

Range: −∞ dB – +10 dB (default: 0 dB)

Turn LCD knob 8 (lit green) to adjust it.

MON 1 FOLLOW button

Tap this button to turn on/off the function that has MONITOR 2 monitor the signal of MONITOR 1 (on by default).

When this is on, the button will appear highlighted.

icon (MONITOR 2)

Tap this icon to open the MONITOR 2 SOURCE ASSIGN Screen. (See “MONITOR SOURCE ASSIGN screen”.)

MUTE button (MONITOR 2)

Tap this button to turn monitoring signal muting on and off (on by default).

When this is on, the button will appear highlighted.

NOTE

When MONITOR 2 is muted because of the Monitor Exclusive or Location function, muting cannot be disabled by tapping this button.

Using the User Defined Control function, MONITOR 2 muting can also be done with a USER KEY, the footswitch or the GPIO-IN. (See “USER DEFINED CONTROLS screen”.)

STEREO/MONO buttons (MONITOR 2)

Tap these buttons to switch between MONO and STEREO (default) for monitoring signals.

The selected button will be highlighted.

MONITOR SOURCE ASSIGN screen

On this screen, assign monitoring sources for monitoring from the front panel headphone jacks and the rear panel MONITOR OUT L/R jacks to the 6 MONITOR SELECT buttons.

To open this screen, tap the icon in the MONITOR SELECT area on the right side of the MONITOR SELECT button of the TALKBACK / MONITOR / SOLO / OSC SETUP Screen.

MONITOR 1 SOURCE ASSIGN screen

L/R selection buttons

These select which output ports of the monitoring source left/right channels to set.

Tap these buttons to switch between left and right. The selected button will be highlighted.

MONITOR SELECT page switches

Monitoring sources can be assigned on each MONITOR SELECT page separately.

The names of the assigned monitoring sources are shown on the MONITOR SELECT page.

These buttons show the names of the monitoring sources with the L channels in the upper lines and the R channels in the lower lines. If the selected monitoring source is a bus module, the USER MODULE LABEL will be shown. (See “MODULE LABEL page”.)

If the USER MODULE LABEL is undefined, the FIXED MODULE LABEL will be shown.

If a selected monitoring source is an Input jack, the PORT LABEL selected with the PORT LABEL display mode setting will be shown. (See “DISPLAY MODE page”.)

Tap this area to switch open MONITOR SELECT pages.

Monitoring source group page switches

These show monitor source group page names.

Tap a page name to switch to the page with the corresponding monitoring sources.

The name of the selected page will be highlighted.

Page name	Contents
MIX MAIN L/R	Select output signals from MIX 1–22 and MAIN L/R Master modules.
MON SOLO	Select other monitoring signals and SOLO bus signals.
ANALOG INPUT	Select input signals from analog MIC/LINE input jacks.
ST-IN PLAYER	Select input signals from the two pairs of ST IN jacks and the internal player.
Dante	Select input signals from the Dante connectors.
SLOT 1	Select the inputs of the expansion card installed in SLOT 1.
SLOT 2	Select the inputs of the expansion card installed in SLOT 2.
USB IN	Select USB audio interface inputs.

Monitoring source assignment buttons

Tap these buttons to select monitor sources to assign to the selected MONITOR SELECT button. Assigned buttons will be highlighted light blue. Assigned buttons for Dante ports that have virtually-mounted SB-16Ds will be highlighted yellow.

The bus module buttons show the FIXED MODULE LABEL in the upper line and the USER MODULE LABEL in the lower line. (See “MODULE LABEL page”.)

If the USER MODULE LABEL is undefined, the FIXED MODULE LABEL will be shown.

The input jack buttons show an abbreviated FIXED PORT LABEL in the upper line and a USER PORT LABEL in the lower line. (See “INPUT PORT LABEL page” and “OUTPUT PORT LABEL page”)

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

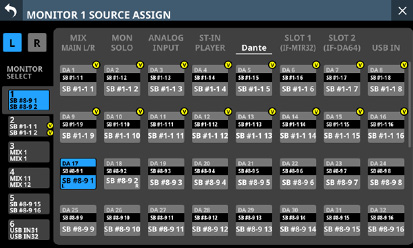

Buttons for Dante ports that have mounted SB-16Ds assigned will be shown as follows.

1st line: DA port number

2nd line: SB #[ID] port number

3rd line: USER PORT LABEL or SB #[ID] port number (if the USER PORT LABEL is undefined)

If it is a virtually-mounted SB-16D, will appear to the top right.

Additional settings window

Monitor Exclusive button

Tap this button to turn on/off the Monitor Exclusive function that selects exclusively the output of MONITOR 1 or MONITOR 2. Use this function to switch between MONITOR 1 and MONITOR 2, which could be large and small monitors (on by default).

When on, this button is highlighted and the MONITOR 1/2 page SEL button is enabled.

NOTE

If the Location of any monitors are set to “ST” (See “ Monitor Location setting area”.), the Monitor Exclusive button cannot be switched on and the MONITOR 1/2 exclusive function cannot be used.

To use the MONITOR 1/2 exclusive function, set the monitor Location to “CR” or “NONE”.

DELAY button

Tap this button to turn the delay function ON and OFF (default). This can be used to adjust the timing of the monitoring signal, for example.

When this is ON, the button will appear highlighted.

DELAY TIME

This adjusts the delay time used to correct the timing of monitoring signals, for example.

The highlighted unit will be used for operation, so tap the button for the desired unit.

Unit options	Range
meter	0 – 117.3 (meter)
feet	0 – 384.8 (feet)
msec (default)	0 – 341.32 (msec)

Turn LCD knob 2 (lit green) to adjust it.

LOCATION setting buttons (MONITOR 1)

Tap these buttons to change the Location setting of MONITOR 1. (The default setting is NONE.)

See “ Monitor Location setting area” for details about Location settings.

When the MONITOR 1 Location is set, “CR” or “ST” icons will be shown on the additional settings window and to the right of the MONITOR 1 display on the MONITOR 1/2 page.

Appearance when MONITOR 1 Location set to “CR”

Direct OUT PORT VOLUME knob (MONITOR 1)

Use this to adjust the output level from the MONITOR 1 DIRECT OUT PORT.

Range: −∞ dB – +10 dB (default: 0 dB)

Turn LCD knob 4 (lit red) to adjust it.

Direct OUT PORT button (MONITOR 1)

This shows the name of the output port that the MONITOR 1 DIRECT OUT signal is assigned to.

The upper line shows an abbreviation of the FIXED PORT LABEL.

The lower line shows the USER PORT LABEL. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Tap this button to open the MONITOR 1 DIRECT OUT PORT SELECT Screen where DIRECT OUT signal output ports for MONITOR 1 can be selected.

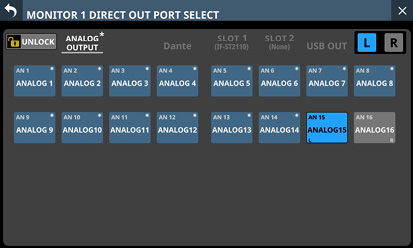

This screen shows the same content as the OUTPUT PORT SELECT Screen and is operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

Direct OUT PORT button (MONITOR 2)

This shows the name of the output port that the MONITOR 2 DIRECT OUT signal is assigned to.

This button shows an abbreviated FIXED PORT LABEL in the upper line and a USER PORT LABEL in the lower line. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

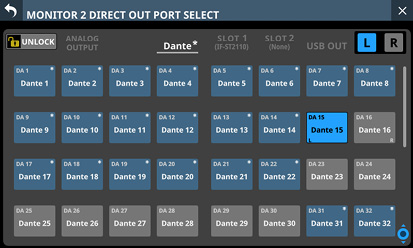

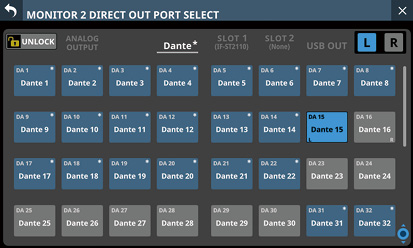

Tap this button to open the MONITOR 2 DIRECT OUT PORT SELECT Screen where DIRECT OUT signal output ports for MONITOR 2 can be selected.

This screen shows the same content as the OUTPUT PORT SELECT Screen and is operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

Direct OUT PORT VOLUME knob (MONITOR 2)

Use this to adjust the output level from the MONITOR 2 DIRECT OUT PORT.

Range: −∞ dB – +10 dB (default: 0 dB)

Turn LCD knob 5 (lit red) to adjust it.

LOCATION setting buttons (MONITOR 2)

Tap these buttons to change the Location setting of MONITOR 2. (The default setting is NONE.)

See “ Monitor Location setting area” for details about Location settings.

When the MONITOR 2 Location is set, “CR” or “ST” icons will be shown on the additional settings window and to the side of the MONITOR 2 display on the MONITOR 1/2 page.

Appearance when MONITOR 2 Location set to “ST”

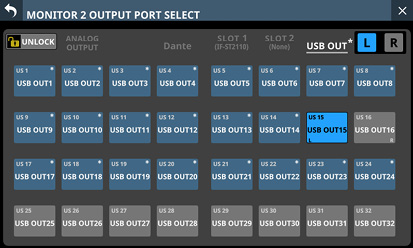

OUTPUT PORT button (MONITOR 2)

This shows the name of the output port that the MONITOR 2 OUTPUT signal is assigned to.

This button shows an abbreviated FIXED PORT LABEL in the upper line and a USER PORT LABEL in the lower line. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Tap this button to open the OUTPUT PORT SELECT Screen where output ports for the MONITOR 2 OUTPUT signals can be selected.

This screen shows the same content as the OUTPUT PORT SELECT Screen and is operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

button

Tap the button to close the additional settings window.

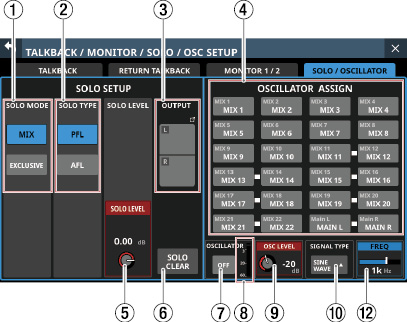

Making solo and built-in oscillator settings

Make solo and built-in oscillator settings on the SOLO/OSCILLATOR page of the TALKBACK / MONITOR / SOLO / OSC SETUP screen.

Tap Menu Screen > Mixer Setup > Talkback / Monitor / Solo / OSC to open this screen.

NOTE

This screen can also be opened by pressing either the SOLO or SOLO CLEAR key while pressing the MENU key. (See “16 - List of shortcut operations”.)

SOLO MODE buttons

Tap these buttons to set the solo function operation mode.

Option	Meaning
MIX (default)	In solo mode, signals from modules that have their SOLO keys pressed are mixed for solo monitoring.
EXCLUSIVE	In solo mode, only the signal from the module that had its SOLO key pressed last is used for solo monitoring.

The selected button will be highlighted.

SOLO TYPE buttons

Tap these buttons to set the solo function type.

Option	Meaning
PFL (default)	Pre-fader signals are used for solo monitoring.
AFL	Signals after panning (post-fader for the MAIN L/R Master module) are used for solo monitoring.

The selected button will be highlighted.

OUTPUT button

This shows the names of the output ports that the OUTPUT signal is assigned to.

This button shows an abbreviated FIXED PORT LABEL in the upper line and a USER PORT LABEL in the lower line. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

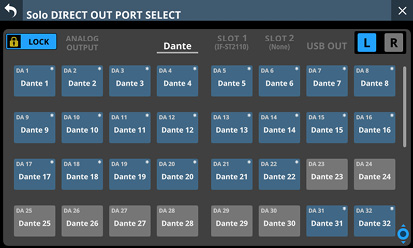

Tap this button to open the Solo DIRECT OUT PORT SELECT Screen where solo signal output ports can be selected.

This screen shows the same content as the OUTPUT PORT SELECT Screen and is operated in the same way.

See “OUTPUT PORT SELECT screen” for details.

OSCILLATOR ASSIGN

Tap these buttons to set the outputs for the built-in oscillator signal. (These are off by default.)

Buttons for selected outputs will be highlighted.

NOTE

Outputs can be turned on/off independently even for stereo buses.

These buttons show the FIXED MODULE LABEL in the upper line and the USER MODULE LABEL in the lower line. (See “DISPLAY MODE page”.)

SOLO LEVEL knob

Use this to adjust the output level from the SOLO L/R bus.

Range: −∞ dB – +10 dB (default: 0 dB)

Turn LCD knob 3 (lit red) to adjust it.

SOLO CLEAR button

This button will appear highlighted when soloing is on for any of the modules.

When this button is highlighted, tap it to end soloing on all channels.

NOTE

This has the same function as the SOLO CLEAR key on the top panel.

OSCILLATOR button

Tap this button to turn the built-in oscillator signal ON and OFF (default).

When this is ON, the button will appear highlighted.

OSCILLATOR level meter

This shows the output level of the built-in oscillator.

OSC LEVEL knob

Use this to adjust the output level of the built-in oscillator.

Range: −36 dB – 0 dB (default: −20 dB)

Turn LCD knob 6 (lit red) to adjust it.

SIGNAL TYPE button

This shows the signal type of the built-in oscillator.

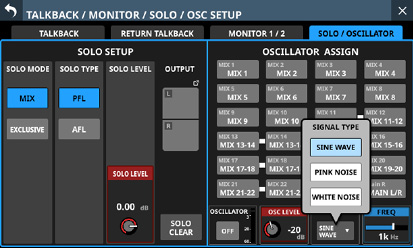

Tap this button to open the type selection menu.

Options: SINE WAVE (default), PINK NOISE, WHITE NOISE

Tap an option button to close the menu, and show the selected signal type.

FREQ

This appears if the signal type is set to “SINE WAVE”.

Use this to adjust the output frequency of the built-in oscillator.

Options: 100 Hz, 440 Hz, 1 kHz (default), 10 kHz

Turn LCD knob 8 (lit blue) to adjust it.

Dante SETUP screen

On this screen, set and view the status of the built-in Dante module and an SB-16D connected via the built-in Dante module.

Tap Menu Screen > Rear Panel Setup > Dante Setup to open this page.

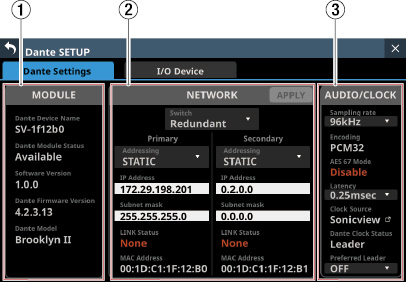

Dante Settings page

MODULE status

This shows the status of the Dante module.

Item	Content
Dante Device Name	This shows the module name of the Dante device.
Dante Module Staus	This shows the status of the Dante module.
Software Version	This shows the version of the built-in Dante module. This is the same as the Product Version shown in Dante Controller.
Dante Firmware Version	This shows the firmware version of the Dante system. This is the same as the Dante Firmware Version shown in Dante Controller.
Dante Model	This shows the hardware type of the built-in Dante module. This is the same as the Dante Model shown in Dante Controller.

NETWORK status

This shows the status of the Dante network.

When in Redundant mode, settings will be shown for the Primary connector on the left and for the Secondary connector on the right.

When in Switched (daisy-chain) mode, only the left side will be active.

Item	Content
Switch	This shows the selected connection mode. Tap this area to open a window where Redundant or Switched mode can be selected. (default: Redundant)
Addressing	This shows the IP address setting mode. Tap this area to open a window where AUTO (DHCP) or STATIC can be selected. (default: AUTO (DHCP))

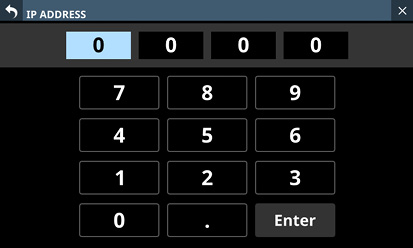

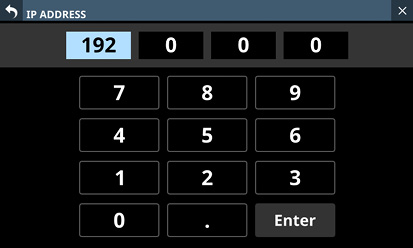

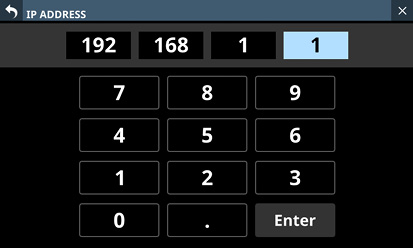

IP Address	If the Addressing item is set to “AUTO”, this will show the assigned IP address. If it is set to “STATIC”, this will show the IP address set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the IP ADDRESS Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
Subnet mask	If the Addressing item is set to “AUTO”, this will show the assigned subnet mask. If it is set to “STATIC”, this will show the subnet mask set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the SUBNET MASK Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
LINK Status	This shows the Dante network link status. This will be shown in red if it is not 1 G.
MAC Address	This shows the MAC address of the Primary/Secondary Dante port.

NOTE

To confirm Dante network settings, the Dante module must be restarted.

If Dante network settings have been changed, the APPLY button will appear highlighted.

Tap the APPLY button when it is highlighted to open a confirmation message.

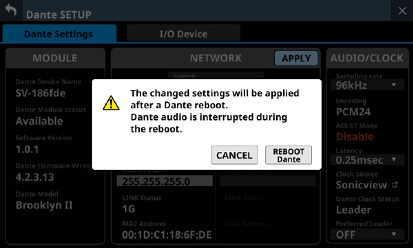

Tap the REBOOT Dante button to restart the Dante module.

ATTENTION

Be aware that Dante input and output sound will be interrupted while the Dante module is restarting.

AUDIO/CLOCK setting status

This shows the status of Dante audio signal and clock.

Item	Content
Sampling rate	This shows the sampling frequency setting of the built-in Dante module. Tap this area to open a window where 48kHz or 96kHz can be selected. (default: 96 kHz) NOTE If the sampling rate is 48kHz, 64 IN and 64 OUT will be available. If it is 96kHz, this becomes 32 IN and 32 OUT.
Encoding	This shows the encoding setting.
AES 67 Mode	This shows the AES67 mode.
Latency	This shows the latency setting. Tap this area to open a window where the latency (0.25msec, 0.5msec, 1.0msec, 2.0msec or 5.0msec) can be selected. (default: 1.0msec)
Clock Source	This shows the Dante module clock source (Dante or Sonicview). Tap the icon to open the SYNC CLOCK Screen.
Dante Clock Status	This shows the Dante clock status (Leader, Follower or Unlock). “Unlock” will be shown in red.
Preferred Leader	This shows the Preferred Leader setting. Tap this area to open a window where ON or OFF can be selected. (default: OFF)

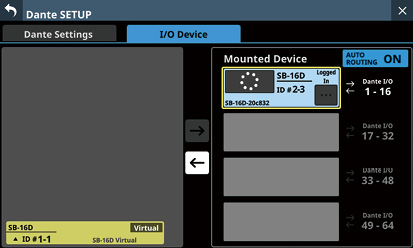

I/O Device page

Use this page to, for example, mount SB-16Ds, which are supported I/O devices, and make settings for them.

Device display area

This shows the ID numbers, model names (SB-16D) and Dante device module names for SB-16D units detected on the connected Dante network. SB-16D units that have different network addresses or are connected through routers will not be shown here.

Selected devices will be highlighted with yellow frames.

Tap the button to open the SB-16D control screen. (See “Control screen operations”.)

Scroll knob and scrollbar

If all the detected Dante devices cannot be shown on the screen at once, the scrollbar will appear and the scroll knob will be highlighted.

Drag the scrollbar to scroll the screen. The device display area () can also be scrolled by swiping up and down as well as by turning LCD knob 4.

Mount/unmount buttons

Use these buttons to mount SB-16D units and to unmount already mounted ones.

See the following for operation procedures.

“Mounting of devices connected to the Dante network”

“Unmounting devices”

“Mounting devices that are not on the Dante network”

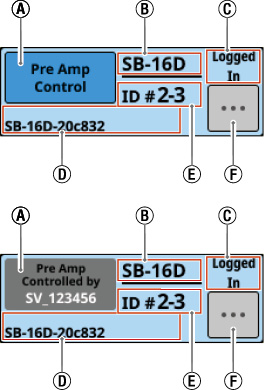

Mounted Device area

This shows mounted devices.

The devices are shown with the following colors depending on status.

Item	Status
	Device connected to the Dante network
	Virtual device that does not exist on the Dante network

Selected devices and mounting positions will be highlighted with yellow frames.

Control privilege display area: This shows the control privilege status.

Item	Explanation
	This Sonicview has control privileges.
	This Sonicview does not have control privileges. The named Sonicview has control privileges. Tap this to open a message confirming whether or not to request control. (See “Setting control privileges after mounting”.)
	Control is possible from any device. Tap this to open a message confirming whether or not to request control. (See “Setting control privileges after mounting”.)
	This Sonicview does not have control privileges, so operation is not possible from the Home Screen or MODULE Screen. Tap this to open a message confirming whether or not to request control. (See “Setting control privileges after mounting”.)
	Mounting is in process.

This shows the module name. If no device with the same ID is connected to the same Dante network (when virtually-mounted), “Virtual” will be shown.

This shows the login status.

Item	Explanation
Logged In	Information for this SB-16D can be acquired by this Sonicview.
Logged Out	Information for this SB-16D cannot be acquired by this Sonicview. (Login is not possible because this SB-16D is already mounted by 10 Sonicview units or a communication error occurred.) (See “Login failure”.)

This shows the module name of the Dante device set in this SB-16D.

This shows the ID. If multiple devices with the same ID are connected to the same Dante network (when the same ID is duplicated), “ID” will be shown in red with a mark.

Tap this button to open the SB-16D control screen. (See “Control screen operations”.)

AUTO ROUTING button

This sets whether Dante routing settings are automatically made according to the SB-16D mounting state or using Dante Controller.

Tap this button to turn it on/off.

Option

Meaning

ON (default)

SB-16D and Sonicview Dante routing is set automatically according to the SB-16D mounting status.

We recommend this when an SB-16D is the only Dante device connected to the Sonicview.

OFF

Dante routing will not be set even if an SB-16D is mounted.

Use Dante Controller for routing. Use this setting when connecting Dante devices other than an SB-16D.

When the AUTO ROUTING button is changed from “OFF” to “ON”, the following confirmation message will appear if executing automatic Dante routing changes the Dante input routing of this unit.

Tapping the KEEP button will switch the AUTO ROUTING button to “ON” but Dante routing settings will be retained as is. If an SB-16D is mounted after the AUTO ROUTING button is switched to “ON”, routing will occur automatically.

Tapping the CHANGE button will change the Dante routing according to the mounting status. In this case, output routing from the Sonicview to other Dante devices will be retained as is, and output routing from the Sonicview to mounted SB-16D unit will be added.

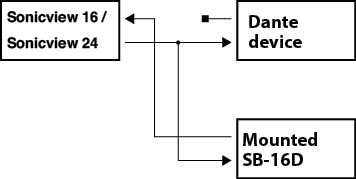

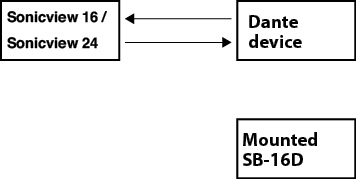

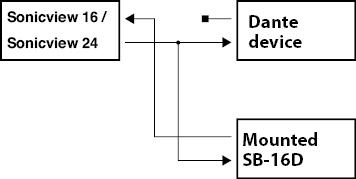

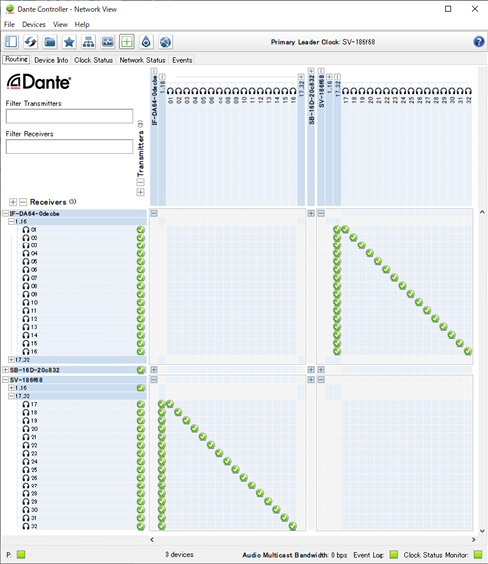

Example of Dante routing when the AUTO ROUTING button is OFF

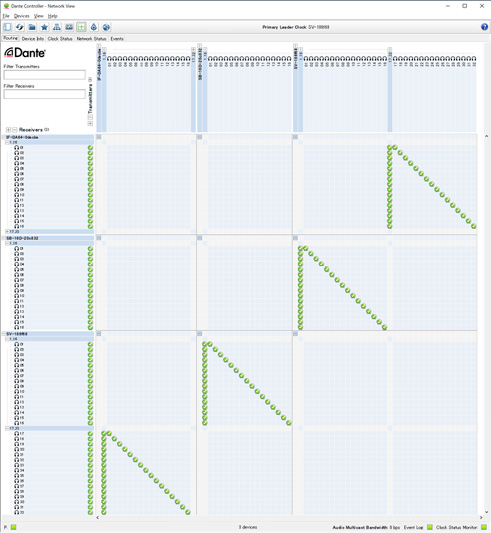

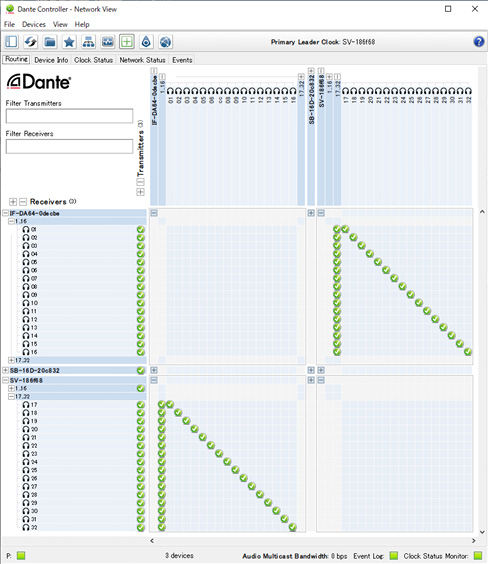

Dante routing state after the AUTO ROUTING button is switched to “ON” from the above state and the CHANGE button is tapped

NOTE

If all the following conditions have been met when the CHANGE button is tapped, the preamp of the SB-16D assigned to the Insert Return port will be set to the line level standard settings as follows.

This unit has acquired the control privileges for the mounted SB-16D

The input port of the mounted SB-16D is assigned to the Insert Return port

Preamp settings

PAD: ON

Analog GAIN: 0

Phantom: OFF

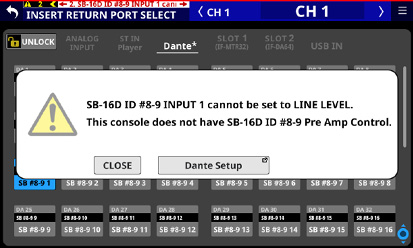

If control privileges for the concerned SB-16D have not been acquired by this unit, preamp settings cannot be changed to line level standard settings, so the following message will be shown.

Using SB-16D units

To use SB-16Ds as a Sonicview I/O boxes, they must be mounted (registered) in advance.

See the following for operation procedures.

“Mounting of devices connected to the Dante network”

“Mounting devices that are not on the Dante network”

A maximum of 4 SB-16D units can be mounted on a Sonicview.

If an SB-16D is mounted and control privileges acquired, this unit will be able to do the following.

Control SB-16D preamps

Control SB-16D preamps using snapshot recall

Control/use GPIO ports (expansion mode)

Control Dante output routing

The Sonicview manages SB-16D mounting status by ID. If no device with the same ID as the mounted ID is connected to the Dante network, “Virtual” will be shown instead of the device name.

If multiple devices with the same ID are connected to the same Dante network (when the same ID is duplicated), “ID” will be shown in red with marks for those devices.

If the ID of a mounted device is used by more than one device, the SB-16D that was recognized by the Sonicview first will be used. However, duplicate IDs must be resolved to show them on the SB-16D control screen. (See “Resolving duplicate IDs”.)

Moreover, an SB-16D with a duplicate ID that is later recognized by the Sonicview cannot be used.

If the AUTO ROUTING button on the I/O Device page is “ON”, the mounted SB-16D I/O ports and the main unit’s built-in Dante I/O will be assigned to Dante routing automatically when mounted according to the mounting position in the Mounted Device area (). See the table in “Dante routing” for details.

Mounting of devices connected to the Dante network

1.Tap a device in the left column on the Dante network that you want to mount.

The selected device will be shown with a yellow frame.

2.Tap the mounting destination on the right side (open mounting slot).

The selected mount destination will be shown with a yellow frame, and the central button will become highlighted ().

3.Tap the central button to mount it in the selected destination on the right side.

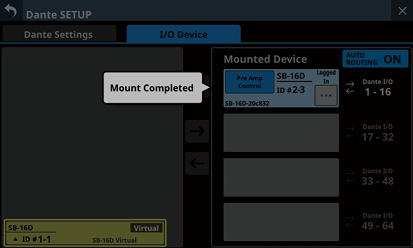

When mounting completes, a message will appear and information about control privileges after mounting will be shown in the top left of the mounting slot.

Item	Explanation
Pre Amp Control	Control is possible from this Sonicview.
Pre Amp Control by [device name]	The named Sonicview has control privileges. Control is not possible from this Sonicview. (Sound will pass.)

NOTE

If control privileges are not held, control of the preamps, GPIO (expansion mode), snapshot recall and output routing will not be possible from this Sonicview even when mounted.

If control privileges are acquired, control of the above items becomes possible, and sampling rate and reference level settings will be prioritized over those from other Sonicview units.

If all the following conditions are met when an SB-16D is mounted, the preamp of the SB-16D assigned to the Insert Return port will be set to the line level standard settings as follows.

This unit has acquired the control privileges for the mounted SB-16D

The input port of the mounted SB-16D has Dante routing as an input for this unit

The input port of the mounted SB-16D is assigned to the Insert Return port

Preamp settings

PAD: ON

Analog GAIN: 0

Phantom: OFF

If control privileges for the concerned SB-16D have not been acquired by this unit, preamp settings cannot be changed to line level standard settings, so the following message will be shown.

If the Sonicview with control privileges is not on the Dante network:

After the mounting indicator disappears, a mounting completed message will be shown. This message will disappear automatically after a few seconds.

If the Sonicview with control privileges is on the Dante network:

After mounting completes, tap the “Pre Amp Control by …” button. When the following message appears, tap the REQUEST button, and wait for approval from the Sonicview that has control privileges.

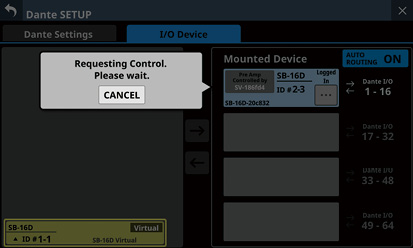

The following message will appear while waiting for permission. Tapping the CANCEL button will stop the permission waiting state and end the mounting operation.

A permission request message will appear on the Sonicview with control privileges.

This message will disappear automatically if the CANCEL button is tapped on the requesting device before the response is given on the Sonicview with control privileges.

If a button in the permission request message on the Sonicview with control privileges is tapped, the following will appear on the requesting Sonicview.

Tapping the ALLOW button will cause a message confirming that control has been acquired to appear on the requesting device. This message will disappear automatically after 2 seconds.

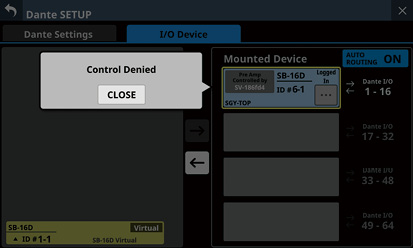

Tapping the DENY button will open a message confirming refusal of the request. Tap the OK button to close the message.

Unmounting devices

1.Tap the device that you want to unmount in the right column list.

The selected device will be shown with a yellow frame, and the central button will become highlighted ().

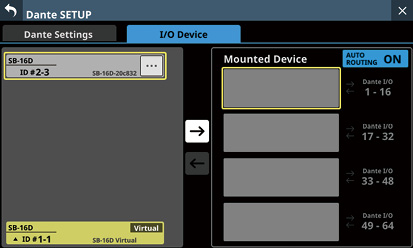

2.Tap the central button.

This unmounts the selected device, moving it to the list on the left.

If control privileges were held before unmounting, they will be cleared.

“Open Control” will be shown in the control privilege display area on other Sonicview units that have this device mounted.

Mounting devices that are not on the Dante network

Devices that are not connected to the Dante network can be mounted virtually.

Connecting a device with a corresponding ID when the I/O Device page AUTO ROUTING button is “ON” will cause preamp and routing data to be applied.

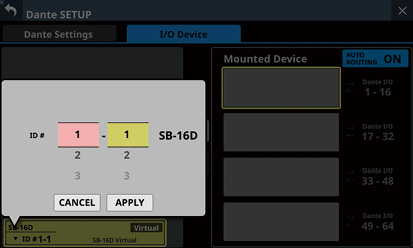

1.Tap the ID at the very bottom of the list on the left to open a window where an ID number can be set for a virtually-mounted device.

2.Swipe the options up and down to select the ID to mount.

Selections can also be changed by turning the LCD Knobs 2 and 3, which are lit pink and yellow.

If an ID that is already being used on the Dante network is selected, that ID will be red and the APPLY button will appear gray, showing the setting cannot be made.

3.Tap the APPLY button to confirm setting changes.

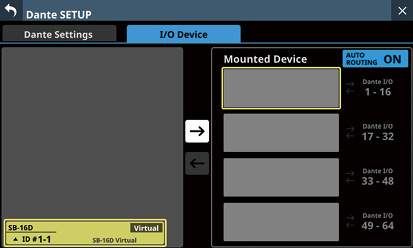

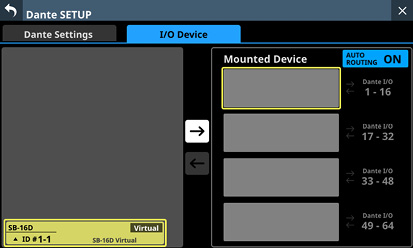

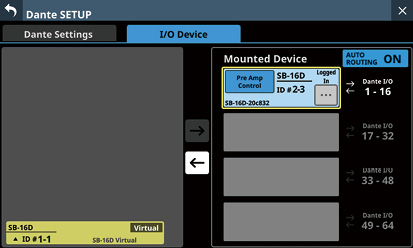

The selected ID number will be shown.

4.Tap the mounting destination on the right side (open mounting slot).

The selected mount destination will be shown with a yellow frame, and the central button will become highlighted ().

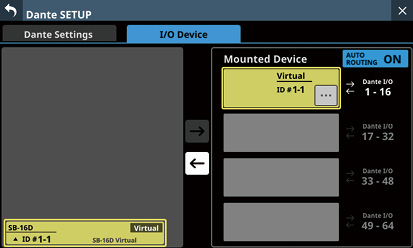

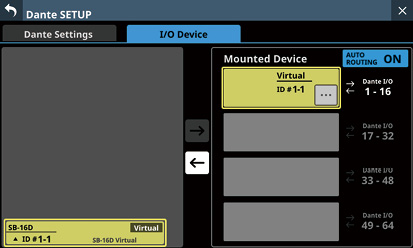

5.Tap the central button to mount it in the selected position on the right side.

Setting control privileges after mounting

Control privileges can be requested after mounting.

1.Tap the control privilege display area for a mounted SB-16D with control privileges that have not been acquired to open a message.

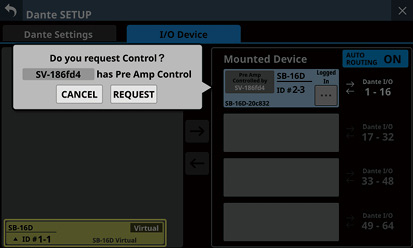

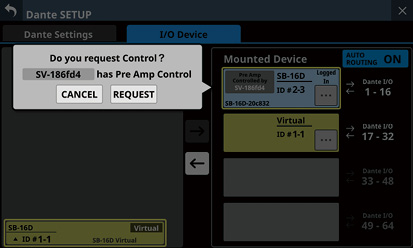

2.Tap the REQUEST button to start requesting control privileges.

Tap the CANCEL button to cancel requesting control privileges.

NOTE

If control privileges are not acquired, control of the preamps, GPIO (expansion mode), snapshot recall and output routing for that SB-16D will not be possible from this Sonicview even when mounted.

If control privileges are acquired, control of the above items becomes possible, and sampling rate and reference level settings for that SB-16D will be prioritized over those from other Sonicview units.

Resolving duplicate IDs

Resolving in the list on the right

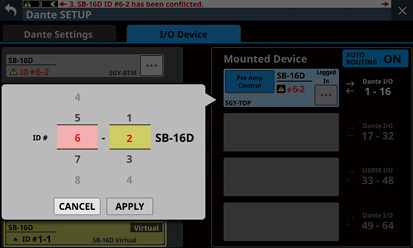

1.Tap the button for a device with a duplicate ID to open the ID setting window.

2.Swipe the options up and down to set the ID as desired.

Selections can also be changed by turning the LCD Knobs 2 and 3, which are lit pink and yellow.

NOTE

If an ID that is already being used on the Dante network is selected, that ID will be red and the APPLY button will appear gray, showing the setting cannot be made.

3.Tap the APPLY button to confirm setting changes.

The selected ID number will be shown.

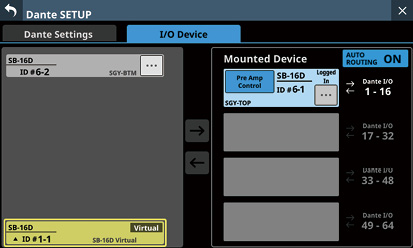

This resolves the duplication, and returns to the regular screen.

Resolving in the list on the left

1.Tap the button for a device with a duplicate ID.

This opens the control screen for the tapped device.

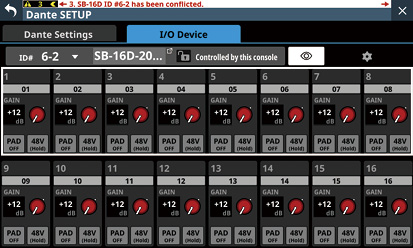

2.If “Controlled by this console” is shown to the right of the device name area, tap the ID area at the top left of the screen to open the ID setting window.

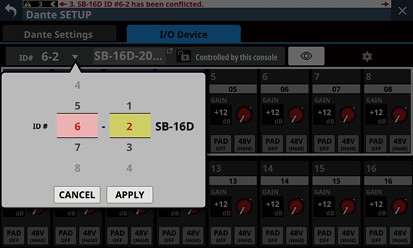

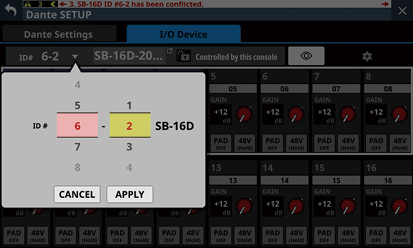

3.Swipe the options up and down to set the ID as desired.

Selections can also be changed by turning the LCD Knobs 2 and 3, which are lit pink and yellow.

NOTE

If an ID that is already being used on the Dante network is selected, that ID will be red and the APPLY button will appear gray, showing the setting cannot be made.

4.Tap the APPLY button to confirm setting changes.

The selected ID number will be shown.

This resolves the duplication, and returns to the regular screen.

Alerts and errors shown related to the SB-16D

When switching from virtual mounting to actual mounting:

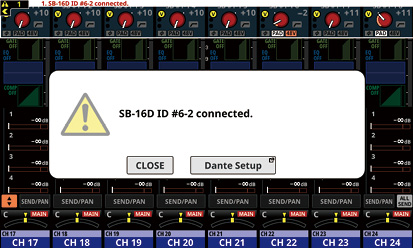

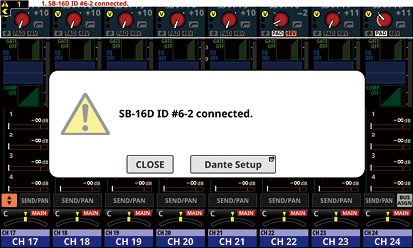

The following message window will appear on the right touchscreen.

Tap the CLOSE button to close the message.

Tap the Dante Setup button to open the Dante SETUP Screen I/O Device page on the right touchscreen. In addition, the following alert message will appear at the top of every touchscreen.

SB-16D ID #xx-xx connected.

Tap this alert message to open the Dante SETUP Screen I/O Device page.

To close the alert message shown at the top of the screen, tap the button on the corresponding message on the ERROR page of the INFORMATION screen. (See “ERROR page”.)

When switching from actual mounting to virtual mounting:

When a mounted SB-16D is disconnected from the Dante network and becomes virtually mounted, the following error message will appear at the top of every touchscreen.

SB-16D ID #xx-xx has been disconnected.

Tap this error message to open the Dante SETUP Screen I/O Device page.

This error message can be resolved in the following ways.

If the SB-16D returns to the Dante network, the error will be resolved automatically and the error message at the top of the screen will disappear.

Tapping the button on the corresponding error message on the ERROR page of the INFORMATION screen will close the error message at the top of the screen.

Unmounting the corresponding device using the I/O DEVICE page of the Dante Setup screen will resolve the error and close the error message at the top of the screen.

When an ID is used more than once:

When another SB-16D that has the same ID as a mounted SB-16D is connected to the Dante network, resulting in duplicate IDs, the following error message will appear at the top of every touchscreen.

SB-16D ID #xx-xx has a ID conflict.

Tap this error message to open the Dante SETUP Screen I/O Device page.

In this case, the device that was mounted first is given priority, so it has no impact on operation as a mixer.

If an ID becomes duplicated when there is a remaining alert message that occurred when switching from virtual mounting to actual mounting, the error message will appear after the alert message is removed.

This error message can be resolved in the following ways.

Resolving the duplicate ID using the I/O DEVICE page of the Dante screen will close the error message at the top of the screen.

If the device causing duplication is removed from the Dante network, normal mounting status will be restored and the error message at the top of the screen will be closed.

When this error message is resolved, the following error resolution message will be added to the ERROR page of the INFORMATION screen.

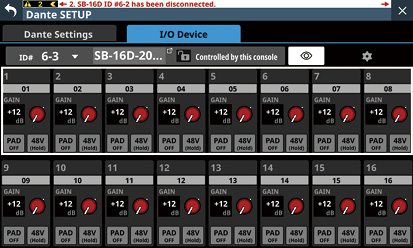

SB-16D ID #xx-xx conflict has been resolved.

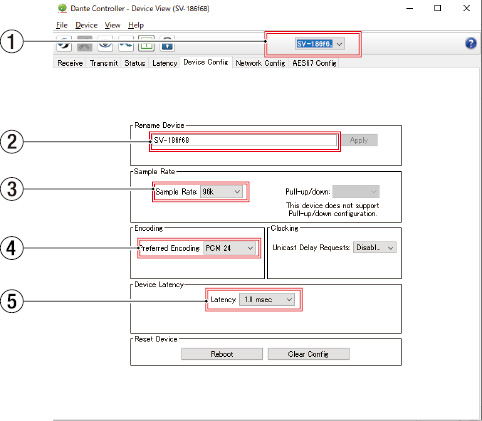

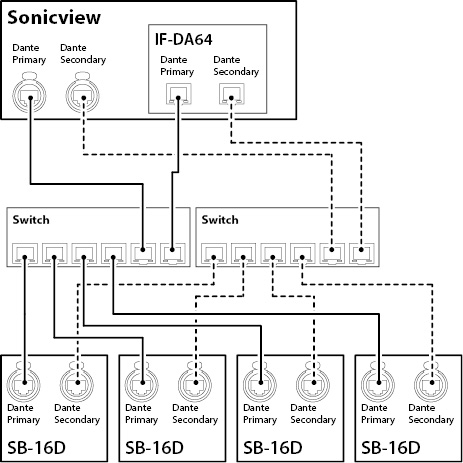

Restrictions when routing during 96kHz operation with Dante Controller

When the AUTO ROUTING button is set to “OFF”, “Sonicview Dante I/O” and “ 1-16”, for example, will not be shown in the list on the right of the I/O Device page.

Instead, the message below will appear.

Use the Dante Controller for Routing.

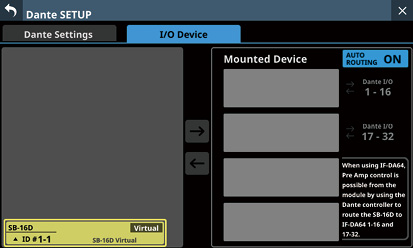

If the Sampling rate is set to “96kHz” on the Dante Settings page of the Dante SETUP screen, the list on the right of the I/O Device page will not show “ 33–48” and “ 49–64” in the bottom two mounting slots.

Alternatively, the message shown below will appear.

In this case, operations to acquire control privileges are necessary after mounting.

They will not be acquired automatically when mounted.

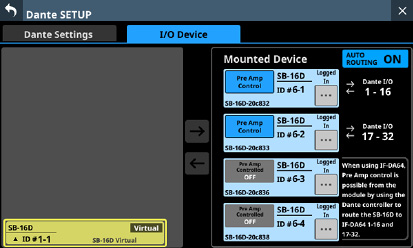

Immediately after mounting, “Pre Amp Control OFF” will be shown in the control privilege display area.

If no IF-DA64 (Dante card) is installed:

Tapping the control privilege display area will open the following message.

IF-DA64 is required to enable Pre Amp Control.

[CANCEL]

Tap the CANCEL button to close the message window and return to the previous screen. In this case, preamp control is not possible from this unit.

If an IF-DA64 (Dante card) is installed:

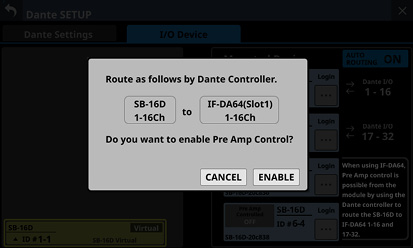

Tapping the control privilege display area will open the following message.

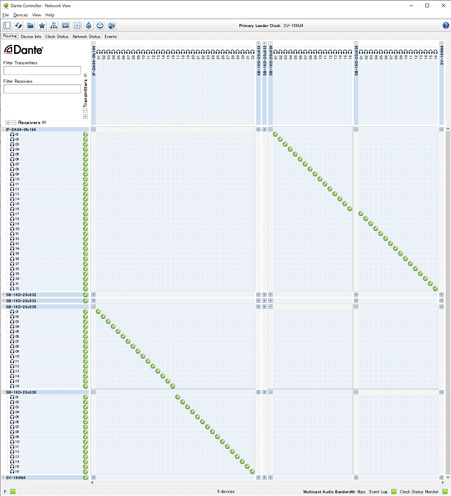

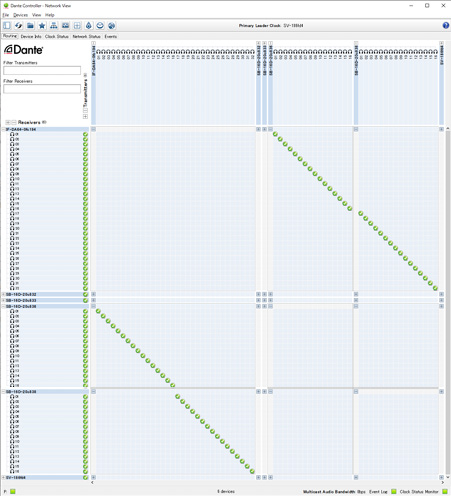

Route as follows by Dante Controller.
[SB-16D 1-16ch] to[ IF-DA64 (Slot1) 1-16ch]*

Do you want to enable Pre Amp Control?

[CANCEL] [ENABLE]

Tap the CANCEL button to close the message window and return to the previous screen. In this case, preamp control is not possible from this unit.

Tapping the ENABLE button will set the control privilege and “Pre Amp Control” will be shown in the control privilege display area.

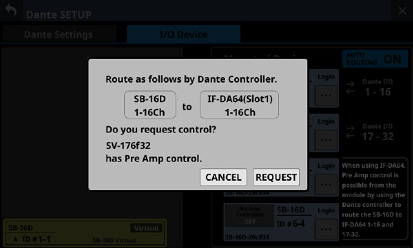

If another Sonicview, for example, already has SB-16D control privileges:

Tapping the control privilege display area will open the following message.

Route as follows by Dante Controller.
[SB-16D 1-16ch] to [IF-DA64 (Slot1) 1-16ch]*

Do you request control?

Sonicview XXX has Pre Amp control.

[CANCEL] [REQUEST]

After this, control privileges can be acquired by following the procedures from step 5 in “Mounting of devices connected to the Dante network”.

By acquiring control privileges with the above methods, preamp control becomes possible from the assigned module of the SLOT that the IF-DA64 (Dante card) is installed in as an input source.

*This appears when an SB-16D is mounted in the 3rd mounting slot and an IF-DA64 (Dante card) is installed in SLOT 1.

If an SB-16D is mounted in the 4th mounting slot and an IF-DA64 (Dante card) is installed only in SLOT 2, the following message will appear.

Route as follows by Dante Controller.
[SB-16D 1-16ch] to [IF-DA64 (Slot2) 17-32ch]

One SB-16D can be accessed simultaneously from a maximum of 10 Sonicview units.

If 10 units would be exceeded, the Sonicview that tries to access that SB-16D will fail (login failure) and will not be able to control that SB-16D.

“Logged Out” will be shown at the top right of mounted devices for which logging in failed.

Tap the button for unmounted or mounted devices to show the following messages that explain generally why login failed.

Tap the OK button in the message to close it.

The content of the message depends on the reason login failed.

If 10 units are already logged in

If login was not possible because of a communication error

If logging in fails when an SB-16D is mounted, mounting will be executed, but the above messages will be shown.

The following items are possible or not possible using mounted devices with which login failed.

Possible

Input Dante Routing from the SB-16D to the Sonicview can be set with this unit, and the input sound of this SB-16D can be input to this unit.

Setting routing with Dante Controller makes inputting and outputting sound from this SB-16D possible.

Not possible

Output Dante routing from the Sonicview to the SB-16D cannot be set with this unit. For this reason, sound from this unit cannot be output from this SB-16D.

Acquiring control privileges and changing/confirming preamp and other settings are not possible.

Responding to login failure errors

If any Sonicview units are showing the operation screen for that unmounted SB-16D, close that screen.

If that SB-16D is mounted on more than 10 Sonicview units, unmount it from a Sonicview unit that does not need it.

If already mounted and logging in failed, after doing the above, unmount it and then mount it again.

If the above responses do not resolve the issue, turn the SB-16D power off once and wait a few seconds before turning the power on again.

Synchronizing audio settings

If the Sonicview has control privileges after mounting, the SB-16D sampling rate and reference level (both analog and digital) settings will automatically be synchronized with those of that Sonicview. Moreover, it will also be set as the device for snapshot recall and set as the device with priority for Dante output routing.

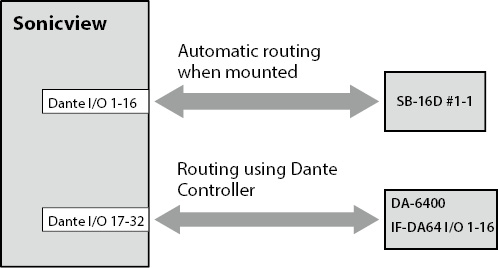

Dante routing

Routing of Dante I/O for mounted SB-16Ds and the Sonicview can be done automatically.

On the other hand, routing can be left to Dante Controller and the Sonicview can be set to not do routing.

Use the AUTO ROUTING button on the I/O Device page to set this. (See “ AUTO ROUTING button”.)

To conduct Dante routing from the Sonicview for SB-16D units mounted on it, set the AUTO ROUTING button to “ON”.

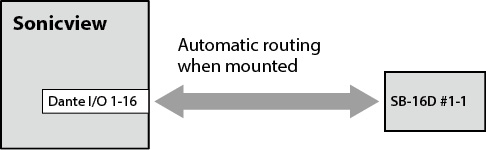

Dante routing will be set automatically when mounted.

In this case, depending on the SB-16D mounting position, the mounted SB-16D I/O port and this unit’s built-in Dante I/O will be routed for Dante automatically when mounting occurs as shown below.

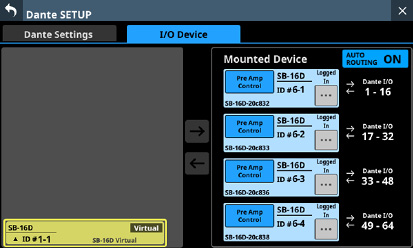

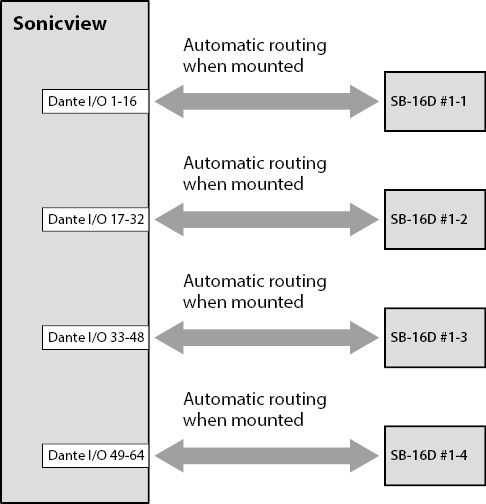

When Sync Clock is 48 kHz

Mounting position in Mounted Device area	Routing destination
Top	Built-in Dante I/O 1–16 of this unit
2nd from top	Built-in Dante I/O 17–32 of this unit
3rd from top	Built-in Dante I/O 33–48 of this unit
4th from top	Built-in Dante I/O 49–64 of this unit

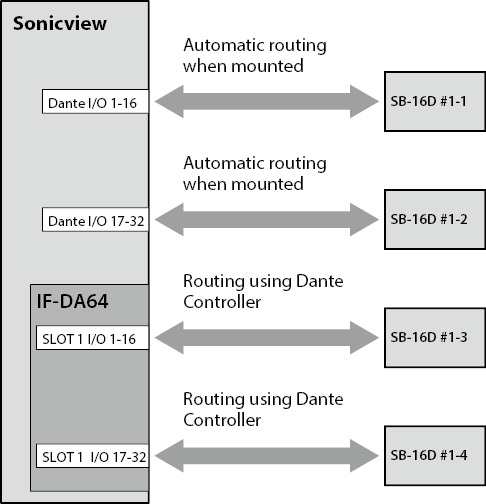

When Sync Clock is 96 kHz

Mounting position in Mounted Device area	Routing destination
Top	Built-in Dante I/O 1–16 of this unit
2nd from top	Built-in Dante I/O 17–32 of this unit
3rd from top	This will not be routed automatically. Use Dante Controller to route Dante I/O 1–16 for the IF-DA64 installed in this unit and Dante I/O 1–16 for the mounted SB-16D.
4th from top	This will not be routed automatically. Use Dante Controller to route Dante I/O 17–32 for the IF-DA64 installed in this unit and Dante I/O 1–16 for the mounted SB-16D.

NOTE

When the AUTO ROUTING button is changed from “OFF” to “ON”, if executing automatic Dante routing changes the Dante input routing of this unit, the following message will appear to confirm whether to match the routing with the mounting status.

Devices other than this Sonicview are routed to the mounted SB-16D.

Do you want to KEEP the routing? Or Change the routing to this Sonicview?

[KEEP] [CHANGE]

Example of Dante routing when the AUTO ROUTING button is OFF

Dante routing state after the AUTO ROUTING button is switched to “ON” from the above state and the CHANGE button is tapped

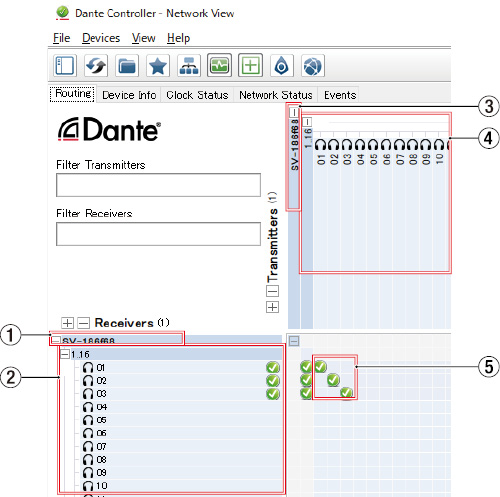

To conduct Dante routing for the Sonicview from Dante Controller, set the AUTO ROUTING button to “OFF”.

This will enable routing from Dante Controller.

When set to conduct Dante routing from Dante Controller, routing settings cannot be conducted from the Sonicview even for SB-16D units.

NOTE

Routing for mounted SB-16Ds will be retained as is. Routing will not occur automatically if an SB-16D is mounted after the AUTO ROUTING button is set to “OFF”.

SB-16D control

Preamp control as a Sonicview I/O expansion

From the operation screen of the module that has the built-in Dante input port routed, input connector preamps of SB-16Ds that have been routed by Dante to this Dante input port can be operated.

In this case, they can be operated in the same way as the built-in analog input preamps of the Sonicview.

Only if all the following conditions are all met, preamps can be operated on the Home Screen, MODULE (OVERVIEW) screen and MODULE (INPUT) screen.

A Dante port is assigned to the module

The SB-16D Dante port is routed to this Dante port

The SB-16D that is routed to this Dante port is mounted on the Sonicview and control privileges are held, or it is virtually mounted

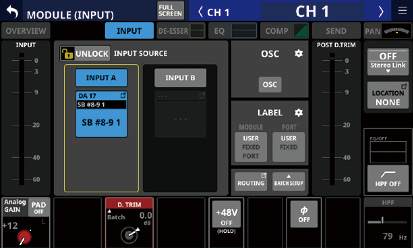

Example of appearance when mounted and control privileges are held

In this case the same preamp settings will be shown as would be when routing the built-in analog input jacks.

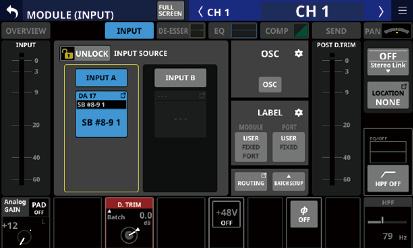

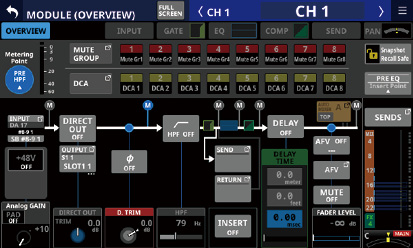

Example of appearance when mounted but control privileges are not held

In this case, the SB-16D preamp settings can be shown, but the GAIN knob, PAD buttons and 48V buttons will appear black and cannot be operated.

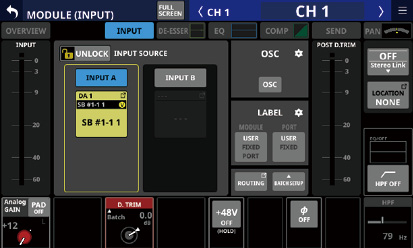

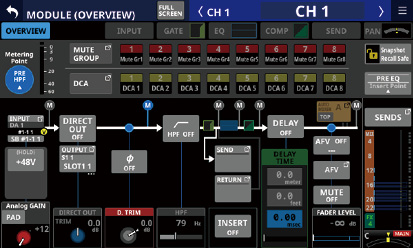

Example of appearance when virtually mounted

In this case the same preamp settings will be shown as would be when routing the built-in analog input jacks, and marks are shown on routing settings.

SB-16D full control

Whether they are mounted or not, SB-16D units that are connected to the same Dante network can be fully controlled from a Sonicview.

NOTE

If another Sonicview has SB-16D control privileges, its setting values can be shown, but they cannot be controlled. In this case, an icon will appear at the top of the SB-16D control screen and the Dante device module name of the Sonicview that has control privileges will be shown.

1.Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP screen and tap the I/O Device tab.

2.Tap the button for the device you want to control.

This opens the control screen.

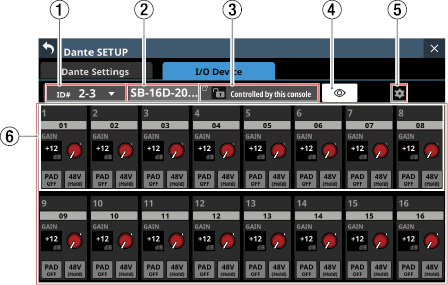

Control screen operations

This shows the current ID.

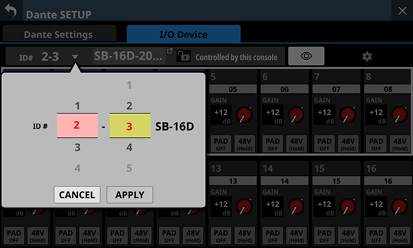

Tap this area to open a window where the ID can be changed.

Swipe the options up and down to change the ID.

Selections can also be changed by turning the LCD Knobs 2 and 3, which are lit pink and yellow.

Tap the APPLY button to change the selected ID.

Tap the CANCEL button to close the window without changing the ID.

NOTE

If an ID that is already being used on the Dante network is selected, that ID will be red and the APPLY button will appear gray, showing the setting cannot be made.

Changing the ID when mounted could cause it to become unmounted.

Device name

This shows the module name of the SB-16D Dante device.

Tap this area to enable changing the module name of the Dante device.

If the device is virtually mounted, “---” will appear and tapping will not enable changing.

Control privilege status

This shows the control privilege status.

If this unit has control privileges, and “Controlled by this console” will be shown.

If this unit does not have control privileges, and “Controlled by [Dante device module name of the Sonicview that has control privileges]” will be shown.

In the following cases, nothing will be shown.

If no device has control privileges for that SB-16D

If the device is virtually mounted

button

Tap this button to send an Identify command to the SB-16D. The SB-16D that receives the Identify command will respond by blinking its SIG and STATUS indicators, making it possible to confirm the corresponding device. Tapping this button again when an SB-16D is responding will send it another Identify command, which will cause it to stop responding.

This button is not shown for devices that are virtually mounted.

button

Tap this button to open the Settings Screen where settings other than those related to preamp operation can be checked.

Channel modules

Work with channel names, GAIN knobs, PAD buttons and 48V buttons in this area.

Tapping a channel name will open the RENAME screen where it can be edited.

GAIN levels of the channels selected by the frame can be adjusted using the 1–8 LCD knobs that are lit red.

Tap a PAD button to turn the −20 dB pad on/off. When this button is on, it will appear highlighted.

Press and hold the 48V button to turn phantom power (+48V) on/off. When phantom power is on, the button will be highlighted.

GAIN knobs, PAD buttons and 48V buttons can also be used with virtually mounted devices.

If another Sonicview has control privileges for the SB-16D shown, it will appear as follows and cannot be controlled.

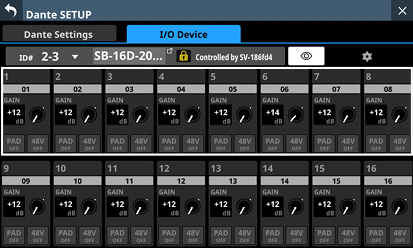

Example of appearance when control privileges are not held

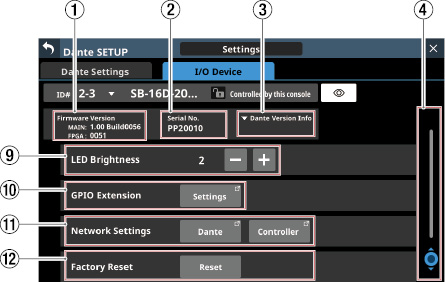

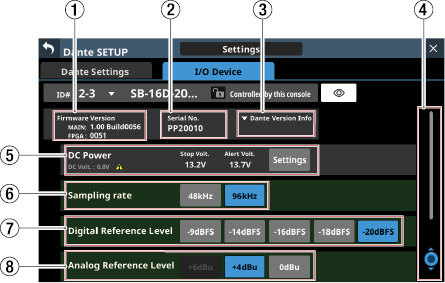

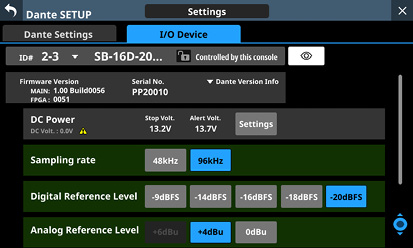

Settings screen

Firmware Version

This shows the SB-16D firmware versions.

If the device is virtually mounted, “---” will appear in place of the numbers.

Serial No.

This shows the serial number of the SB-16D.

“---” will appear if the device is virtually mounted.

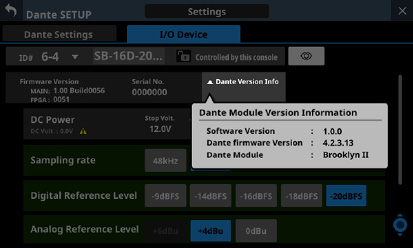

Dante Version Info

This shows the SB-16D Dante module firmware version.

If the device is virtually mounted, nothing will be shown even if tapped.

Tap this area to open a Dante information window.

Scroll knob and scrollbar

This scroll bar shows the position of the setting items currently shown on the screen relative to all items on the Settings Screen.

NOTE

To view setting items not shown on the screen, swipe the setting items area up and down to scroll the screen.

LCD knob 8, which is lit light blue, can also be turned to scroll the screen.

DC Power information

SB-16D DC power status is shown and related settings can be made here.

Item	Explanation
DC Volt.	This shows the current voltage and status of the DC power supply. A green indicator will be shown if the DC power supply is providing power normally. If the alert display setting is on, and the DC power supply voltage has become less than the alert voltage, an indicator will be shown. No indicator will be shown if the DC power supply is not providing power (if the DC power supply voltage is below the stop voltage).
Stop Volt.	This shows the stop voltage setting value.
Alert Volt.	This shows the setting value for the voltage that triggers showing an alert. If the Alert Voltage ON/OFF button is set to “OFF” in the DC Power settings window, “--.-V” will be shown here.
Settings button	Tap this button to open the DC Power settings window. (See “DC Power settings”.)

“---” will appear for all the settings if the device is virtually mounted. In addition the Settings button will appear gray and cannot be used.

Sampling rate buttons

These set the sampling frequency for the SB-16D.

The selected button will be highlighted.

Digital Reference Level buttons

Use these to set the digital reference level of the SB-16D.

The selected button will be highlighted.

Analog Reference Level buttons

Use these to set the analog reference level of the SB-16D.

The selected button will be highlighted.

NOTE

The settings of Sampling rate (), Digital Reference Level () and Analog Reference Level () buttons with green backgrounds are linked to the settings of the Sonicview that has control privileges. For this reason, settings cannot be changed on this Settings screen if mounted.

For virtually mounted devices, Sampling rate (), Digital Reference Level () and Analog Reference Level () button settings will all appear gray and cannot be operated.

LED Brightness buttons

Use the and buttons to set the brightness of the SB-16D indicators.

Range: 0 – 3 (default 3)

If the device is virtually mounted, “–” will appear and the buttons will be gray and cannot be operated.

GPIO Extension

Tap the Settings button to open the GPIO Extension Settings Screen. (See “GPIO Extension Settings Screen”.)

Virtually-mounted devices can also be operated.

Network Settings

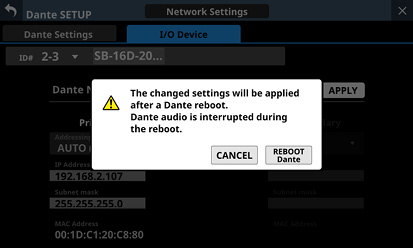

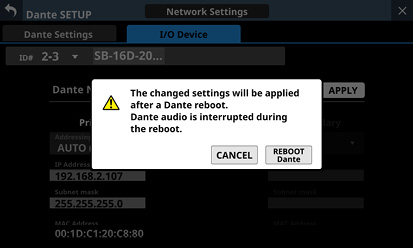

Tap the Dante button to open the Dante Network Settings on the Network Settings Screen. (See “Dante Network Settings”.)

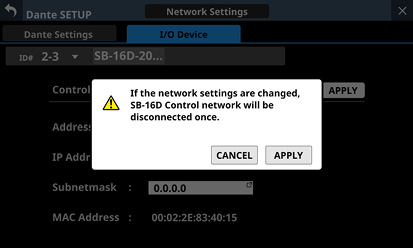

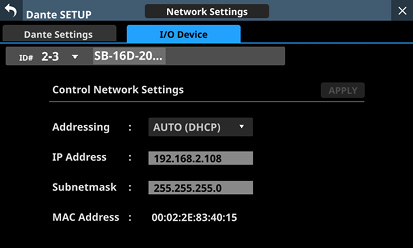

Tap the Controller button to open the Controller Network Settings on the Network Settings Screen. (See “Control Network Settings”.)

If the device is virtually mounted, the Dante and Controller buttons will be gray and the settings screen cannot be opened.

Factory Reset button

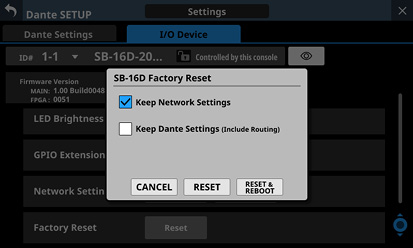

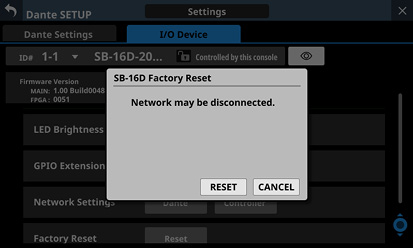

Tap the Reset button to open a window where settings can be restored to their factory default values. (See “Factory Reset”.)

If the device is virtually mounted, this button will be gray and cannot be operated.

DC Power settings

Tap the Settings button in the DC Power area to open the following DC Power settings window.

Stop Voltage: This sets the stop voltage.

Use LCD knob 4, which is lit light blue, to adjust it.

Range: 11.0 – 27.0 V (in steps of 0.1 V, default 11.0 V)

If the SB-16D is operating with only DC power supply, it will shut down if the DC power supply goes below this voltage.

If DC power is supplied from a battery, set the stop voltage according to the battery specifications. In all other cases, set this to a minimum of 11.0 V (the default value).

Alert Voltage: This sets the alert voltage.

Use LCD knob 5, which is lit green, to adjust it.

Range: OFF, 11.0 – 28.0 V (in steps of 0.1 V, default 11.5 V)

When the Stop Voltage setting is changed, this is automatically set +0.5V higher than the Stop Voltage.

Change this setting to adjust the timing if the alert is shown too quickly or too late.

DC Voltage: This shows the current DC input voltage.

Alert Voltage ON/OFF button: Tap this button to turn the alert message on/off. (Default: ON)

When ON, if the DC power supply voltage becomes less than the alert voltage, the following alerts will be shown.

SB-16D DC POWER indicator blinks

indicator appears in DC Power area ()

Alert Reset button: Tap this button to reset the Alert Voltage setting to the default value (Stop Voltage +0.5 V).

CANCEL button: Tap this button to discard the changes in the DC Power settings window and close it.

SET button: Tap this button to confirm the values in the DC Power settings window and close it.

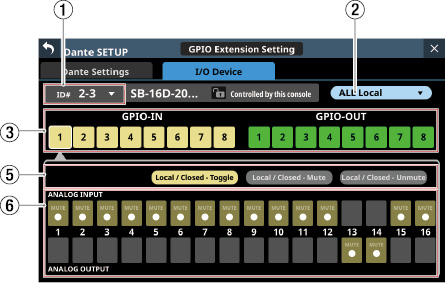

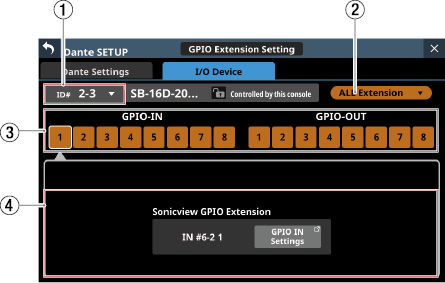

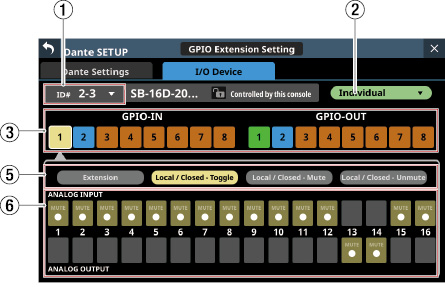

GPIO Extension Settings Screen

The SB-16D GPIO port has the following functions.

GPIO-IN

Muting control of SB-16D input and output signals (Local mode function)

Mounted Sonicview extension GPIO-IN port operation (Extension mode function)

GPIO-OUT

Tally output for muting states of SB-16D input and output signals (Local mode function)

Mounted Sonicview extension GPIO-OUT port operation (Extension mode function)

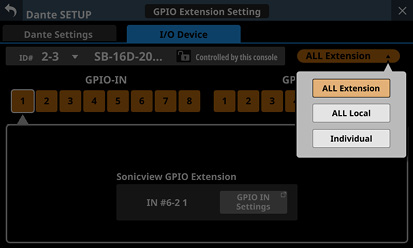

The following settings to use these functions can be made on this screen.

ALL Extension mode

ALL Local mode

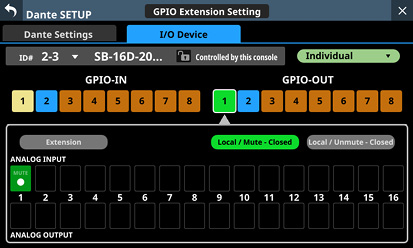

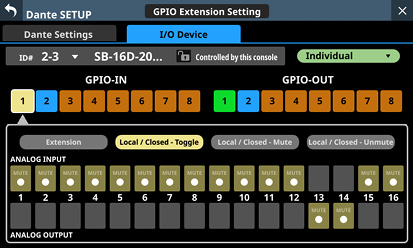

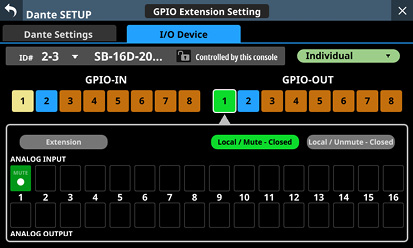

Individual mode

This shows the current ID.

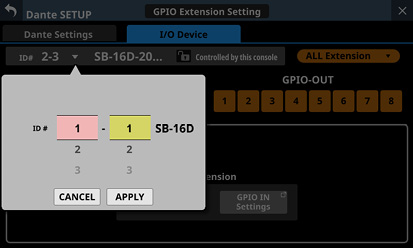

Tap this area to open a window where the ID can be changed.

Swipe the options up and down to change the ID.

Selections can also be changed by turning the LCD Knobs 2 and 3, which are lit pink and yellow.

Tap the APPLY button to change the selected ID.

Tap the CANCEL button to close the window without changing the ID.

NOTE

If an ID that is already being used on the Dante network is selected, that ID will be red and the APPLY button will appear gray, showing the setting cannot be made.

Changing the ID when mounted could cause it to become unmounted.

GPIO port overall operation mode

This shows the overall operation mode for the GPIO port.

Tap this area to open a window where the overall operation mode for the GPIO ports of the SB-16D can be changed.

Option	Explanation
ALL Extension	The ALL Extension mode setting uses all GPIO ports as GPIO extension pins of the Sonicview that the SB-16D is mounted in.
ALL Local	The ALL Local mode setting uses all GPIO ports as pins that do the following. GPIO-IN: SB-16D input/output signal muting control GPIO-OUT: Tally output for muting states of SB-16D input/output signals
Individual	In this mode, the operation of each GPIO port is set individually.

Tap an option to switch the overall operation mode for the GPIO port of the SB-16D.

Pin number buttons

Tap this area to select a pin and show its settings in the Sonicview GPIO Extension display area (), the operation/action mode switching buttons for the individual pin () and the input/output signal selection status display area ().

When the overall operation mode for GPIO ports is “ALL Local” or “Individual”, tapping a pin number button will outline that button with a white frame.

Sonicview GPIO Extension display area

The GPIO IN Settings (when GPIO-IN pin selected) or GPIO OUT Settings (when GPIO-OUT pin selected) button is shown when the operation mode for the selected GPIO port is as follows.

When the GPIO port overall operation mode () is “ALL Extension”

When the GPIO port overall operation mode () is “Individual” and the operation/action mode button () is “Extension”

The selected GPIO port is used as a GPIO extension pin of the Sonicview that has the subject SB-16D mounted.

Set this with the GPIO-IN and GPIO-OUT pages on the USER DEFINED CONTROLS Screen of the Sonicview that has the subject SB-16D mounted.

Operation/action mode switching buttons for individual ports

These show the operation mode for the selected GPIO port in the following cases.

When GPIO port overall operation mode () is “ALL Local”

When the GPIO port overall operation mode () is “Individual”

These show the operation and action modes of the selected GPIO Port.

Tap these buttons to switch the operation and action modes of the individual port.

For GPIO IN ports

Option	Explanation
Extension	The Extension mode setting uses the selected ports as GPIO extension pins of the Sonicview that the SB-16D is mounted in. This can only be selected when the GPIO port overall operation mode () is “Individual”.
Local / Closed-Toggle	In this mode, when the selected IN port becomes shorted (Closed), the SB-16D input/output signal selected in the input/output signal selection status area () is muted/unmuted (toggled).
Local / Closed-Mute	In this mode, when the selected IN port becomes shorted (Closed), the SB-16D input/output signal selected in the input/output signal selection status area () is muted.
Local / Closed-Unmute	In this mode, when the selected IN port becomes shorted (Closed), the SB-16D input/output signal selected in the input/output signal selection status area () is unmuted.

For GPIO OUT ports

Option	Explanation
Extension	The Extension mode setting uses the selected ports as GPIO extension pins of the Sonicview that the SB-16D is mounted in. This can only be selected when the GPIO port overall operation mode () is “Individual”.
Local / Mute-Closed	In this mode, when the SB-16D input/output signal selected in the input/output signal selection status area () is muted, the selected OUT port becomes shorted (Closed).
Local / Unmute-Closed	In this mode, when the SB-16D input/output signal selected in the input/output signal selection status area () is unmuted, the selected OUT port becomes shorted (Closed).

Input/output signal selection status

These show the operation mode for the selected GPIO port in the following cases.

When GPIO port overall operation mode () is “ALL Local”

When the GPIO port overall operation mode () is “Individual” and the individual port operation/action mode button () is “Local / xxxxx”

When a GPIO-IN pin is selected, the SB-16D input/output signal that is subject to muting control is selected according to that pin.

Up to 16 can be selected for muting control by GPIO-IN pin.

If the selectable number is exceeded, the check fields will be shown in gray and become unselectable.

When a GPIO-OUT pin is selected, this selects the SB-16D input/output signal for mute/unmute status tally output from the selected pin.

A maximum of 16 input/output signals of the SB-16D used for tally output can be selected. If the selectable number is exceeded, the check fields will be shown in gray and become unselectable.

When multiple input/output signals are selected, tally output will occur if any of the selected input/output signals are muted (if set to Local / Mute - Closed) or unmuted (if set to Local / Unmute - Closed).

Dante Network Settings

This shows the status of the Dante network settings for the SB-16D.

When in Redundant mode, settings will be shown for the Primary connector on the left and for the Secondary connector on the right.

When in Switched (daisy-chain) mode, only the left side will be active.

Item	Content
Switch	This shows the selected connection mode. Tap this area to open a window where Redundant or Switched mode can be selected. (default: Redundant)
Addressing	This shows the IP address setting mode. Tap this area to open a window where AUTO (DHCP) or STATIC can be selected. (default: AUTO (DHCP))
IP Address	If the Addressing item is set to “AUTO”, this will show the assigned IP address. If it is set to “STATIC”, this will show the IP address set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the IP ADDRESS Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
Subnet mask	If the Addressing item is set to “AUTO”, this will show the assigned subnet mask. If it is set to “STATIC”, this will show the subnet mask set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the SUBNET MASK Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
LINK Status	This shows the Dante network link status. This will be shown in red if it is not 1 G.
MAC Address	This shows the MAC address of the Primary/Secondary Dante port.

To confirm Dante network settings for the SB-16D, the SB-16D Dante module must be restarted.

If SB-16D Dante network settings have been changed, the APPLY button will appear highlighted.

Tap the APPLY button when it is highlighted to open a confirmation message.

Since tapping the CANCEL button will not restart the unit, the settings will be as is but will not be applied to operation.

Tap the REBOOT Dante button to confirm the changes and restart the SB-16D Dante module.

After restarting, the settings will be applied to operation.

ATTENTION

Be aware that SB-16D Dante input and output sound will be interrupted while the SB-16D Dante module is restarting.

Control Network Settings

This shows the status of the Dante network settings for SB-16D control.

Item	Content
Addressing	This shows the IP address setting mode. Tap this area to open a window where AUTO (DHCP) or STATIC can be selected. (default: AUTO (DHCP))
IP Address	If the Addressing item is set to “AUTO”, this will show the assigned IP address. If it is set to “STATIC”, this will show the IP address set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the IP ADDRESS Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
Subnet mask	If the Addressing item is set to “AUTO”, this will show the assigned subnet mask. If it is set to “STATIC”, this will show the subnet mask set by the user. When the Addressing item is set to “STATIC”, tapping this area will open the SUBNET MASK Screen. (See “IP Address/Subnet Mask/Default Gateway setting procedures”.)
MAC Address	This shows the MAC address for SB-16D control.

If Dante network settings for SB-16D control have been changed, the APPLY button will appear highlighted.

When settings are applied, the SB-16D Dante network connection will be interrupted once. For this reason, tap the APPLY button when it is highlighted to open a confirmation message.

Tap the CANCEL button to cancel the changes and restore the previous state.

Tap the APPLY button to confirm the changes.

Factory Reset

1.Tap the Reset button to open a window where settings can be restored to their factory default values.

Item

Explanation

Keep Network Settings

If the check mark () is added, the SB-16D Dante network settings will be retained.

If the check mark () is removed, the SB-16D Dante network settings will be restored to their factory defaults.

(This has a check () by default.)

Keep Dante Settings (Include Routing)

If the check mark () is added, the SB-16D Dante settings will be retained.

If the check mark () is removed, the SB-16D Dante settings will be restored to their factory defaults.

(This does not have a check () by default.)

2.Add check marks () for the settings that you want to retain.

Remove check marks () for the settings that you want to restore to factory defaults.

NOTE

If check marks () are added to both, only settings that are not related to the Dante network and Dante will be restored to their factory defaults.

3.Tapping the RESET or RESET & REBOOT button will open the following warning messages in a window.

Message if Keep Network Settings does not have a check mark ():

Network may be disconnected.

Message if Keep Dante Settings (Include Routing) does not have a check mark ():

Audio will be interrupted.

Dante routing will be cleared.

Message when the RESET & REBOOT button is tapped:

Audio will be interrupted.

Message if Keep Network Settings does not have a check mark ()

4.Tap the RESET button in the warning message to close the window and restore the following items to their factory default settings.

Settings without check marks ()

Settings other than those for Dante network and Dante

ATTENTION

If the RESET & REBOOT button is tapped, after settings are restored to their factory defaults, the I/O Device page of the Dante Setup screen will open. Moreover, until the reset SB-16D has completed restarting it will be disconnected from the Dante network.

Tap the CANCEL button to close the window without changing the settings.

Using GPIO extension functions

If the SB-16D GPIO pin operation mode is set to “Extension”, they can be used as Sonicview GPIO extension pins.

This setting can also be made for virtually mounted SB-16D units.

By storing the settings in the Sonicview, online setting is possible.

Setting procedure

1.Following the instructions in “GPIO Extension Settings Screen” for the “Overall operation mode for the GPIO port buttons” () or “ Operation mode switching buttons for individual ports” (), set the operation mode for the ports you want to use as a GPIO extension for this unit to “Extension”.

2.Use the following procedures to open GPIO-IN and GPIO-OUT screens.

Tap Menu Screen > Rear Panel Setup > GPIO Input Setup

Tap Menu Screen > Rear Panel Setup > GPIO Output Setup

3.Use LCD knob 8 to scroll the list of settings for groups of 8 ports that correspond to mounting positions.

In the SB-16D GPIO pin name area, SB-16D IDs and port numbers are shown in a “#ID [port number]” format.

If the device is virtually mounted, the GPIO port name background will appear yellow.

Ports with operation mode set to Extension in the list will be highlighted.

Ports with operation mode set to Local in the list will be shown in gray.

4.Tap the port you want to set in the list and assign functions using the same procedures as with the unit’s built-in GPIO.

Procedures for Dante connection with SB-16Ds

This explains procedures for connecting an SB-16D as a stage box to this unit, and controlling its preamps from modules with built-in Dante ports assigned in the same way as built-in analog inputs.

Dante connections with SB-16Ds

When this unit is operating at 48 kHz, up to 4 SB-16D units can be connected without Dante Controller.

When this unit is operating at 96 kHz, up to 2 SB-16D units can be connected without Dante Controller.

In all other cases, setting using Dante Controller will be necessary.

Procedures for Dante connection with this unit and one SB-16D

In this case, Dante connection without using Dante Controller is possible whether this unit’s built-in Dante “Sampling rate” is using 48kHz or 96kHz operation. Moreover, controlling a preamp of that SB-16D from a module with a built in Dante port assigned is possible.

1.If multiple SB-16D units are connected to the Dante network, set IDs that are not duplicated on them in advance in order to enable their identification. For details about ID setting procedures, see the SB-16D operation manual.

2.Connect the following Dante ports to the same Dante network.

Dante ports built into this unit

SB-16D Dante ports

NOTE

When using only one of these units and one SB-16D, their Dante ports can be connected directly as shown below.

3.Set the Dante routing control method.

Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP screen and tap the I/O Device tab.

4.Set the AUTO ROUTING button to “ON”.

5.Follow the procedures in “Mounting of devices connected to the Dante network”, and mount the selected SB-16D as the top item in the Mounted Device list.

Through these procedures, the Dante I/O ports of this unit and the one SB-16D unit are routed by Dante as follows.

Dante I/O ports of this unit	SB-16D Dante I/O ports
Dante I/O 1–16 of this unit	SB-16D Dante I/O 1–16

As a result, the preamps (Analog GAIN, PAD ON/OFF, Phantom ON/OFF) of the corresponding SB-16D INPUT can be operated on the Home Screen and MODULE screen of the module that has Dante IN 1–16 inputs assigned.

Module that can operate SB-16D preamps	Object of preamp operation on the Home Screen and MODULE screen of the module (at left)
Module with Dante IN 1–16 assigned	INPUT 1–16 of the mounted SB-16D 1st in the list

Procedures for connecting 4 SB-16D units by Dante when the sampling rate of this unit’s built-in Dante module is “48kHz”.

In this case, Dante connection without using Dante Controller is possible. Moreover, controlling a preamp of that SB-16D from a module with a built in Dante port assigned is possible.

2.Connect the following Dante ports to the same Dante network.

Dante ports built into this unit

Dante ports of 4 SB-16D units

When connecting multiple SB-16D units, connect them through a switching hub as shown below. In this case, use different switching hubs for Primary and Secondary.

3.Set the Dante routing control method.

Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP screen and tap the I/O Device tab.

4.Set the AUTO ROUTING button to “ON”.

5.Following the procedures in “Mounting of devices connected to the Dante network”, mount 4 SB-16D units one at a time from the top in the Mounted Device list.

Through these procedures, the Dante I/O ports of this unit and the 4 SB-16D units are routed by Dante as follows.

Dante I/O ports of this unit	SB-16D Dante I/O ports
Dante I/O 1–16 of this unit	Dante I/O 1–16 of the SB-16D mounted 1st in the list
Dante I/O 17–32 of this unit	Dante I/O 1–16 of the SB-16D mounted 2nd in the list
Dante I/O 33–48 of this unit	Dante I/O 1–16 of the SB-16D mounted 3rd in the list
Dante I/O 49–64 of this unit	Dante I/O 1–16 of the SB-16D mounted 4th in the list

Module that can operate SB-16D preamps	Object of preamp operation on the Home Screen and MODULE screen of the module (at left)
Module with Dante IN 1–16 assigned	INPUT 1–16 of the mounted SB-16D 1st in the list
Module with Dante IN 17–32 assigned	INPUT 1–16 of the mounted SB-16D 2nd in the list
Module with Dante IN 33–48 assigned	INPUT 1–16 of the mounted SB-16D 3rd in the list
Module with Dante IN 49–64 assigned	INPUT 1–16 of the mounted SB-16D 4th in the list

Procedures for connecting 4 SB-16D units by Dante when the sampling rate of this unit’s built-in Dante module is “96kHz”.

In this case, using Dante Controller is necessary.

When the “Sampling rate” Sync Clock is set to “96kHz” for the unit’s built-in Dante module, the unit’s built-in Dante I/O count becomes 32-in/32-out. For this reason, an IF-DA64 (Dante card) must be installed in a card slot in order to connect this unit by Dante with SB-16D input and output ports numbered 33 and higher. This explanation assumes that an IF-DA64 has been installed in SLOT 1. (See “Installing expansion cards (sold separately)”.)

2.Follow the instructions in “Precautions when using an IF-DA64” to enable synchronization of the two Dante modules (built-in Dante and IF-DA64 Dante card) with this unit’s master clock.

3.Connect the following Dante ports to the same Dante network.

Dante ports built into this unit

Dante ports of IF-DA64 installed in this unit

Dante ports of 4 SB-16D units

When connecting multiple SB-16D units, connect them through a switching hub as shown below. In this case, use different switching hubs for Primary and Secondary.

4.Set the Dante routing control method.

Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP screen and tap the I/O Device tab.

5.Set the AUTO ROUTING button to “ON”.

6.Following the procedures in “Mounting of devices connected to the Dante network”, mount 4 SB-16D units one at a time from the top in the Mounted Device list.

7.Use Dante Controller on the computer connected to the Dante network in step 3 to make the following connection routing settings.

Connect Dante I/O 1–16 of the IF-DA64 installed in this unit to Dante I/O 1–16 of the SB-16D mounted 3rd from the top

Connect Dante I/O 17–32 of the IF-DA64 installed in this unit to Dante I/O 1–16 of the SB-16D mounted 4th from the top

As a result, the Dante I/O ports of this unit’s built-in Dante, the IF-DA64 (Dante card) installed in this unit’s SLOT 1 and the 4 SB-16D units are routed by Dante as follows.

Dante I/O ports of this unit	SB-16D Dante I/O ports
Dante I/O 1–16 of this unit	Dante I/O 1–16 of the SB-16D mounted 1st in the list
Dante I/O 17–32 of this unit	Dante I/O 1–16 of the SB-16D mounted 2nd in the list
SLOT 1 I/O 1–16 of this unit	Dante I/O 1–16 of the SB-16D mounted 3rd in the list
SLOT 1 I/O 17–32 of this unit	Dante I/O 1–16 of the SB-16D mounted 4th in the list

8.Acquire control privileges to enable operation of SB-16D units mounted 3rd and 4th from the top and routed through an IF-DA64 from the Home and MODULE screens of this unit.

Tap the “Pre Amp Control OFF” buttons for the 3rd and 4th devices to open the following confirmation message.

If control privileges for those SB-16D units have not been acquired by other devices:

The following message will be shown.

Tapping the ENABLE button will set the control privileges and “Pre Amp Control” will be shown in the control privilege display area.

If control privileges for those SB-16D units have been acquired by other devices:

The following message will be shown.

Tapping the REQUEST button and following the procedures from step 5 in “Mounting of devices connected to the Dante network” to acquire the control privileges will cause “Pre Amp Control” to be shown in the control privilege display area.

9.Conduct step 8 for the SB-16D units mounted 3rd and 4th in the list.

This will enable operation from this unit of SB-16D units mounted 3rd and 4th from the top and routed through an IF-DA64.

After completing these procedures, the preamps (Analog GAIN, PAD ON/OFF, Phantom ON/OFF) of the corresponding SB-16D units can be operated on the Home Screens and MODULE screens of the modules that have Dante 1–32 and SLOT 1–1 1–32 input ports assigned.

Module that can operate SB-16D preamps	Object of preamp operation on the Home Screen and MODULE screen of the module (at left)
Module with Dante IN 1–16 assigned	INPUT 1–16 of the mounted SB-16D 1st in the list
Module with Dante IN 17–32 assigned	INPUT 1–16 of the mounted SB-16D 2nd in the list
Module with SLOT 1 IN 1–16 assigned	INPUT 1–16 of the mounted SB-16D 3rd in the list
Module with SLOT 1 IN 17–32 assigned	INPUT 1–16 of the mounted SB-16D 4th in the list

ATTENTION

In these procedures, maintain the routing settings of the SB-16D units mounted 3rd and 4th from the top and the IF-DA64 (Dante card) as follows.

Connect Dante I/O 1–16 of the IF-DA64 installed in this unit to Dante I/O 1–16 of the SB-16D mounted 3rd from the top

Connect Dante I/O 17–32 of the IF-DA64 installed in this unit to Dante I/O 1–16 of the SB-16D mounted 4th from the top

If routings are changed from the above by Dante Controller, the preamp of an unintended SB-16D channel will be affected if a preamp is operated on this unit from the Home Screen or MODULE screen of a module with a corresponding SLOT input assigned.

Procedures to connect one SB-16D and a DA-6400* with an IF-DA64 (Dante card) installed to this unit by Dante

*In this example, connection is with Dante I/O 1–16 of a DA-6400 with an IF-DA64.

In this case, using Dante Controller is necessary.

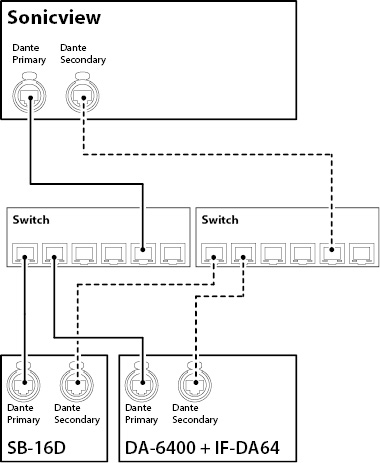

2.Connect the following Dante ports to the same Dante network.

Dante ports built into this unit

SB-16D Dante ports

Dante ports of the IF-DA64 installed in the DA-6400

When connecting 3 or more Dante devices, connect them through a switching hub as shown below. In this case, use different switching hubs for Primary and Secondary.

3.Set the Dante routing control method.

Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP screen and tap the I/O Device tab.

4.Set the AUTO ROUTING button to “ON”.

5.Follow the procedures in “Mounting of devices connected to the Dante network”, and mount the SB-16D as the top item in the Mounted Device list.

6.Change the Dante routing control method.

7.Set the AUTO ROUTING button to “OFF”.

8.Use Dante Controller on the computer connected to the Dante network in step 2 to make the following and connection routing settings.

Dante I/O 17–32 of this unit

Dante I/O 1–16 of the IF-DA64 installed in the DA-6400

Example of Dante Controller display when routing settings have been made connecting this unit’s Dante I/O 17–32 and Dante I/O 1–16 of the IF-DA64 installed in the DA-6400

Through these procedures, the Dante I/O ports of this unit, the SB-16D and the IF-DA64 (Dante card) installed in the DA-6400 are routed by Dante as follows.

Dante I/O ports of this unit	Dante I/O ports of external devices
Dante I/O 1–16 of this unit	Dante I/O 1–16 of the SB-16D mounted 1st in the list
Dante I/O 17–32 of this unit	Dante I/O 1–16 of the IF-DA64 installed in the DA-6400

Example of Dante Controller display when the above routing settings have been made

After completing these procedures, operation becomes possible for the preamps (Analog GAIN, PAD ON/OFF, Phantom ON/OFF) of the corresponding SB-16D INPUT on the Home Screen and MODULE screen of the module that has Dante IN 1–16 input ports assigned.

Module that can operate SB-16D preamps	Object of preamp operation on the Home Screen and MODULE screen of the module (at left)
Module with Dante IN 1–16 assigned	INPUT 1–16 of the mounted SB-16D 1st in the list

Notes about Dante

Dante is a transmission protocol developed by Audinate.

Using networks based on gigabit Ethernet standards, it enables multichannel (512 IN/512 OUT) transmission and high precision, for example.

Check the Audinate website for details about Dante.

https://www.audinate.com/

Connecting to a Dante network

In order to set up and use this unit, you must also set up the Ethernet network that it is connected to, a computer that runs Dante Controller and other devices that support Dante.

Dante controller is not necessary for use, however, when used with an SB-16D.

LAN cables used for connections

Use STP cables that are category 5e or higher.

Both crossover and straight cables can be used.

ATTENTION

This unit is not compatible with 100Mbps Ethernet switching hubs. Always use switching hubs that support Gigabit Ethernet.

NOTE

When the Dante Network Addressing setting is AUTO (DHCP), set the computer to set the IP address automatically.

When the Dante Network Addressing setting is STATIC, set the computer to match the Dante and network address.

Switched (daisy chain) connection

Dante devices can be daisy-chained when there are few connected devices and when not using a switching hub. Connect them as shown below.

Switched (daisy chain) connection example

NOTE

When using a switched (daisy chain) connection, connect to either the PRIMARY or SECONDARY connector.

If the number of connected devices increases, raising the latency setting will be necessary.

Redundant connection

For recording situations where retakes are not possible, including live performances, a connection set up like the following uses two completely independent primary and secondary networks.

Redundant connection example

NOTE

Settings for switched (daisy chain) and redundant connections do not change automatically. Tap Menu Screen > Rear Panel Setup > Dante Setup to open the Dante SETUP Screen, or change the settings on the Dante Controller Network Config screen.

ATTENTION

The primary and secondary networks cannot be connected on the same LAN (VLAN).

Using Dante Controller

Dante Controller overview

This unit uses the Dante Controller application, which is available at the Audinate website, to connect with other devices that support Dante.

Download the latest version of the Dante Controller application and an operation manual from the Audinate website.

Audinate download page

https://www.audinate.com/products/software/dante-controller

Make at least the following settings using a computer that has Dante Controller installed.

Set the audio routing.

Adjust the sampling frequency and bit depth of each Dante device.

NOTE

Settings made using Dante Controller are stored in the built-in memory of each Dante device.

Unless settings are modified, connections will not change even if Dante Controller is quit or the computer is disconnected from the Dante network.

Audio routing settings

When Dante Controller is launched, the Network View screen shown below will open.

On this screen, you can set and monitor conditions related to the Dante network.

Receiving device name

This is the name of a receiving device on the Dante network.

Receiving device channels

These are the names of the channels of the receiving device on the Dante network.

Transmitting device name

This is the name of a transmitting device on the Dante network.

Transmitting device channels

These are the names of the channels of the transmitting device on the Dante network.

Audio routing

Route the audio channels of the transmitting and receiving devices that you want to connect here.

Click the intersection of the channels you want to connect on the matrix to connect them.

NOTE

While pressing the computer keyboard Ctrl key, click the “-” at the intersection of device names to connect all connectable channels at once.

Changing sampling frequencies and bit depths with Dante Controller

Double-click a device name on the Network View screen to open the Device View screen.

On this screen, you can set and monitor conditions related to devices on the Dante network.

Click the Device Config tab to open the page where you can change the sampling frequency, bit rate and other settings of the device selected in shown in the illustration below.

Device name

This is the name of the device that can have its settings changed in the current Device View.

Change device name

Edit the device name.

Sampling frequency

Set the sampling frequency.

NOTE

This can also be set on the unit.

Bit depth

Set the bit depth.

Latency setting

Set the latency.

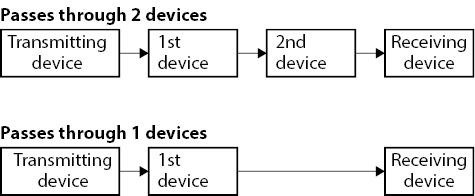

Use the following guidelines to change the latency setting.

Selectable latency value	Connected network setup guideline
250usec	The transmission route from the transmitting device to the receiving device passes through 1 gigabit switching hub.
500usec	The transmission route from the transmitting device to the receiving device passes through 5 gigabit switching hub.
1msec	The transmission route from the transmitting device to the receiving device passes through 10 gigabit switching hub.
2msec	The transmission speed of the transmitting device is 100 Mbps.
5msec	Use this maximum selectable latency value when creating a large-scale network.

ATTENTION

This unit is not compatible with 100Mbps Ethernet switching hubs. Always use switching hubs that are compatible with Gigabit Ethernet.

Changing the name of a device will clear audio routing settings. For this reason, we recommend changing device names to names that are easy to identify before setting audio routings.

Depending on network connection conditions, setting the latency to a value higher than the guideline might be necessary.

NOTE

This can also be set on the unit.

When using a switched (daisy chain) connection, which does not use a switching hub, set the latency according to the number of Dante devices that signals pass-through as shown below.

Switched (daisy chain) connection example

NOTE

The Dante module in this unit and IF-DA64 Dante cards (sold separately) have built-in switching hubs.

For this reason, when counting Dante devices, count this unit and IF-DA64 cards as two devices each.

SLOT SETUP screen

Make settings and view information for expansion cards installed in SLOT 1 and SLOT 2 on this screen.

Tap Menu Screen > Rear Panel Setup > Slot Setup to open this screen.

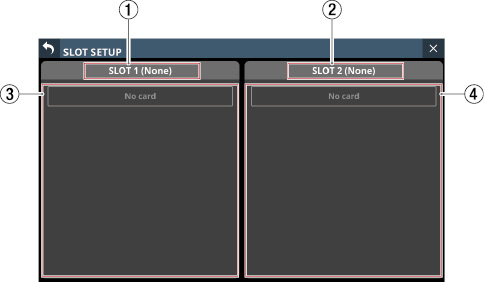

SLOT 1

This shows the name of the expansion card installed in SLOT 1 on the rear panel.

SLOT 2

This shows the name of the expansion card installed in SLOT 2 on the rear panel.

SLOT 1 parameters

This shows the parameters of the expansion card installed in SLOT 1 on the rear panel.

SLOT 2 parameters

This shows the parameters of the expansion card installed in SLOT 2 on the rear panel.

NOTE

“No Card” will appear if no card has been installed in SLOT 1 or SLOT 2.

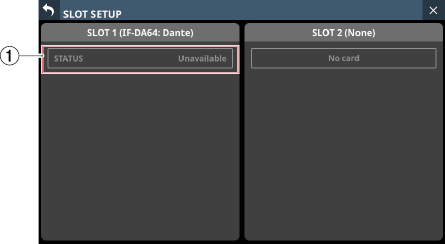

When an IF-DA64 (Dante) card is installed

STATUS display area

This shows the operation status of the installed IF-DA64.

STATUS	Meaning
Available	The installed IF-DA64 is operating normally.
Unavailable	The installed IF-DA64 is not operating normally.

Precautions when using an IF-DA64

The Dante module built into this unit, an IF-DA64 Dante card installed in a SLOT and the unit’s master clock must be synchronized. Do this as follows.

When the unit’s master clock is not Dante (INT, WORD, etc.)

Use Dante Controller to set the Sync to External setting to “ON” for both the built-in Dante module and the IF-DA64.

Use Dante Controller to set the Preferred Leader setting to “ON” for either one of them. (We recommend using the built-in Dante module.)

When the unit’s master clock is Dante

Use Dante Controller to set the Sync to External setting to “ON” for the IF-DA64.

Use Dante Controller to set the Preferred Leader setting to “ON” for a Dante module other than an IF-DA64. (We recommend using the built-in Dante module.)

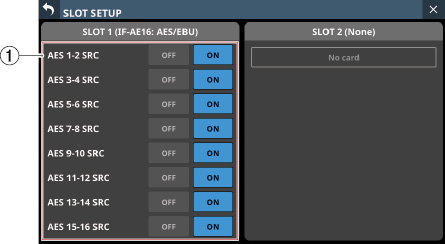

When an IF-AE16 (AES/EBU) card is installed

SRC ON/OFF buttons

These turn the SRC (sample rate converter) ON (default) and OFF for each signal line.

The selected buttons will be highlighted.

NOTE

SRC cannot be set to ON for the signal line selected as the master clock. For this reason, the signal line selected as the master clock will be shown as follows.

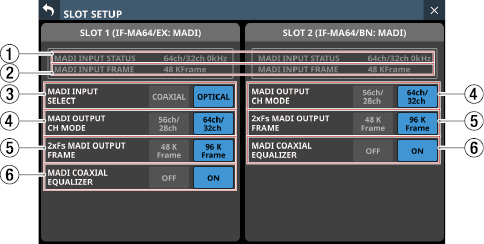

When an IF-MA64/EX or IF-MA64/BN (MADI) card is installed

MADI INPUT STATUS

This shows the channel mode/frame frequency of the MADI input signal.

“No signal” will appear if there is no input signal.

MADI INPUT FRAME

This shows the MADI input signal frame type (48K Frame/96K Frame).

“No signal” will appear if there is no input signal.

MADI INPUT SELECT buttons (IF-MA64/EX only)

Set the input connector used.

Options: COAXIAL, OPTICAL (default)

The selected button will be highlighted.

MADI OUTPUT CH MODE buttons

Set the output channel mode.

Options: 56ch/28ch, 64ch/32ch (default)

The selected button will be highlighted.

NOTE

Left of /: 1×Fs channel mode

Right of /: 2×Fs channel mode

2×Fs MADI OUTPUT FRAME buttons

These set the MADI output signal frame type when the unit's sampling frequency is 96 kHz.

Options: 48K Feame, 96K Frame (default)

The selected button will be highlighted.

ATTENTION

A MADI signal with a 96kHz sampling frequency and 48K Frame type cannot be distinguished from a MADI signal with a 48kHz sampling frequency.

For this reason, a 48K Frame MADI input signal that does not match the sampling frequency of the receiving device cannot be received as proper audio data.

When using a 48K Frame MADI signal, always match the sampling frequencies of the signal sending and receiving devices.

NOTE

The signal from the IF-MA64/EX MADI COAXIAL IN connector is output through its MADI COAXIAL THRU connector whether the unit is on or off.

When the unit is turned on/off, however, the signal output from the MADI COAXIAL THRU connector will be momentarily disrupted.

For this reason, time turning the unit on/off carefully when the signal output from the MADI COAXIAL THRU connector is being used by a connected device.

MADI COAXIAL EQUALIZER buttons

Set the equalizer for MADI COAXIAL input signals.

When an IF-MA64/EX or IF-MA64/BN is connected and a low-voltage MADI COAXIAL signal source or long BNC cable is being used, proper reception is not possible sometimes.

In this case, try setting MADI COAXIAL EQUALIZER to OFF.

Options: OFF, ON (default)

The selected button will be highlighted.

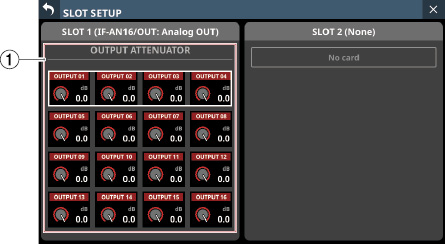

When an IF-AN16/OUT (analog output) card is installed

OUTPUT ATTENUATOR knobs

These adjust the output levels.

Range: −14.0 dB – 0.0 dB (default)

When the selection frame is shown, use the corresponding LCD knobs to adjust the values.

NOTE

The IF-AN16/OUT will always operate at 96 kHz even when synchronized to a master clock that is 48 kHz.

When an IF-MTR32 (multitrack recording) card is installed

SLOT SETUP screen when 2 IF-MTR32 cards installed

Recorder/Player: MTR RIGHTWARDS ARROW

Tap this area to open the MULTI TRACK RECORDER Screen. (See “MULTI TRACK RECORDER Screen”.)

ATTENTION

Only one IF-MTR32 card can be used at a time.

If two IF-MTR32 cards are installed, only the one in SLOT 1 can be used. In this case, “Unavailable” will appear in the SLOT 2 area on the SLOT SETUP Screen.

When an IF-ST2110 (ST 2110) card is installed

SLOT SETUP screen when 2 IF-ST2110 cards installed

ST 2110 CONFIG

Tap this area to open the ST2110 SETUP Screen. (See “13 - IF-ST2110 expansion cards”.)

ATTENTION

Only one IF-ST2110 card can be used at a time.

If two IF-ST2110 cards are installed, only the one in SLOT 1 can be used. In this case, “Unavailable” will appear in the SLOT 2 area on the SLOT SETUP Screen.

LABEL SETUP screen

Use this screen to set the display modes and display labels for port labels (input and output connector names) and module labels that are shown in various places.

Tap Menu Screen > Mixer Setup > Label Setup to open this screen. This screen can also be opened by tapping the icon in the LABEL setting area of the MODULE (INPUT) Screen or MODULE (OUTPUT) Screen.

NOTE

The settings on this screen are subject to snapshot storing and recall. Moreover, the corresponding PARAMETER SAFE page setting group is “LABEL / COLOR / ICON”. (See “PARAMETER SAFE page”.)

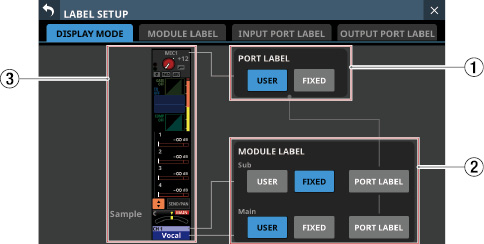

DISPLAY MODE page

Use this screen to set the display modes for the port labels (input and output connector names) and module labels that are shown in various places.

PORT LABEL display mode setting buttons

Tap these buttons to set the display mode for the port labels (input and output connector names) as shown below.

The selected button will be highlighted.

Button

Meaning

USER (default)

The USER PORT LABEL (port name set by user) is shown.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

FIXED

The predetermined FIXED PORT LABEL will be shown for each port (for example, “ANALOG 1” or “Dante 1”).

See “Where the PORT LABEL display mode setting is applied” for details about where this setting is applied.

MODULE LABEL display mode setting buttons

Tap these buttons to set the MODULE LABEL display mode as shown below.

The selected button will be highlighted.

Button	Meaning
USER (default)	The USER MODULE LABEL (module name set by user) is shown. If the USER MODULE LABEL is undefined, the FIXED MODULE LABEL will be shown.
FIXED	The FIXED MODULE LABEL will be shown (predetermined names for each module, for example, “CH 1” and “MIX 1”).
PORT LABEL	The port name assigned to the corresponding module will be shown using the mode selected with the PORT LABEL display mode setting buttons ().

The default Sub MODULE LABEL display mode is FIXED.

The default Main MODULE LABEL display mode is USER.

For details about where the settings are applied, see “Where the Sub MODULE LABEL display mode setting is applied” and “Where the Main MODULE LABEL display mode setting is applied”.

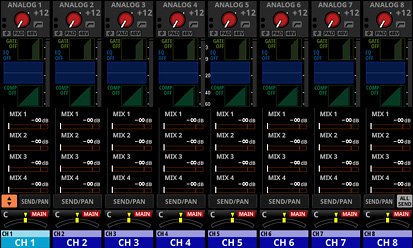

Home screen appearance example

This sample image is an example of the appearance on the Home Screen in accordance with the PORT LABEL display mode setting button () and MODULE LABEL display mode setting button ().

Where the PORT LABEL display mode setting is applied

On the Home Screen (names of input and output ports at the top)

Where the displayed content changes according to the display mode setting of the MODULE LABEL (only when the MODULE LABEL display mode is “PORT LABEL”)

NOTE

When stereo-linked but the input PORT LABEL area only has space for one channel, the input PORT LABEL for the L channel will be shown.

Multiple output ports can be selected, but if there is no area to show multiple output port labels, the PORT LABEL for the output port selected for SELECT PORT LABEL on the MODULE (OUTPUT) Screen will be shown (“ SELECT PORT LABEL button”). If nothing has been selected for the SELECT PORT LABEL mode, the PORT LABEL for the output port shown at the top left of the MODULE (OUTPUT) Screen will be shown.

Where the Sub MODULE LABEL display mode setting is applied

Channel screens (1st line from top)

Home screen (MODULE LABEL area top row)

DCA/Mute Group SETUP Screen (top row of each module button)

KEY IN SOURCE SELECT Screen (top row of each module button)

TALKBACK page (top row of bus name buttons)

TALKBACK page (top row of bus name buttons in SELECTED ASSIGN window)

TALKBACK page (top row of bus name buttons in TALKBACK KEY ASSIGN window)

All pages of MIXER CONFIG Screen (top row of module name buttons)

Custom Layer SETUP page (top row of module name buttons)

SENDS ON FADER Screen (top row of bus selection buttons)

Where the Main MODULE LABEL display mode setting is applied

Channel screens (2nd line from top)

Channel screens (“SEND to bus name” area when in Sends On Fader mode)

Channel screens (bus name area when in GEQ FADER Ctrl mode)

Home screen (MODULE LABEL area bottom row)

Home Screen (SEND area bus name)

Home Screen (bus selection buttons in the selection window shown when the button is tapped)

MODULE Screen (USER MODULE LABEL display)

MODULE (COMP) Screen (KEY IN SOURCE button)

MODULE (DUCKER) Screen (KEY IN SOURCE button)

LIBRARY Screens for Module/GATE/EQ/COMP/GEQ (USER MODULE LABEL display)

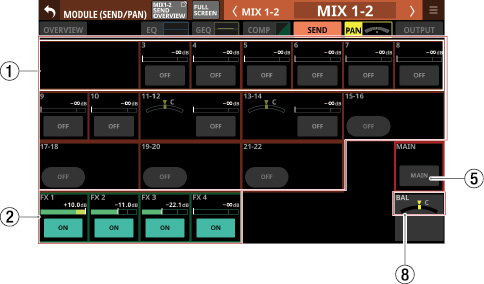

MODULE (SEND/PAN) Screen (bus name area)

DCA/Mute Group SETUP Screen (bottom row of each module button)

KEY IN SOURCE SELECT Screen (bottom row of each module button)

All pages of METER Screen

All pages of SEND OVERVIEW Screen (send source module names)

TALKBACK page (bottom row of bus name buttons)

TALKBACK page (bottom row of bus name buttons in SELECTED ASSIGN window)

TALKBACK page (bottom row of bus name buttons in TALKBACK KEY ASSIGN window)

All pages of MIXER CONFIG Screen (bottom row of module name buttons)

Custom Layer SETUP page (bottom row of module name buttons)

SENDS ON FADER Screen (bottom row of bus selection buttons)

ST2110 SETUP Screen HOME (Source/Destination) page (MODULE column on Source Information window)

NOTE

If the MODULE LABEL display mode is set to “PORT LABEL”, the modules below that are not assigned to input and output ports will be shown the same as when the MODULE LABEL display mode setting is “USER”.

FX RTN 1–4 modules

DCA 1–8 module

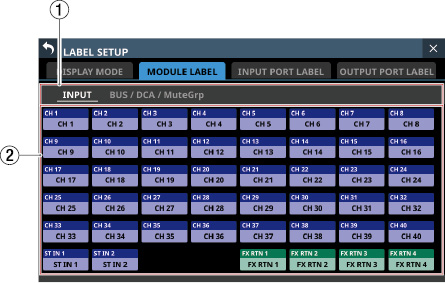

MODULE LABEL page

This screen shows all the display labels for modules used in other places in a list and enables editing them.

Module group page switches

This shows the names of module group pages.

Tap a page name to switch to the page with the corresponding module group.

The name of the selected page will be highlighted.

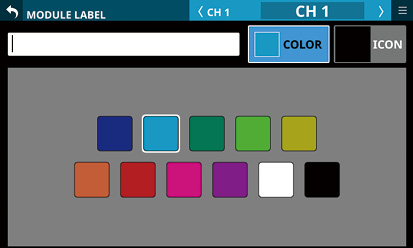

Module buttons

These buttons show the FIXED MODULE LABEL in the upper line and the USER MODULE LABEL in the lower line. If the USER MODULE LABEL is undefined, the FIXED MODULE LABEL will be shown.

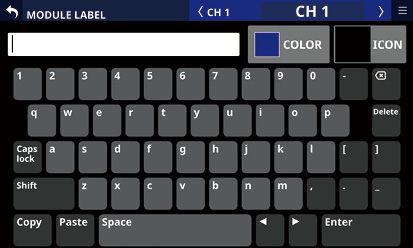

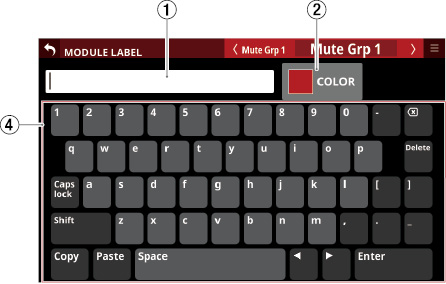

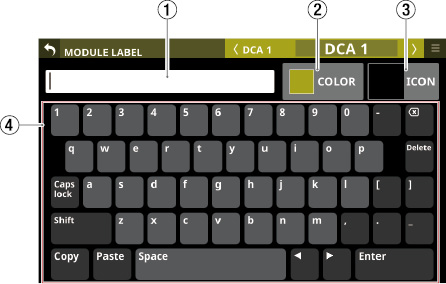

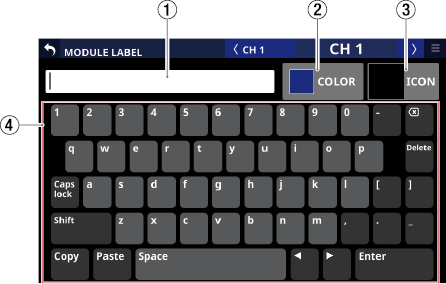

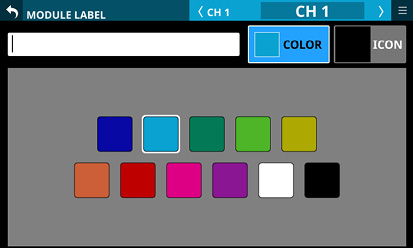

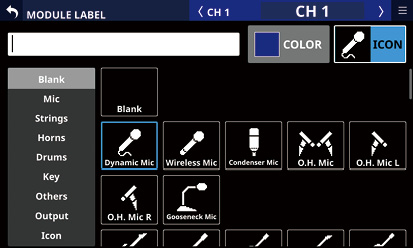

Tap one of these buttons to open the MODULE LABEL Screen where the USER MODULE LABEL can be edited for that module. (See “MODULE LABEL screen”.)

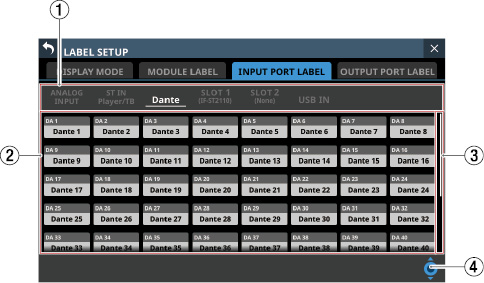

INPUT PORT LABEL page

This screen shows all the user port labels for input ports used in other places in a list and enables editing them.

Input port group page switches

These show the names of input port group pages.

Tap a page name to switch to the page with the corresponding input port group.

The name of the selected page will be highlighted.

Input port selection buttons

These buttons show the FIXED PORT LABEL in the upper line and the USER PORT LABEL in the lower line. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Tap one of these buttons to open the USER LABEL (INPUT PORT) Screen where the USER PORT LABEL can be edited for that input port. (See “USER LABEL (INPUT PORT / OUTPUT PORT) Screen”.)

Scrollbar

These appear when all selectable options cannot be shown on the display at the same time.

Drag the display to scroll the screen. The screen can also be scrolled by swiping up and down on the input port selection button area () area.

Scroll knob

This appears highlighted when all selectable options cannot be shown on the display at the same time.

This icon shows that LCD knob 8 (lit light blue) can be used to scroll.

OUTPUT PORT LABEL page

This screen shows all the user port labels for output ports used in other places in a list and enables editing them.

Output port group page switches

These show the names of output port group pages.

Tap a page name to switch to the page with the corresponding output port group.

The name of the selected page will be highlighted.

Output port selection buttons

These buttons show the FIXED PORT LABEL in the upper line and the USER PORT LABEL in the lower line. If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Tap one of these buttons to open the USER LABEL (OUTPUT PORT) Screen where the USER PORT LABEL can be edited for that output port. (See “USER LABEL (INPUT PORT / OUTPUT PORT) Screen”.)

Scrollbar

These appear when all selectable options cannot be shown on the display at the same time.

Drag the display to scroll the screen. The screen can also be scrolled by swiping up and down on the output port selection button area () area.

Scroll knob

This appears highlighted when all selectable options cannot be shown on the display at the same time.

This icon shows that LCD knob 8 (lit light blue) can be used to scroll.

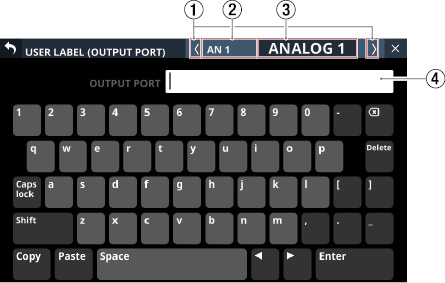

USER LABEL (INPUT PORT / OUTPUT PORT) Screen

Use this screen to add and edit user port labels for input and output ports.

NOTE

User port labels are not set by default.

User port labels can have up to 8 characters.

/ buttons

Tap these buttons to move left and right between the input/output ports shown for editing in their order on the input port group page of the INPUT PORT LABEL screen or the output port group page of the OUTPUT PORT LABEL screen.

FIXED PORT LABEL

This shows the FIXED PORT LABEL.

USER PORT LABEL

This shows the set USER PORT LABEL.

If the USER PORT LABEL is undefined, the FIXED PORT LABEL will be shown.

Keyboard input area

This shows the USER PORT LABEL being edited. Use the keyboard and buttons on this screen or a USB keyboard connected to the top panel USB port to edit the characters shown.

The combination of characters input can be changed depending on the status of the Caps lock and Shift keyboard buttons. See “Changing the keyboard keys” for details about changing the keyboard.

ATTENTION

The following symbols and punctuation marks cannot be input.

¥ / : * ? " < > |

Network Setup screen

Use this screen to make network settings primarily for the purpose of remote control of this unit using the dedicated TASCAM Sonicview Control application.

For details about the TASCAM Sonicview Control application, see its manual.

TASCAM Sonicview Control and its application manual can be downloaded from the TASCAM website.

Sonicview 16

https://tascam.jp/int/product/sonicview_16/support

Sonicview 24

https://tascam.jp/int/product/sonicview_24/support

Tap Menu Screen > Rear Panel Setup > Network Setup to open this screen.

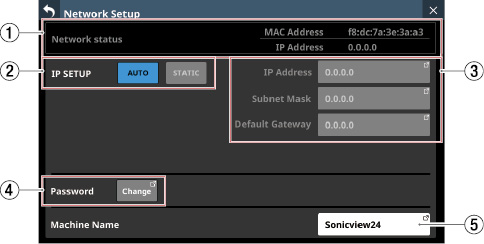

Network status

This shows the network status of the unit.

Item	Content
MAC Address	This shows the unit's MAC address.
IP Address	This shows the unit's IP address.

IP SETUP

Set the IP address setting mode.

Options: AUTO (default), STATIC

IP Address/Subnet Mask/Default Gateway

This shows the IP Address, Subnet Mask and Default Gateway of the unit when IP SETUP is “STATIC”.

default: 0.0.0.0

This will be gray when IP SETUP is “AUTO”.

Tap the address fields to open the IP Address, Subnet Mask and Default Gateway screens.

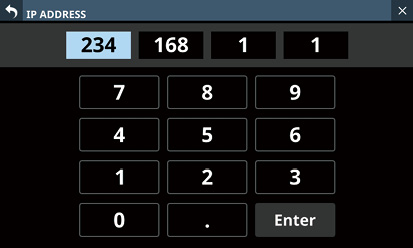

IP ADDRESS setting screen

See “IP Address/Subnet Mask/Default Gateway setting procedures” for details about how to use these setting screens.

Password

Set the password to use when connecting to this unit through a network.

Tap the Change button to open the Change password screen.

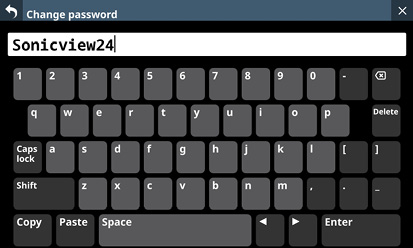

The password can have up to 16 characters.

Model	Default password
Sonicview 16	Sonicview16
Sonicview 24	Sonicview24

The combination of characters input can be changed depending on the status of the Caps lock and Shift keyboard buttons on the Change password screen. See “Changing the keyboard keys” for details about changing the keyboard.

ATTENTION

The following symbols and punctuation marks cannot be input.

¥ / : * ? " < > |

NOTE

A USB keyboard that is connected to the top panel USB port can also be used to input and edit characters.

Machine Name

The name of the unit on the network can be set so remote applications can distinguish it from other Sonicview units when multiple ones are on the network.

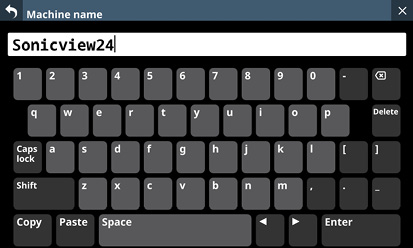

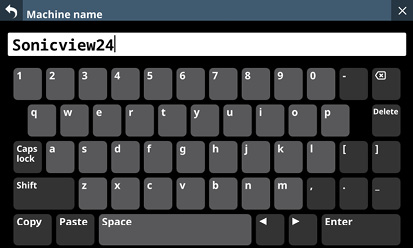

Tap this area to open the Machine name screen.

The machine name can have up to 16 characters.

Model	Default machine name
Sonicview 16	Sonicview16
Sonicview 24	Sonicview24

The combination of characters input can be changed depending on the status of the Caps lock and Shift keyboard buttons on the Machine name screen. See “Changing the keyboard keys” for details about changing the keyboard.

ATTENTION

The following symbols and punctuation marks cannot be input.

¥ / : * ? " < > |

NOTE

A USB keyboard that is connected to the top panel USB port can also be used to input and edit characters.

IP Address/Subnet Mask/Default Gateway setting procedures

The IP address is set to “192.168.1.1” as an example in this explanation.

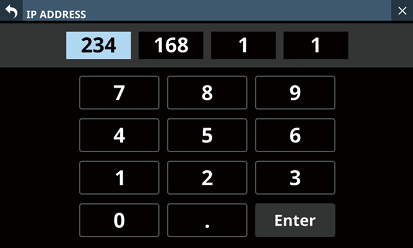

1.Tap the IP Address, Subnet Mask and Default Gateway fields to open their setting screens.

2.Tap the number buttons to input setting values.

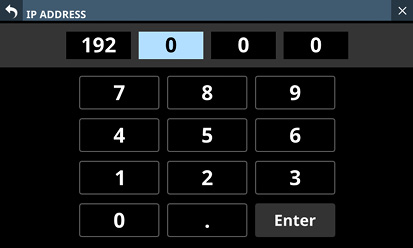

3.Tap “ . ” to move the cursor to the next field.

To change a setting, tap it to move the cursor to that field.

4.Repeat steps 2–3 as necessary to input setting values in each field.

5.Tap the Enter button to confirm the input and return to the Network Setup Screen.

Changed settings will be reflected in the IP Address, Subnet Mask and Default Gateway fields of the Network Setup Screen.

NOTE

Each input field has three digits. When inputting values with less than three digits, inputting “0” first is not necessary.

After this screen opens, the first field will be highlighted.

When a field is highlighted, tapping a number button will input that number, replacing the value previously in the field. After this, input numbers as on a calculator.

If a fourth digit is entered, the first digit entered will be removed. For example, if “1234” was entered, “1” will be removed.

Saving the current settings

The settings of the unit are saved to the internal memory at least once every minute.

To be certain that the unit settings are saved in the internal memory before turning the power off, use the Save Current Settings function explained below.

NOTE

After saving All System Data or storing snapshot, EQ and other library settings data, settings have already been output to the memory, so these operations are not necessary before turning the power off.

1.Press the MENU key to open the Menu Screen.

2.On the Menu Screen, show the Save Current Settings item.

3.Tap the Save Current Settings item to open a saving confirmation message to the right of the menu list.

4.Tap the SAVE button to save the unit’s settings to its internal memory.

The message shown below will appear while saving.

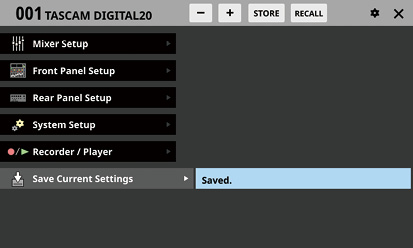

“Saved.” will momentarily appear after saving completes and then this message will disappear.

Port number	Assigned function
1	Fader Start/Stop \| CH29 \| Alternate \| NORMAL-Open
2	Fader Start/Stop \| CH31 \| Alternate \| NORMAL-Open
3	Fader Start/Stop \| CH33 \| Alternate \| NORMAL-Open
4	Fader Start/Stop \| CH35 \| Alternate \| NORMAL-Open
5	Fader Start/Stop \| CH37 \| Alternate \| NORMAL-Open
6	Fader Start/Stop \| CH39 \| Alternate \| NORMAL-Open
7	Fader Start/Stop \| STIN1 \| Alternate \| NORMAL-Open
8	Fader Start/Stop \| STIN2 \| Alternate \| NORMAL-Open

Menu item	Sub menu item	Functions	Page
Mixer Setup	Meter	View various meters and set various meter display parameters	METER screen

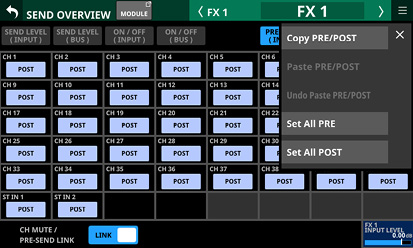

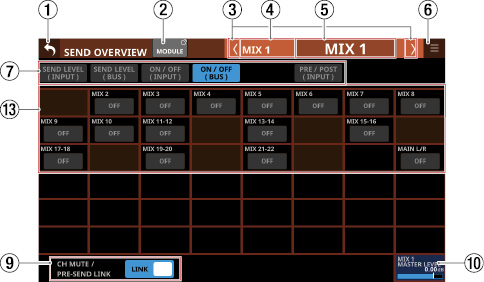

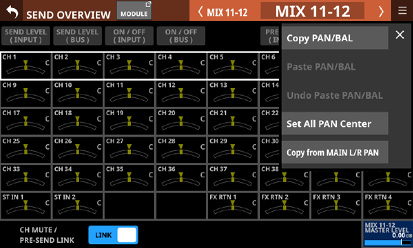

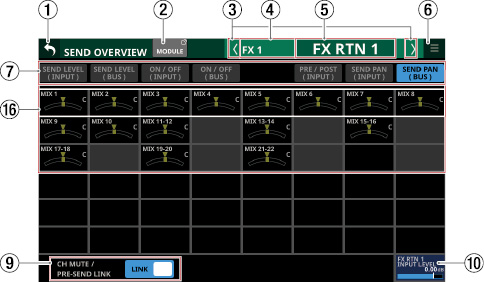

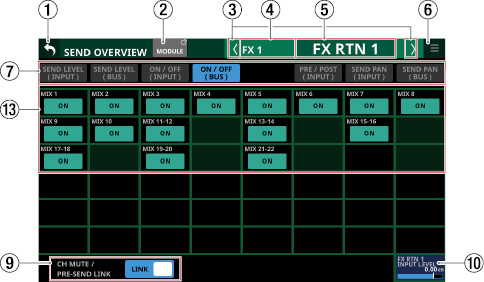

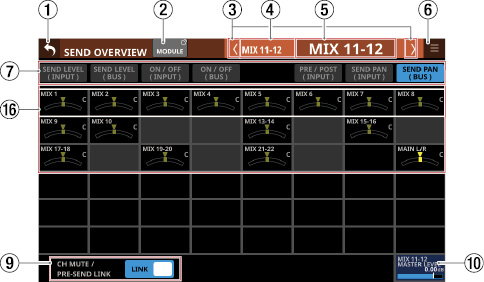

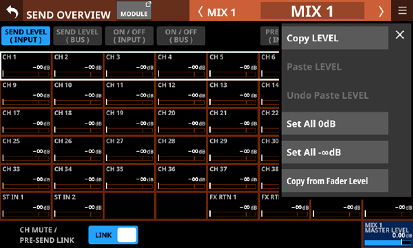

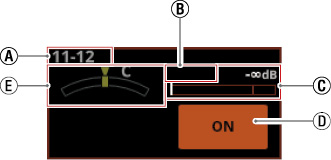

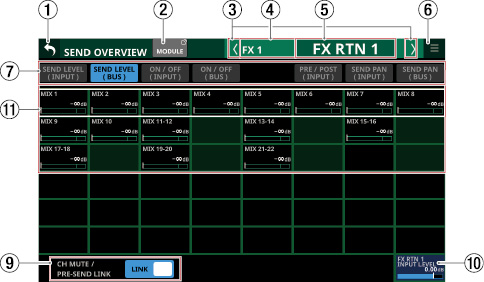

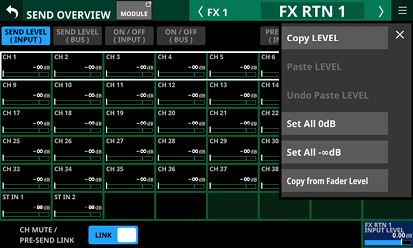

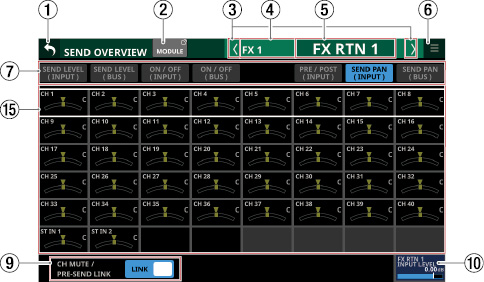

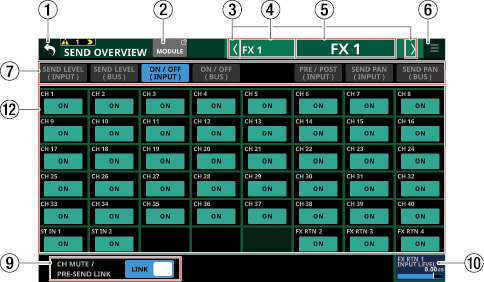

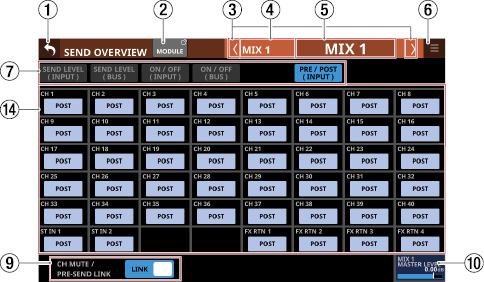

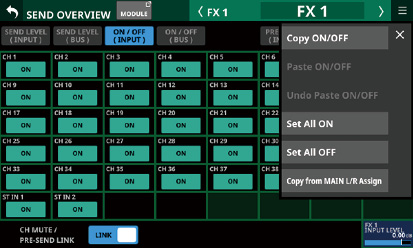

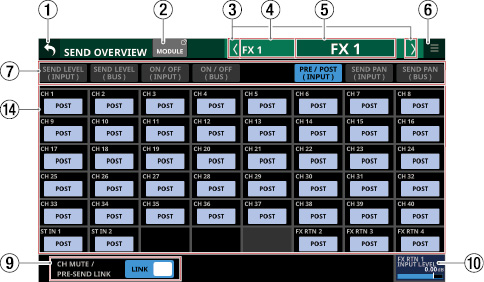

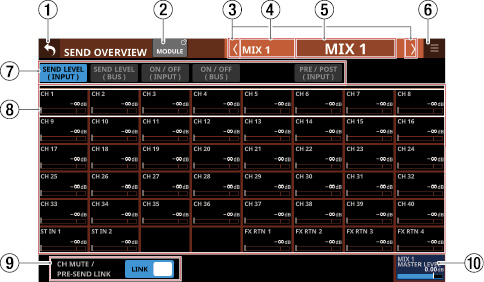

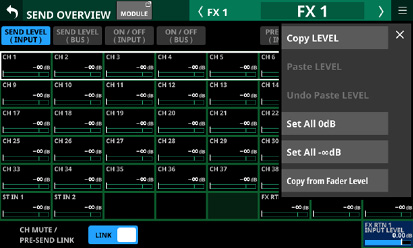

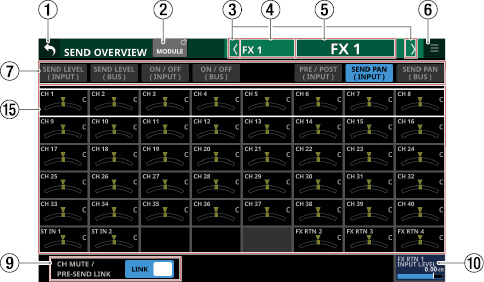

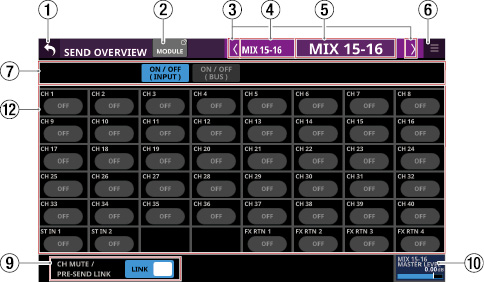

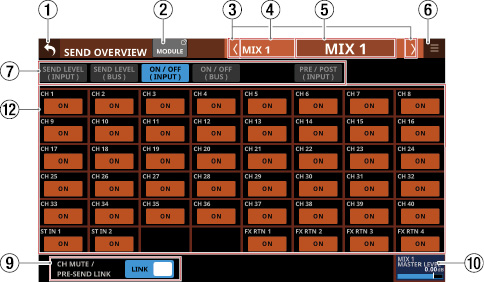

	MIX Send Overview	View and use a list of MIX 1–22 / FX 1–4 / MAIN L/R bus send settings	MIX 1–22 bus SEND OVERVIEW Screen

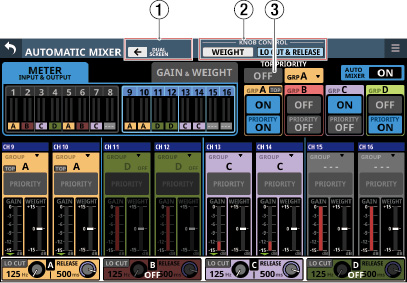

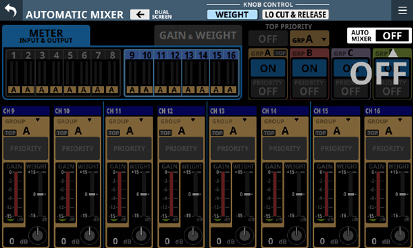

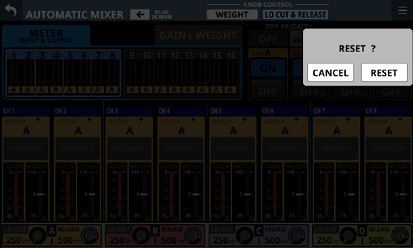

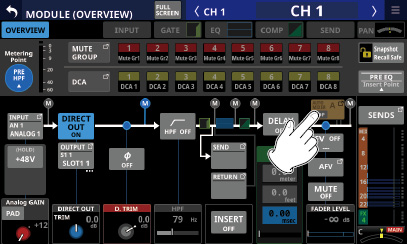

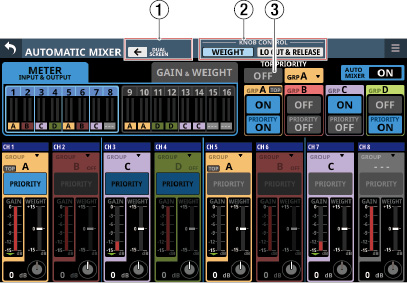

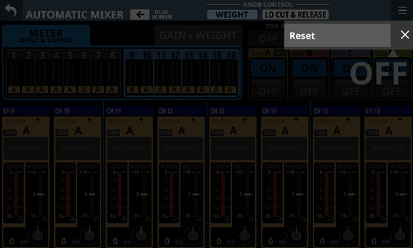

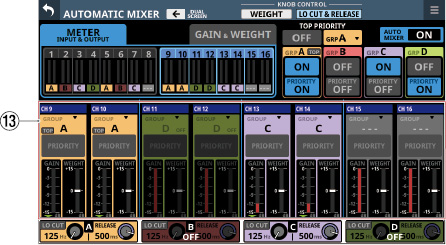

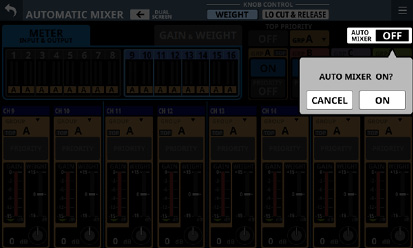

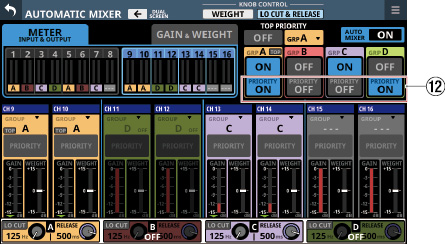

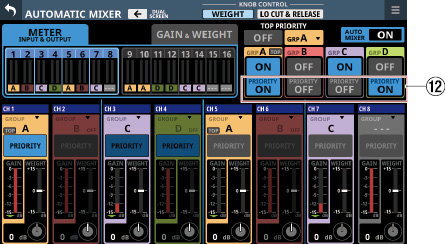

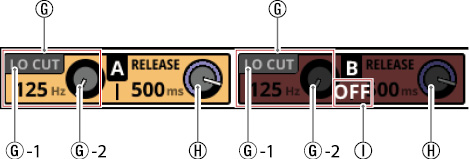

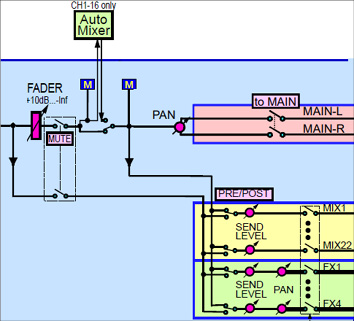

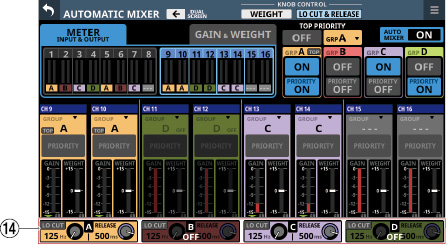

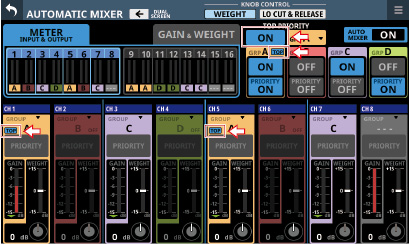

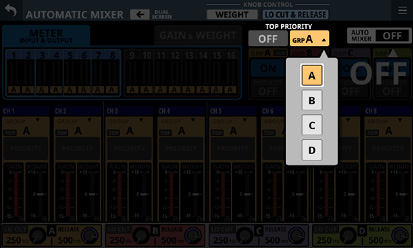

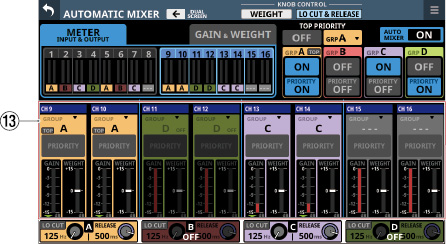

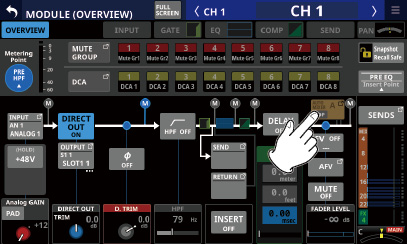

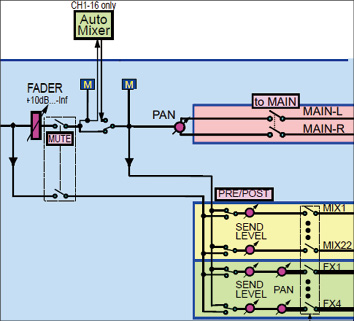

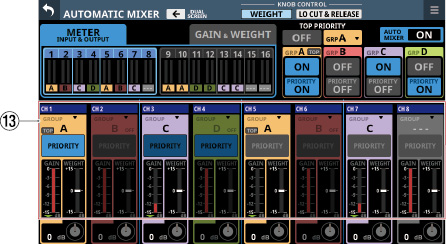

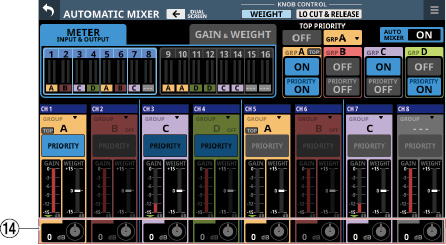

	Automatic Mixer	AUTO MIXER settings	AUTO MIXER Function

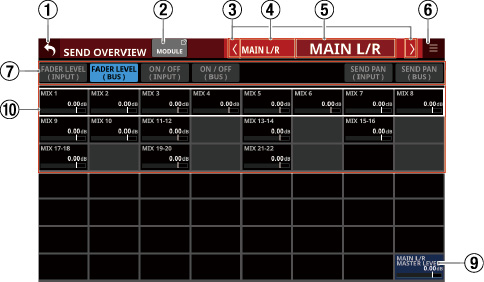

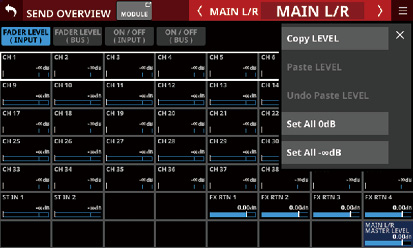

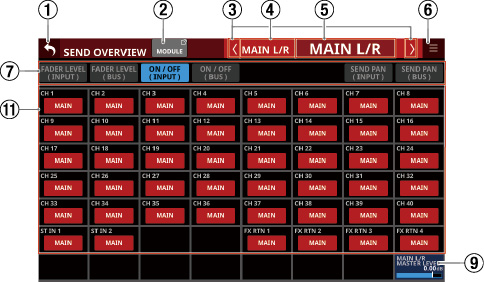

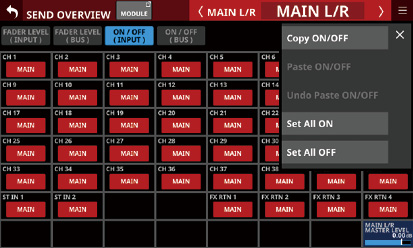

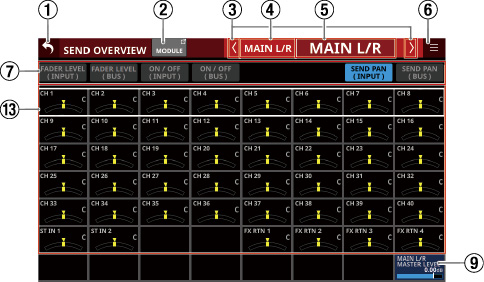

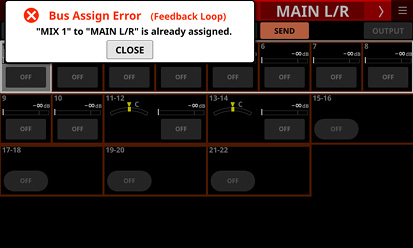

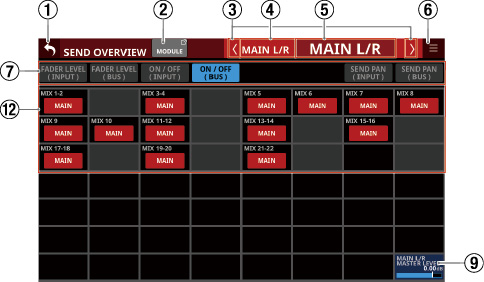

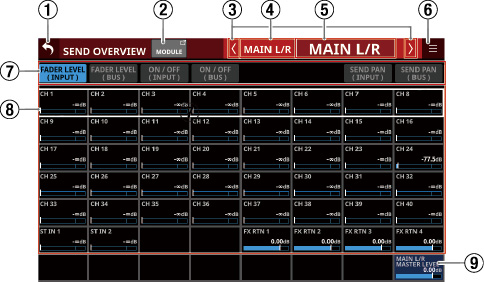

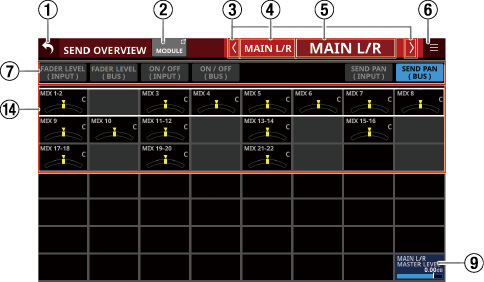

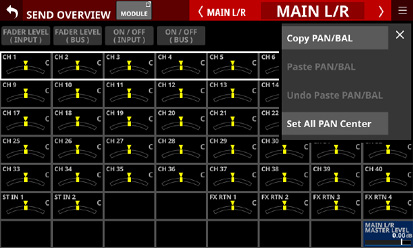

	Main L/R Assign Overview	View and use a list of MAIN L/R bus assignment states	MAIN L/R bus SEND OVERVIEW Screen

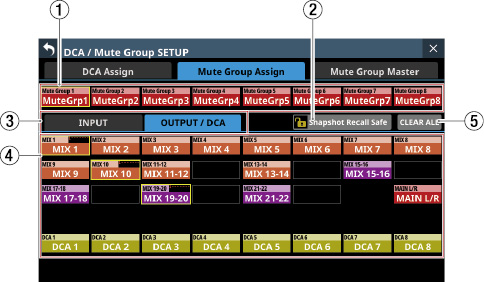

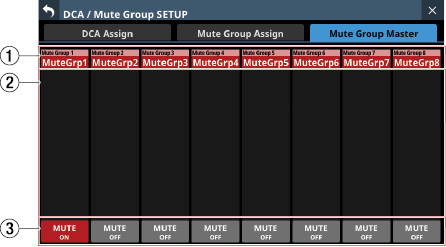

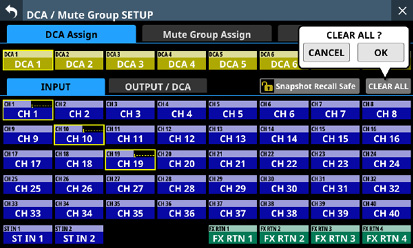

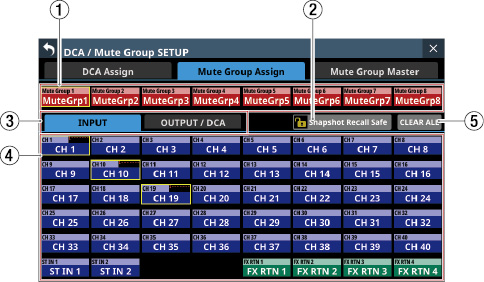

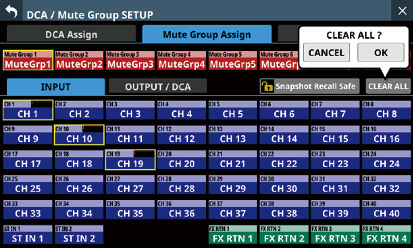

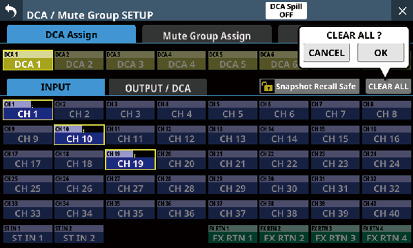

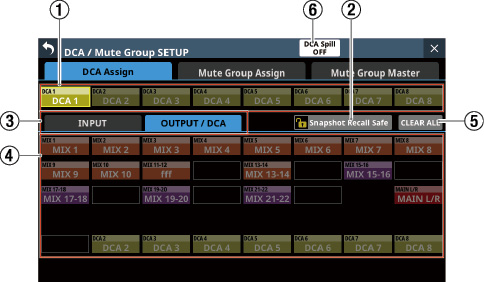

	DCA / Mute Group	Make the following settings DCA assignments Mute Group assignments Turn Mute Group Master on/off	DCA/Mute Group SETUP screen
	Talkback / Monitor / Solo / OSC	TALKBACK / RETURN TALKBACK / MONITOR output / SOLO / built-in oscillator settings	Making talkback settings
			RETURN TALKBACK settings
			Making monitor output settings
			Making solo and built-in oscillator settings

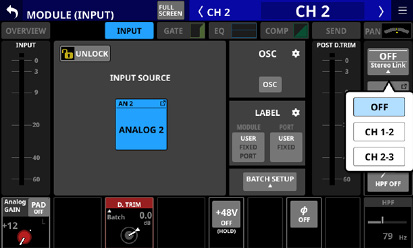

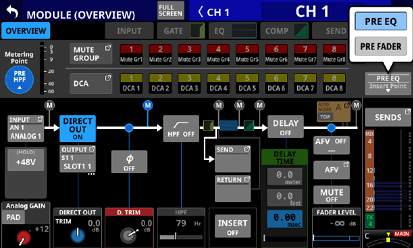

	Config Mixer / Location / Bus	Make the following settings CH 1–40 stereo link settings DIRECT OUT POINT settings DELAY POINT settings INSERT POINT unified settings Location setting BUS MODE settings MIX 1–22 stereo link settings PAN LINK settings	MIXER CONFIG screen
	Label Setup	Label settings for input/output ports	LABEL SETUP screen

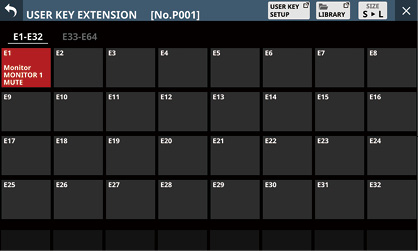

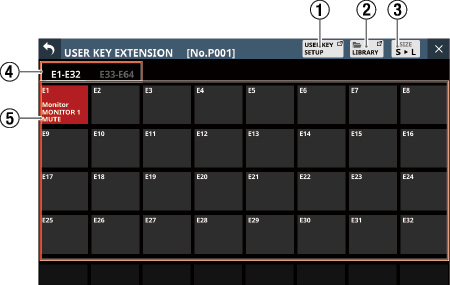

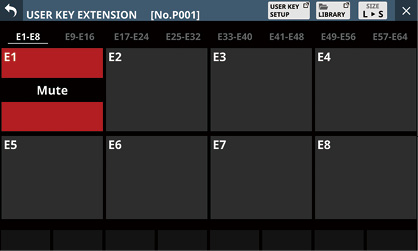

Front Panel Setup	User Key Setup	Assign functions to the 18 USER KEYS	User Key page
	Layer / Master Fader Setup	Make the following settings Assign channel sets and custom layers to the 7 LAYER KEYS Assign module groups to custom layers Assign modules to the MASTER fader	Layer Key SETUP page
	Talkback Setup	Make talkback settings	Making talkback settings
	Brightness	Set the brightness of the various displays	PREFERENCES screen

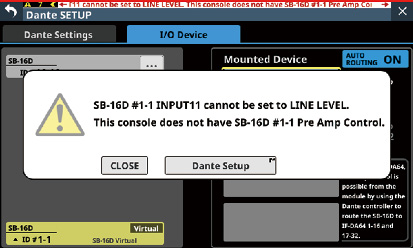

Rear Panel Setup	Dante Setup	Set and view the status of the built-in Dante module and an SB-16D connected via the built-in Dante module	Dante SETUP screen

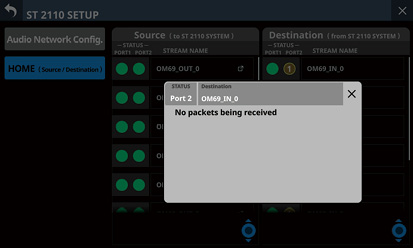

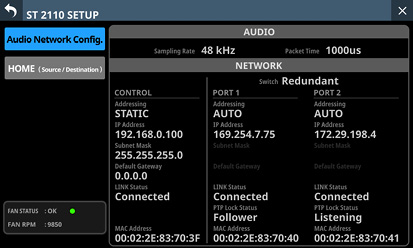

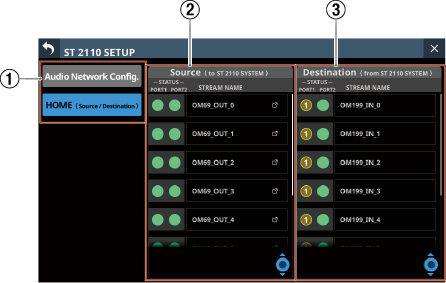

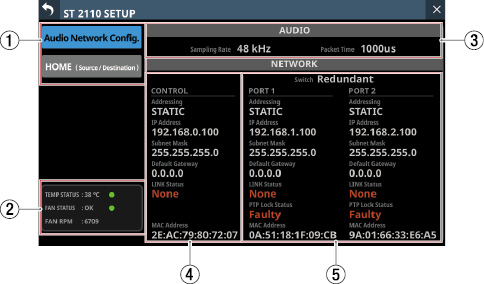

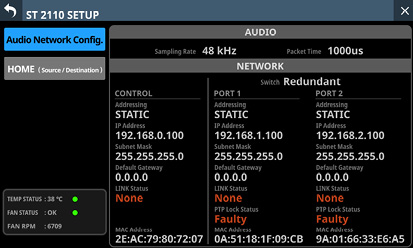

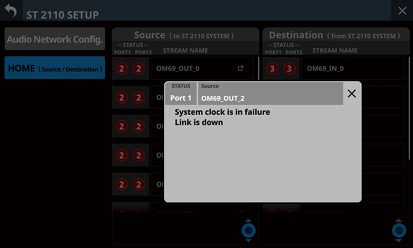

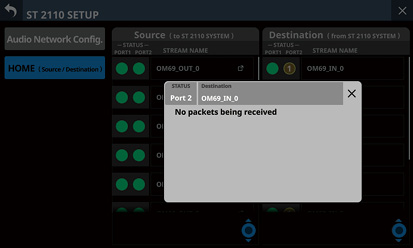

	ST 2110 Setup	View the settings and states of IF-ST2110 cards installed in SLOT 1 or SLOT 2 on the rear panel. NOTE In the following circumstances, this sub menu item will appear gray and the ST 2110 Setup Screen will not open even if it is tapped. When no IF-ST2110 is installed When the IF-ST2110 is being initialized	13 - IF-ST2110 expansion cards
	Slot Setup	Set various functions of expansion cards loaded in SLOT 1 and SLOT 2	SLOT SETUP screen
	WORD OUT Mode Setup	Make WORD OUT jack output mode settings	SYNC CLOCK screen
	Network Setup	Make Network settings	Network Setup screen
	FOOT SW Setup	Assign footswitch functions	Foot Switch page
	GPIO Input Setup	Assign functions to the GPIO input connector	GPIO-IN page
	GPIO Output Setup	Assign functions to the GPIO output connector	GPIO-OUT page
	LAMP Dimmer Setup	Set the brightness of the lamp connected to the LAMP jack on the back of the unit	PREFERENCES screen

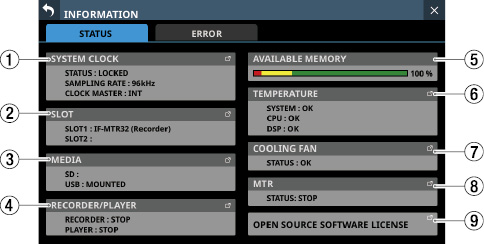

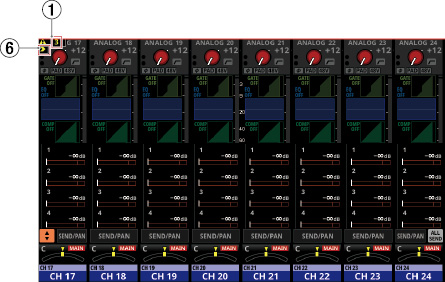

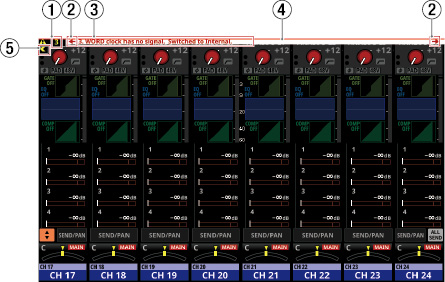

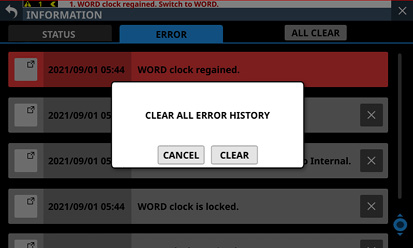

System Setup	Information	View the state of the unit and error information	INFORMATION Screen
	Sync Clock	Make the following settings Sampling frequency Master clock Output mode of word clock output connector	SYNC CLOCK screen
	Preferences	Make the following settings USB Keyboard type setting Confirmation when storing/recalling snapshots Reference level Cooling fan operation mode and speed Brightness of various displays Contrast of channel screens	PREFERENCES screen

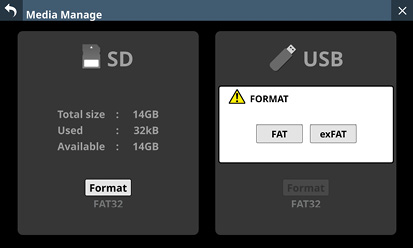

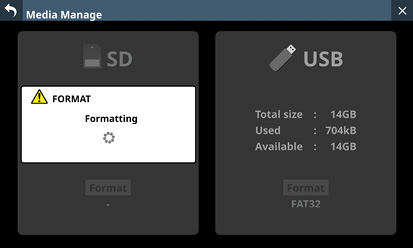

	Media Manage	Display and format media data	Media Manage Screen

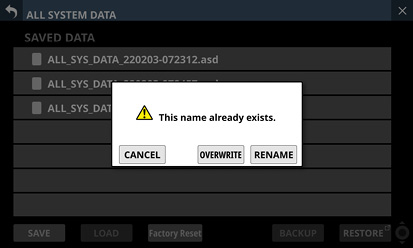

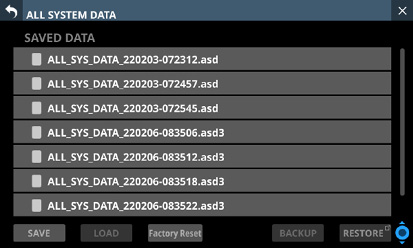

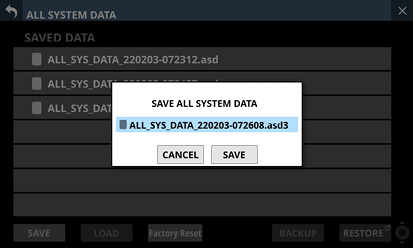

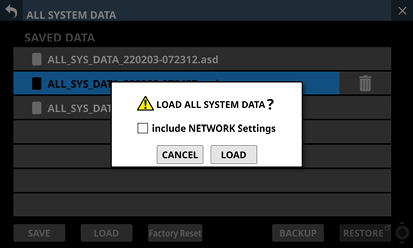

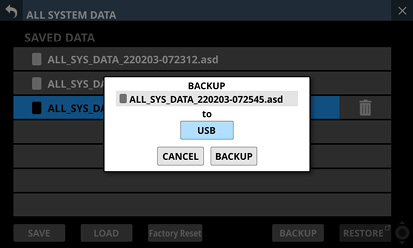

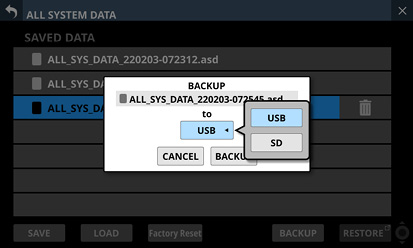

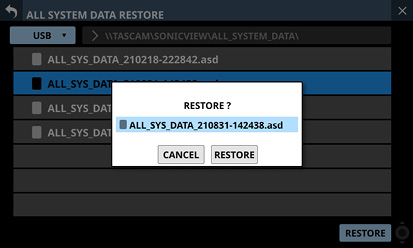

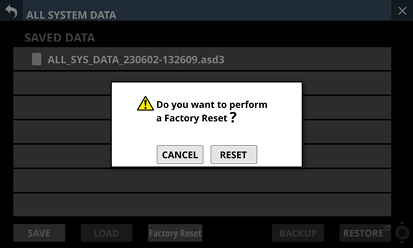

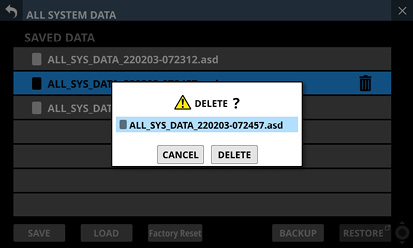

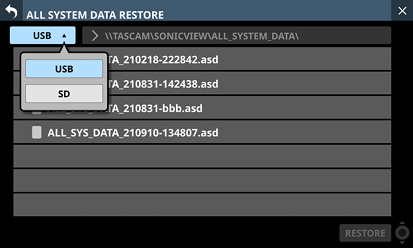

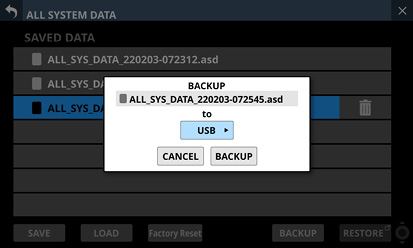

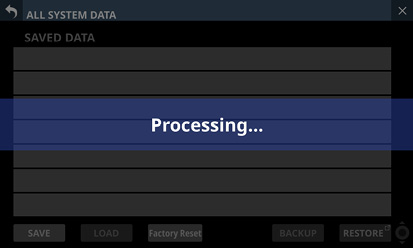

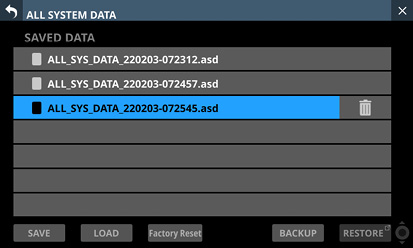

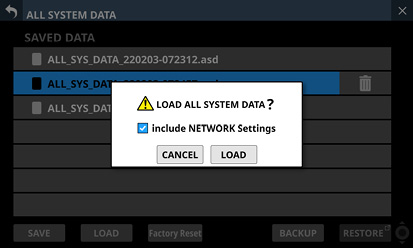

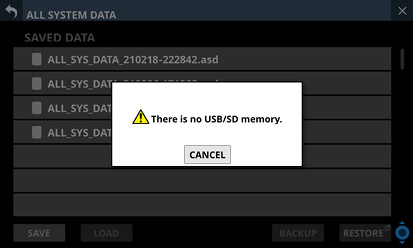

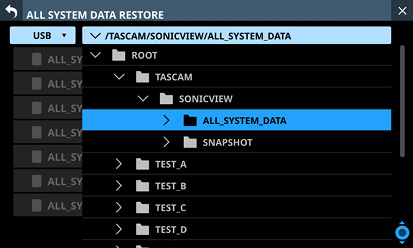

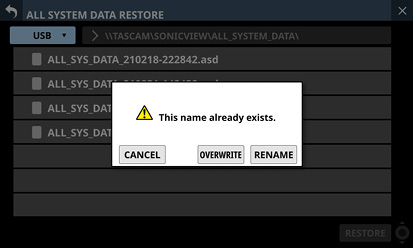

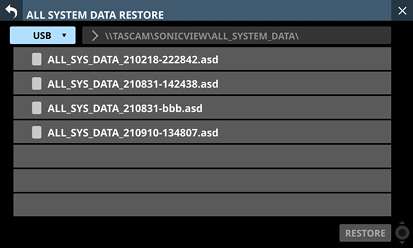

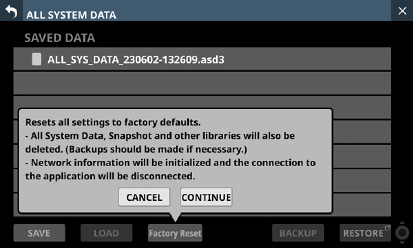

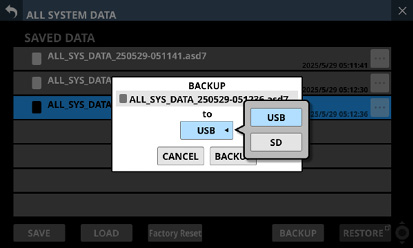

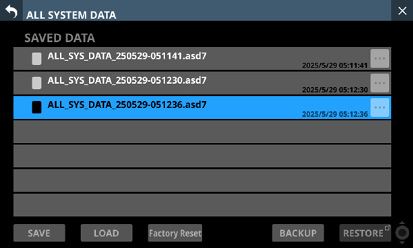

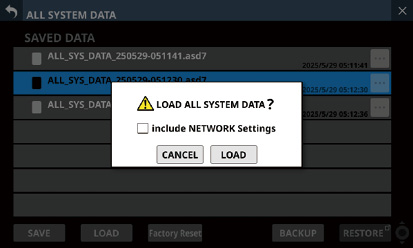

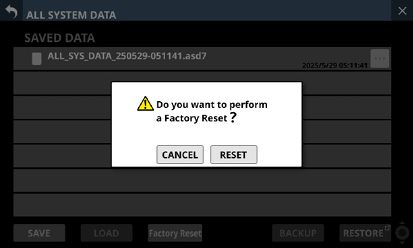

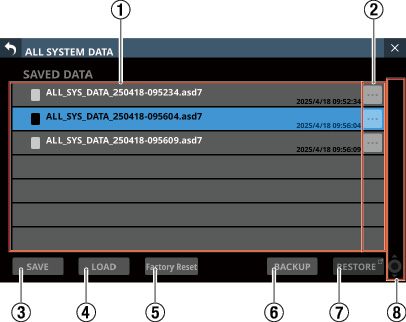

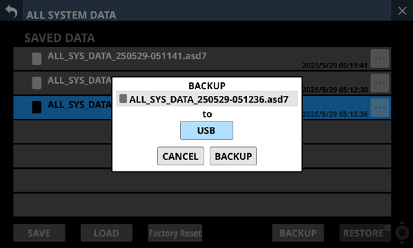

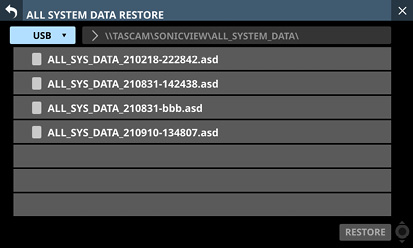

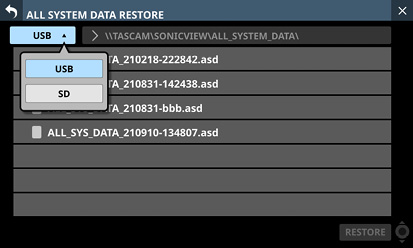

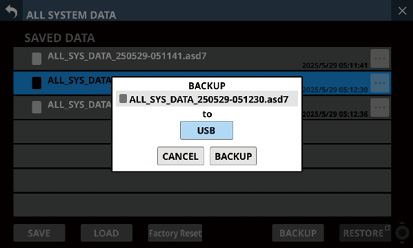

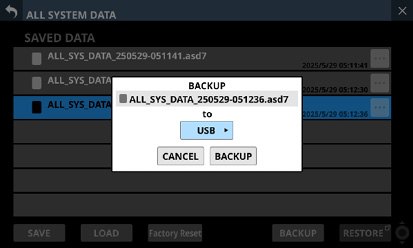

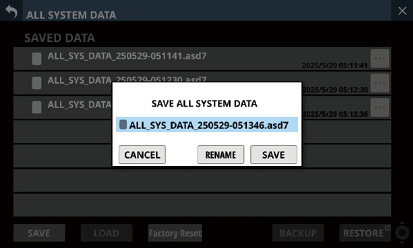

	All System Data	Save, load, back up and restore data for entire mixer	All System Data screen

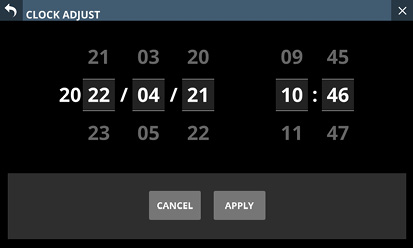

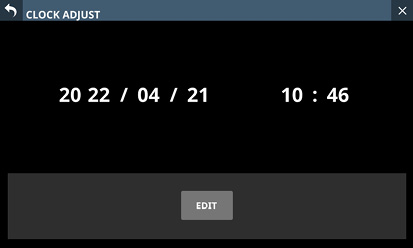

	Clock Adjust	Set date and time of built-in clock	Setting the built-in clock date and time
	Version Information	View system version information	Version Information Screen

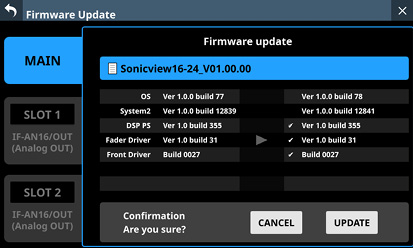

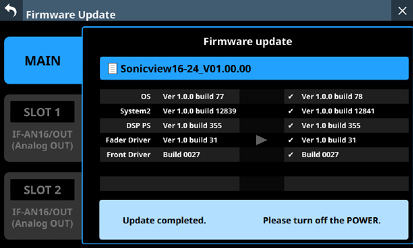

	Firmware Update	Update the firmware	Firmware update procedures

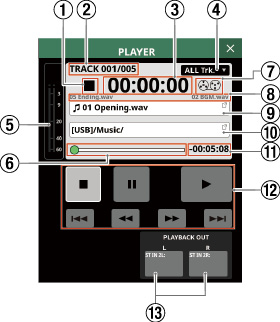

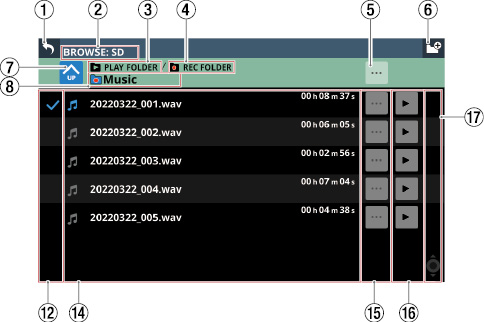

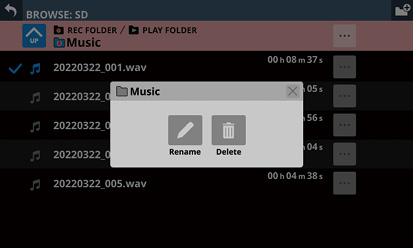

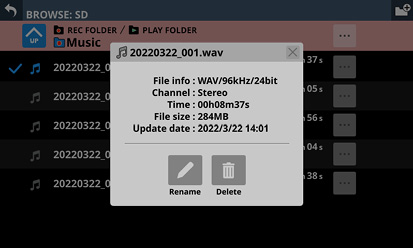

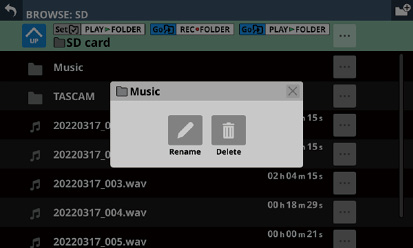

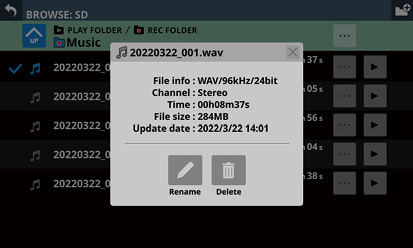

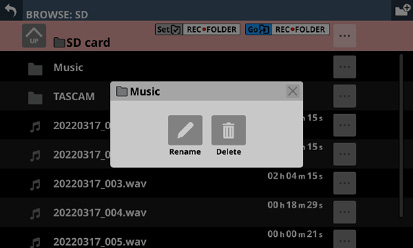

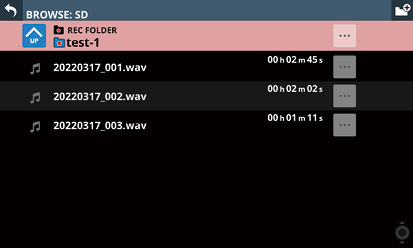

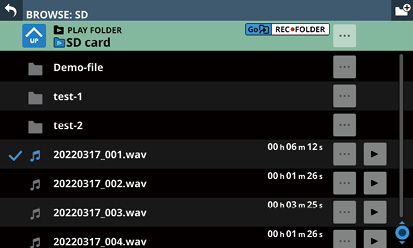

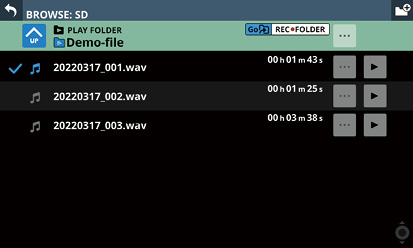

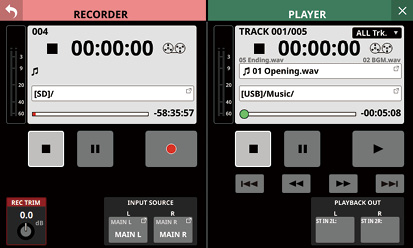

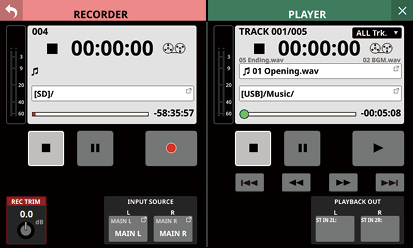

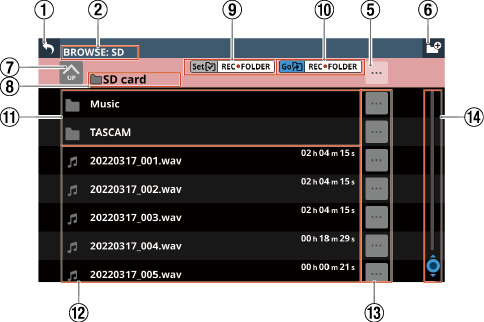

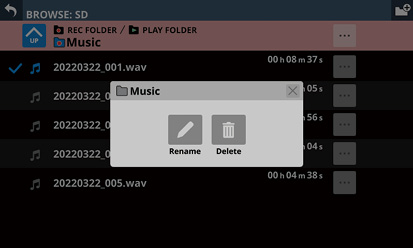

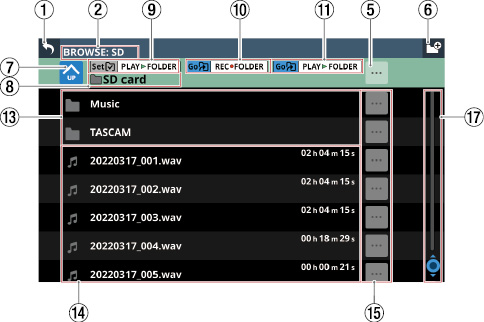

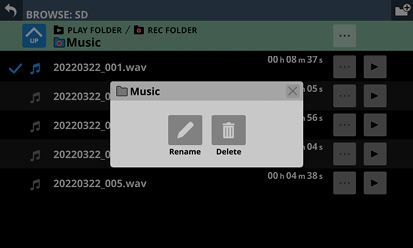

Recorder / Player	Recorder / Player	Use built-in recorder/player	10 - Recording and playback

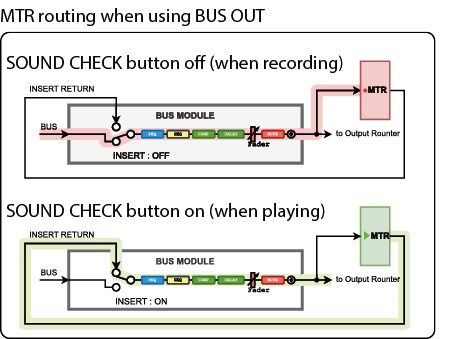

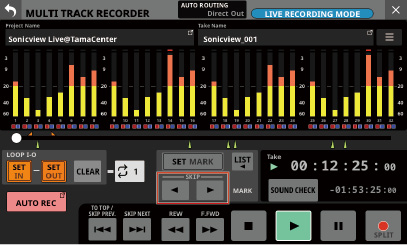

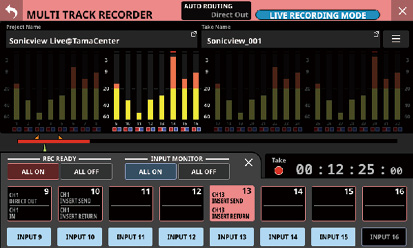

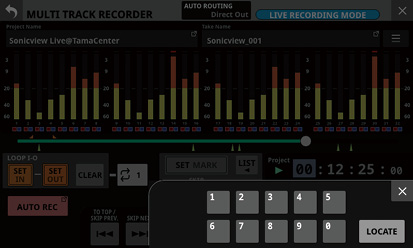

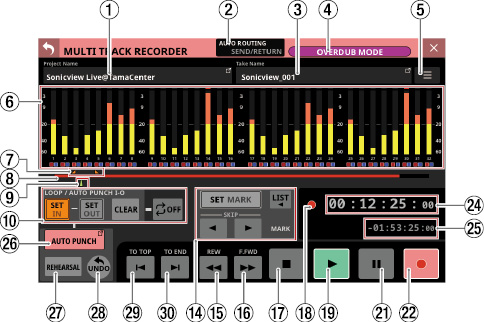

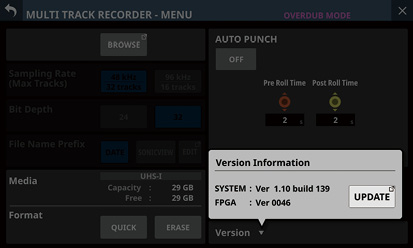

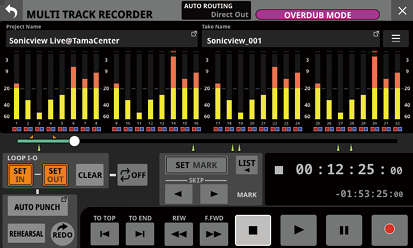

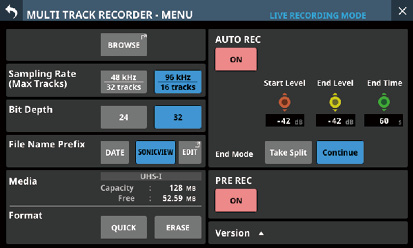

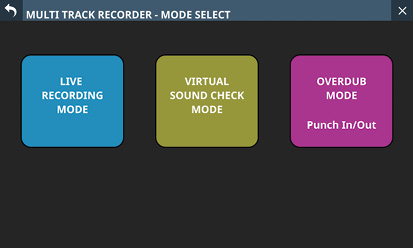

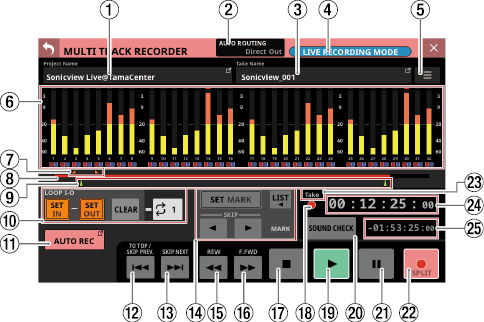

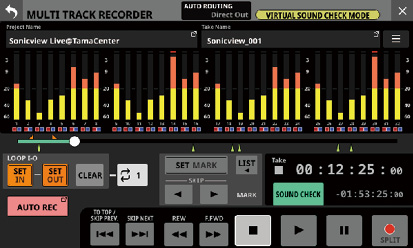

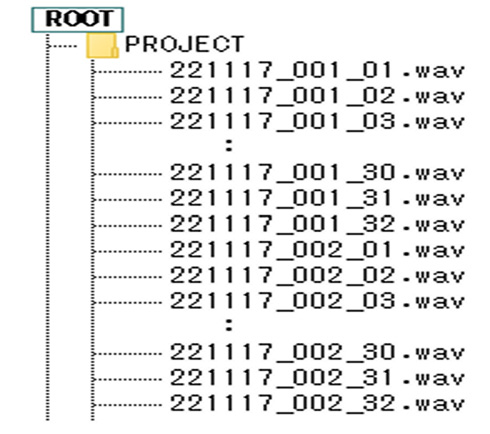

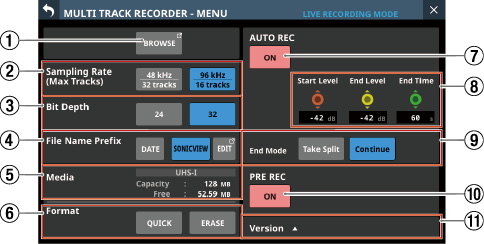

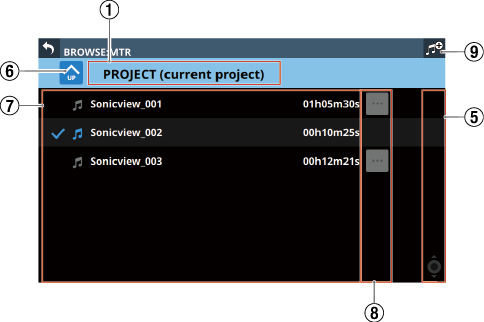

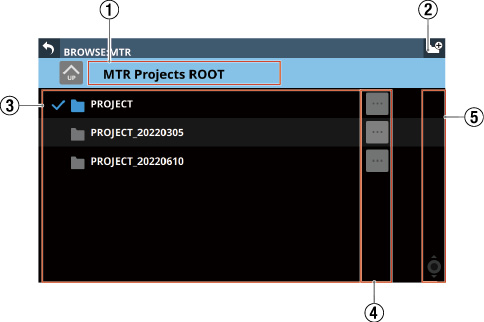

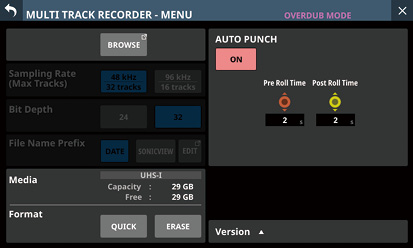

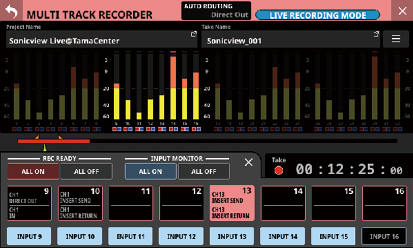

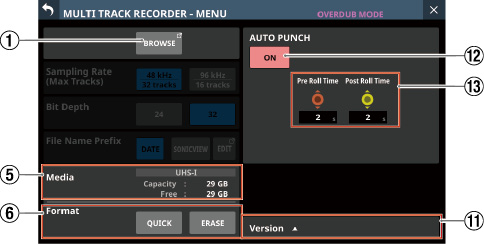

Recorder / Player	Multi Track Recorder	Use IF-MTR32 (multitrack recording) card installed in SLOT 1 or SLOT 2 on the rear panel NOTE In the following circumstances, this sub menu item will appear gray and the MULTI TRACK RECORDER Screen will not open even if it is tapped. When no IF-MTR32 is installed When the IF-MTR32 is being initialized	12 - Multitrack Recorder
Save Current Settings		Save current mixer settings in built-in memory (We recommend doing this before turning the unit off)	Saving the current settings

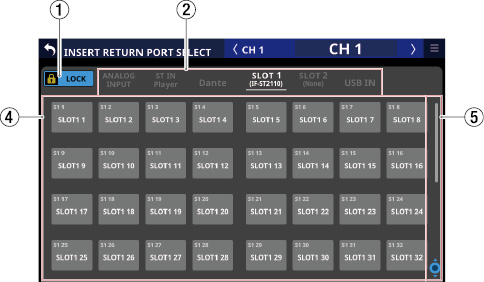

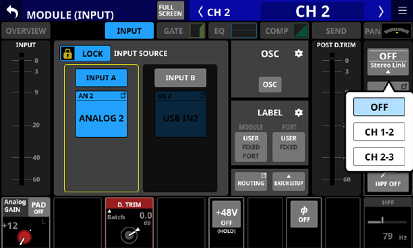

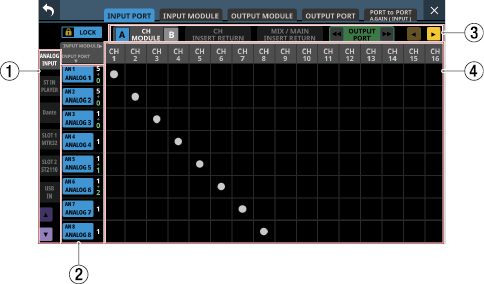

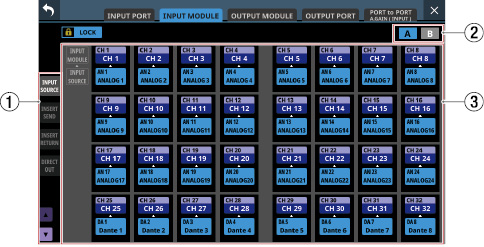

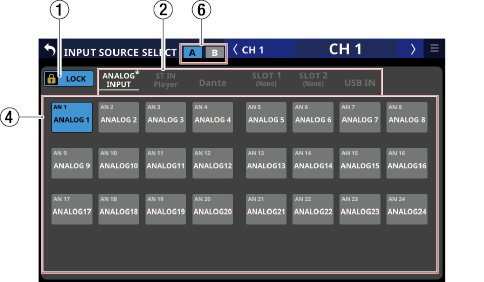

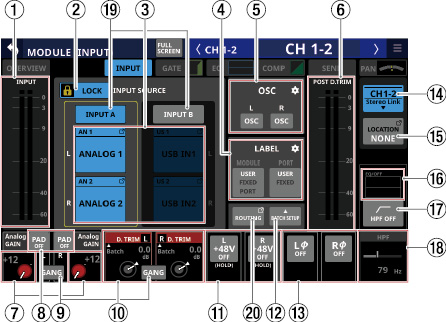

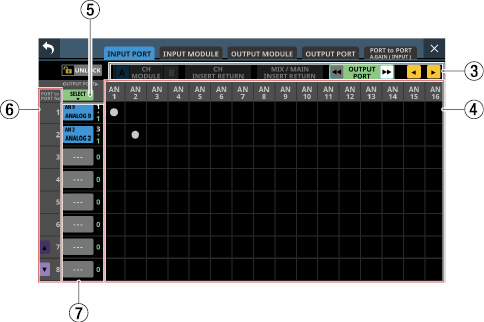

Module name shown	Stereo module name shown
ANALOG	AN
Dante	DA
SLOT 1	S1
SLOT 2	S2
USB IN	USB
ST IN 1	ST1
ST IN 2	ST2
PLAYER	PL
SB-16D	SB

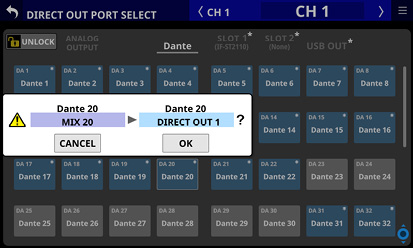

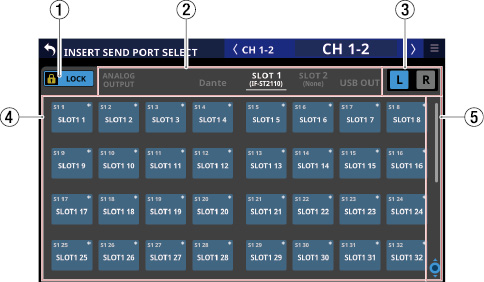

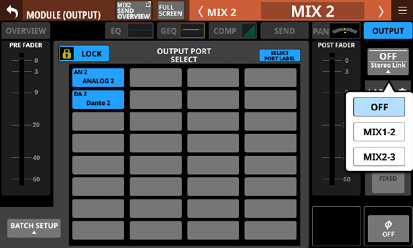

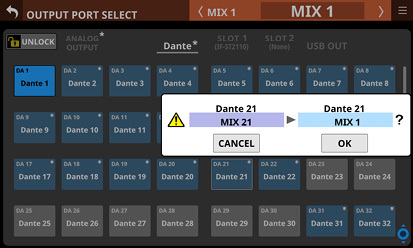

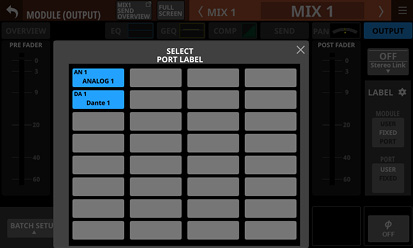

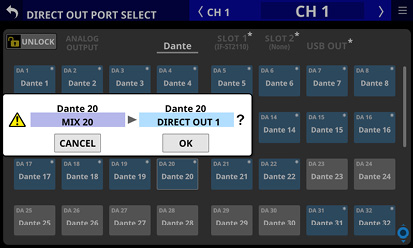

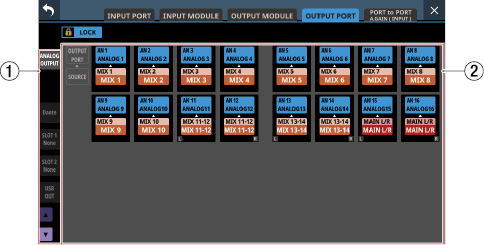

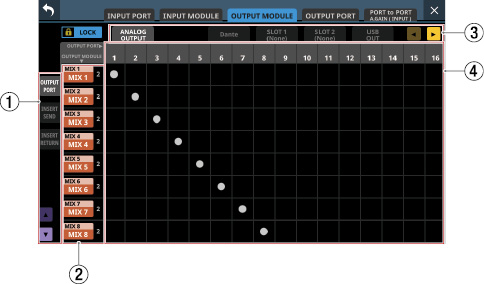

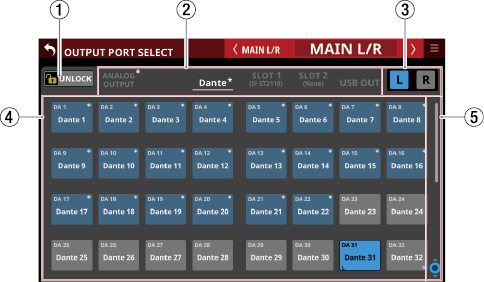

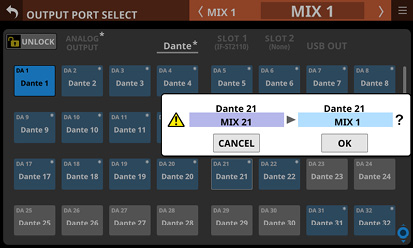

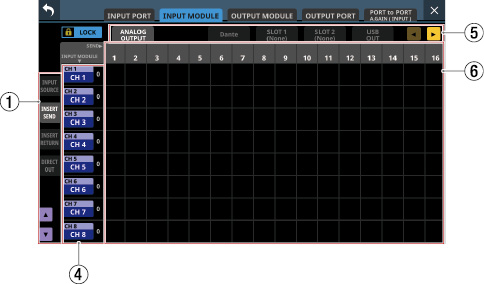

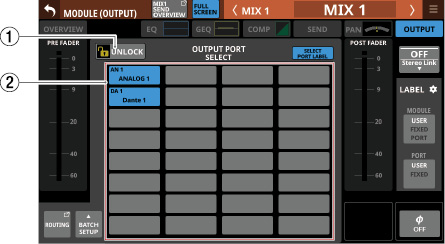

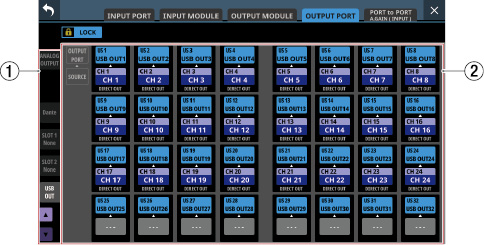

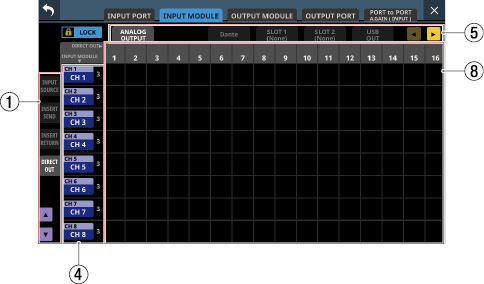

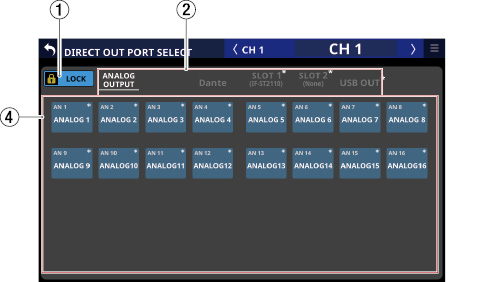

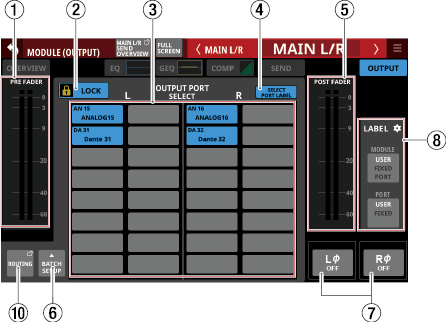

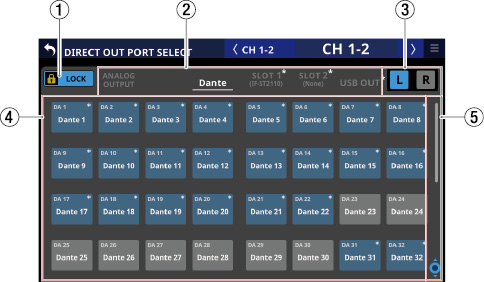

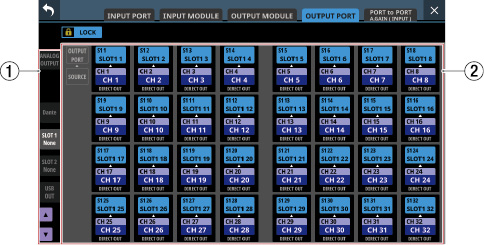

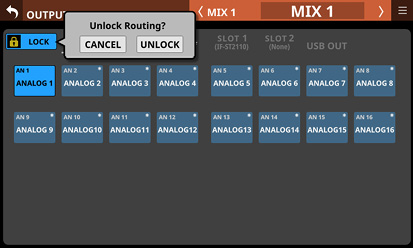

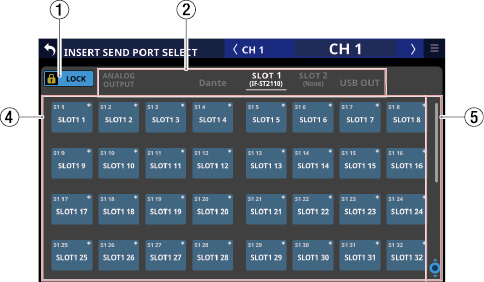

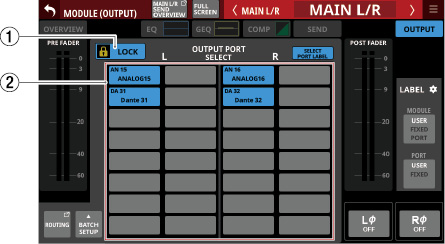

Page name	Contents
ANALOG OUTPUT	Select analog output ports.

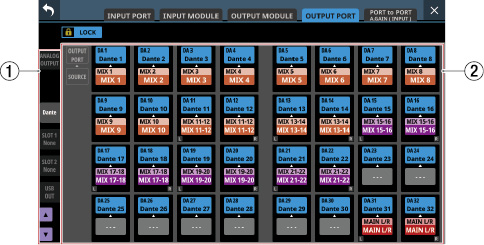

Dante	Select built-in Dante output ports.
SLOT 1	Select the output ports of the expansion card installed in SLOT 1.

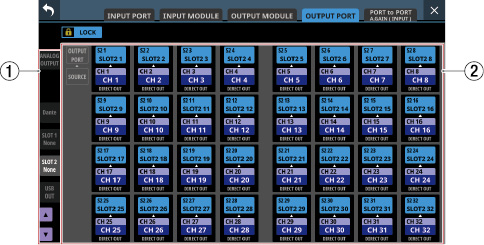

SLOT 2	Select the output ports of the expansion card installed in SLOT 2.
USB OUT	Select USB audio interface output ports.
